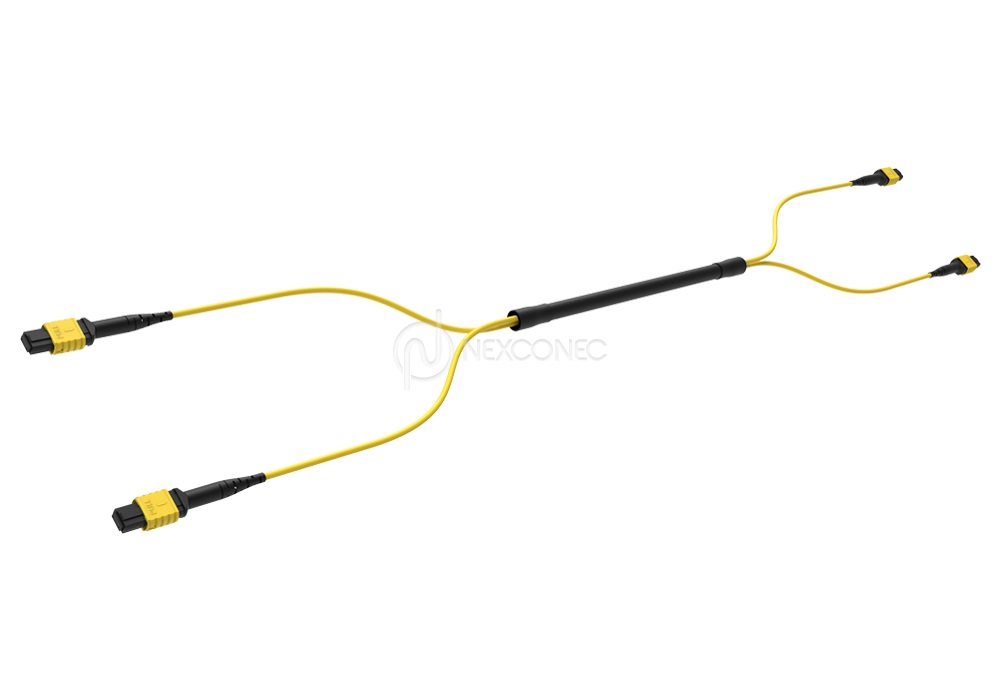

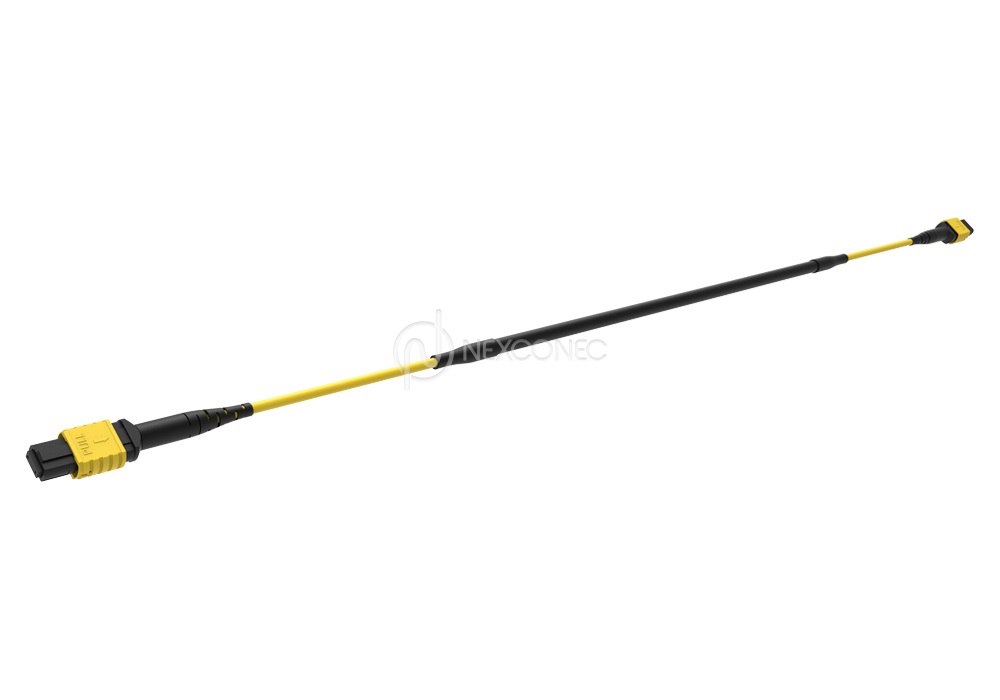

MTP®/MPO Trunks Outdoor

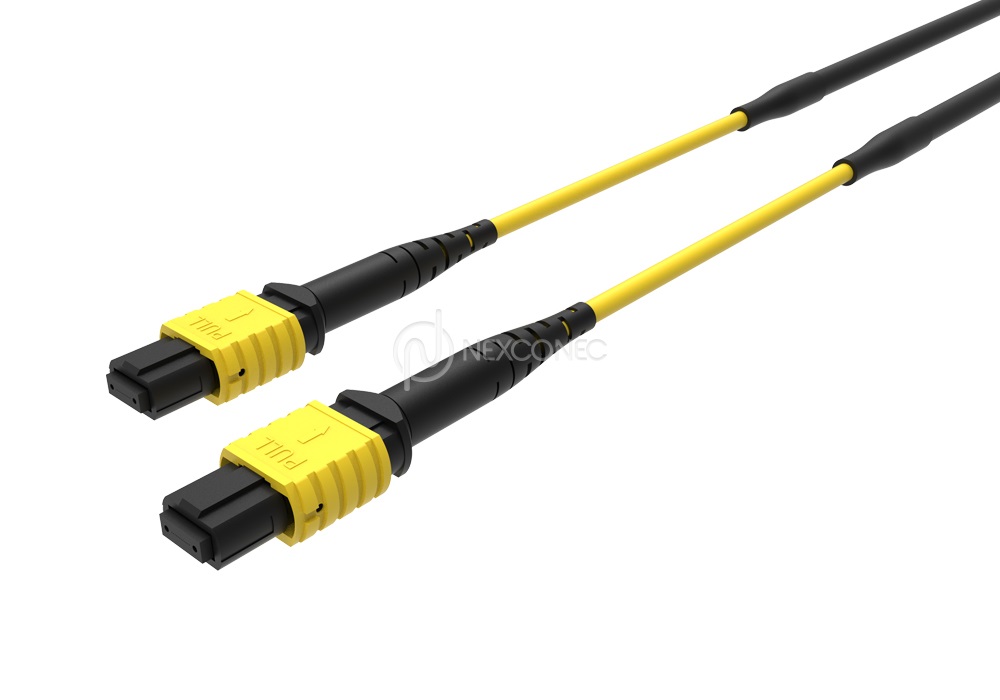

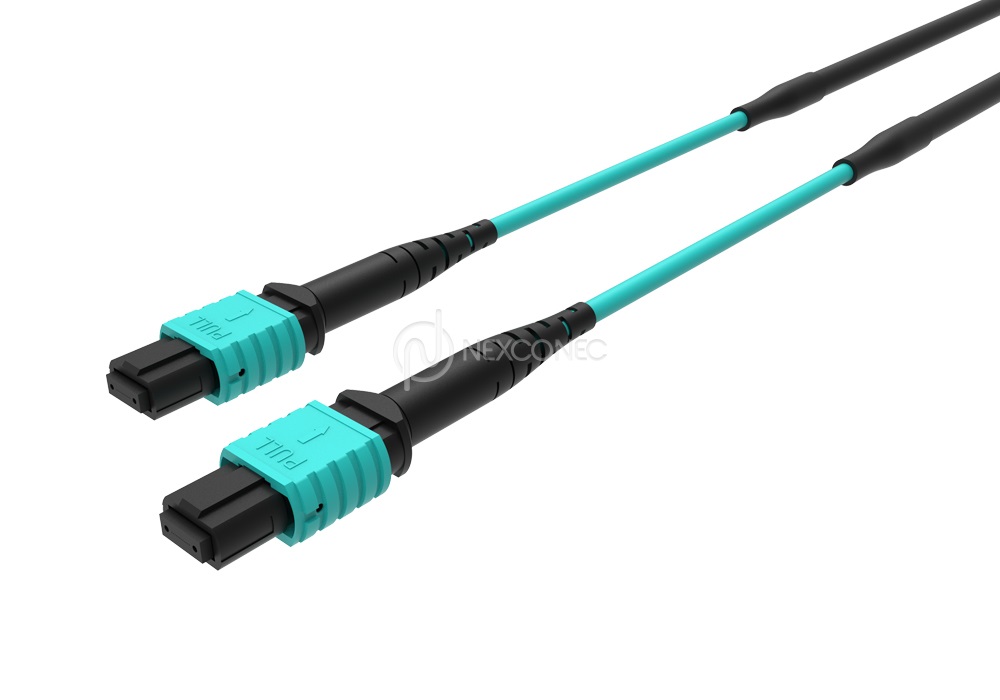

NEXCONEC Outdoor MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are suitable for up to 100G applications to connect between equipment’s or to interconnect modules/panels in a data center. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality

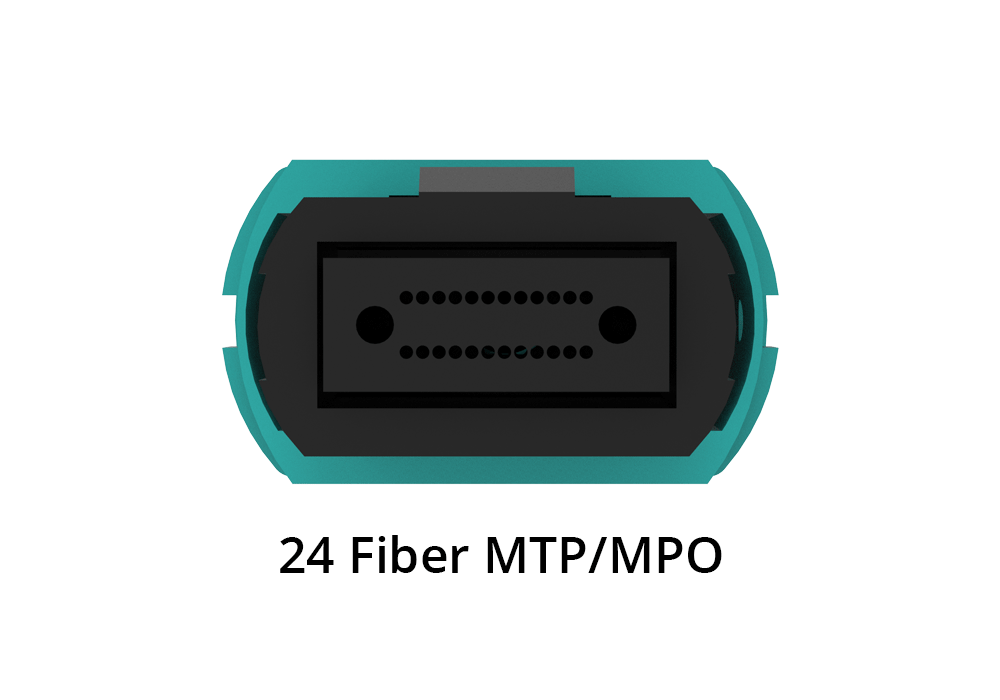

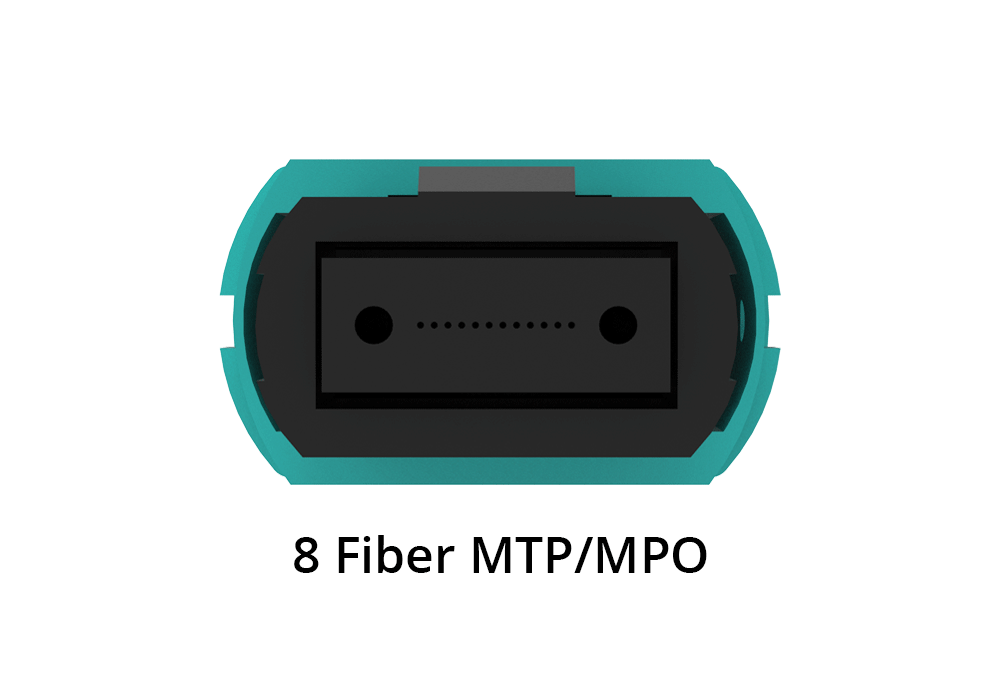

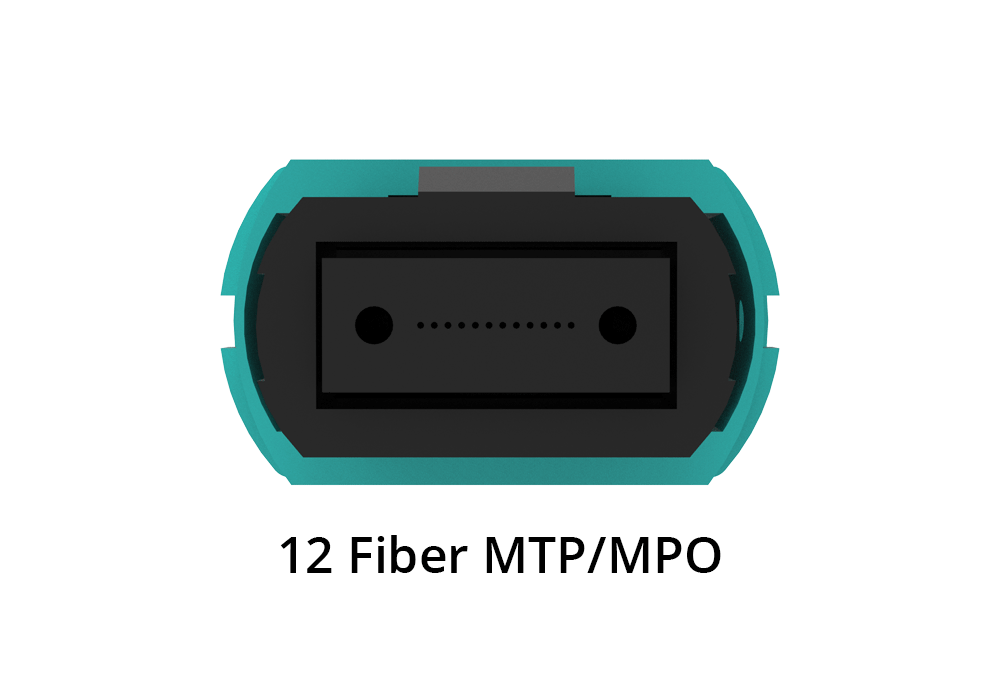

- Cable terminated with base-8, base-12, base-24 fiber MTP/MPO Connectors

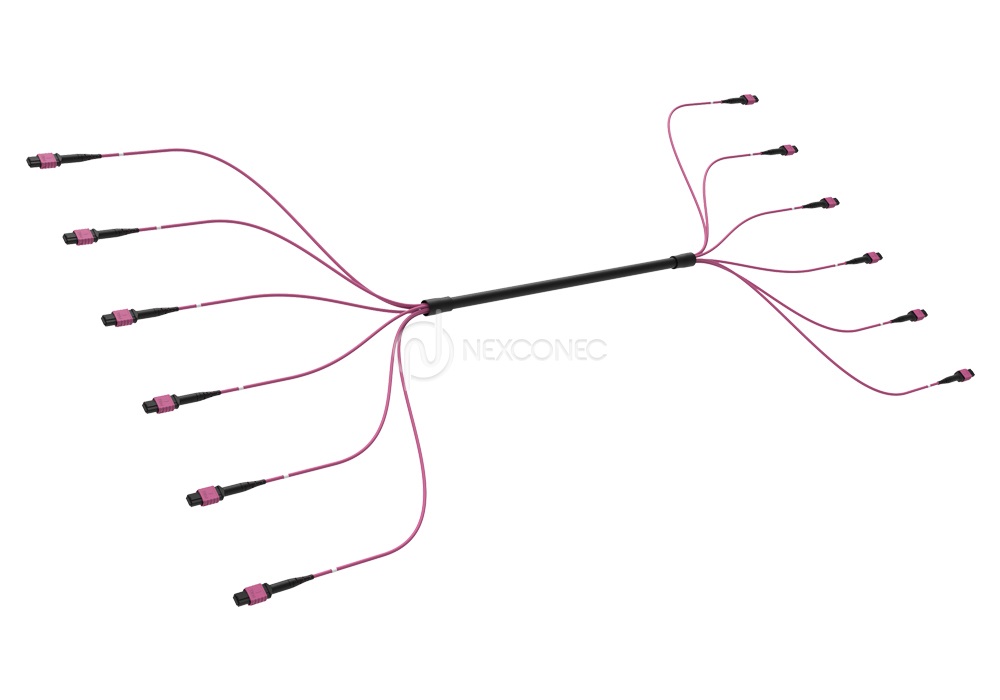

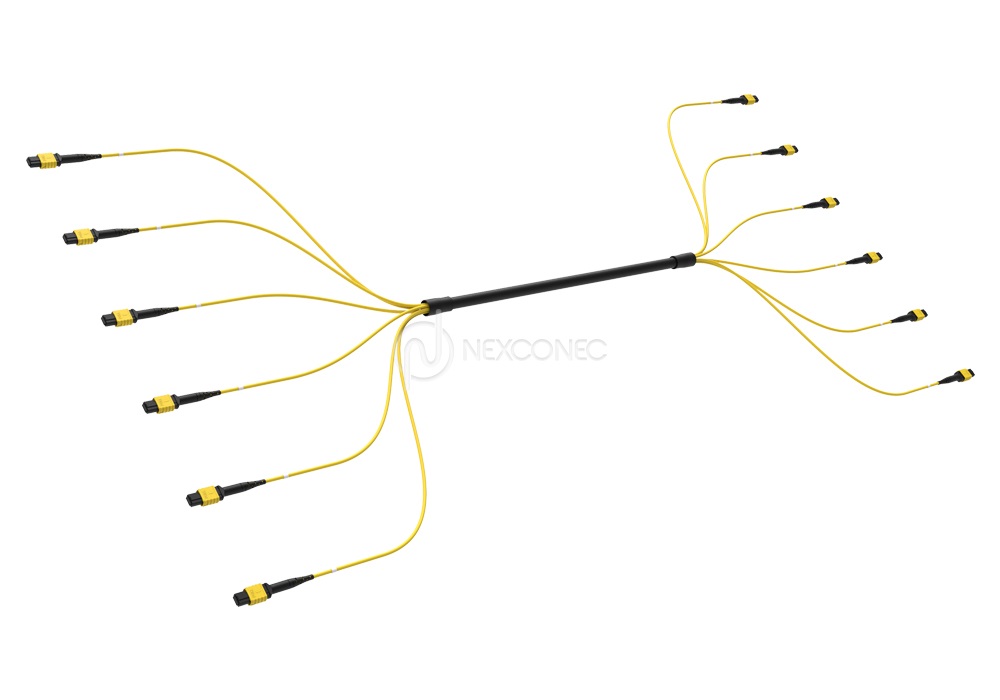

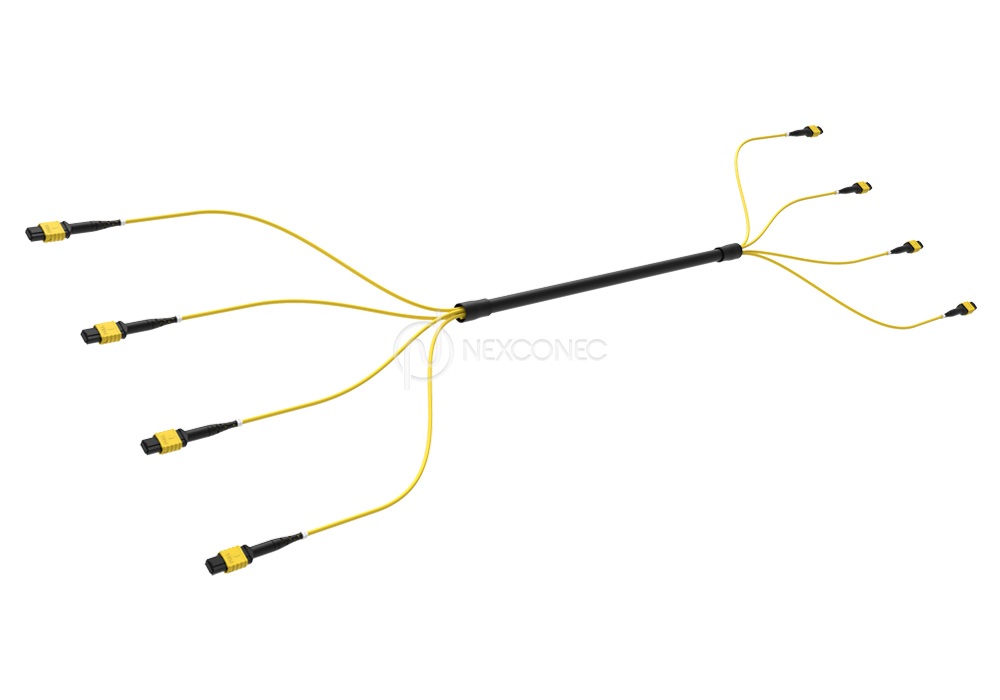

- Available in custom length and cable construction from 8 to 144 fibers
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Supports up to 100G applications
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM – Standard | 0.75 dB | 0.25 dB | > 60 dB |
| SM – Premium | 0.35 dB | 0.10 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.20 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.10 dB | > 20 dB |
| Cable Characteristics | Units | Value |
|---|---|---|
| 11111 | 22222 | 33333 |
