Multi Loose Tube Armored CST Fiber Cable

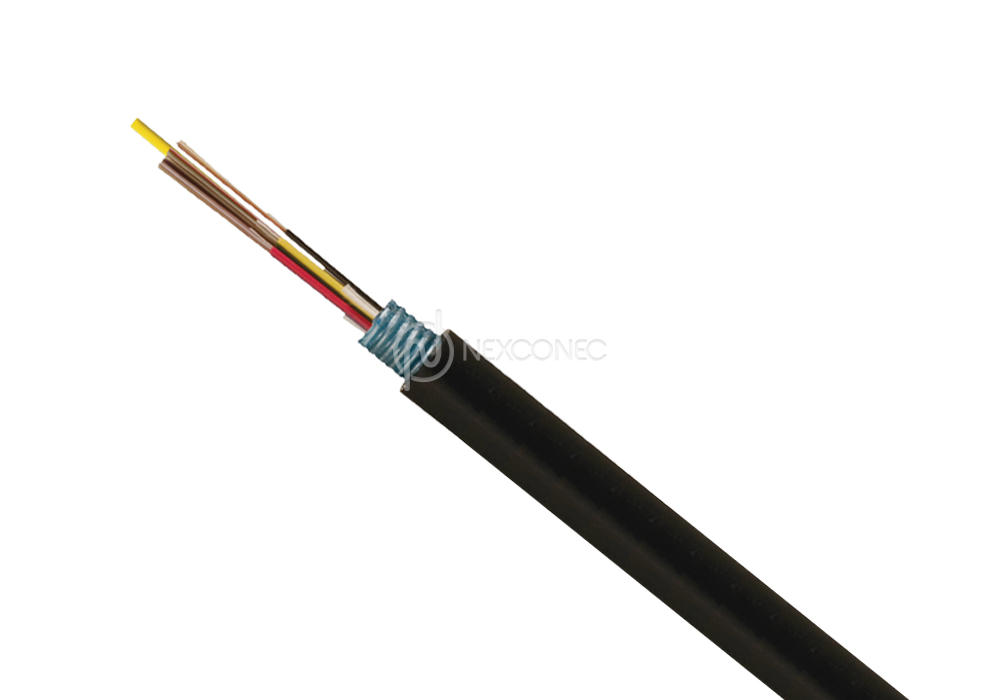

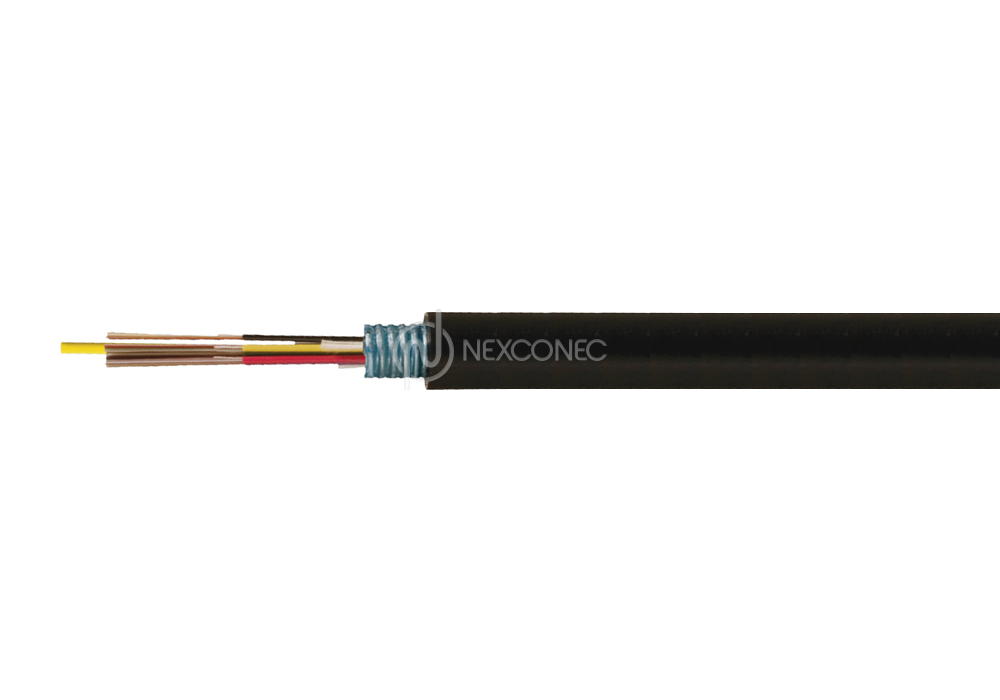

NEXCONEC® Corrugated Steel Tube Armored Multi Loose Tube is made of multiple single gel filled PBT tubes and each tube consists of 12, 250μm optical fibers, the tubes are surrounded with longitudinally applied E-glass non-metallic strength members, Corrugated Steel Tube (CST) armor and UV resistant LSZH or HDPE jacket.
FEATURES AND APPLICATIONS
- Up to 288 fibers available
- Standard SM and MM options available
- High crush resistance
- High water-resistant ability
- UV resistant outer jacket
- Conforms to IEC standard
- Suitable for external duct applications
- Suitable for environments where rodent resistance is required
- Ideal for extra building links
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Fiber Count | 24FO | 48FO | 72FO | 96FO | 144FO | 288FO | |
| Outer Diameter | mm | 12.0 | 12.0 | 12.5 | 14.1 | 17.1 | 19.7 |
| Loose Tube Diameter | mm | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 2.3 |
| Number of Fibers per Tube | 12 | 12 | 12 | 12 | 12 | 12 | |
| Number of Loose Tubes | 2 | 4 | 6 | 8 | 12 | 24 | |
| Number of Fillers | 2 | 0 | 0 | 0 | 0 | 0 | |
| Tensile Strength (Long Term) | N | 600 | 900 | ||||
| Tensile Strength (Short Term) | N | 1500 | 2700 | ||||
| Crush Resistance (Long Term) | N/100mm | 300 | |||||
| Crush Resistance (Short Term) | N/100mm | 1000 | |||||
| Min. Bending Radius | mm | 15D (Static) / 30D (Dynamic) | |||||
| Storage Temperature | °C | -40 ~ +70 | |||||
| Operating Temperature | °C | -40 ~ +70 | |||||
| Installation Temperature | °C | -10 ~ +50 | |||||
| Cable Weight | Kg/Km | 115 | 115 | 120 | 180 | 245 | 351 |
