ODF 1U HD Rotary Patch Panel - ROPP01

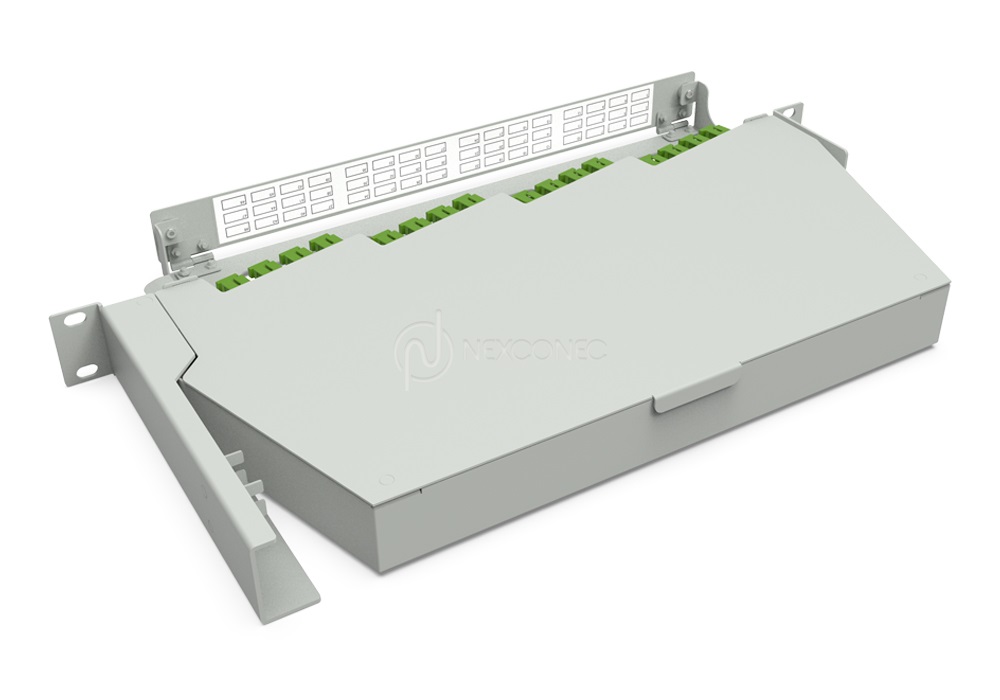

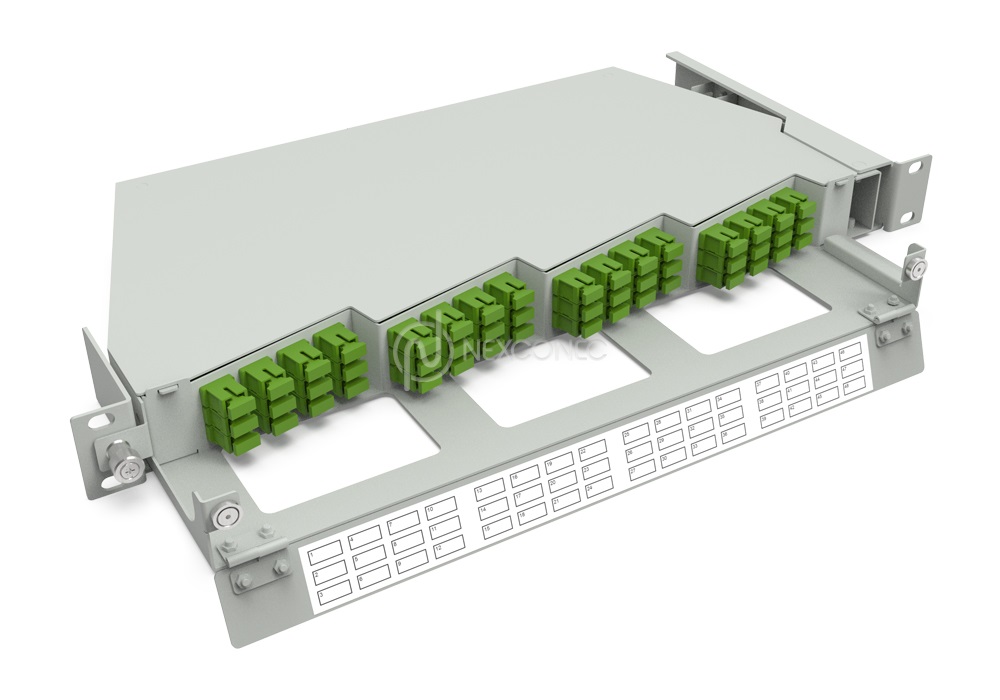

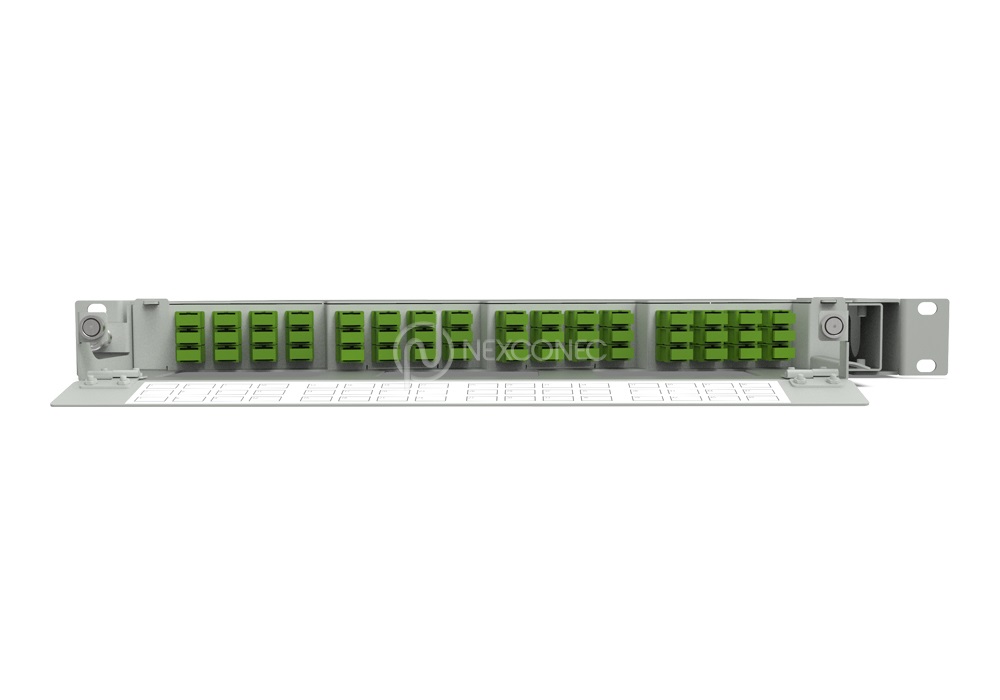

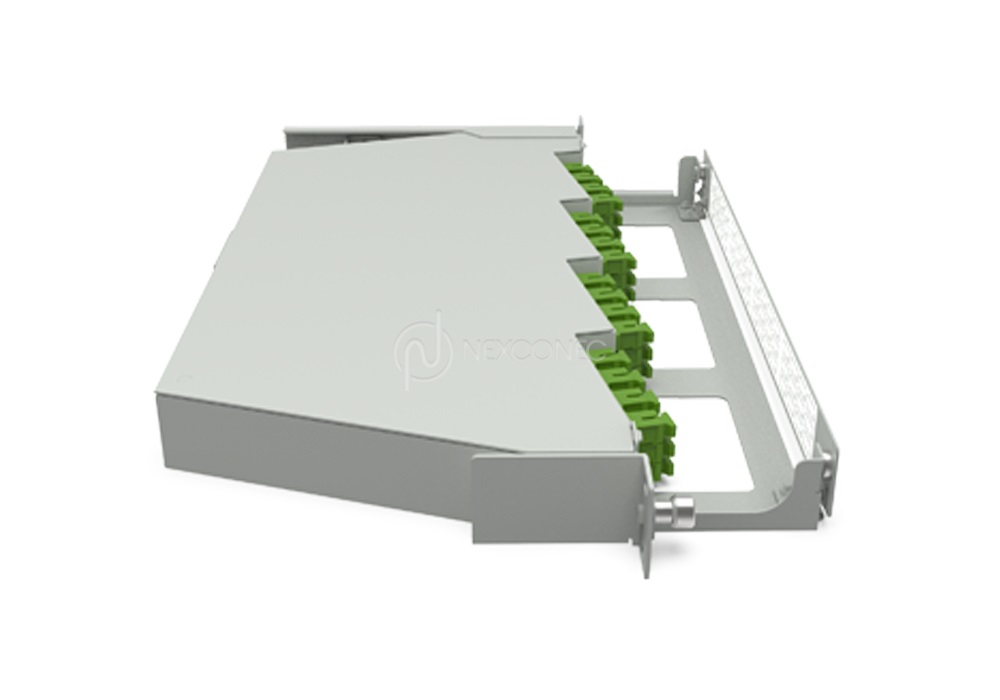

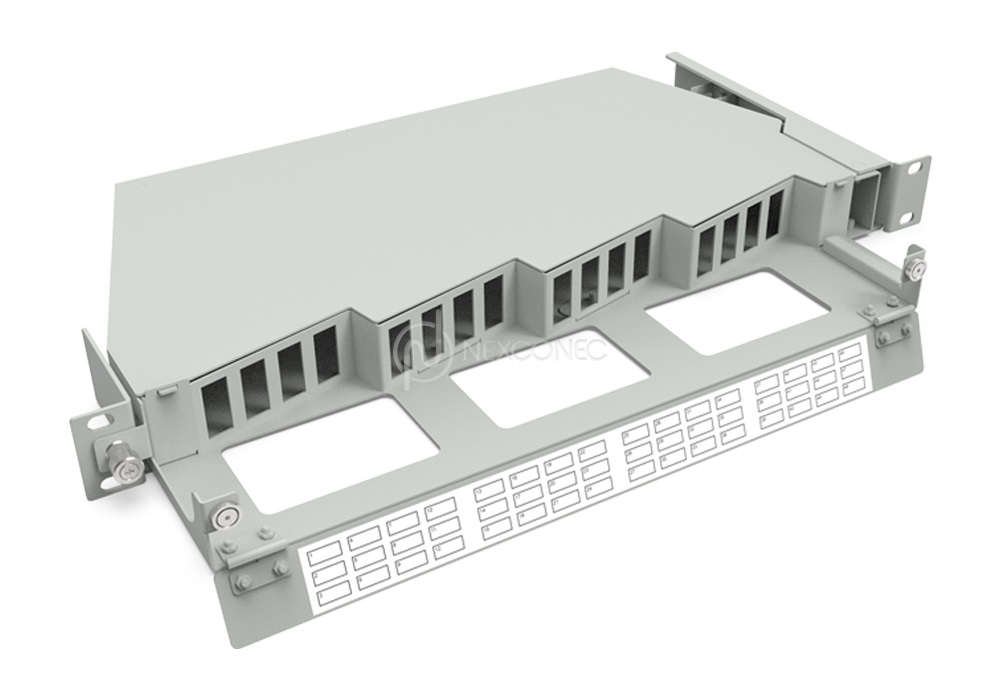

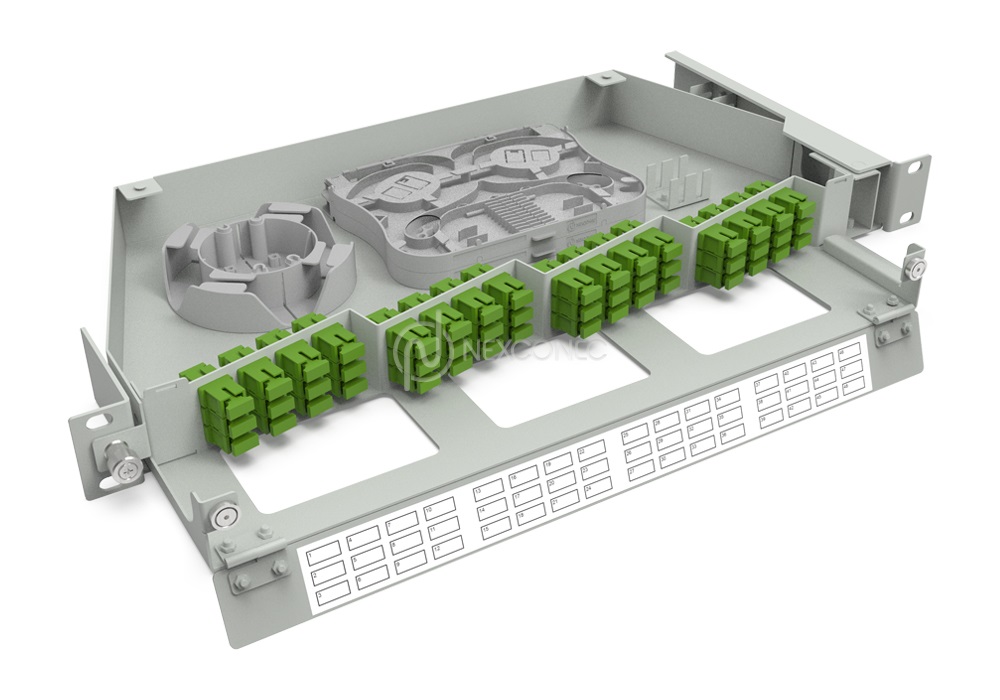

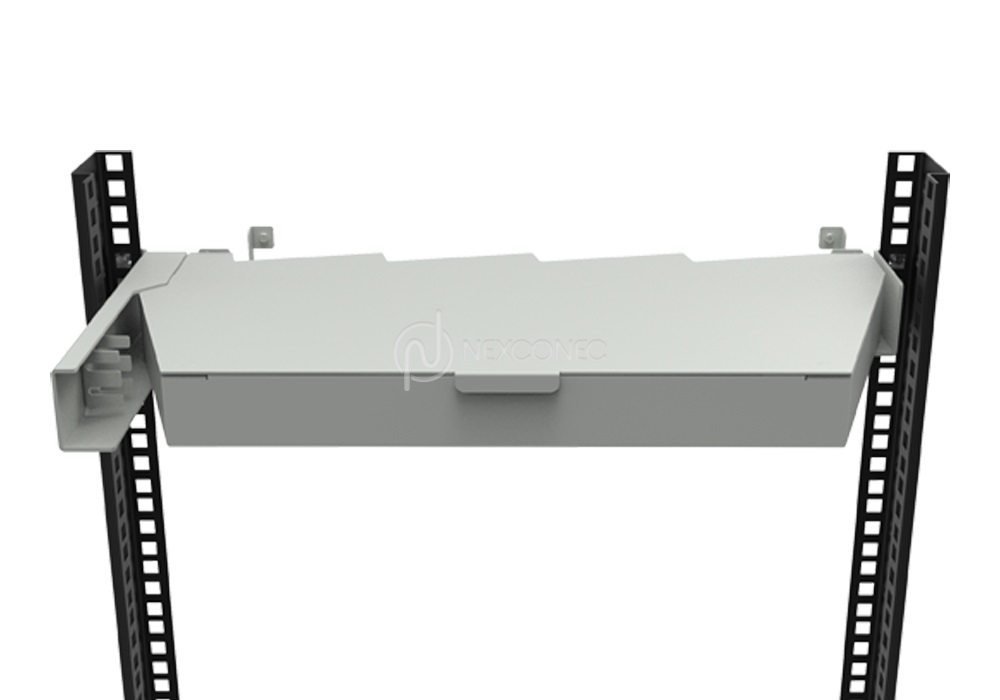

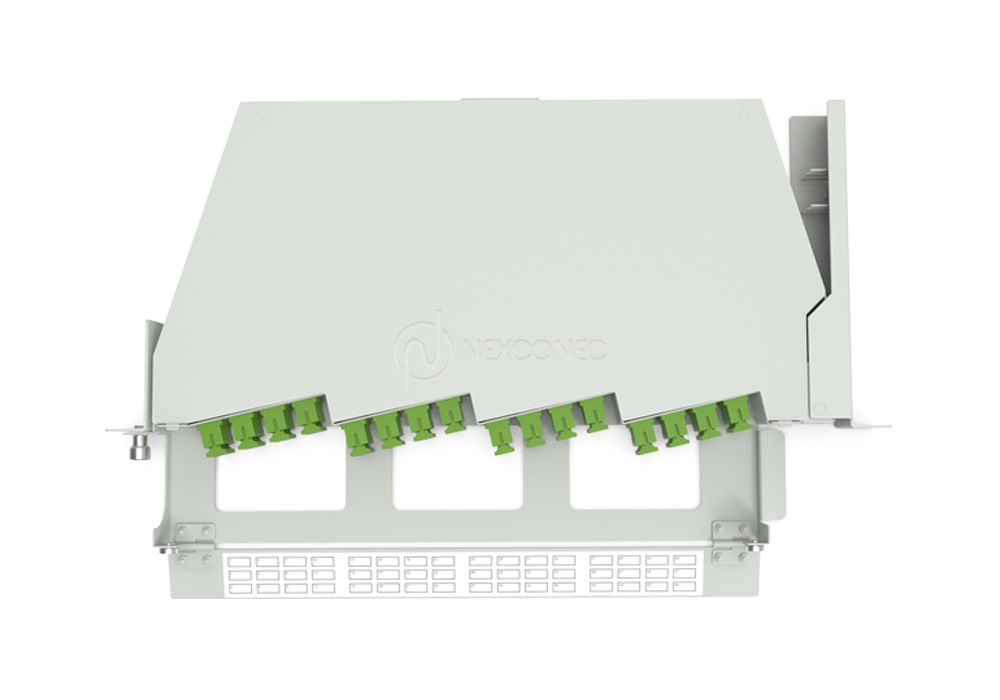

Nexconec High-Density 1U Rotary panel fiber is designed to accept up to 48 SC Simplex footprint adapters. Angled adapters route exiting patch cords directly into the cabinet side management. This innovative 1U high density pivot panel can pivot up to 90° and this gives an easy access and a smooth installation or rework that guarantees no disturbance to existing connections.
FEATURES AND APPLICATIONS
- Holds up to 48 SC Simplex footprint adapters
- Accepts loose tube, distribution and pre-terminated cables

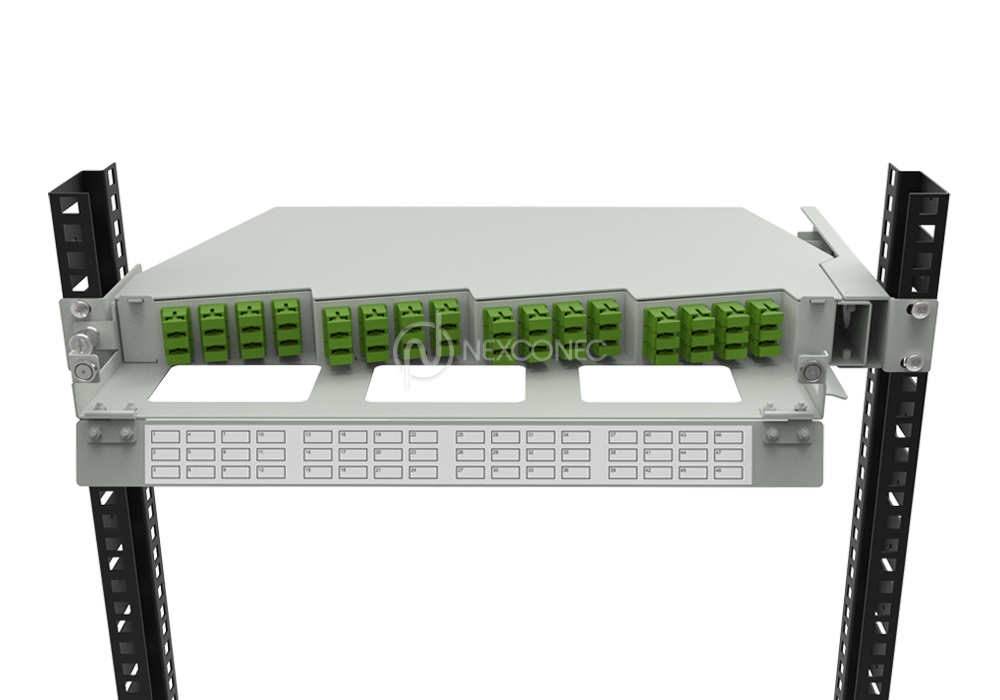

- Designed for 19'' standard Distribution frame
- Right or Left Swing out
- Angled Adapters
- Datacentre storage area & Central office, POP
- Fiber to the home (FTTH)
- LAN/WAN
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold Rolled Steel |
| Housing Color | Grey (RAL 7035) |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 488 x 286.7 x 44 |
| Net Weight | 3.00Kg |

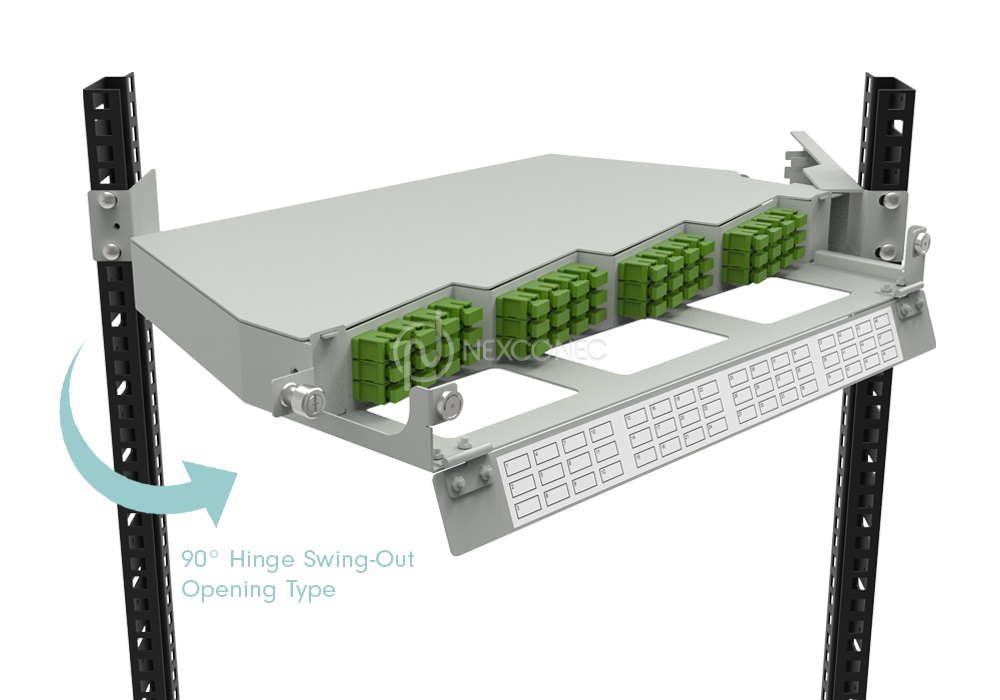

| Opening Type | Right or Left Hinge swing out – 90 degrees |
|---|---|
| Access Type | Front access |
| Front Cable Management | Front manager with hinged drop down bar |
| Slot Type | SC Simplex /LC Duplex adapters footprint |
| Number of Slots | Up to 48 |
| Fiber Capacity | 48 in SC |
| Part Number | Product Description |
|---|---|
| ROPP01 | 1U NXC Rotary Panel 24 ports Angled SC unloaded / Right |
| ROPP02 | 1U NXC Rotary Panel 36 ports Angled SC unloaded / Right |
| ROPP03 | 1U NXC Rotary Panel 48 ports Angled SC unloaded / Right |
| ROPP04 | 1U NXC Rotary Panel 24 ports Angled SC unloaded / Left |
| ROPP05 | 1U NXC Rotary Panel 36 ports Angled SC unloaded / Left |
| ROPP06 | 1U NXC Rotary Panel 48 ports Angled SC unloaded / Left |
