ODVA MPO-LC BOX 12F - ODVA-B01

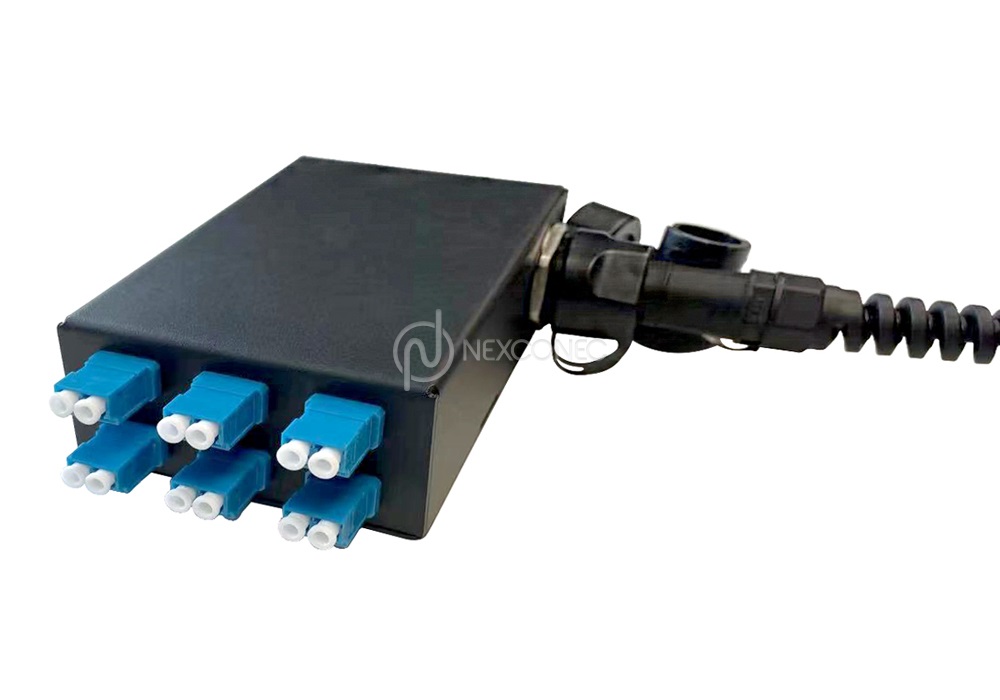

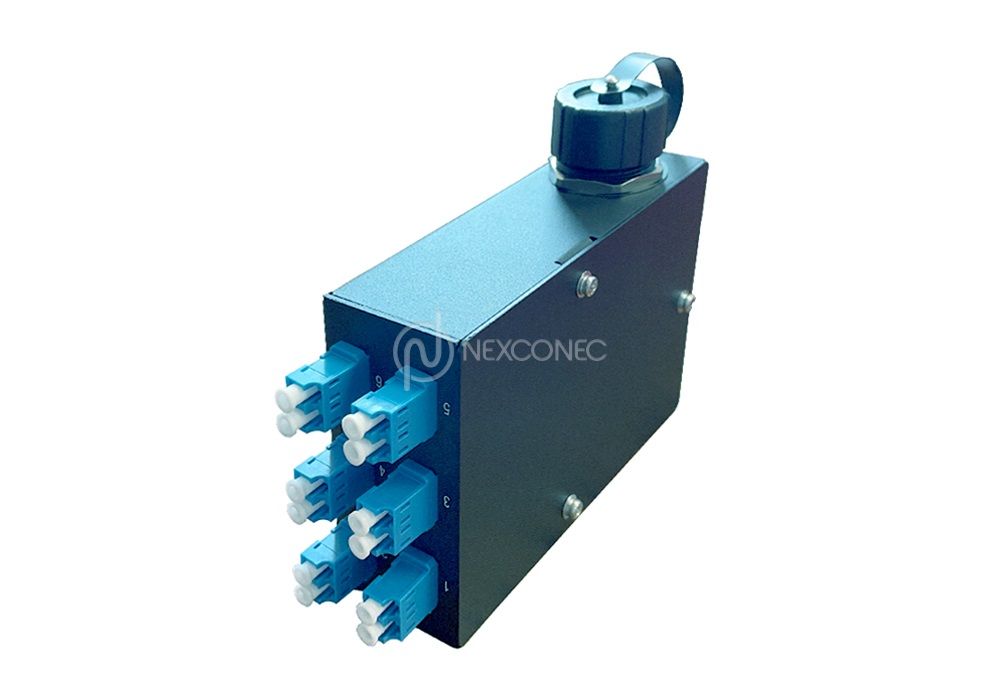

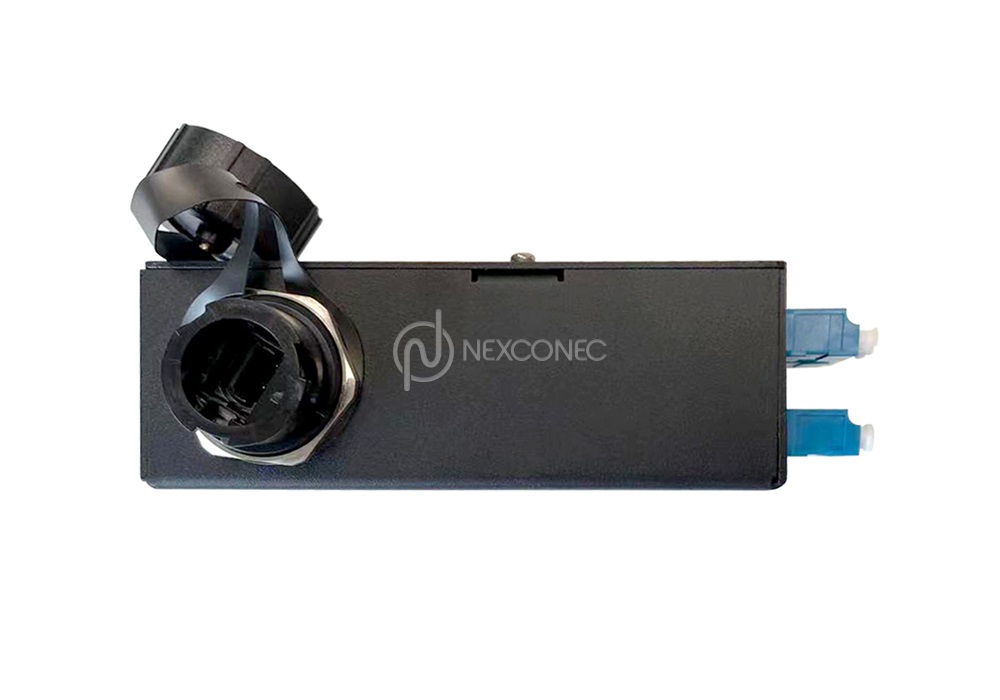

Nexconec compact ODVA junction box allows users to transition from an ODVA MTP/MPO Base-12 to a standard 6 LC Duplex ports. The ODVA entry guarantees an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.
FEATURES AND APPLICATIONS
- ODVA IP68 protection, salt-mist proof, humidity proof, dust proof
- 100% optically tested to ensure quality performance assemblies
- Available in Polarity A/B/C as per TIA/EIA-568-C.3

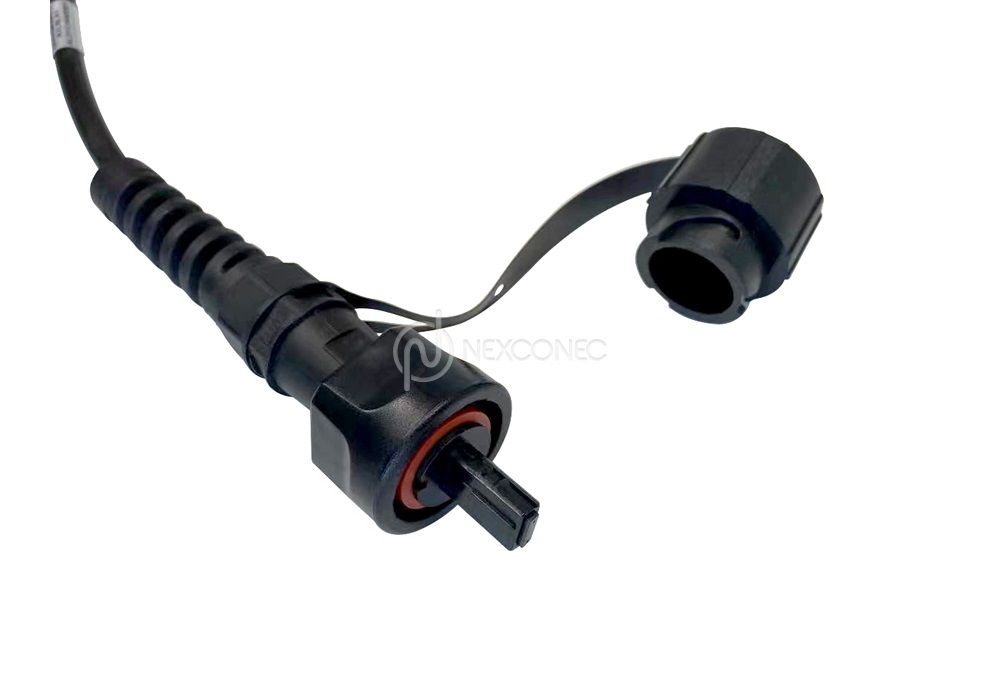

- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Industrial networks
- Broadcasting
- LAN or Campus Network
- Broadband network
SPECIFICATIONS
| Entry Port | ODVA MTP/MPO Base-12 or Base-24 |
|---|---|
| Exit Port | 6 LC Duplex Adapters |
| Material | Metal |
| Housing Color | Black |
| Fiber Capacity | 12FO |
| Dimensions (W x D x H in mm) | 119 x 85 x 41.20 |
| Weight KG | 0.40 |
PERFORMANCE
| Parameters | Unit | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return loss (PC/APC) | dB | ≥ 60 | ≥ 60 | NA | NA |
| Part Number | Product Description |
|---|---|
| ODVA-B01 | ODVA Box 12FO MPO(Male) Elite base12 to 6 ports LC Duplex Singlemode OS2 Pol A/C |
