ODVA WATERPROOF BOX - ODVA-B04xxxx

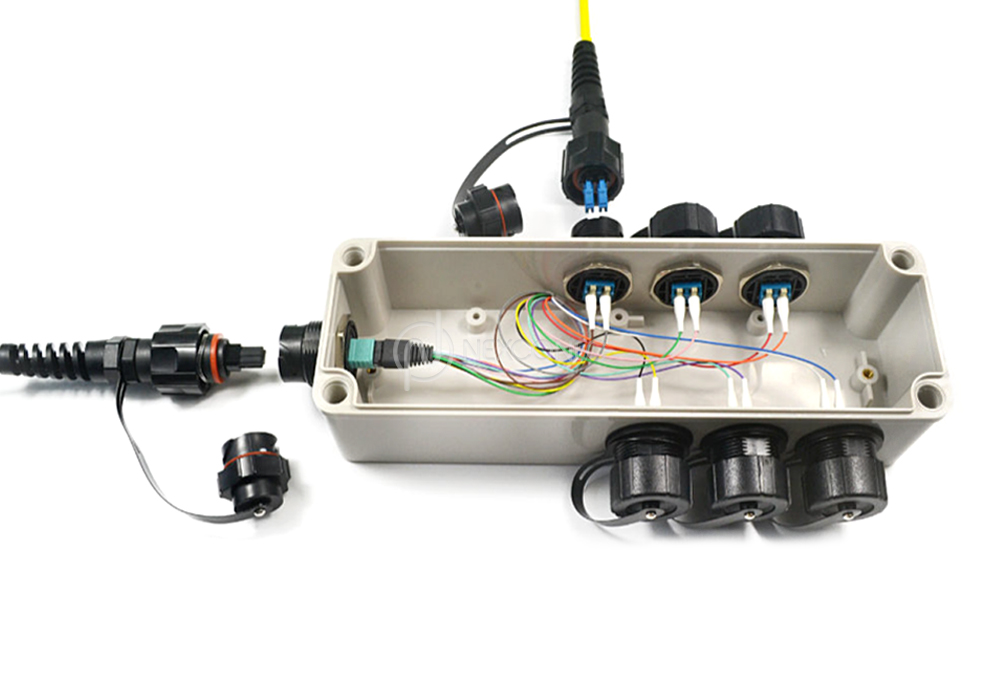

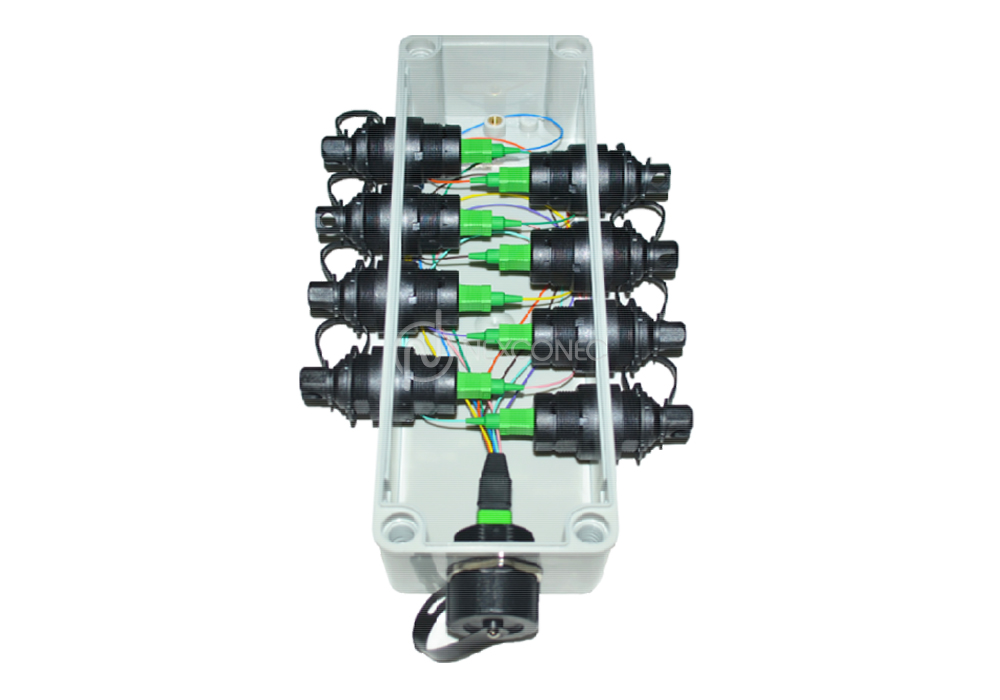

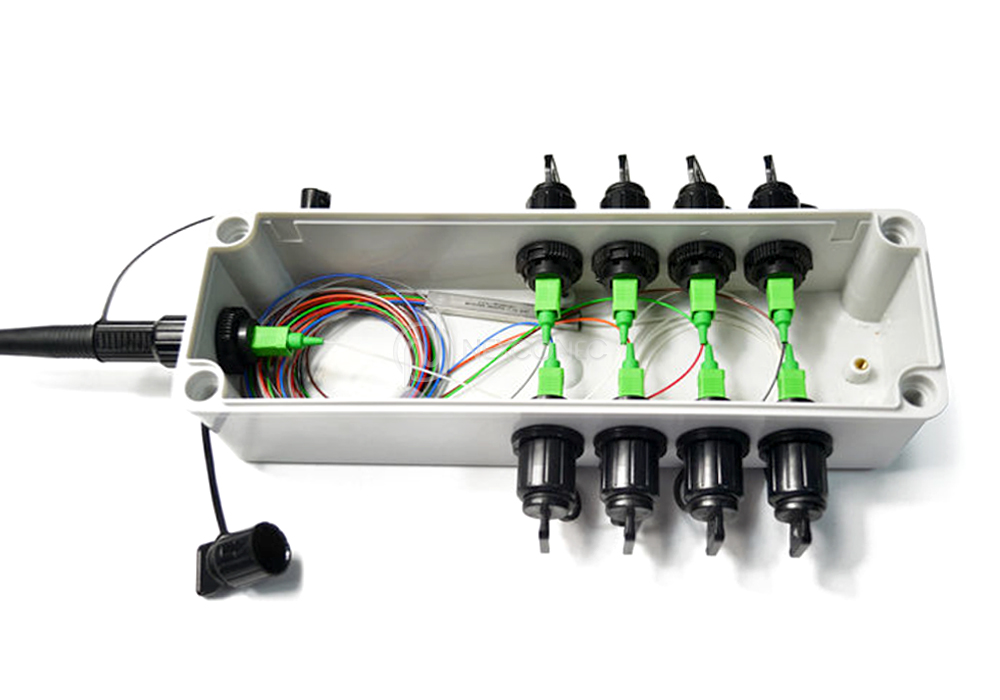

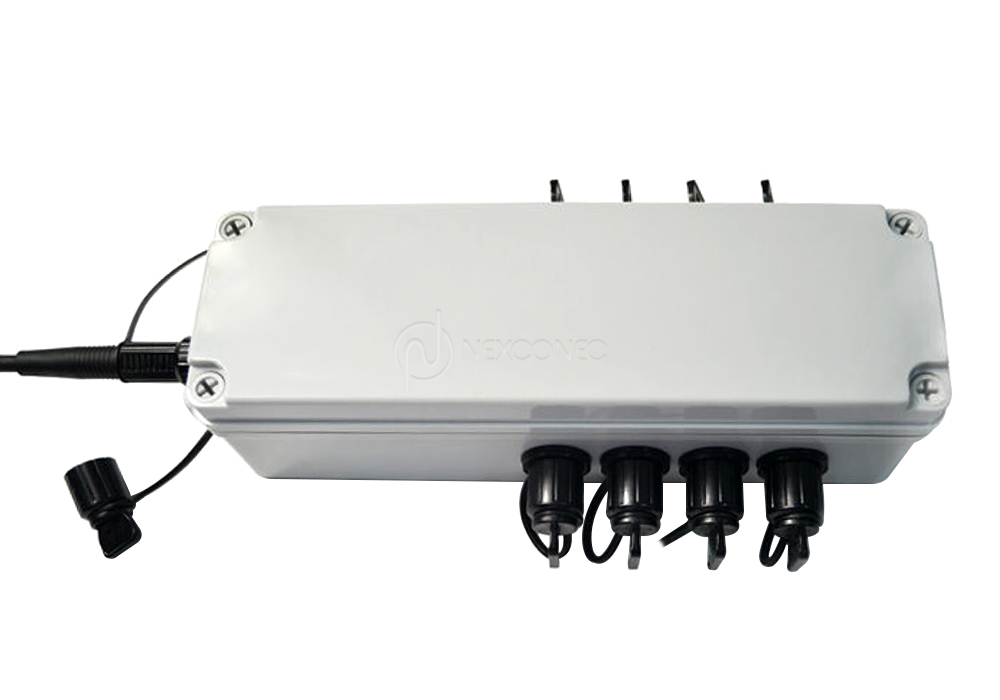

The ODVA Waterproof box is a fast connect closure that is sealed mechanically. It is single ended design and is generally used on the cable distribution section. The closure provides a quick and reliable cable connection function in FTTH scenarios. It supports 6 pcs fast connect drop cables.
FEATURES AND APPLICATIONS
- Plug and play, Fast Connect drop cable instead of splicing, be installed without opening the closure.
- Fast Plug realizes cable fastening and sealing outside the closure, leads to fast installation.
- Support pole/wall mounting, aerial cable mounting.
- Support over ground installation.
- Small size and elegant appearance.
- IP65 protection.
| Parameters | Value |
|---|---|
| Optical Cable inlet & outlet | 1x suitable for Φ5.0mm straight-through cable |
| Adapter Type | LC Duplex or SC Simple Hardened adapters |
| LC or SC Hardened Adapters QTY | 6pcs |
| Installation Mode | Pole/wall-mounting, aerial cable-mounting |
| Application Scenario | Overground installation |
| Dimensions (mm) | 250 x 70 x 80 |
| Net Weight (kg) | 0.4 |
| Shell Materials | ABS |
| Color | Light Grey |
| Protection Rating | IP65 |
| RoHS | Compliant |
| Sealing Mode | Mechanical |
Environment Parameters
| Storage Temperature | -40 ºC to +70 ºC |
|---|---|
| Operating Temperature | -40 ºC to +65 ºC |
| Relative Humidity | ≤ 93% |
Performance Parameters
| Adapter Insertion Loss | ≤ 0.25 dB |
|---|---|
| Reseating Durability | > 500 times |
| Part Number | Product Description |
|---|---|
| ODVA-B04SML1 | ODVA Waterproof Box 12FO MPO(Male) Elite to 6 ports LC Duplex Single mode OS2, IP65 |
| ODVA-B04SML2 | ODVA Waterproof Box 12FO MPO(Male) Elite to 6 ports LC/APC Duplex Single mode OS2, IP65 |
| ODVA-B04M3L1 | ODVA Waterproof Box 12FO MPO(Male) Elite to 6 ports LC Duplex Multimode OM3, IP65 |
| ODVA-B04M4L1 | ODVA Waterproof Box 12FO MPO(Male) Elite to 6 ports LC Duplex Multimode OM4, IP65 |
| ODVA-B04SMS1 | ODVA Waterproof Box 6FO MPO(Male) Elite to 6 ports SC Simplex Single mode OS2, IP65 |
| ODVA-B04SMS2 | ODVA Waterproof Box 6FO MPO(Male) Elite to 6 ports SC/APC Simplex Single mode OS2, IP65 |
| ODVA-B04M3S1 | ODVA Waterproof Box 6FO MPO(Male) Elite to 6 ports SC Simplex Multimode OM3, IP65 |
| ODVA-B04M4S1 | ODVA Waterproof Box 6FO MPO(Male) Elite to 6 ports SC Simplex Multimode OM4, IP65 |
