Optical Fiber Identifier - NXOFI

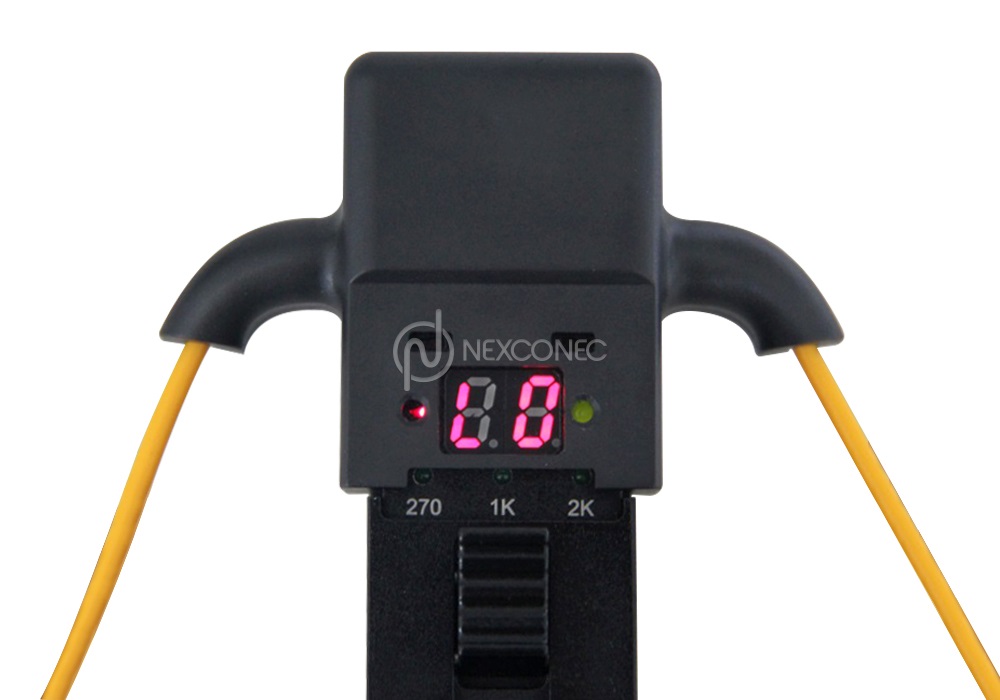

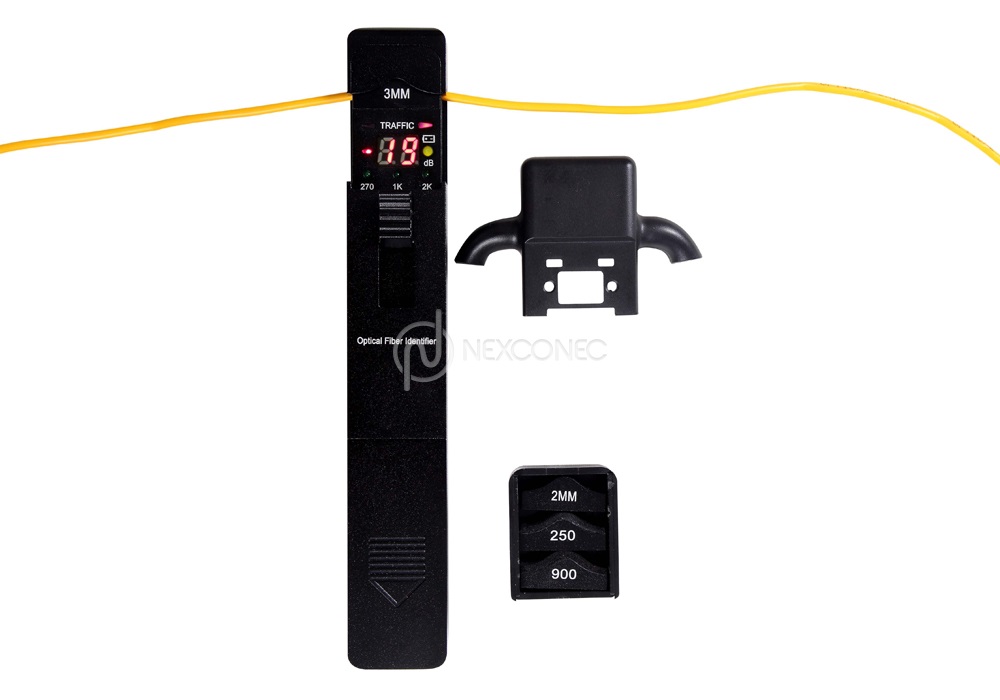

NEXCONEC Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without interrupting the current service. The fiber identifier recognizes modulation like, 270Hz, 1KHz and 2KHz with continuous audible tone. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This OFI is powered by 2 pcs very normal AAA batteries.
FEATURES AND APPLICATIONS
- Easy to use with “One Key” operation
- Efficiently identify the fiber transmission direction and frequency (270Hz, 1KHz, 2KHz) with audible warning
- Display the relative core power

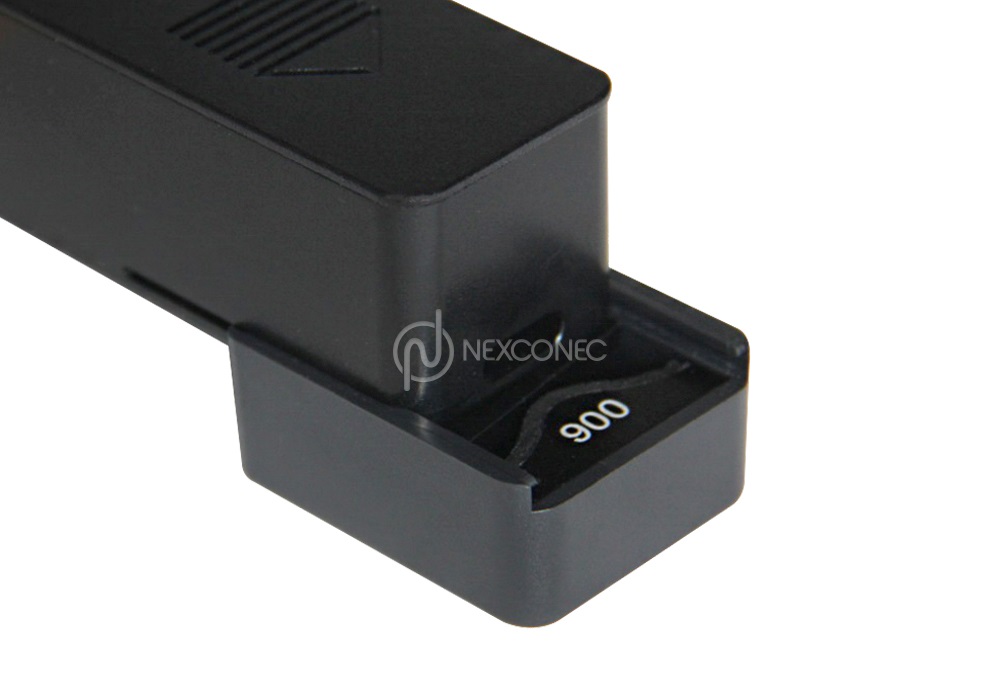

- Easy to change adapter
- Durable metal housing
- Lower power indication
- Light weight
| Parameters | Value |
|---|---|
| Identified Wavelength Range | 800 to 1625nm |
| Identified Signal Type | CW, 270Hz±5%, 1kHz±5%, 2kHz±5% |
| Detector Type | Ø1mm In GaAs 2pcs |
| Adapter Type | Ø0.25, Ø0.9, Ø2.0, Ø3.0 |
| Signal Direction Test Range (dBm, W/0.9mm Bare Fiber) | 46~10 (1310nm) -50~10(1550nm) |
| Signal Frequency Display (Hz) | 270Hz, 1KHz, 2KHz |
| Insertion Loss (dB) | 0.8 (1310nm) 2.5(1550nm) |
| Power Supply | 2x AAA alkaline batteries, 1.5V |
| Storage Temperature | -25 ~ +70℃ |
| Operating Temperature | -10 ~ +60℃ |
| Dimension (L x W x H) | 196 x 30.5 x 27 mm |
| Product Weight (without battery) | 195g |
| Part Number | Product Description |
|---|---|
| NXOFI | Optical Fiber Identifier |
