ODVA OUTDOOR FIBER OPTIC ASSEMBLIES - ODVA-xx

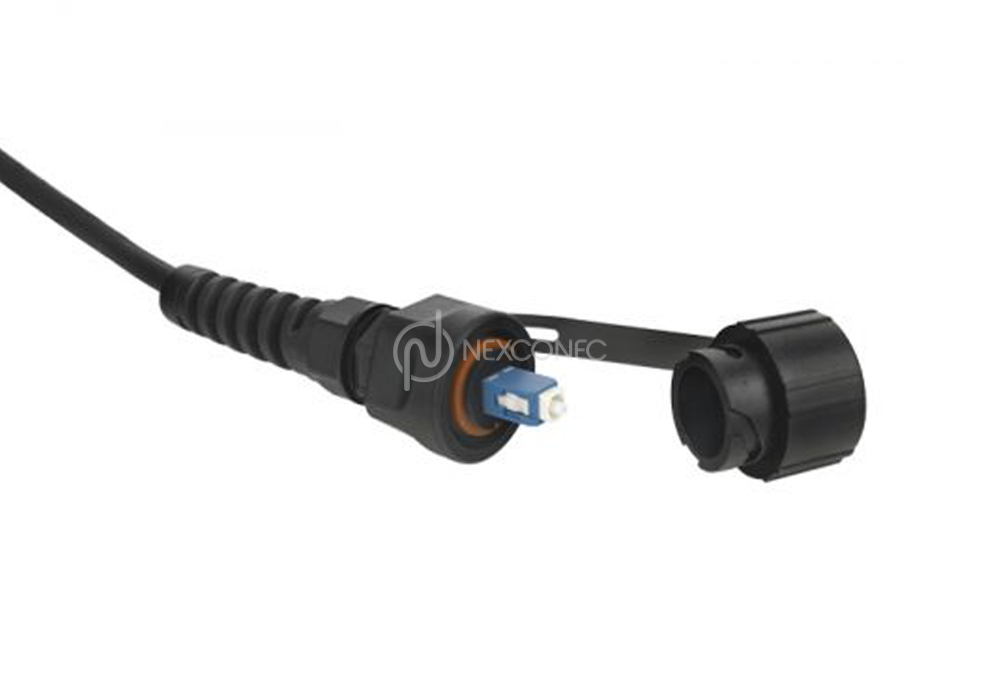

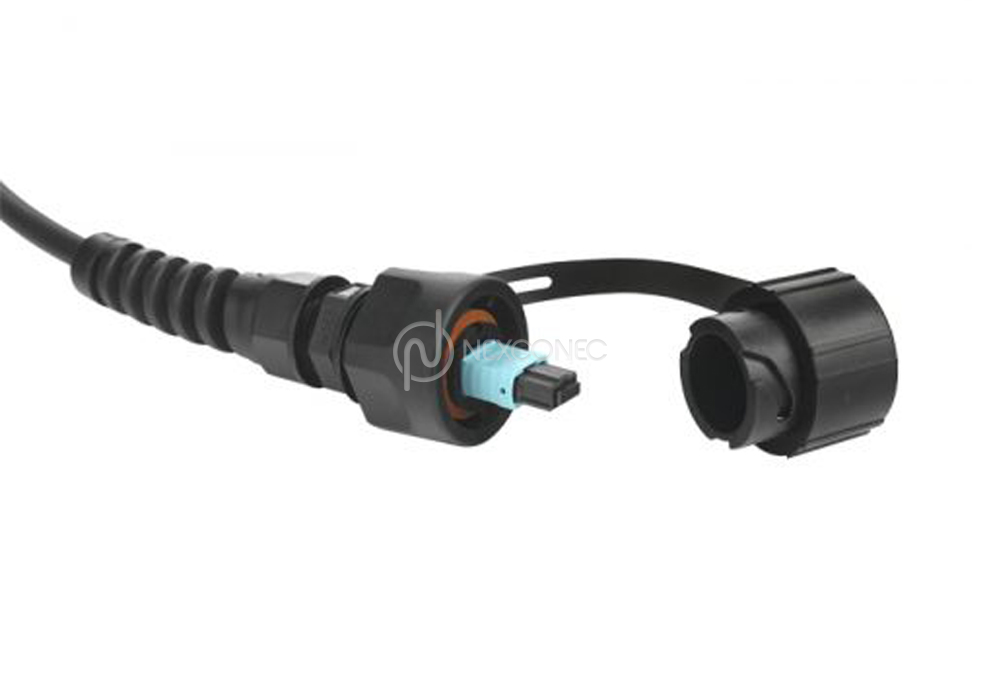

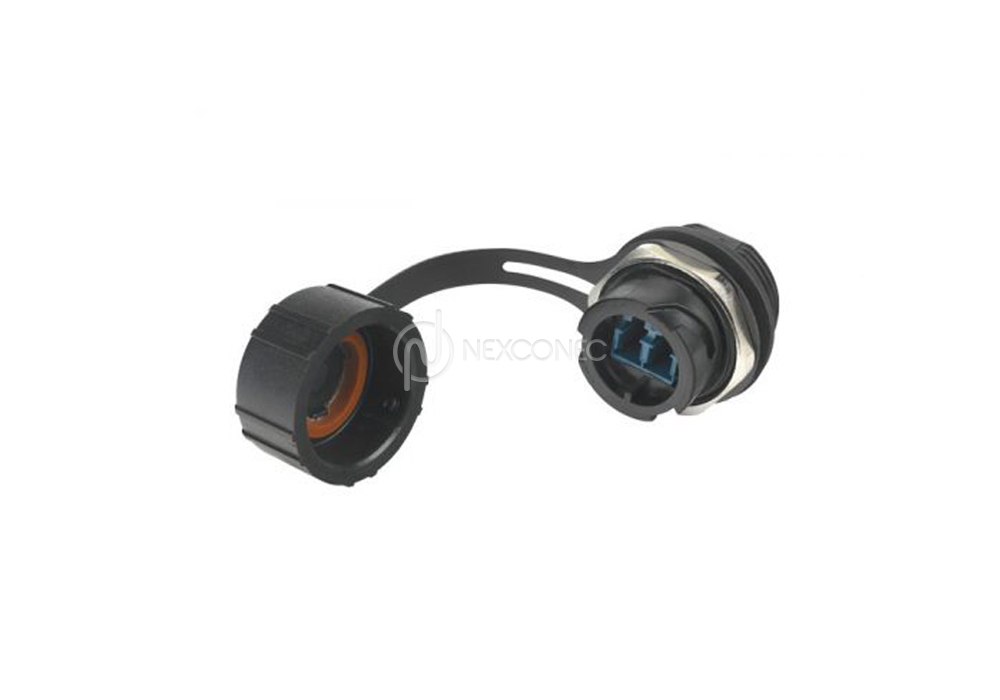

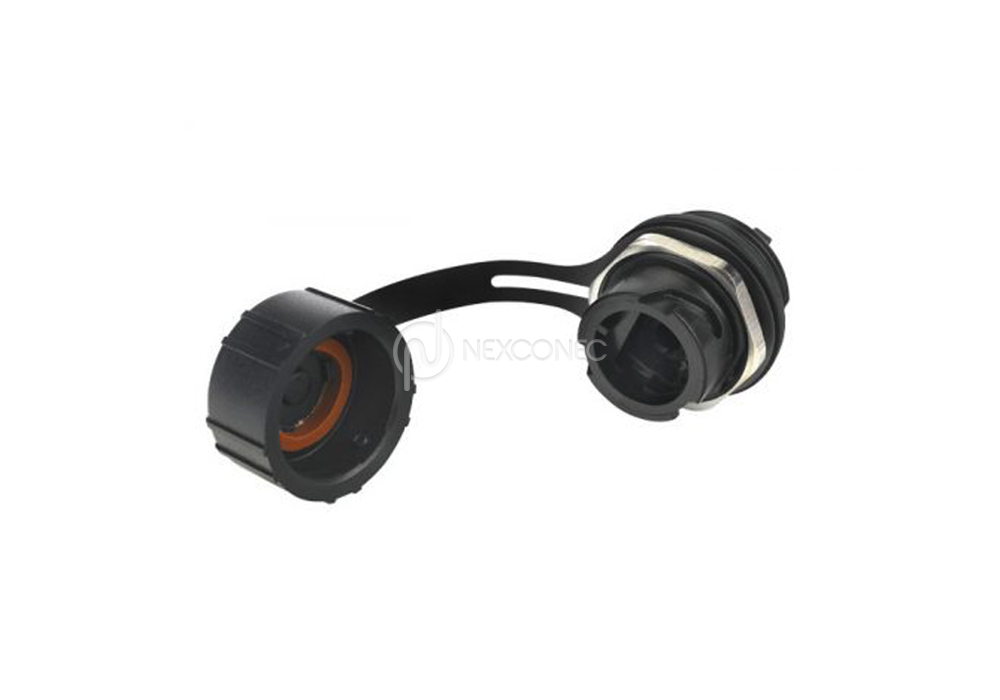

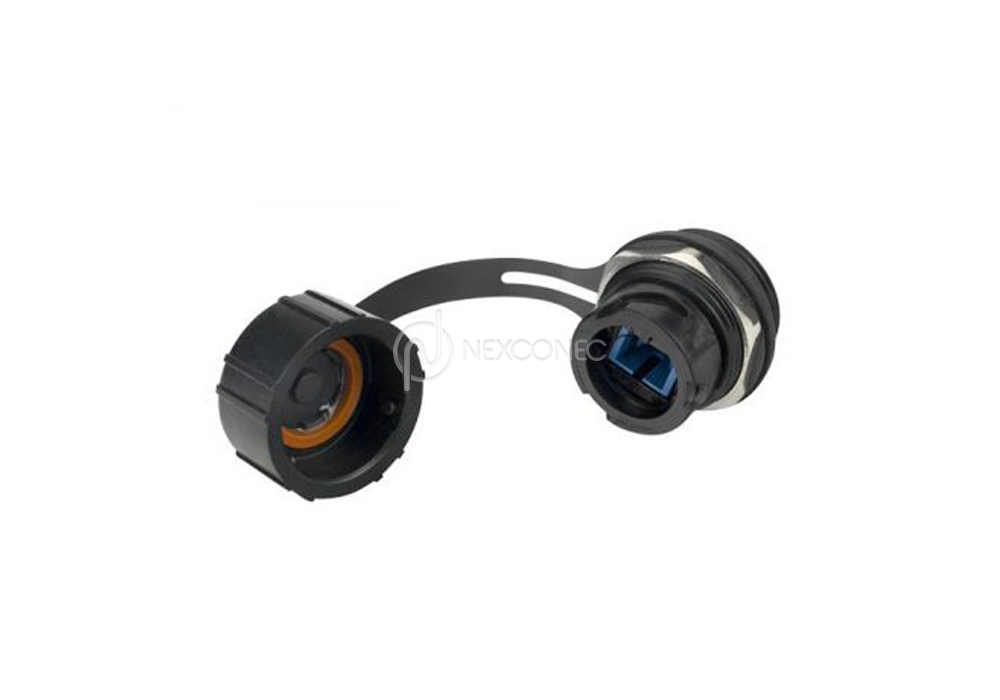

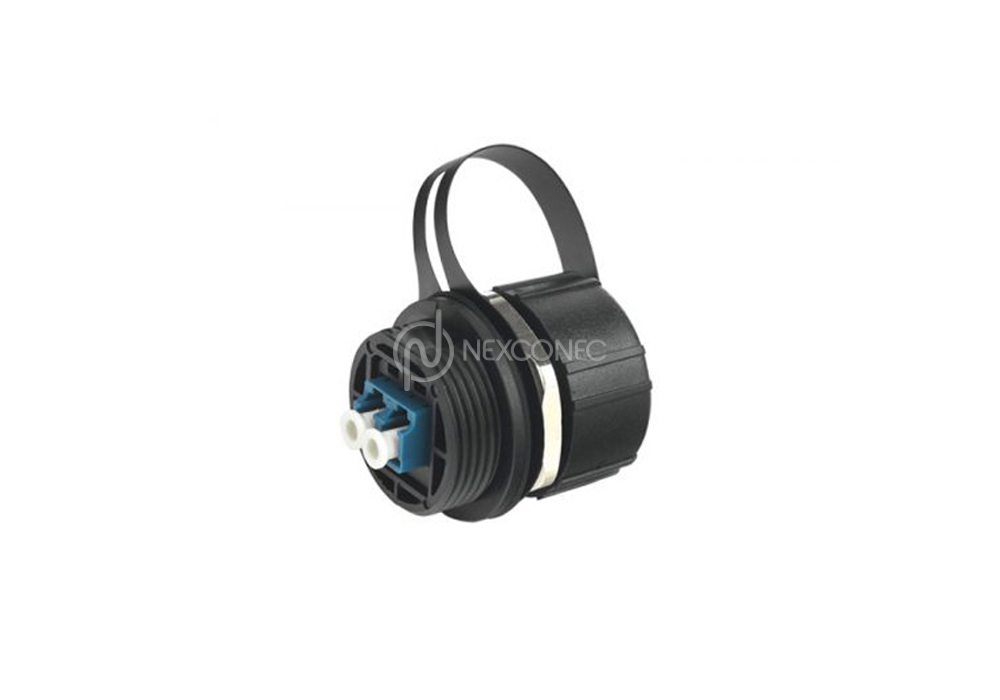

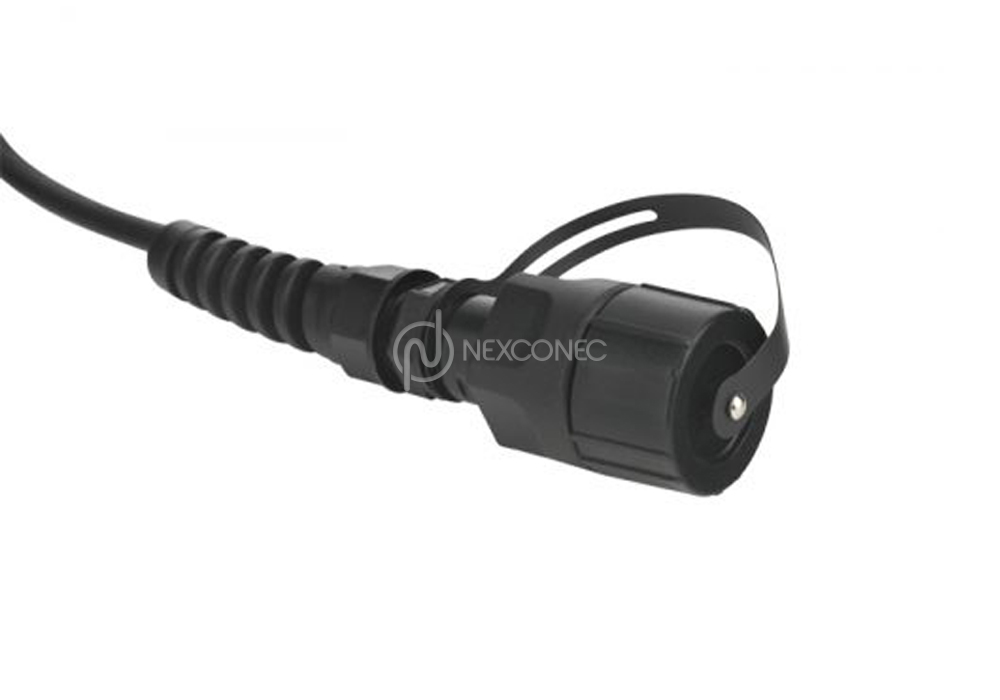

NEXCONEC® IP68 ODVA optical fiber cable assemblies provide an environmental seal and mechanical protection for outdoor application. ODVA connectors are available in SC Simplex, LC Duplex or MTP/MPO. They provide quick installation solutions and have good performance on mating with ODVA receptacles.
The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.
FEATURES AND APPLICATIONS
- Available in SC Simplex, LC Duplex and MTP/MPO Connectors
- Provides moisture and dust protection for use in harsh industrial environments
- IP68 protection, salt-mist proof, humidity proof, dust proof
- Sealed panel feed-through design for easy installation into enclosures
- 100% optically tested to ensure quality performance assemblies
- Available in single mode and multimode styles to work with any common fiber type
MTP/MPO CONNECTOR
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM – Standard | 0.75 dB | 0.25 dB | > 60 dB |
| SM – Premium | 0.35 dB | 0.10 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.20 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.10 dB | > 20 dB |
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
CABLE CHARACTERISTICS
| Parameters | Units | Value | ||
|---|---|---|---|---|
| Fiber Count | 1FO | 2FO | 12FO | |
| Fiber Connector | SC Simplex | LC Duplex | MPO | |
LOOSE TUBE
| Outer Diameter (±0.3) | mm | 6.0 | 6.0 | 6.0 |
|---|---|---|---|---|
| Tensile Strength (max/min) | N | 1000/500 | 1000/500 | 1500/600 |
| Crush Resistance | N/100mm | 1000 | 1000 | 1000 |
LOOSE TUBE FLEXIBLE STEEL TAPE ARMOUR
| Outer Diameter | mm | 5.0 | 5.0 | 5.0 |
|---|---|---|---|---|
| Tensile Strength (max/min) | N | 1000/500 | 1000/500 | 1500/600 |
| Crush Resistance | N/100mm | 1000 | 1000 | 1000 |
| Minimum Bending Radius | mm | 10D (installed)/20D (loaded) | ||
| Cable Jacket Material | LSZH or PU | |||
| Strength Member | E-glass | |||
| Storage Temperature | ˚C | -40 ~ +70 | ||
| Operating Temperature | ˚C | -40 ~ +70 | ||
| Installation Temperature | ˚C | -10 ~ +50 | ||
