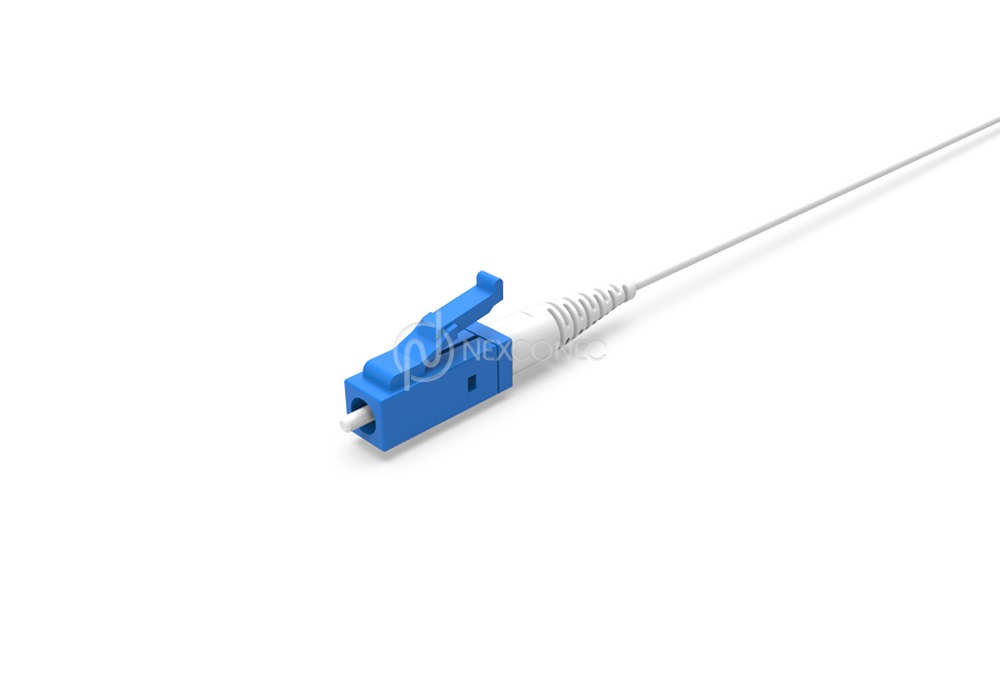

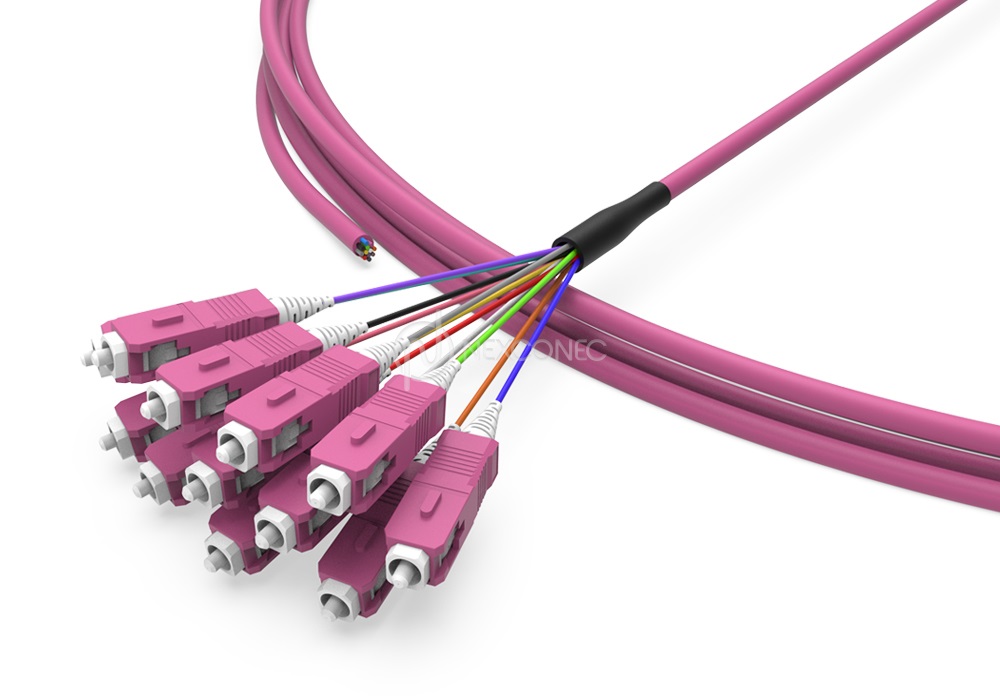

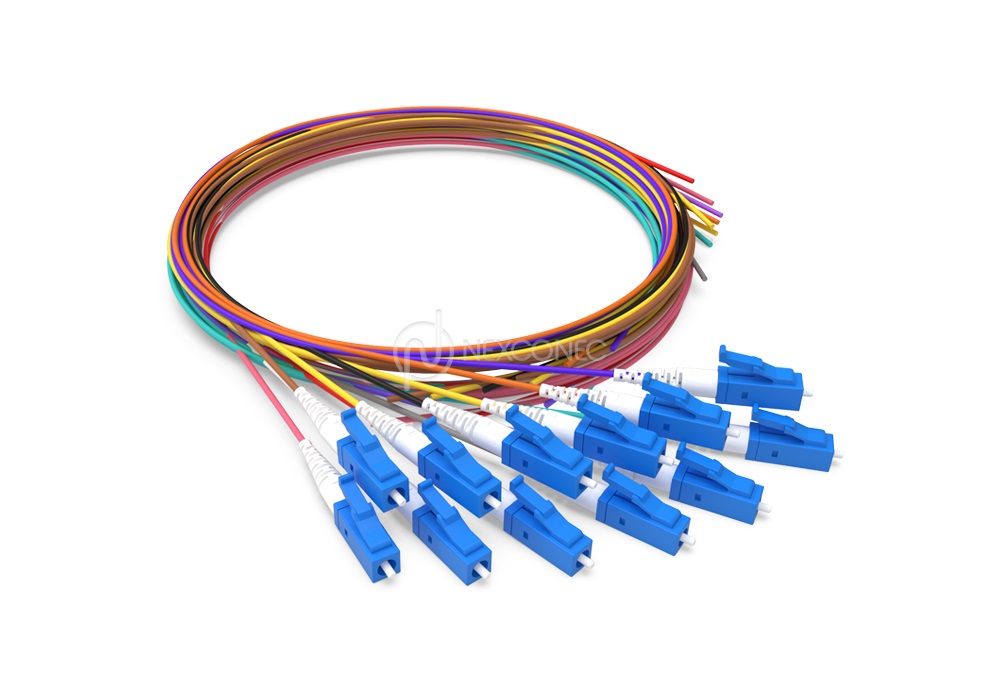

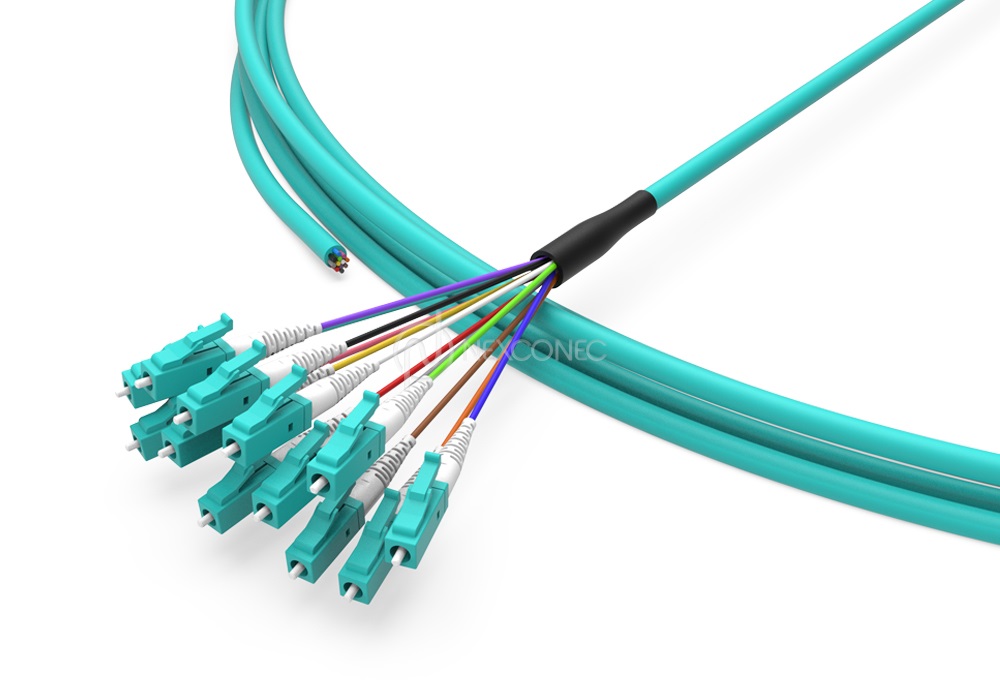

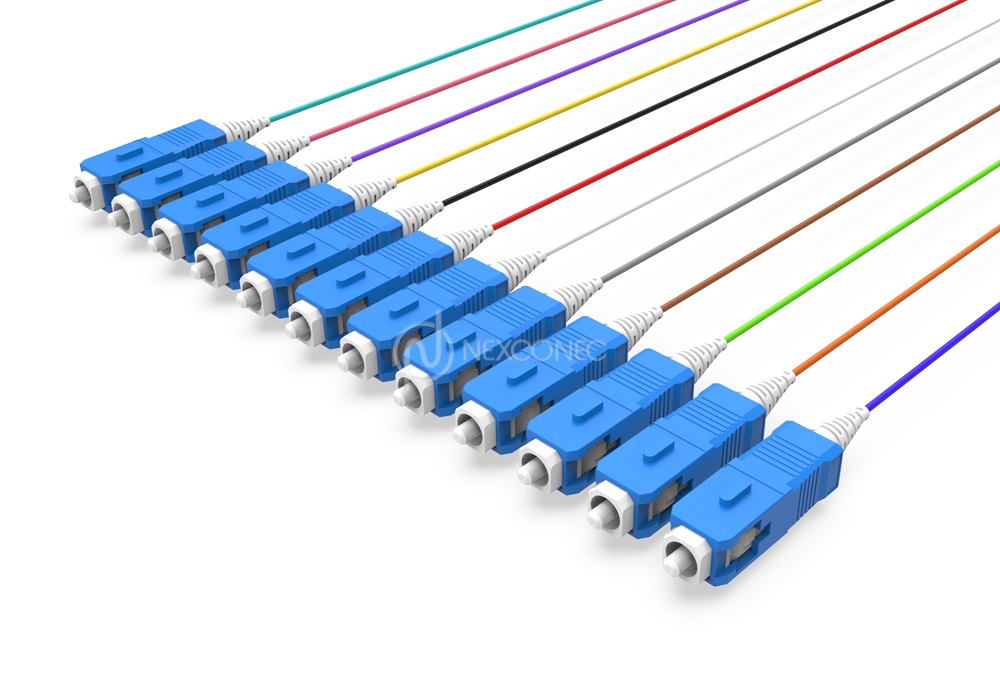

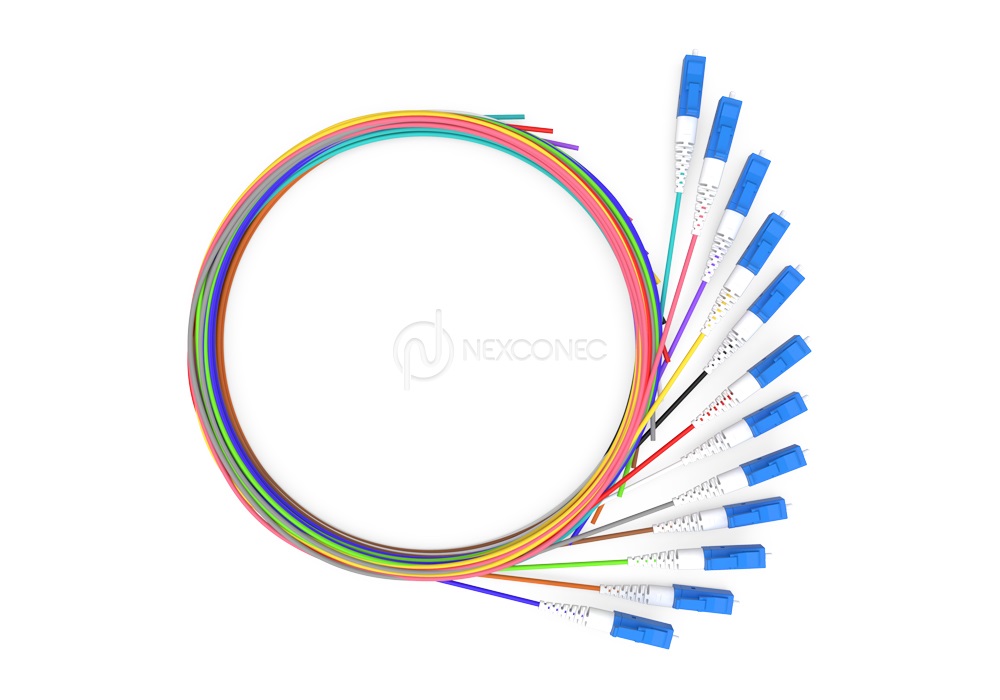

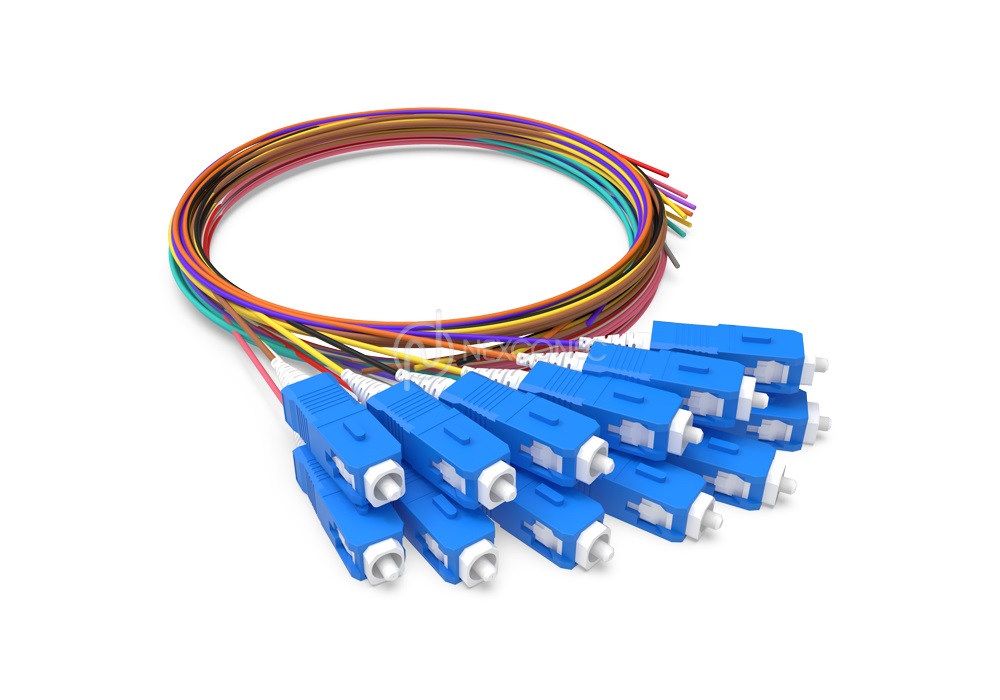

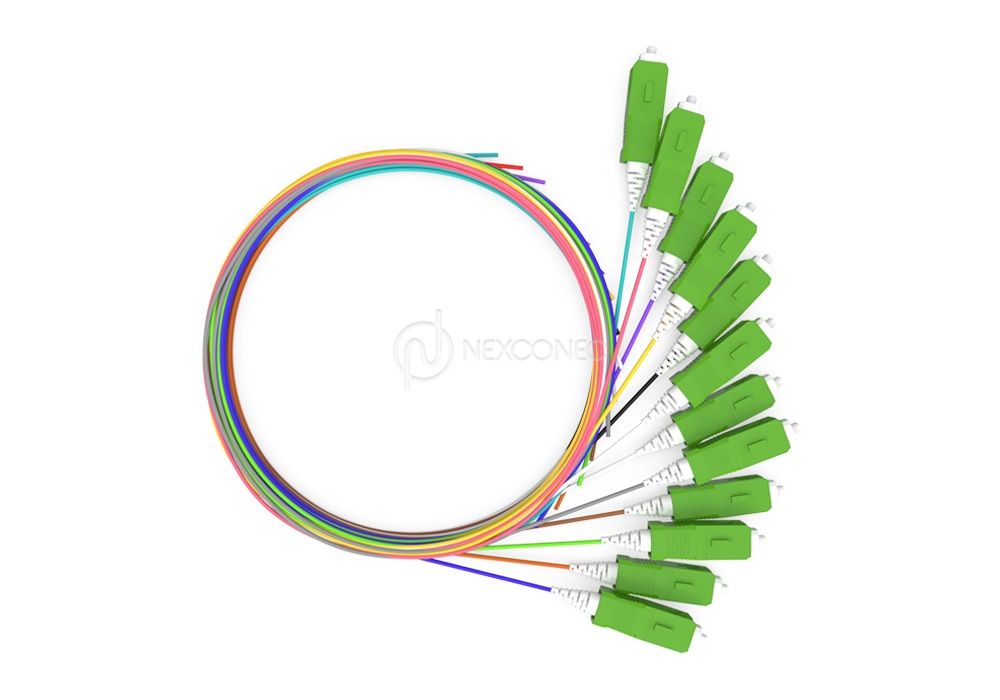

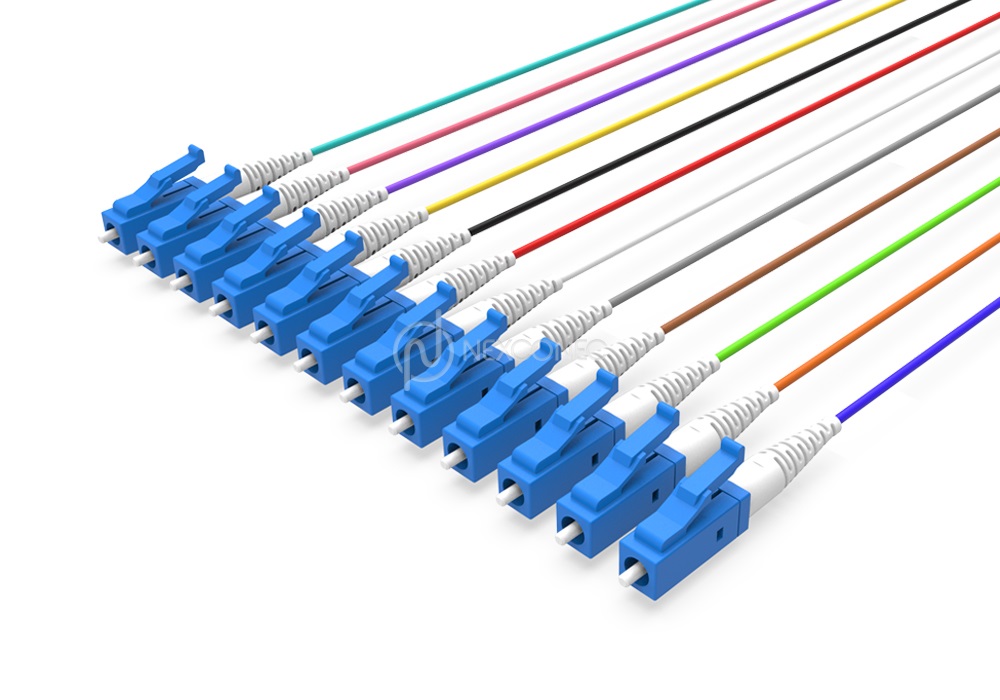

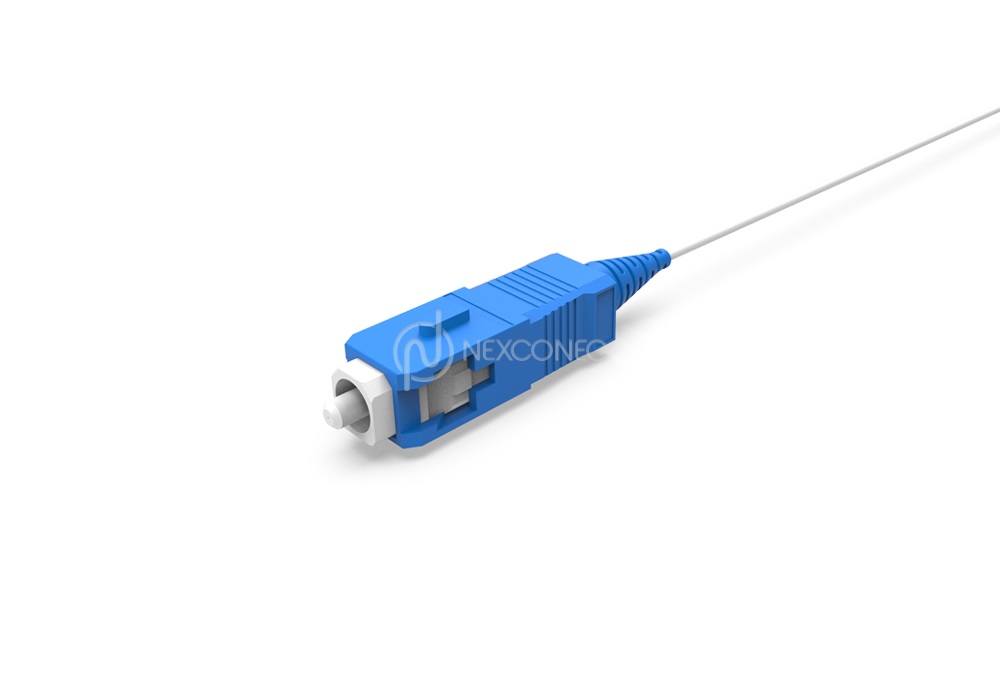

Pigtail
NEXCONEC® pigtails are suitable for telecommunication networks, data processing networks, FTTx, FTTH and some critical applications. The pigtails provide flexible connection inside passive equipments, patch panels, ODFs and closures. We offers diverse range of single fiber ferrule connectors which are manufactured with precision factory mounting and polishing techniques to assure high transmission quality.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in standard Singlemode and Multimode fibre types
- LC, SC, FC and ST connector types
- Available in standard and customised length
- Buffer material available as easy strip and tight buffer options
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data Processing networks
- FTTx
- Broadband network
- Fibre-to-the-home
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
BUFFER CHARACTERISTICS
| Characteristics | Units | Simplex |
|---|---|---|
| Nominal Buffer Diameter | μm | 900 +50/-50 |
| Crush | N/100mm | 500 |
| Operating Temperature | ˚C | -20 to 60 |
| Maximum Tensile Load | N | 6 |
| Minimum Bending Radius | mm | 15 |
