Portable Fiber Endface Inspector

Endface Inspector Endface Inspector Endface Inspector

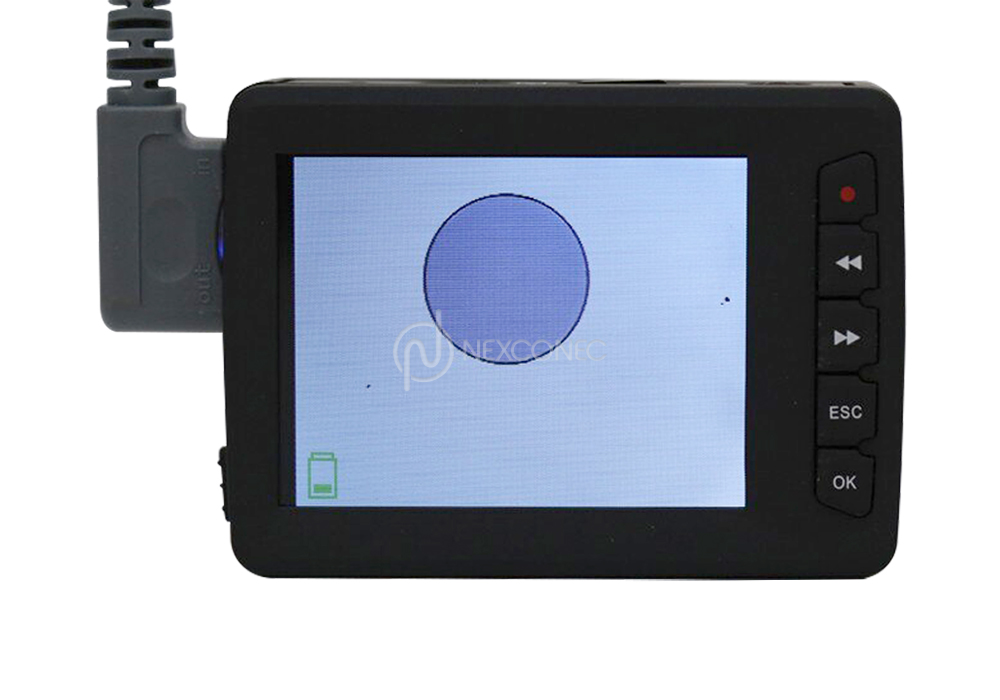

NEXCONEC Portable Inspection Microscope is the upgraded version, which provides network installer with high performance fiber inspection solutions. The whole set includes a digital probe, the monitor with the capability to inspect/record/file the data of fiber end face from assorted connectors.

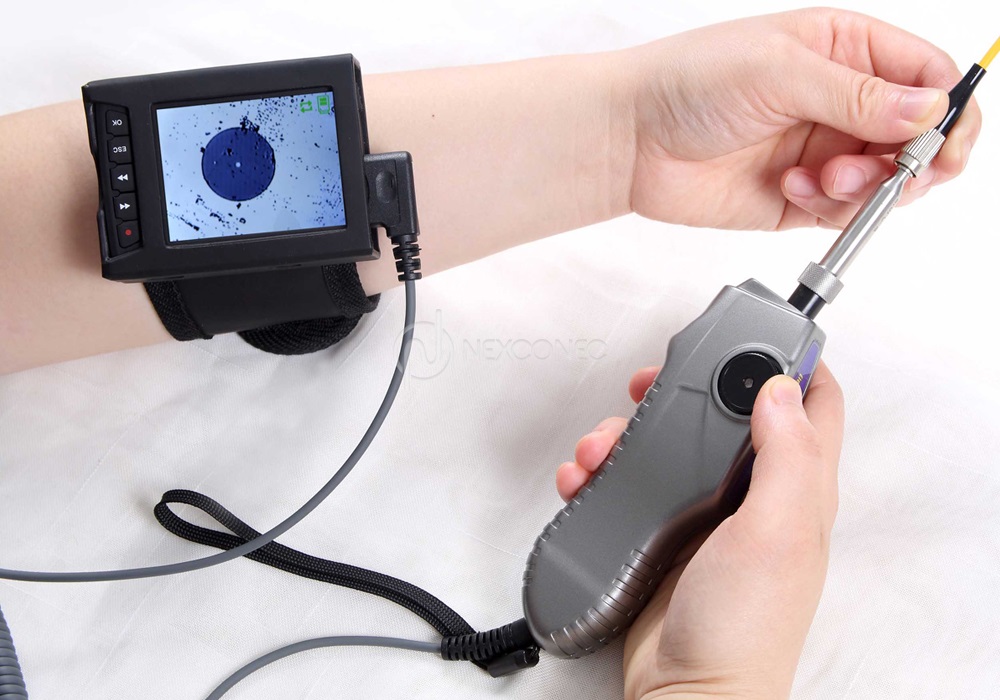

This portable inspector can check the end face of pigtail and patch cord, and also capable of inspecting the connector end face through adapter which is already mounted on the patch panel, wall box without unplug the pigtail or patch cord from the other end.

FEATURES AND APPLICATIONS
  • One-way focus control for instant detection, have image in seconds
  • Capable of inspecting variant connectors
  • 95% tips interchangeability in-between probes
  • 95% Image centralization on screen
  • Precise resolution (﹤ 1 μm), no shadow or dark edge around screen
  • High definition image and video, no noise or flash
  • Strong performance under stress operation
  • TF card for storage the image and video and upload to the PC
  • End face inspection in patch cord / bulkhead-mounted equipment / module transceiver
  • End face inspection of variant connectors UPC/APC, MPO/MTRJ
  • End face inspection of connectors at different angles which is hard-to-access

Product Information

pdfDATASHEET.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
Parameters Value
Magnification/Resolution 400× / 0.75μm (Based on benchmark 8 Inch monitor)
Field of View 0.31mm×0.25mm, or PC screen displaying
Tips Connection Cone contact
Focus way / Range One-way / ﹤3mm
Output Type PAL or NTSC or USB (optional)
Light Source/ Life span Coaxial blue LED / 100,000 hrs. above
Dimension 180 x 41 x 36 mm
Weight 0.4kg with handheld screen
Image Sensor 1/3 Inch, SONY B/W CCD for handheld screen
Temperature -20~50 ℃
Humidity Maximum to 90% relative humidity, no condenses
Part Number Product Description

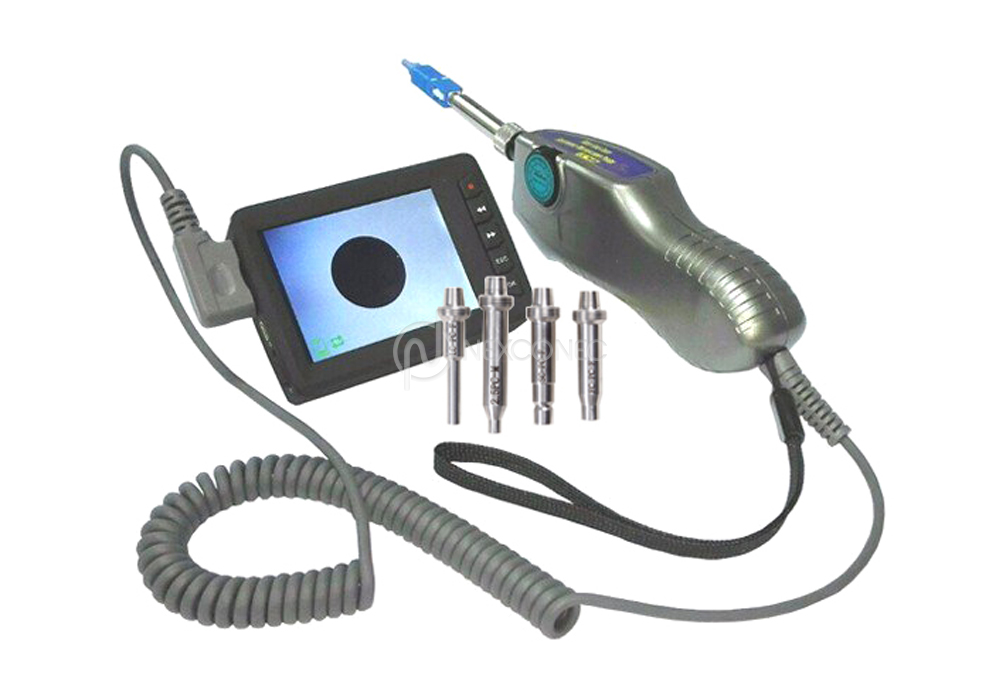

NXEIPRO Handheld End face Inspector, with LC, SC, 1.25mm & 2.5mm Probes
PROMPOU MPO UPC Probe (male/female) For End face Inspection
PROMPOA MPO APC Probe (male/female) For End face Inspection
