Ribbon Pigtail Fanout

Ribbon Pigtail
Ribbon Pigtail
Ribbon Pigtail
Ribbon Pigtail
Ribbon Pigtail
Ribbon Pigtail
Ribbon Pigtail Ribbon Pigtail Ribbon Pigtail Ribbon Pigtail Ribbon Pigtail Ribbon Pigtail

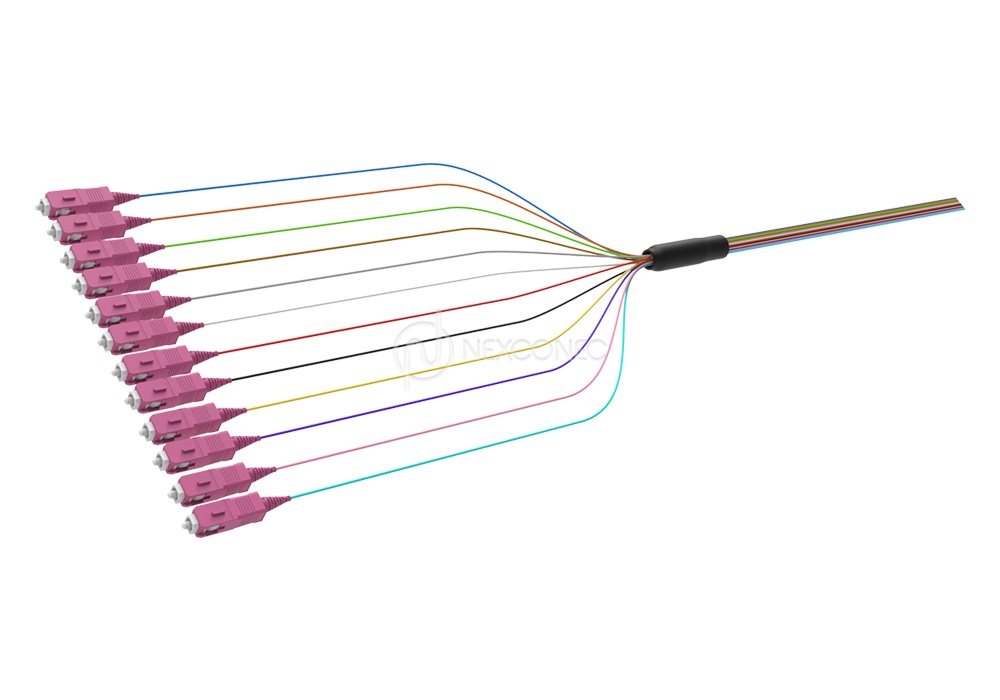

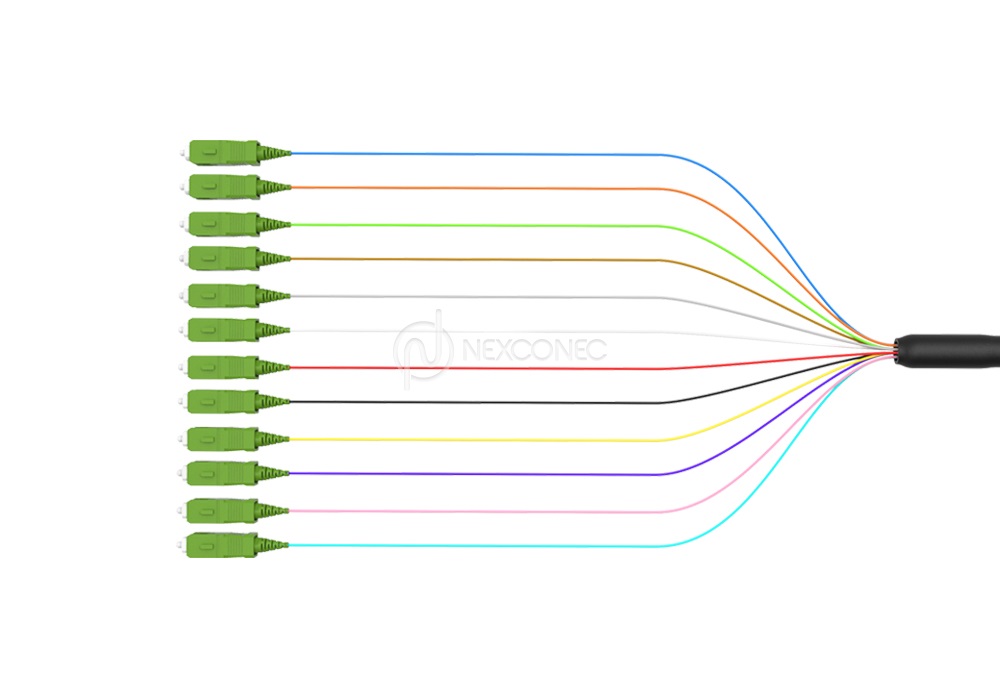

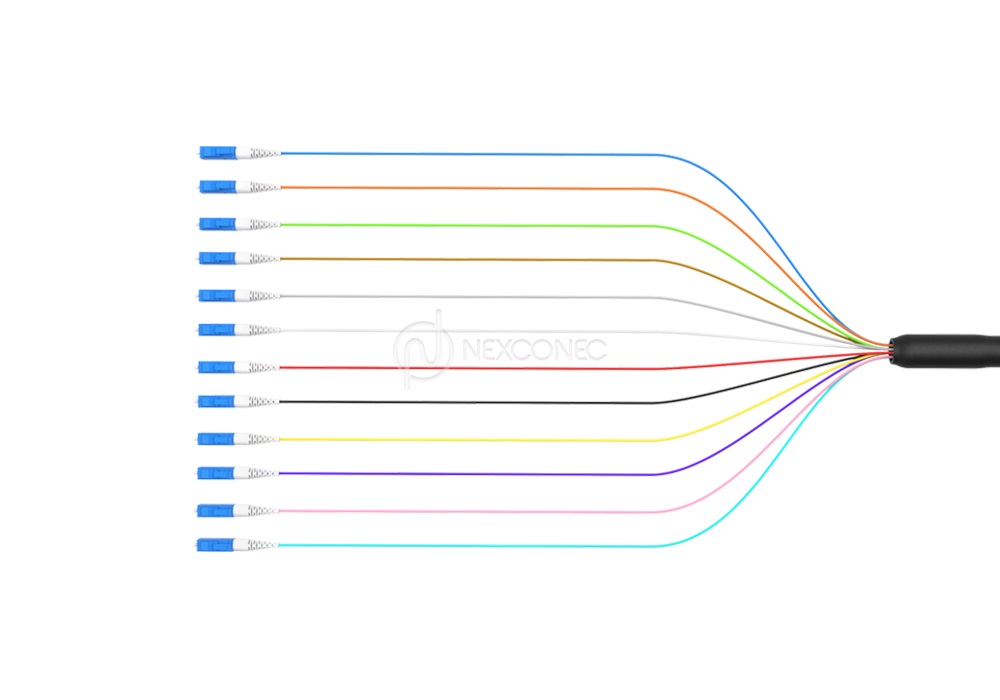

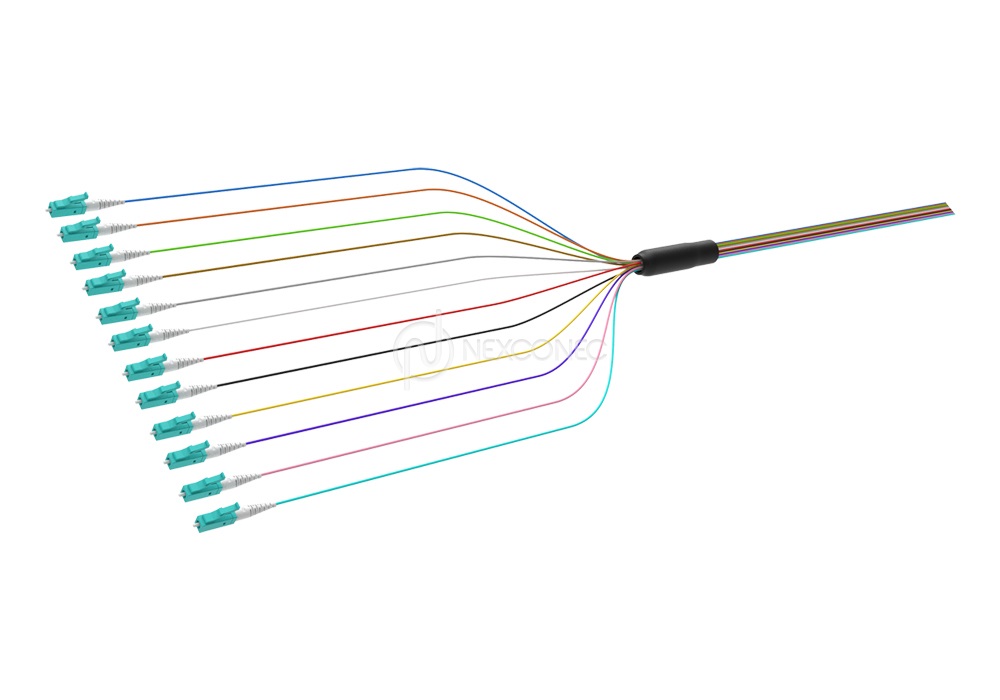

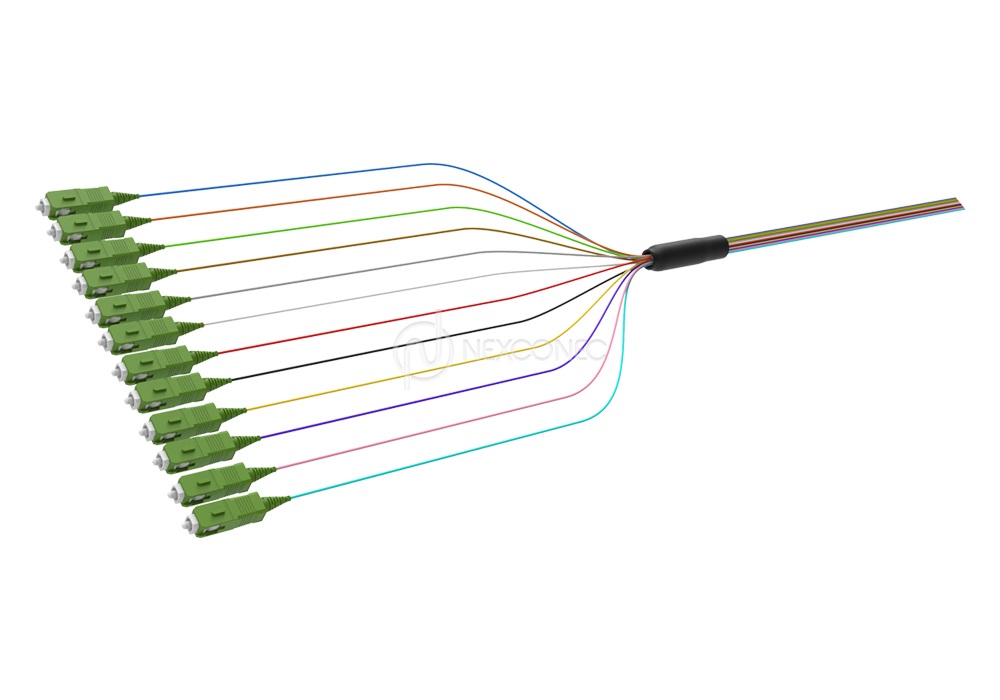

NEXCONEC® fanout cable assembly consists of multiple fiber connectors terminated on ribbon fiber or cable on one end and single fiber connectors terminated on 900μm tubing on the other. A Fan-Out is used to facilitate the conversion from the ribbon to individual fiber format. Used in fiber distribution panels and interconnect modules these ribbon pigtails are suitable for mass fusion splicing. These Fanouts eliminate tedious individual fiber splicing and connectorization. This unique solution reduces installation time and cost budgets.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Available in standard Single mode and Multimode fiber types
  • LC and SC connector types
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Available in standard Single mode and Multimode fiber types
  • LC and SC connector types
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
  • Telecommunication networks
  • FTTx
  • Data centers, Co-location DC
  • LAN or Campus wide Network
SINGLE FERRULE CONNECTOR SPECIFICATIONS
Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB
FANOUT CABLE CHARACTERISTICS
Parameters Unit Value
Connector Type Simplex
Fiber Count Up to 12F
Buffer Diameter μm 900±50
Fan-Out Buffer Material LSZH or PVC
Ribbon Fiber Length mm 200
Max. Tensile Load N 6
Crush Resistance N/100 mm 500
Min. Bending Radius mm 15
Operating Temperature ˚C -20 ~ +60
Compliance RoHS, REACH & SvHC
Ribbon Buffer Single array of 4-12F options impregnated with an acrylate UV curable resin

Ask Sales for Order Details: sales[at]nexconec.com
Or Contact Us by filling website contact form, one of our colleagues will get back to you shortly!
