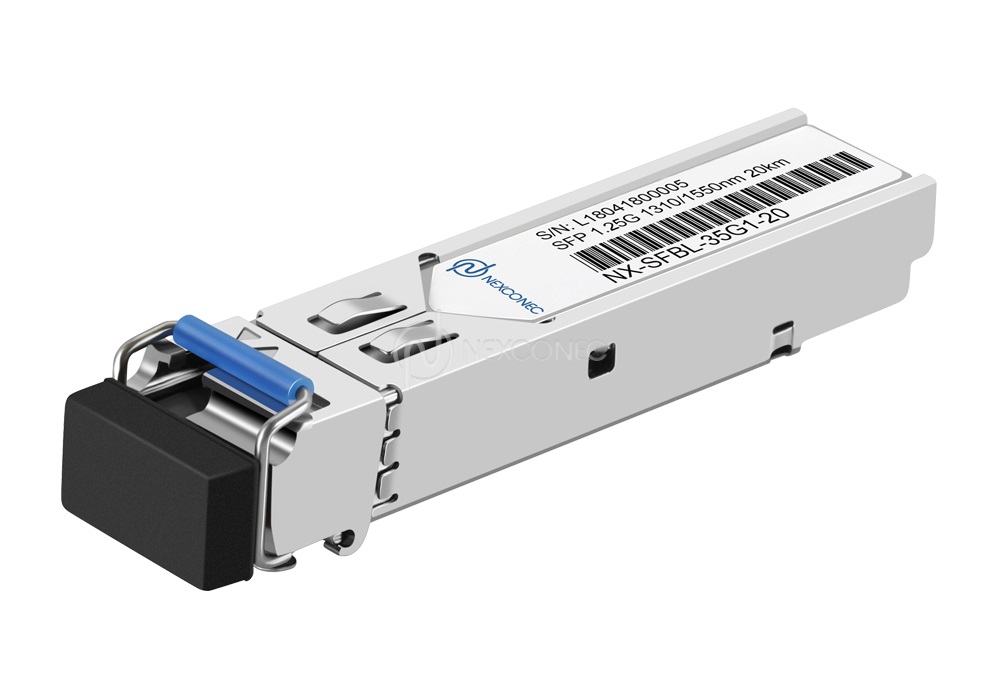

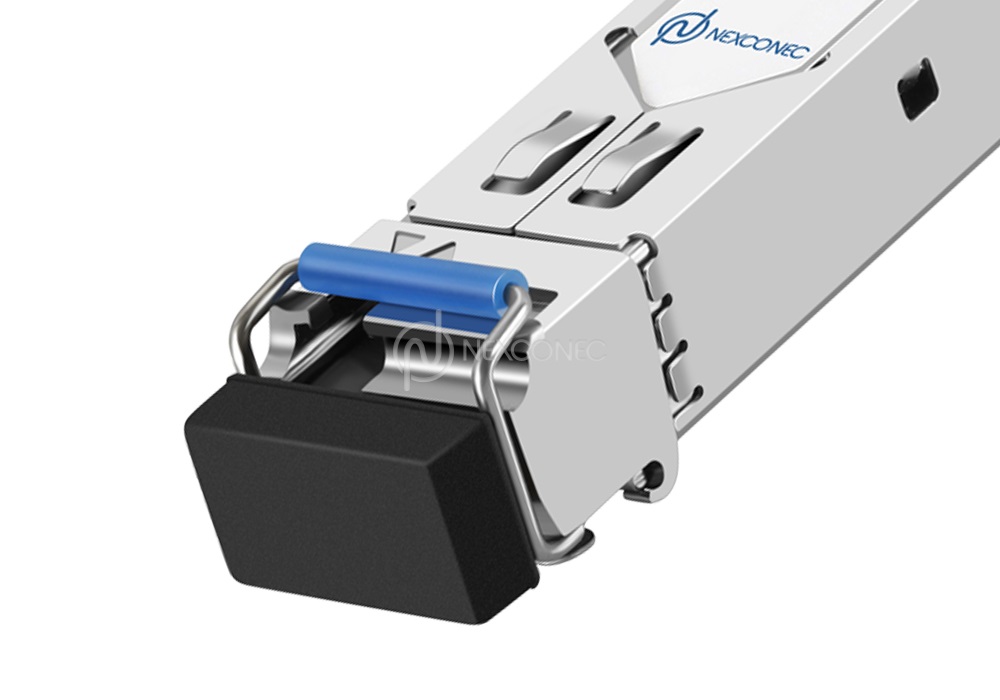

SFP BiDi TRANSCEIVER
Nexconec SFP BiDi transceivers data range from 100Mb/s to 1.25Gb/s, maximum distance is 120km, commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Up to 1.25Gbps bi-directional data links
- BiDi LC/UPC type pluggable optical interface
- Hot-pluggable SFP footprint
- Metal enclosure, for lower EMI
- DDM function available with internally calibrated mode
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard: -5 to +70°C, Industrial: -40 to +85°C
- Gigabit Ethernet, Gigabit Fiber Channel, Access Network
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SFBL-35G1-03-xx | SFP | 1.25G | 1310/1550nm | 3km | FP | PIN | LC | -11~-3dBm | -20dBm |
| NX-SFBL-53G1-03-xx | SFP | 1.25G | 1550/1310nm | 3km | FP | PIN | LC | -11~-3dBm | -20dBm |
| NX-SFBL-34G1-10-xx | SFP | 1.25G | 1310/1490nm | 10km | FP | PIN | LC | -10~-3dBm | -23dBm |
| NX-SFBL-43G1-10-xx | SFP | 1.25G | 1490/1310nm | 10km | DFB | PIN | LC | -10~-3dBm | -23dBm |
| NX-SFBL-35G1-10-xx | SFP | 1.25G | 1310/1550nm | 10km | FP | PIN | LC | -10~-3dBm | -23dBm |
| NX-SFBL-53G1-10-xx | SFP | 1.25G | 1550/1310nm | 10km | DFB | PIN | LC | -10~-3dBm | -23dBm |
| NX-SFBL-34G1-20-xx | SFP | 1.25G | 1310/1490nm | 20km | FP | PIN | LC | -9~-3dBm | -23dBm |
| NX-SFBL-43G1-20-xx | SFP | 1.25G | 1490/1310nm | 20km | DFB | PIN | LC | -9~-3dBm | -23dBm |
| NX-SFBL-35G1-20-xx | SFP | 1.25G | 1310/1550nm | 20km | FP | PIN | LC | -9~-3dBm | -23dBm |
| NX-SFBL-53G1-20-xx | SFP | 1.25G | 1550/1310nm | 20km | DFB | PIN | LC | -9~-3dBm | -23dBm |
| NX-SFBL-34G1-40-xx | SFP | 1.25G | 1310/1490nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SFBL-43G1-40-xx | SFP | 1.25G | 1490/1310nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SFBL-35G1-40-xx | SFP | 1.25G | 1310/1550nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SFBL-53G1-40-xx | SFP | 1.25G | 1550/1310nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SFBL-45G1-80-xx | SFP | 1.25G | 1490/1550nm | 80km | DFB | PIN | LC | 0~5dBm | -26dBm |
| NX-SFBL-54G1-80-xx | SFP | 1.25G | 1550/1490nm | 80km | DFB | PIN | LC | 0~5dBm | -26dBm |
| NX-SFBL-45G1-120-xx | SFP | 1.25G | 1490/1550nm | 120km | DFB | APD | LC | 0~5dBm | -31dBm |
| NX-SFBL-54G1-120-xx | SFP | 1.25G | 1550/1490nm | 120km | DFB | APD | LC | 0~5dBm | -31dBm |
| Part Number | Product Description |
|---|---|
| NX-SFBL-35G1-03-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1550nm) 3km with DDM |
| NX-SFBL-53G1-03-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1310nm) 3km with DDM |
| NX-SFBL-34G1-10-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1490nm) 10km with DDM |
| NX-SFBL-43G1-10-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1490/1310nm) 10km with DDM |
| NX-SFBL-35G1-10-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1550nm) 10km with DDM |
| NX-SFBL-53G1-10-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1310nm) 10km with DDM |
| NX-SFBL-34G1-20-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1490nm) 20km with DDM |
| NX-SFBL-43G1-20-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1490/1310nm) 20km with DDM |
| NX-SFBL-35G1-20-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1550nm) 20km with DDM |
| NX-SFBL-53G1-20-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1310nm) 20km with DDM |
| NX-SFBL-34G1-40-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1490nm) 40km with DDM |
| NX-SFBL-43G1-40-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1490/1310nm) 40km with DDM |
| NX-SFBL-35G1-40-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1310/1550nm) 40km with DDM |
| NX-SFBL-53G1-40-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1310nm) 40km with DDM |
| NX-SFBL-45G1-80-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1490/1550nm) 80km with DDM |
| NX-SFBL-54G1-80-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1490nm) 80km with DDM |
| NX-SFBL-45G1-120-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1490/1550nm) 120km with DDM |
| NX-SFBL-54G1-120-xx | SFP BiDi Transceiver, 1.25G LC Simplex (1550/1490nm) 120km with DDM |
1. Where (03 = 3km, 10 = 10km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-SFBL-43G1-10F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
