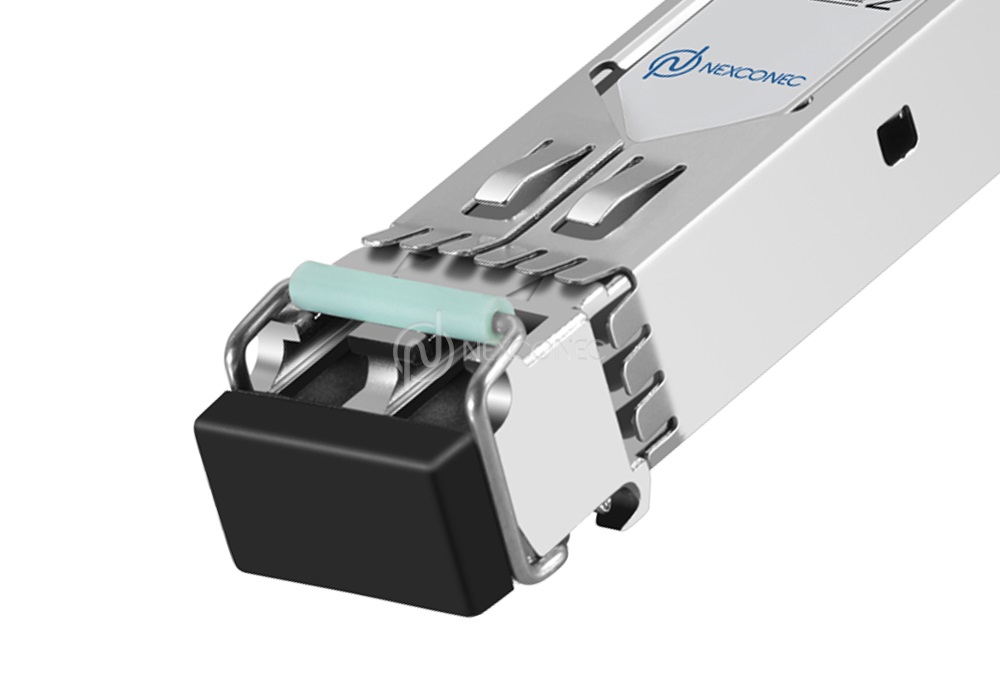

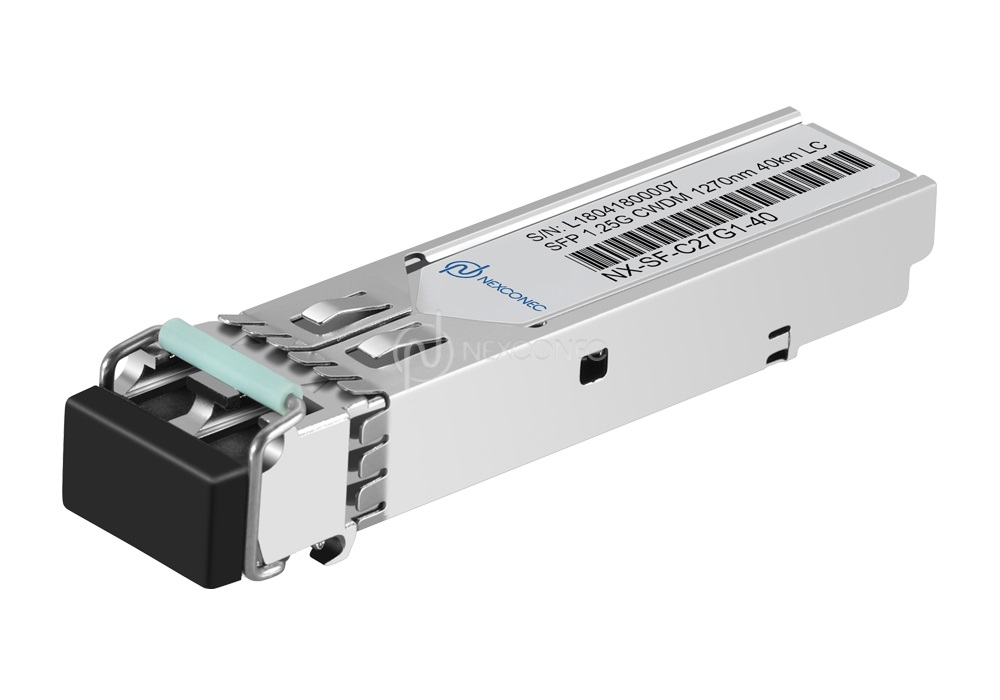

SFP CWDM Transceiver

SFP CWDM Transceiver
SFP CWDM Transceiver
SFP CWDM Transceiver SFP CWDM Transceiver

Nexconec offers a wide protfolio SFP CWDM transceivers especially including industrial temperature ones, CWDM transceivers is one of best selling products, lower dissipation, faster delivery.

FEATURES AND APPLICATIONS
  • Up to 1.25Gbps Data Links
  • Metal enclosure, for lower EMI
  • Single +3.3V power supply
  • Hot-pluggable
  • Duplex LC/UPC type pluggable optical interface
  • Operating temperature range: Commercial: -5℃~+70℃ Industrial: -40℃~+85℃
  • RoHS Compliant
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Low power dissipation
  • Switch to Switch Interface, Gigabit Ethernet, AN

Product Information

pdfDATASHEET.pdf View Download
Part Number Package Data Rate Wavelength Reach TX RX Connector TX Power RX Sensitivity
NX-SF-Q1G1-20-xx SFP 1.25G 1270-1610nm 20km DFB CWDM PIN LC -9~-3dBm -20dBm
NX-SF-Q1G1-40-xx SFP 1.25G 1270-1610nm 40km DFB CWDM PIN LC -5~0dBm -24dBm
NX-SF-Q1G1-80-xx SFP 1.25G 1270-1610nm 80km DFB CWDM PIN LC 0~5dBm -26dBm
NX-SF-Q1G1-100-xx SFP 1.25G 1270-1610nm 100km DFB CWDM PIN LC 0~5dBm -28dBm
NX-SF-Q1G1-120-xx SFP 1.25G 1270-1610nm 120km DFB CWDM APD LC 0~5dBm -31dBm
Part Number Product Description
NX-SF-Q1G1-20-xx SFP CWDM Transceiver LC Duplex 1270-1610nm 20km
NX-SF-Q1G1-40-xx SFP CWDM Transceiver LC Duplex 1270-1610nm 40km
NX-SF-Q1G1-80-xx SFP CWDM Transceiver LC Duplex 1270-1610nm 80km
NX-SF-Q1G1-100-xx SFP CWDM Transceiver LC Duplex 1270-1610nm 100km
NX-SF-Q1G1-120-xx SFP CWDM Transceiver LC Duplex 1270-1610nm 120km
1. Where (20 = 20km, 40 = 40km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-SF-Q1G1-20F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
