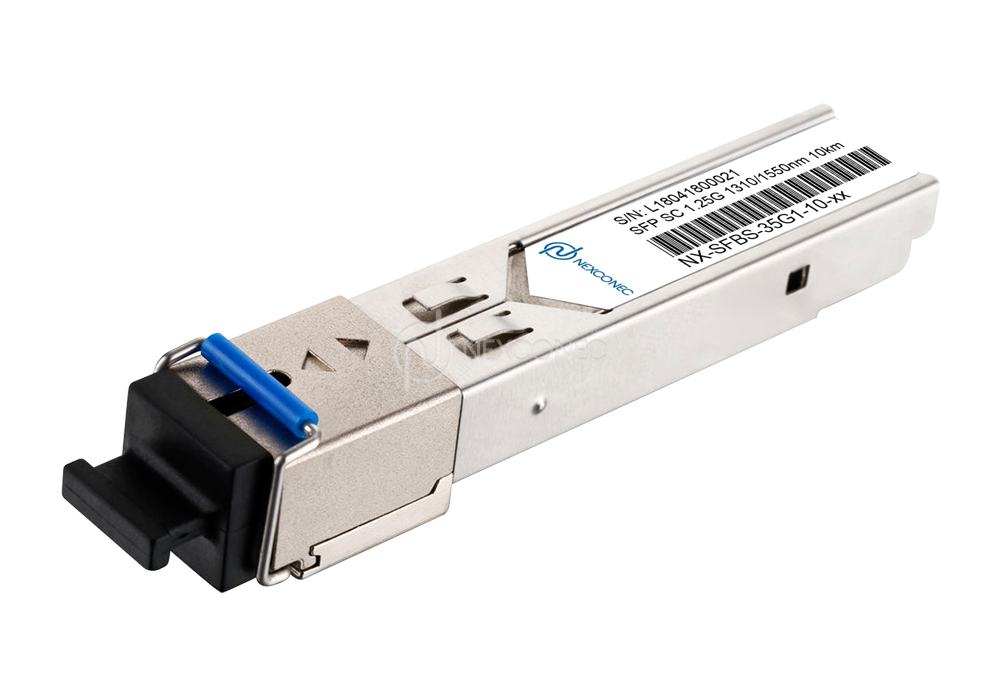

SFP SC BiDi TRANSCEIVER
Nexconec SFP SC BiDi transceivers data range from 100Mb/s to 4.25Gb/s, maximum distance up to 20km, commercial and industrial operating temperature optional.
The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).
FEATURES AND APPLICATIONS
- Up to 1.25Gbps bi-directional data links
- Compliant with SFP MSA and SFF-8472 with single SC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C
- SDH and SONET system
- Fiber Channel
- Switch to Switch interface
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SFBS-35G1-10-xx | SFP | 1.25G | 1310/1550nm | 10km | FP | PIN | SC | -9~-3dBm | -20dBm |
| NX-SFBS-53G1-10-xx | SFP | 1.25G | 1550/1310nm | 10km | DFB | PIN | SC | -9~-3dBm | -20dBm |
| NX-SFBS-35G1-20-xx | SFP | 1.25G | 1310/1550nm | 20km | FP | PIN | SC | -9~-3dBm | -20dBm |
| NX-SFBS-53G1-20-xx | SFP | 1.25G | 1550/1310nm | 20km | DFB | PIN | SC | -9~-3dBm | -20dBm |
| Part Number | Product Description |
|---|---|
| NX-SFBS-35G1-10-xx | SFP BiDi Transceiver SC Simplex 1310/1550nm 10km |
| NX-SFBS-53G1-10-xx | SFP BiDi Transceiver SC Simplex 1550/1310nm 10km |
| NX-SFBS-35G1-20-xx | SFP BiDi Transceiver SC Simplex 1310/1550nm 20km |
| NX-SFBS-53G1-20-xx | SFP BiDi Transceiver SC Simplex 1550/1310nm 20km |
1. Where (10 = 10km, 20 = 20km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-SFBS-35G1-10F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
