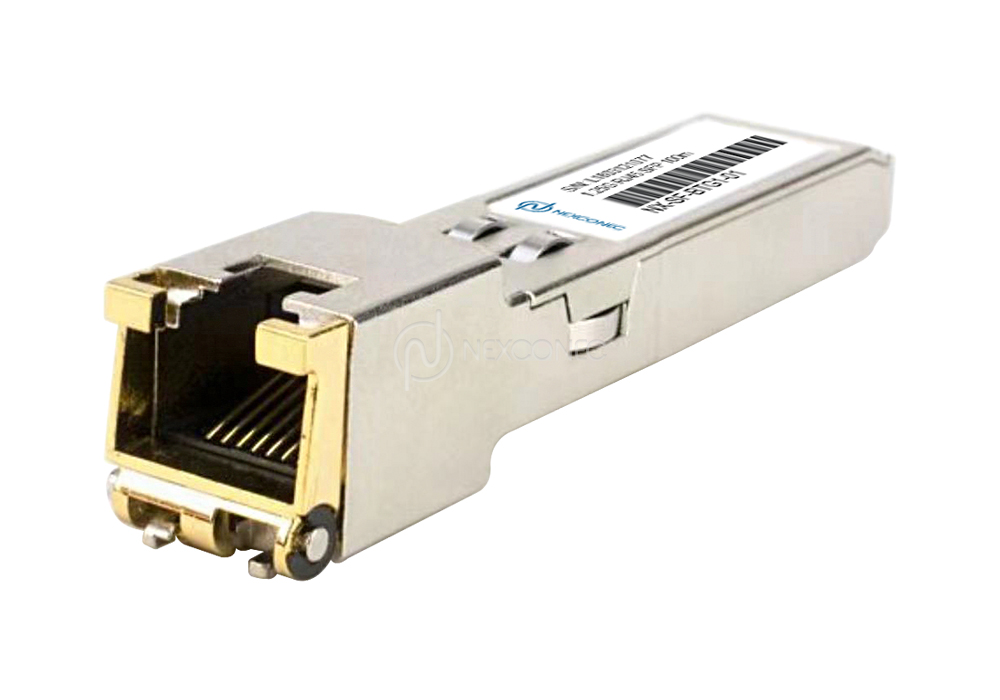

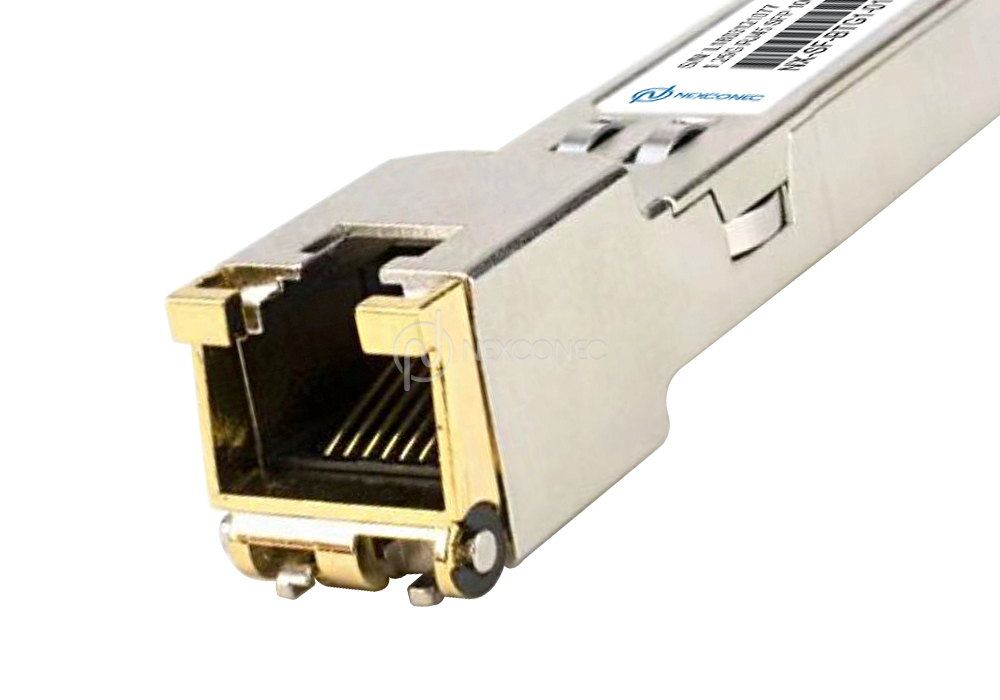

SFP Transceiver 1.25G RJ45
Nexconec SFP transceivers RJ45 connector, data rate range 1.25G, maximum distance up to 100m (10/100/1000M Autonegotiation), all transceivers specifications and features are fully compliant with SFP MSA, commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- 1.25Gbps data rate (10/100/1000M Auto-Negotiation)
- Link lengths at 1.25 Gb/s up to 100 meters
- 1000 BASE-T operation in host systems with SERDES interface
- Single +3.3V power supply
- Low power dissipation (1.05W typical)
- Hot-pluggable
- Metal enclosure, for lower EMI
- Compact RJ-45 connector assembly
- Operating temperature range: 0~70℃/-40~85℃
- RoHS Compliant
- No support TX_ disable and with Link function
| Part Number | Package | Data Rate | Temp | Reach | TX | RX | Connector | TX In/Out | RX In/Out |
|---|---|---|---|---|---|---|---|---|---|
| NX-SF-BTG1-01-xx | SFP | 1.25G | 0~70 | 100m | Zout | Zin | RJ45 | 100/50 Ohm | 100/50 Ohm |
| NX-SF-BTG1-01F-xx | SFP | 1.25G | -40~85 | 100m | Zout | Zin | RJ45 | 100/50 Ohm | 100/50 Ohm |
| Part Number | Product Description |
|---|---|
| NX-SF-BTG1-01-xx | SFP Transceiver 1.25G RJ45 100m (10/100/1000M Auto-negotiation) |
| NX-SF-BTG1-01F-xx | SFP Transceiver 1.25G RJ45 100m (10/100/1000M Auto-negotiation) Industrial Grade |
1. Where (01 = 100m, 01F = 100m etc.) denotes reach in meters.
2. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
3. Find Compatible Short codes in datasheet at Order Information area.
