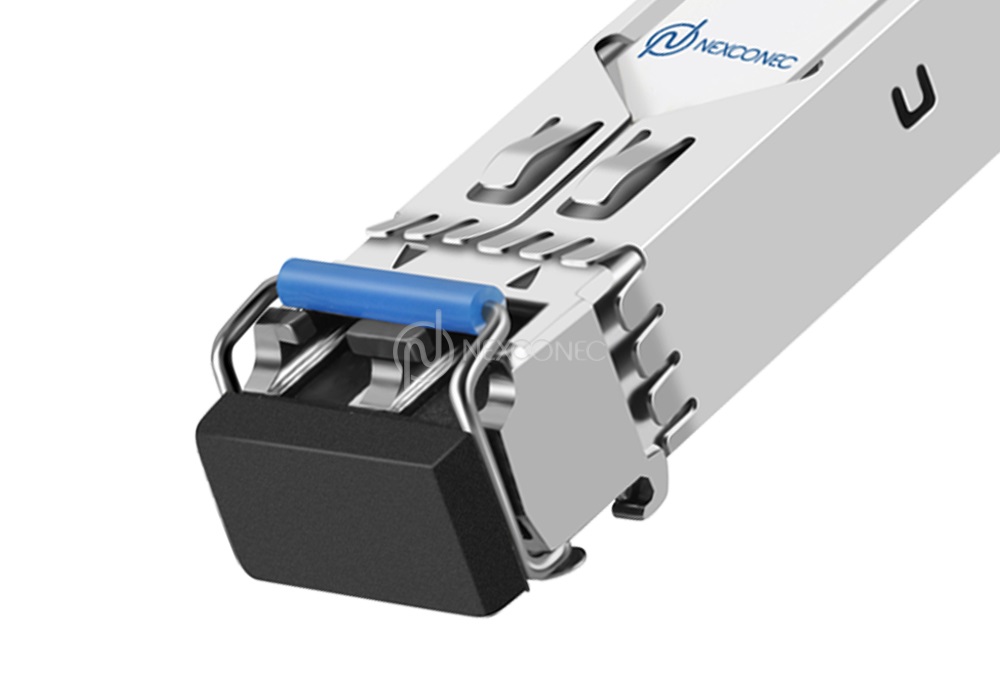

SFP Transceiver
Nexconec SFP transceivers data rate ranges from 100Mb/s to 1.25Gb/s, maximum distance up to 150km, all transceivers’ specifications and features are fully compliant with SFP MSA, commercial and industrial operating temperature optional.
FEATURES AND APPLICATIONS
- Compliant with MSA SFP specification, G.959.1, SFF-8472, FC-PI v2.0
- Hot-pluggable
- Duplex LC receptacle optical interface compliant
- Data rates range from 100Mb/s to 1.25Gb/s
- DDM function available with internally calibrated mode
- International Class1 laser safety certified
- Single +3.3V power supply
- Operating temperature range: Commercial: -5℃~+70℃, Industrial: -40℃~+85℃
- RoHS Compliant
- Gigabit Ethernet, Gigabit Fiber Channel, Access Network
| Part Number | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
| NX-SF-8G1-01-xx | SFP | 1.25G | 850nm | 550m | VCSEL | PIN | LC | -9.5~-3dBm | -18dBm |

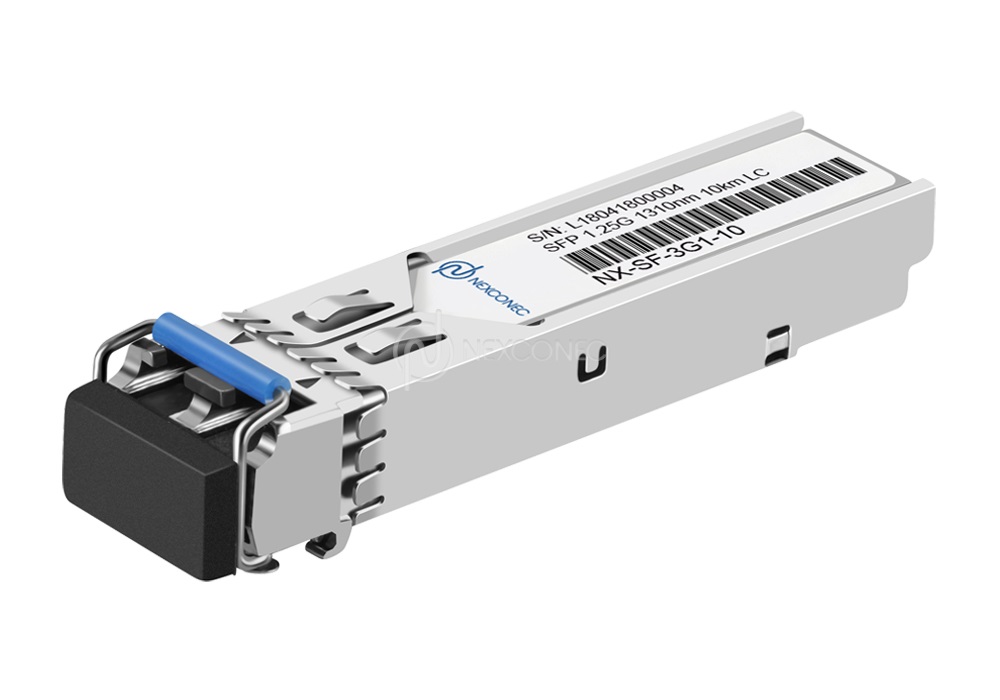

| NX-SF-3G1-10-xx | SFP | 1.25G | 1310nm | 10km | FP | PIN | LC | -9~-3dBm | -19dBm |
| NX-SF-3G1-20-xx | SFP | 1.25G | 1310nm | 20km | FP | PIN | LC | -9~-3dBm | -19dBm |
| NX-SF-3G1-40-xx | SFP | 1.25G | 1310nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SF-5G1-40-xx | SFP | 1.25G | 1550nm | 40km | DFB | PIN | LC | -5~0dBm | -24dBm |
| NX-SF-5G1-60-xx | SFP | 1.25G | 1550nm | 60km | DFB | PIN | LC | 0~5dBm | -25dBm |
| NX-SF-5G1-80-xx | SFP | 1.25G | 1550nm | 80km | DFB | PIN | LC | 0~5dBm | -26dBm |
| NX-SF-5G1-100-xx | SFP | 1.25G | 1550nm | 100km | DFB | APD | LC | 0~5dBm | -31dBm |
| NX-SF-5G1-120-xx | SFP | 1.25G | 1550nm | 120km | DFB | APD | LC | 0~5dBm | -32dBm |
| NX-SF-5G1-150-xx | SFP | 1.25G | 1550nm | 150km | DFB | APD | LC | -2~5dBm | -35dBm |
| Part Number | Product Description |
|---|---|
| NX-SF-8G1-01-xx | SFP Transceiver, 1.25G LC Duplex, MM (850nm) 550Mtr with DDM |
| NX-SF-3G1-10-xx | SFP Transceiver, 1.25G LC Duplex, SM (1310nm) 10KM with DDM |
| NX-SF-3G1-20-xx | SFP Transceiver, 1.25G LC Duplex, SM (1310nm) 20KM with DDM |
| NX-SF-3G1-40-xx | SFP Transceiver, 1.25G LC Duplex, SM (1310nm) 40KM with DDM |
| NX-SF-5G1-40-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 40KM with DDM |
| NX-SF-5G1-60-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 60KM with DDM |
| NX-SF-5G1-80-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 80KM with DDM |
| NX-SF-5G1-100-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 100KM with DDM |
| NX-SF-5G1-120-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 120KM with DDM |
| NX-SF-5G1-150-xx | SFP Transceiver, 1.25G LC Duplex, SM (1550nm) 150KM with DDM |
1. Where (01 = 550m, 10 = 10km etc.) denotes reach in kilometers.
2. Add “F” after Transmission Distance at the end in the Part Number for Industrial Grade. (Example: NX-SF-8G1-01F-xx).
3. Where "xx" denotes compatibility short codes. (xx = CI for Cisco, xx = JP for Juniper etc.)
4. Find Compatible Short codes in datasheet at Order Information area.
