Products | Fiber Systems | Cables

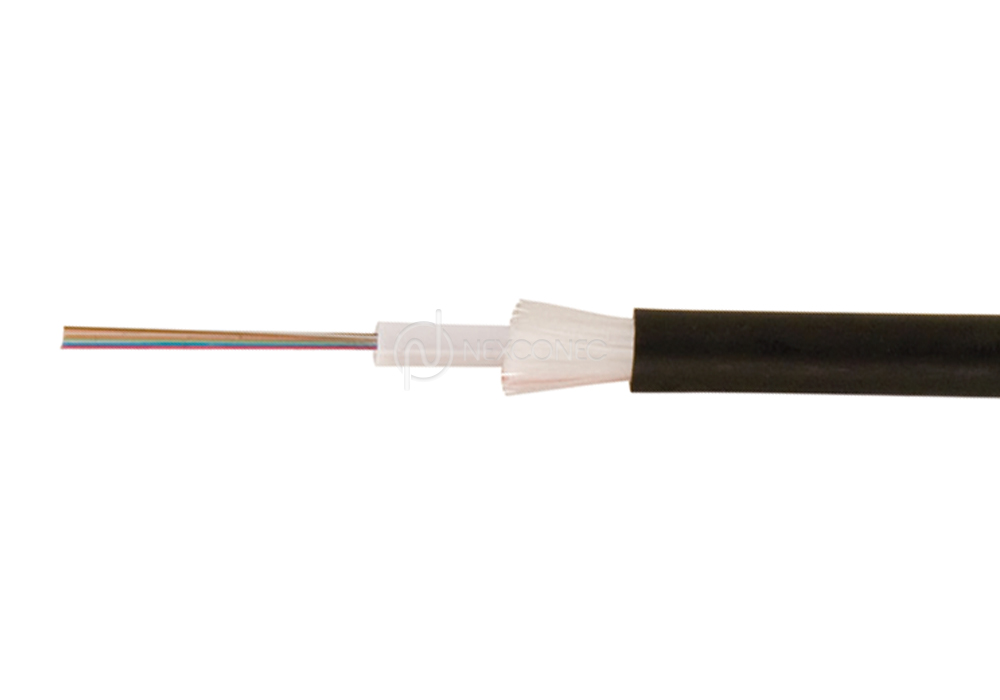

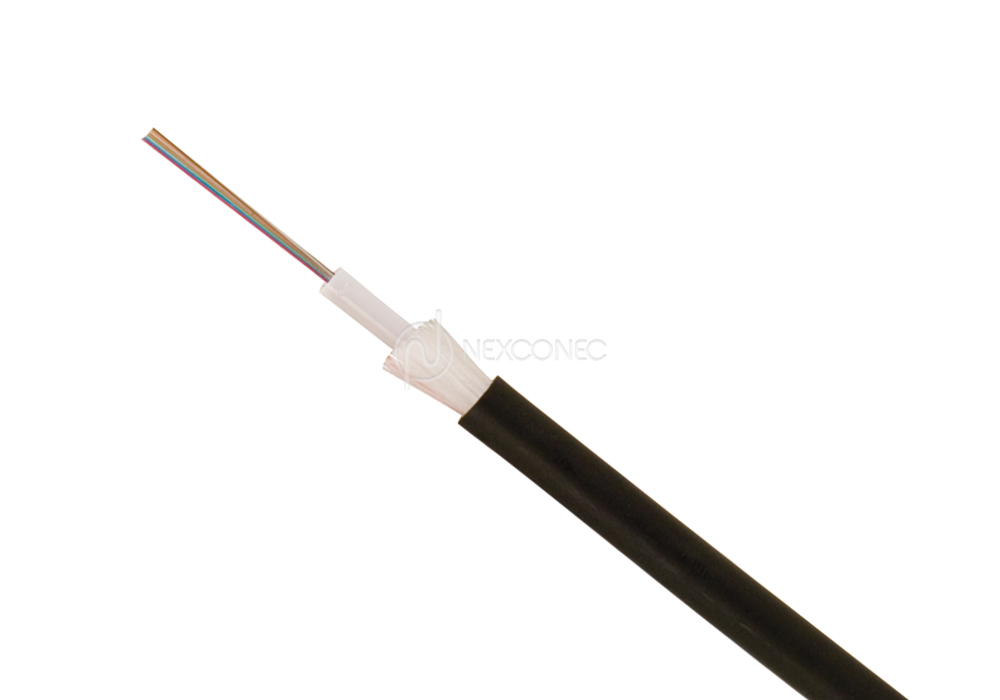

Single Loose Tube Fiber Cable Indoor/Outdoor

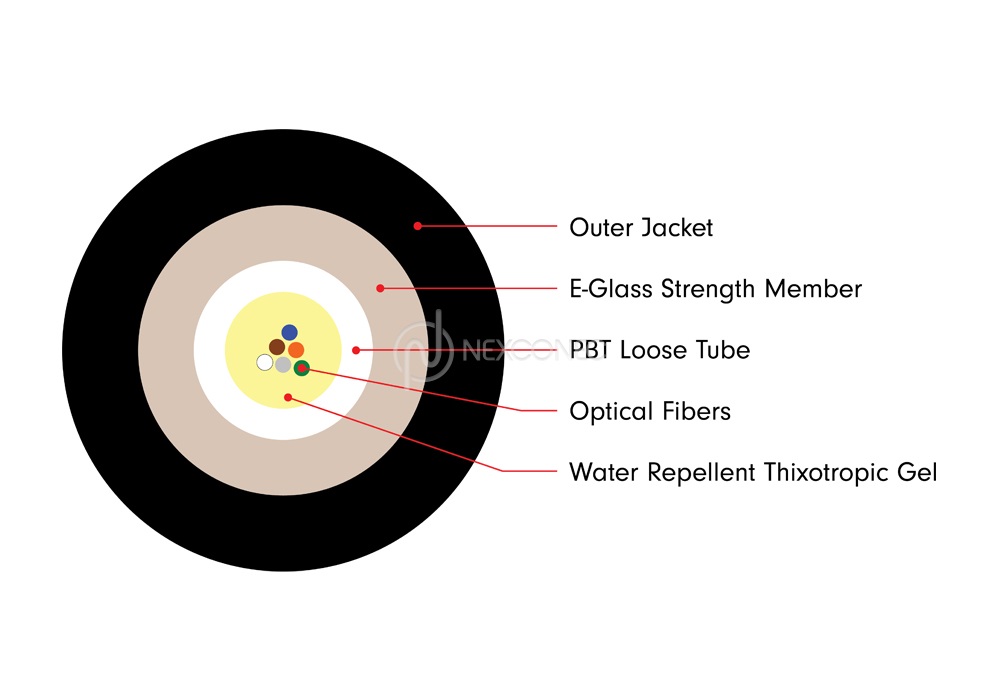

NEXCONEC Single Loose Tube is made of single gel filled PBT tube that consists of 2 to 24, 250μm optical fibers, the tube is surrounded with longitudinally applied E-glass non-metallic strength members, UV resistant LSZH or HDPE jacket.
FEATURES AND APPLICATIONS
- Up to 24 fiber available
- Standard SM and MM options available
- High water resistant ability
- UV resistant outer jacket
- Conforms to IEC standard
- Suitable for internal / external duct applications
- Suitable for environments where rodent resistance is required
- Ideal for intra building links in campus environments
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | 2-24F | |
| Outer Diameter | mm | 6.8 |
| Long Term Tensile Strength | N | 500 |
| Short Term Tensile Strength | N | 1000 |
| Long Term Crush Resistance | N | 200 |
| Short Term Crush Resistance | N | 1000 |
| Storage Temperature | °C | -40 ~ +70 |
| Operating Temperature | °C | -40 ~ +70 |
| Installation Temperature | °C | -10 ~ +50 |
| Cable Weight | Kg/Km | 45 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
