Single Loose Tube Flex Armored Fiber Cable Outdoor

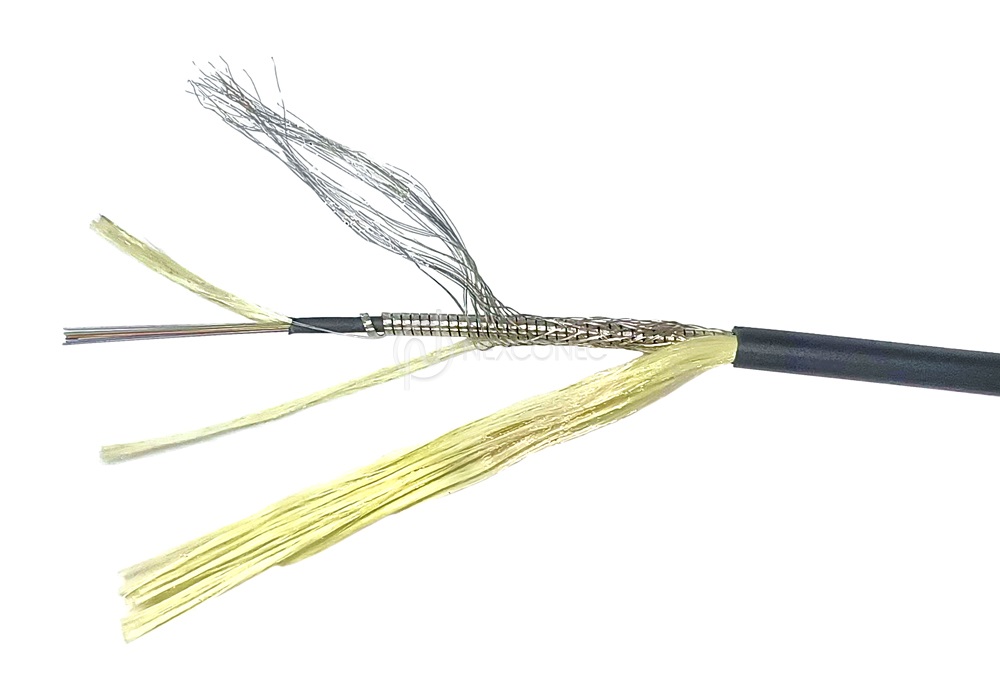

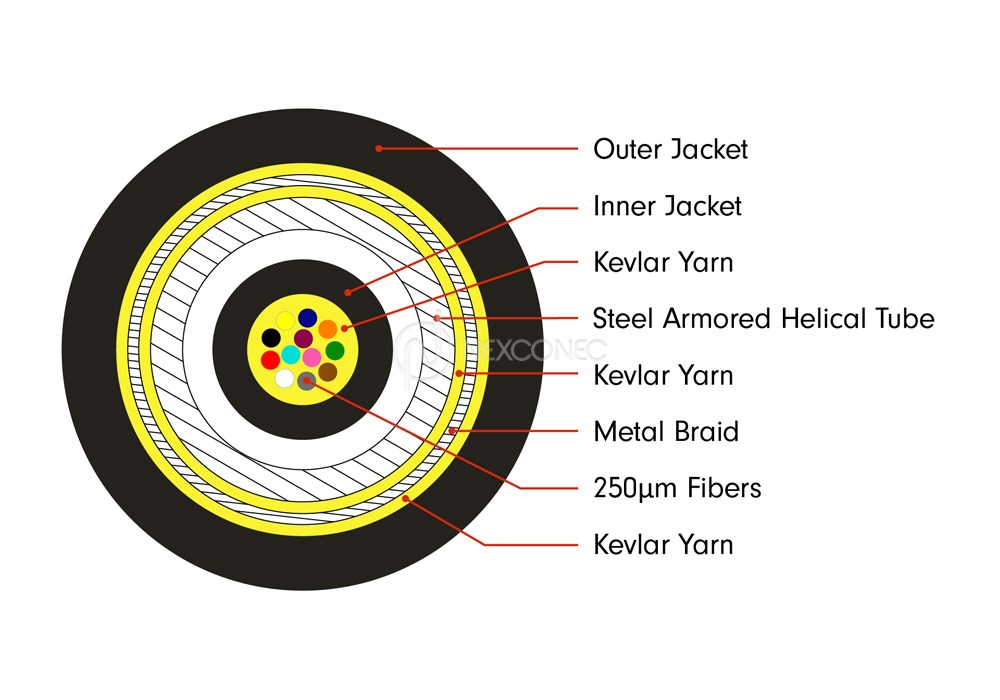

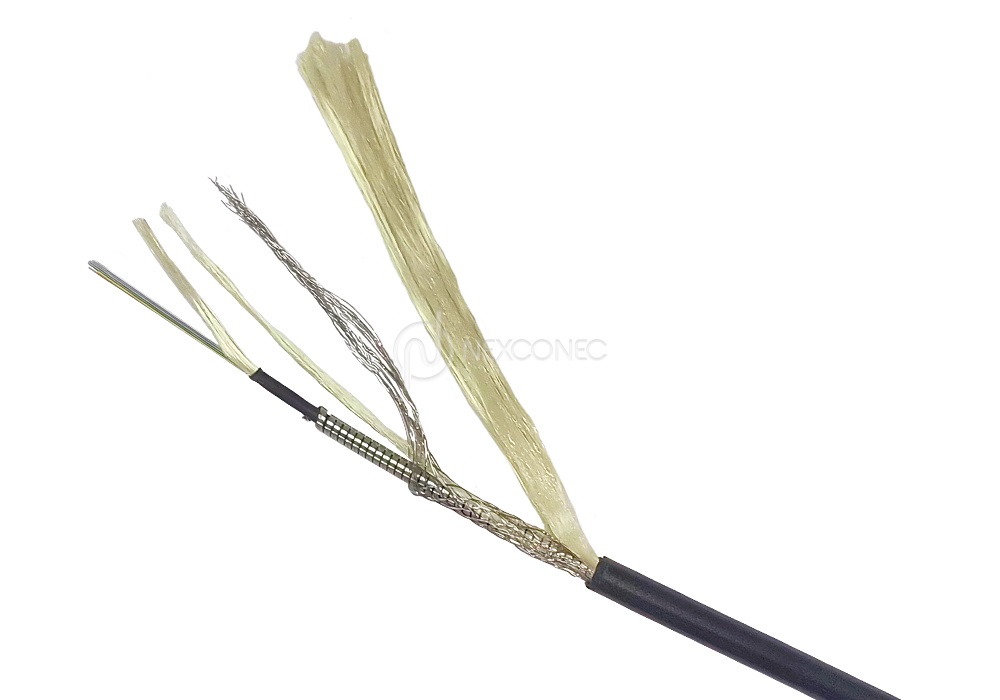

NEXCONEC® Outdoor Single Loose Tube Flex Armored Fiber Cable is made of a subunit which consists of up to 12 250μm fibers and with aramid strength member. Then in the helical tube and surrounded with metal braiding and PU jacket for high crush resistance for outdoor application.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA and Telcordia performance requirements
- Standard SM and MM fibers available
- Compact cable construction
- Individually colored optical fibers
- RoHS, REACH & SvHC compliant
- Ideal for internal and external use
- Specifically use for high density connectivity including data centers
| Parameters | Units | Value | |
|---|---|---|---|
| Fiber Count | 12FO | 24FO | |
| Outer Jacket Diameter | mm | 5.0±0.2 | 5.5±0.2 |
| Outer Jacket Material | PU (Black) | ||
| Inner Jacket Diameter | mm | 2.0 | 2.2 |
| Inner Jacket Material | LSZH | ||
| Tensile Strength (Long Term) | N | 200 | 300 |
| Tensile Strength (Short Term) | N | 600 | 700 |
| Crush Resistance (Long Term) | N/100mm | 500 | 500 |
| Crush Resistance (Short Term) | N/100mm | 1000 | 1000 |
| Storage Temperature | °C | -40 ~ +70 | |
| Operating Temperature | °C | -40 ~ +70 | |
| Installation Temperature | °C | -10 ~ +50 | |
| Cable Weight | Kg/Km | 33 Kg | 45 Kg |
