SN® Patch Cord

SN Optical Fiber Patch Cords
SN Optical Fiber Patch Cords
SN Optical Fiber Patch Cords
SN Optical Fiber Patch Cords SN Optical Fiber Patch Cords SN Optical Fiber Patch Cords

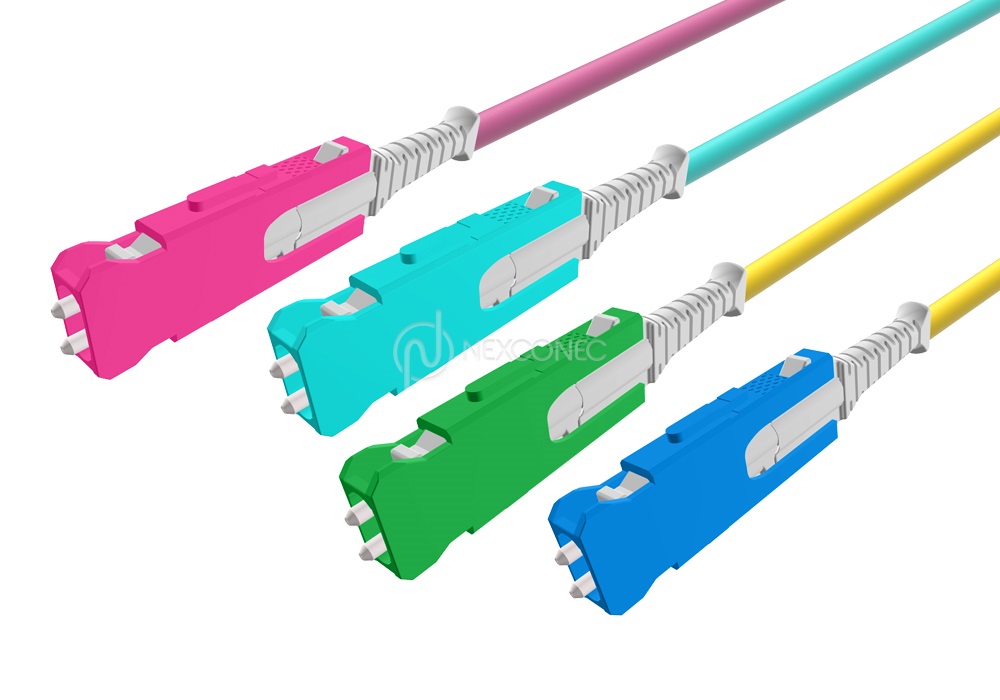

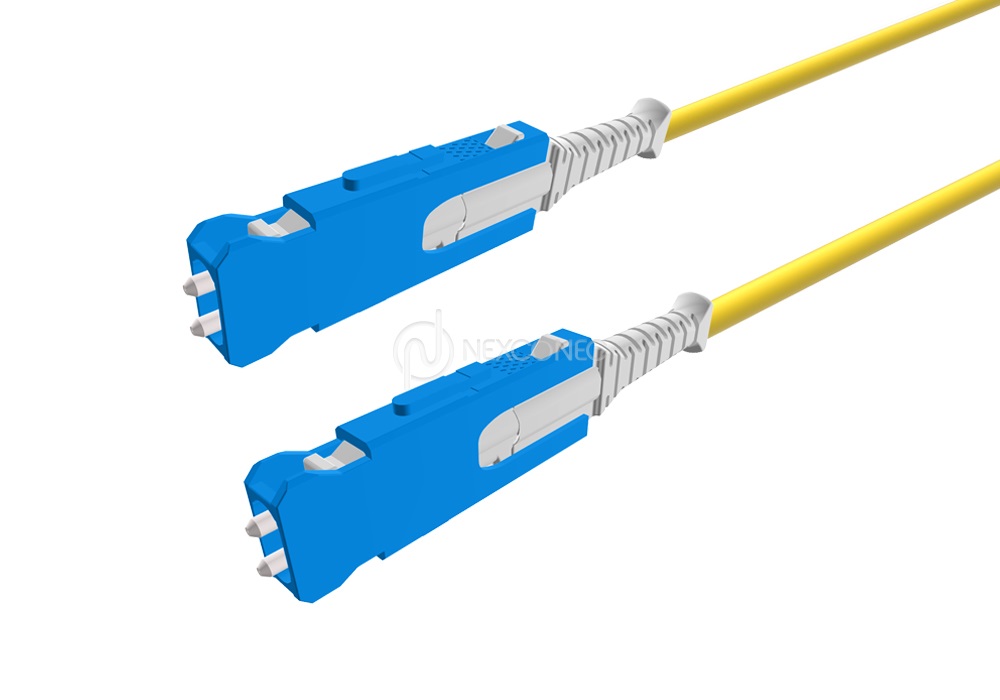

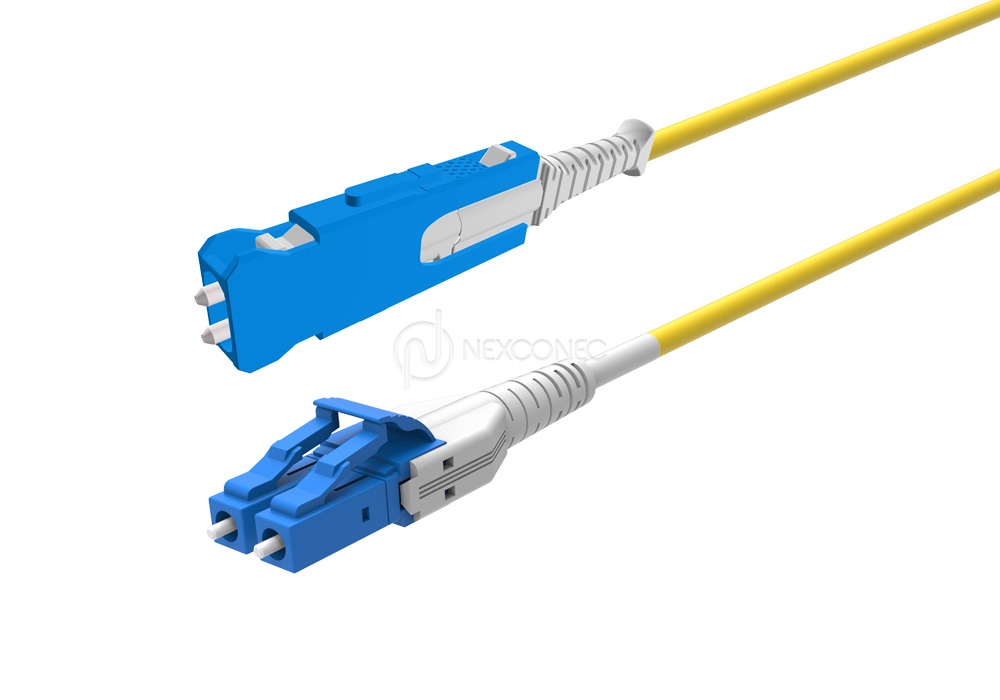

The SN® Fiber Optic Patch Cords is the ultimate designed and optimized for next-generation data rates, the SN® patch cord offers network operators the chance to densify their existing legacy infrastructure whilst at the same time providing an upgrade path to 400G and beyond. It is suitable for termination to either 1.6 mm or 2.0 mm round cable that incorporates a ruggedized jacket and internal strain relief.

The SN® connector has an integrated ‘push-pull’ boot that simplifies insertion and removal of the connector even in dense patch panels where finger access is limited. A gang-clip can be added to four individual SN® connectors allowing them to be patched simultaneously to either adapters or 4-channel (8 fibers) transceivers (subject to product selection).

FEATURES AND APPLICATIONS
  • Meets IEC random mating Grade B
  • Very Small Form Factor (VSFF) connector
  • Unique push-pull boot for simple installation and removal
  • All Assemblies are machine polished providing highest quality
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • High-density patching
  • QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
  • Telecommunication networks
  • Data centers

Product Information

pdfDATASHEET.pdf View Download

SINGLE FERRULE CONNECTOR

Single mode Multimode
UPC APC MM
SM Premium SM Standard SM Premium SM Standard Premium
Typical Insertion Loss 0.05 0.08 0.07 0.12 0.05
Max. Insertion Loss 0.15 0.20 0.15 0.25 0.15
Typical Return Loss ≥55 dB ≥65 dB ≥25 dB
Ferrule Diameter 125.5 μm 127 μm

CABLE CHARACTERISTICS

Parameters Unit Value
Outer Diameter mm 1.6 2.0
Tensile Strength (Long Term) N 20 40
Tensile Strength (Short Term) N 40 80
Crush Resistance (Long Term) N/100mm 100
Crush Resistance (Short Term) N/100mm 400
Min. Bending Radius (Static) mm 20 30
Min. Bending Radius (Dynamic) mm 40 60
Storage Temperature °C -20 ~ +60
Operating Temperature °C -20 ~ +60
Cable Weight Kg/Km 6 7.6
