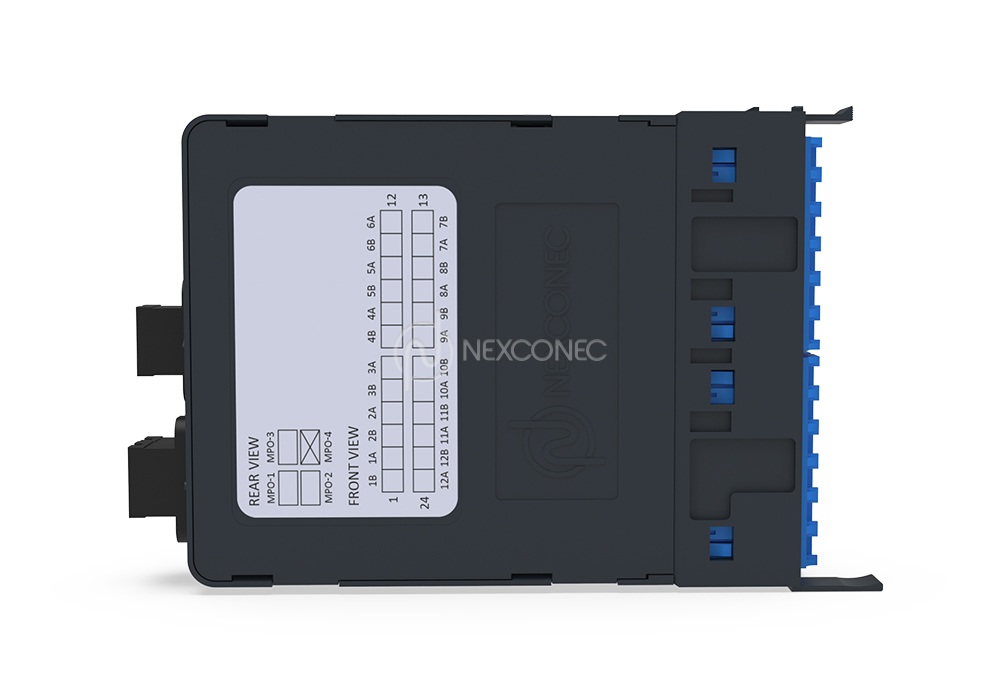

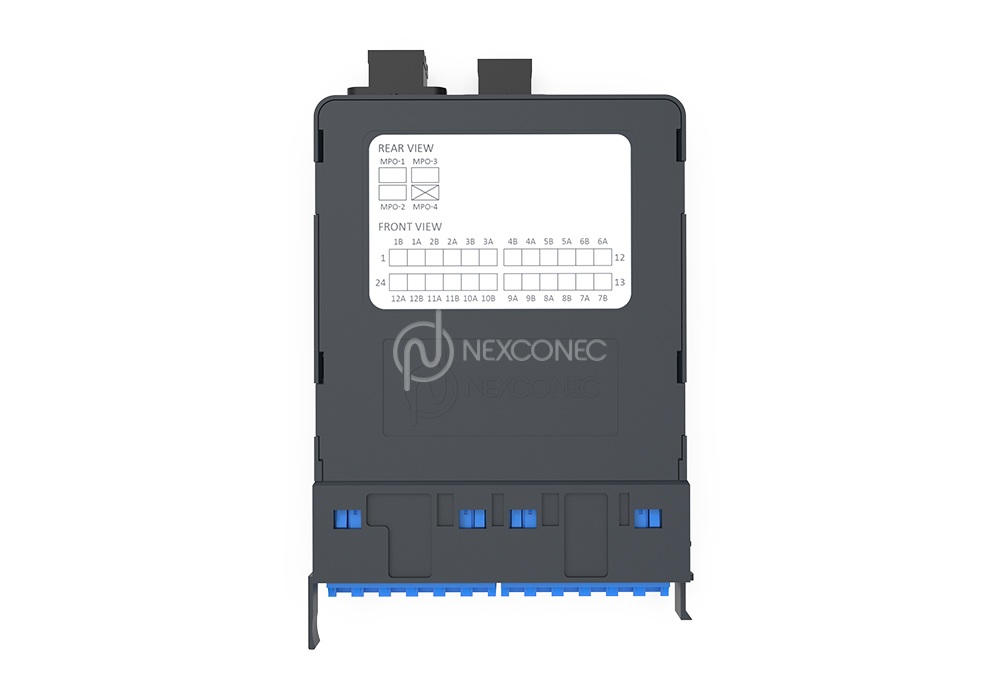

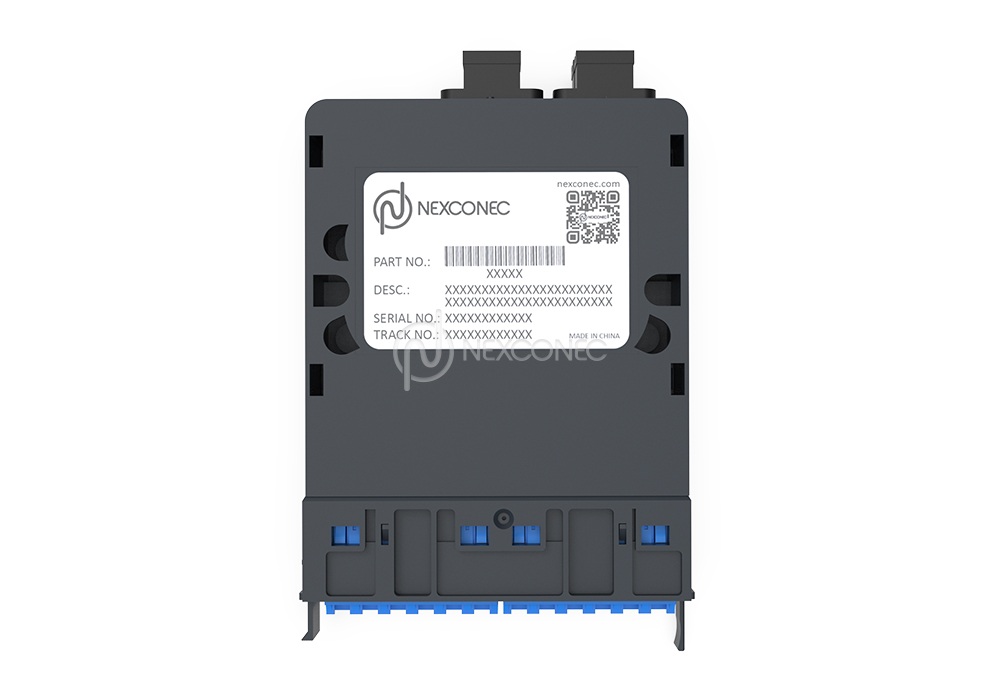

UPX CASSETTE MTP®/MPO 3x(BASE-8) - UPXCAxxQ
NEXCONEC® UPX fiber optic cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The UPX cassettes are designed to easily plug into NEXCONEC UPX 2U 12 slot chassis and each chassis can populate up to 288FO.
For the 24 Fibers 100/40G to 25/10G version, each cassette holds 3x(Base-8) MPO - 24F LC fanout. The cassettes eliminate the need for splicing by reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters (LC and MPO Shuttered Ports)
- Available in standard Single mode and Multimode fiber options
- Available in 40G to 10G and 100G to 25G transition
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters (LC and MPO Shuttered Ports)
- Available in standard Single mode and Multimode fiber options
- Available in 40G to 10G and 100G to 25G transition
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 25G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 125 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 24FO in LC |

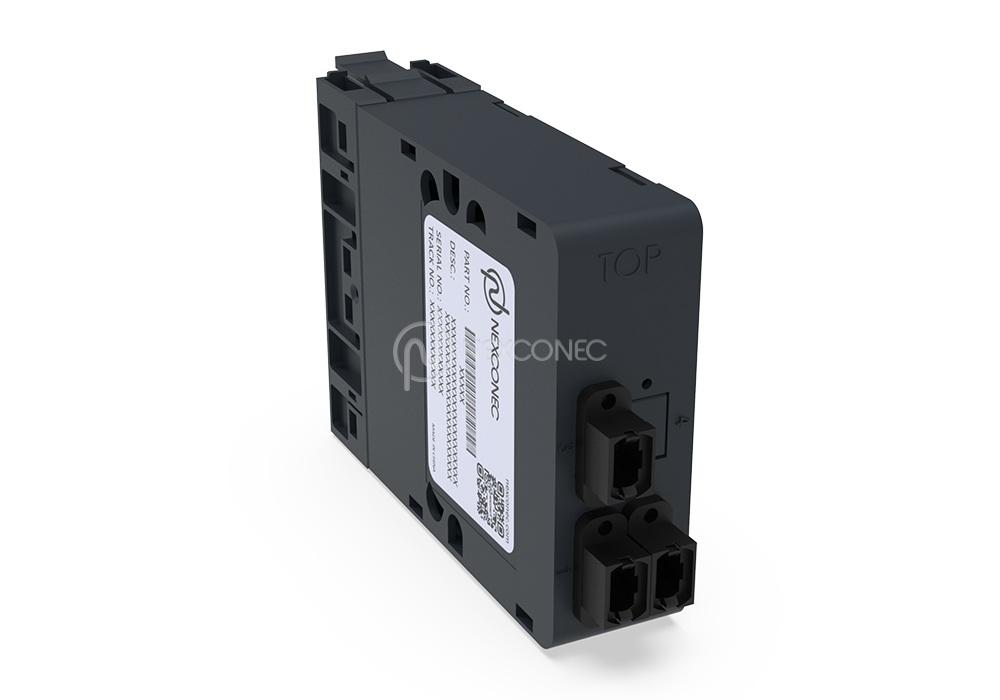

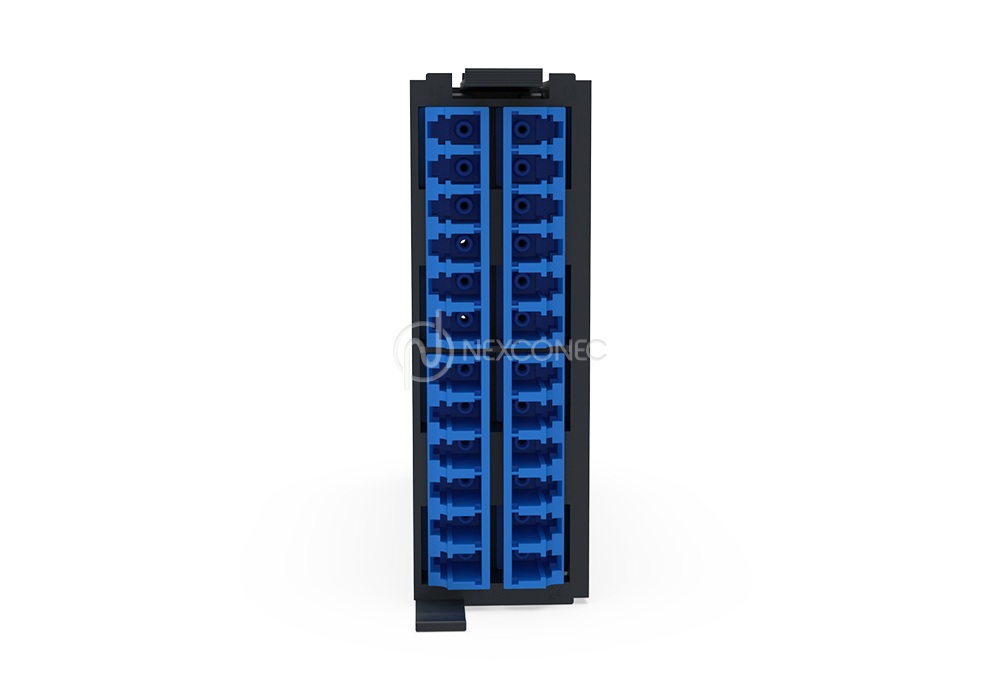

| Adapters Ports | Front: 4x 6 Cores LC Adapters, Shuttered Ports Rear: 3x (Base-8) MTP®/MPO Adapter, Shuttered Ports |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|

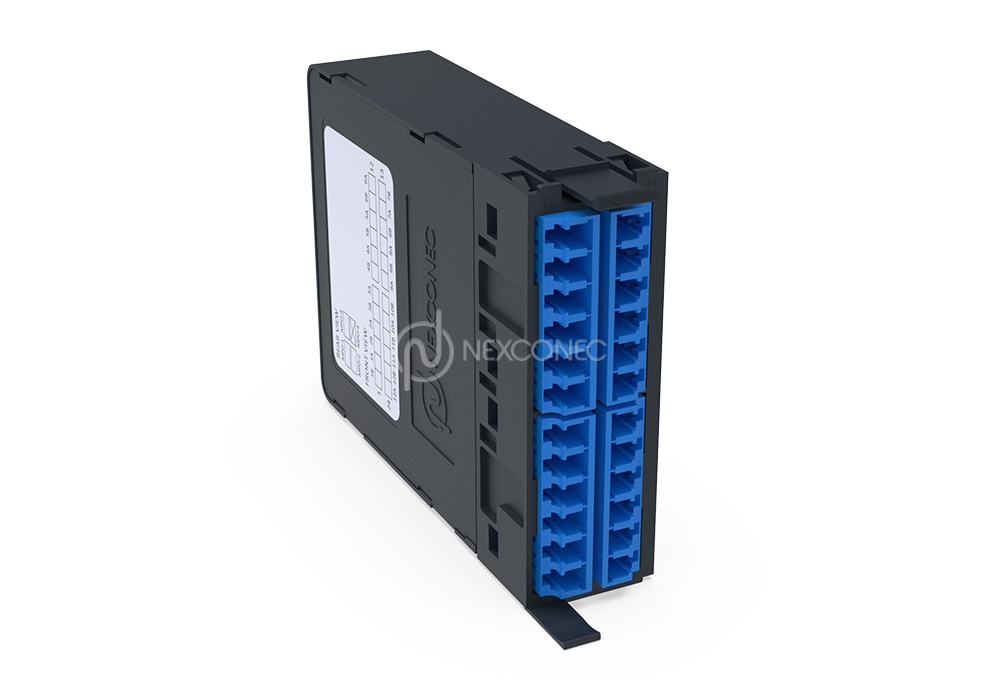

| UPXCA01Q | UPX Module 100/40G-25/10G 24FO SMF OS2 LC - 3xMPO(M) Elite Base-8, Polarity B |

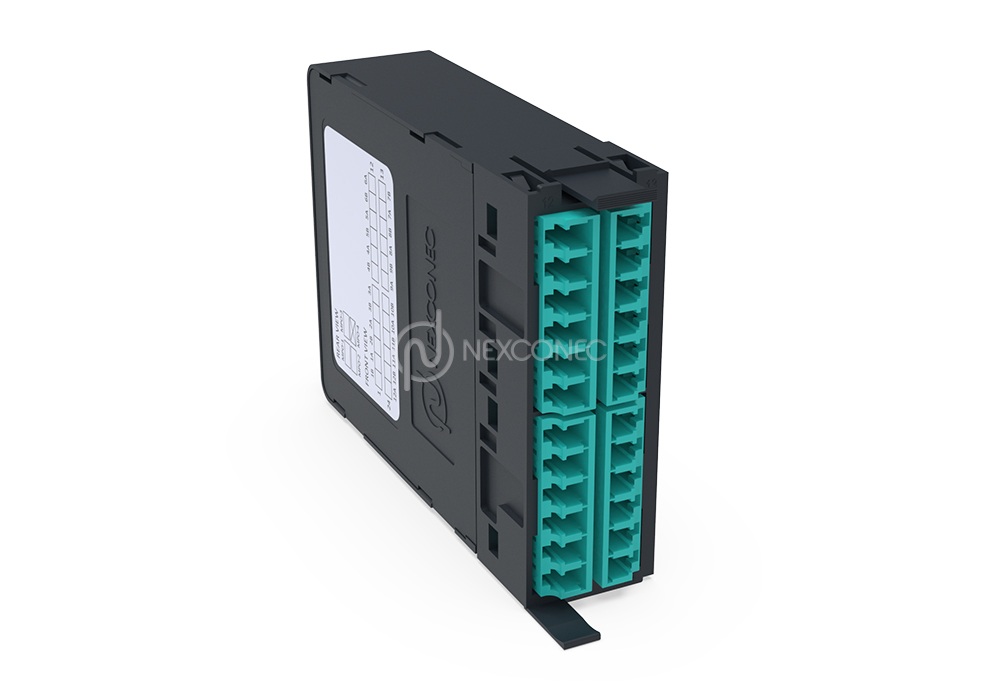

| UPXCA02Q | UPX Module 40G-10G 24FO MM OM3/OM4 LC - 3xMPO(M) Elite Base-8, Polarity B |
Note: MTP®/MPO from Usconec available on request.
