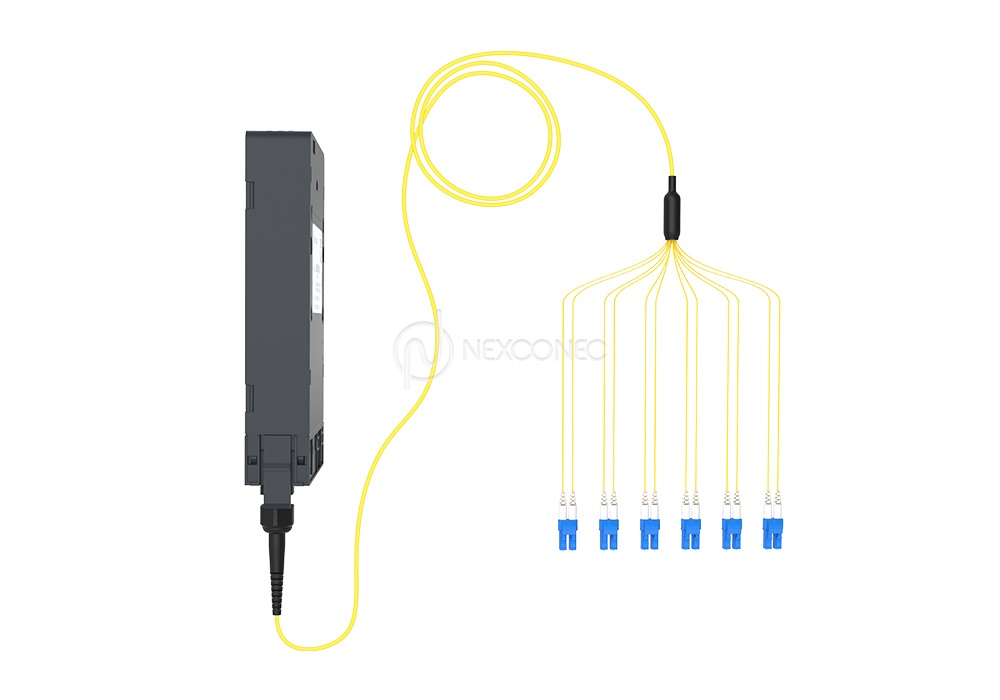

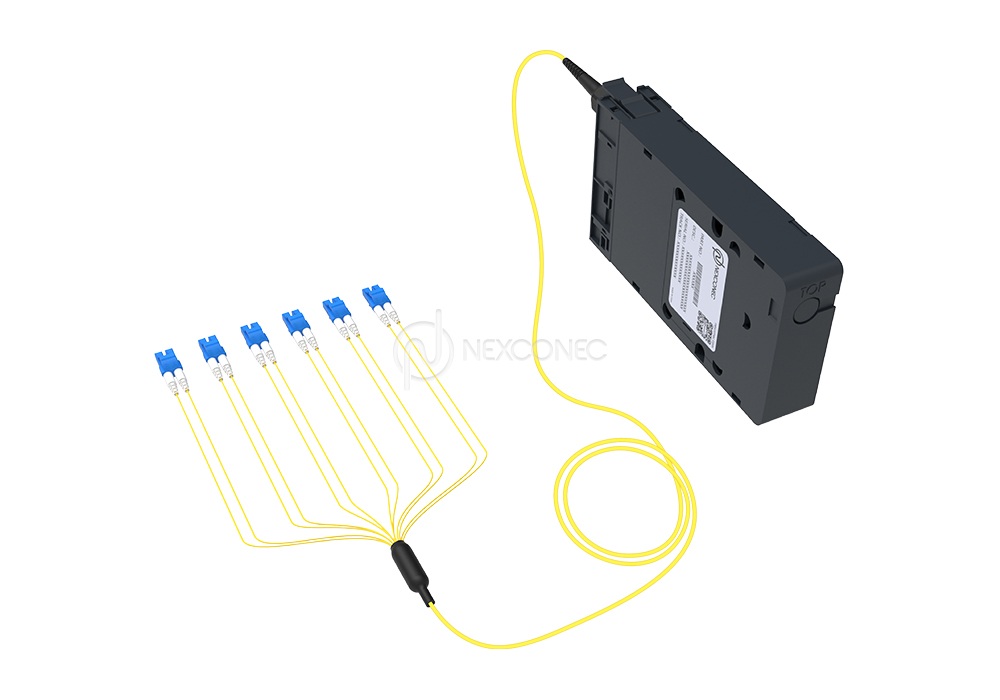

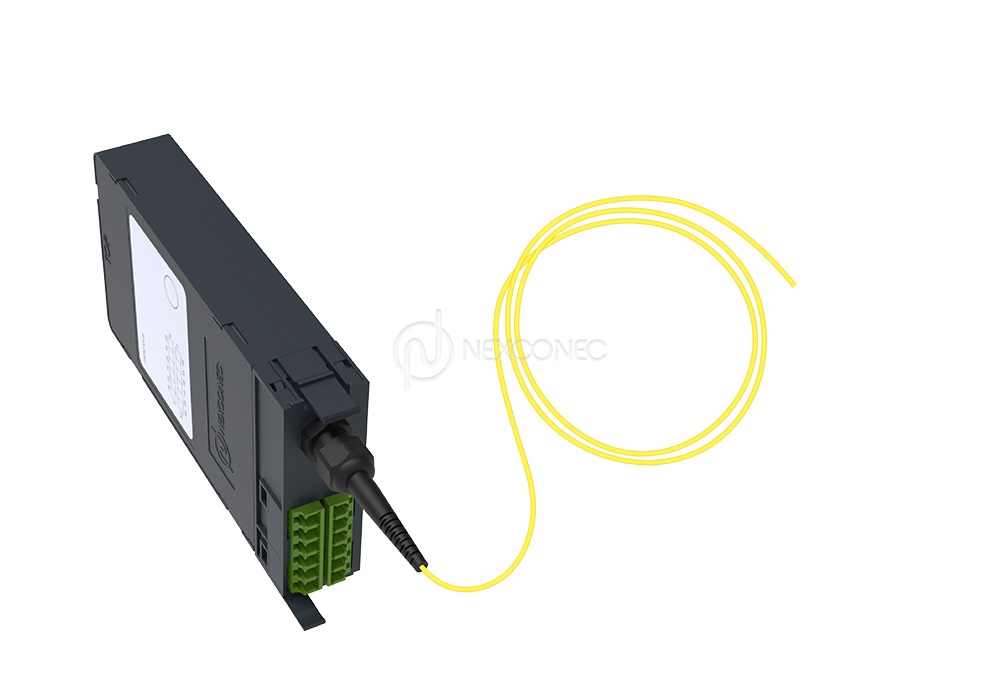

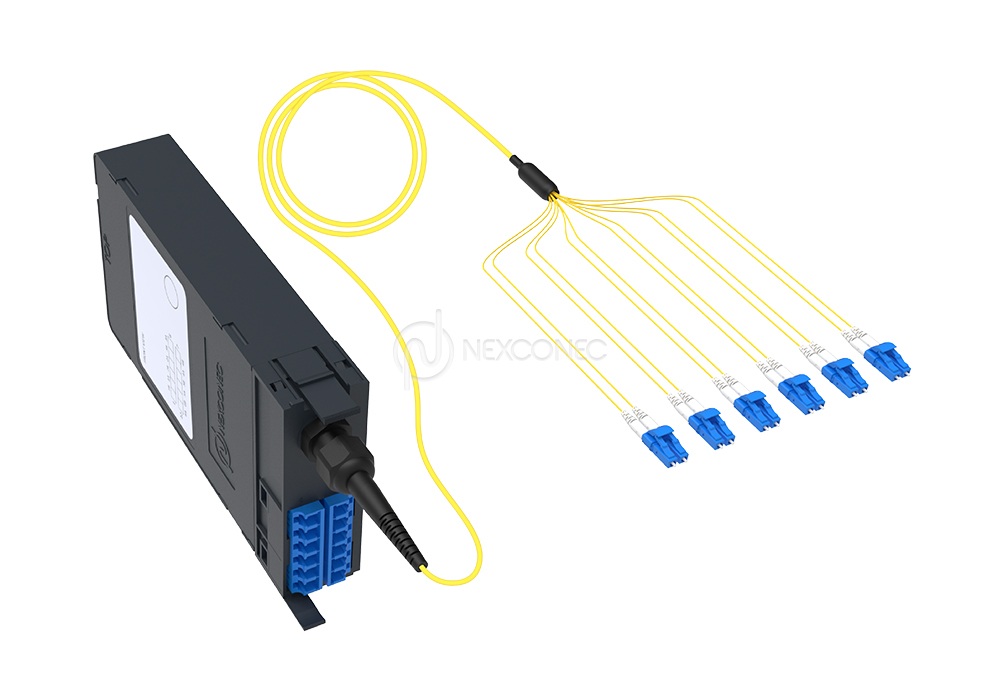

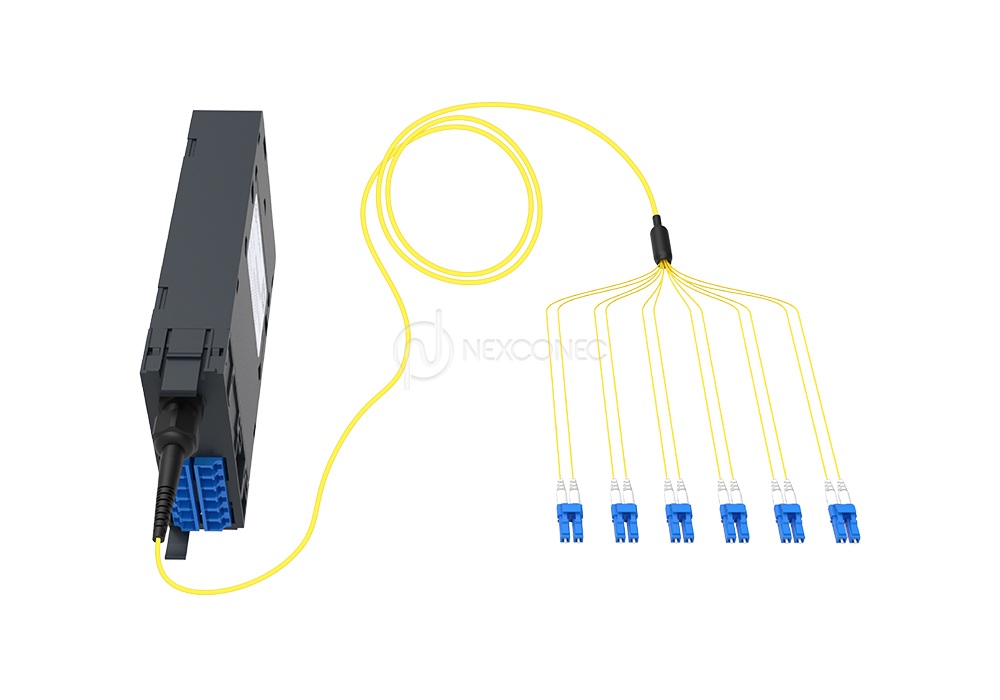

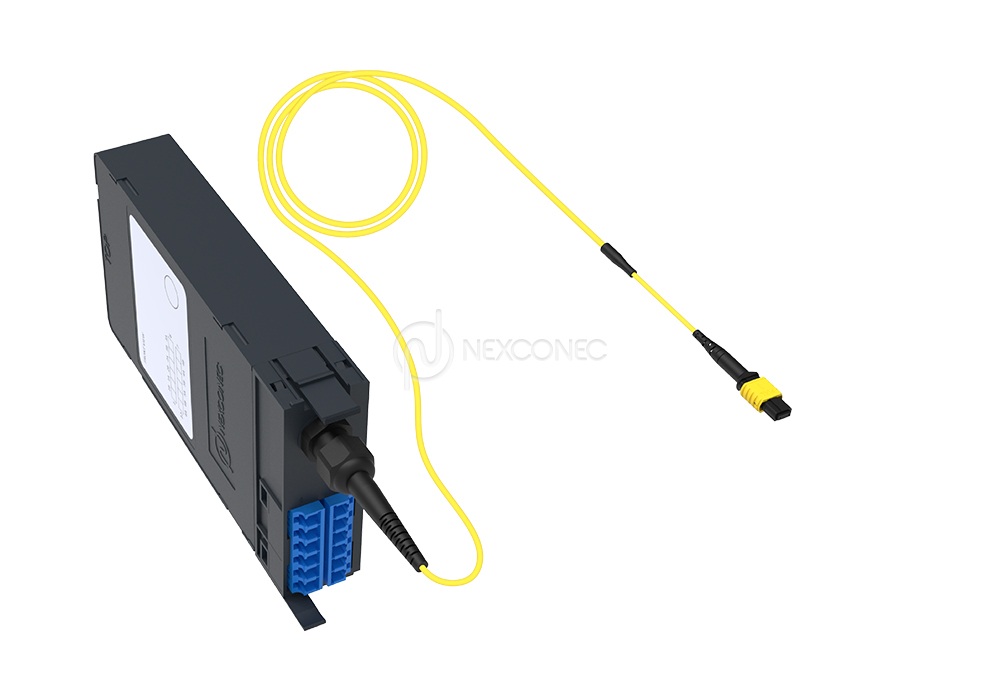

UPX PRE-TERMINATED CASSETTE 12FO LC (FRONT PATCH) - UPXPMxxF
NEXCONEC® UPX Pre-Terminated (Front Patch) Cassette is a high-density, plug-and-play fiber solution designed to accelerate data center and enterprise network deployments. Factory-terminated with 12FO LC fanout and featuring customizable fanout tail lengths, it ensures low insertion loss and reliable signal integrity. Its modular design reduces installation time and labor costs, and with bend-insensitive fiber and compact compatibility, it’s an ideal choice for scalable, high-performance cabling environments.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters

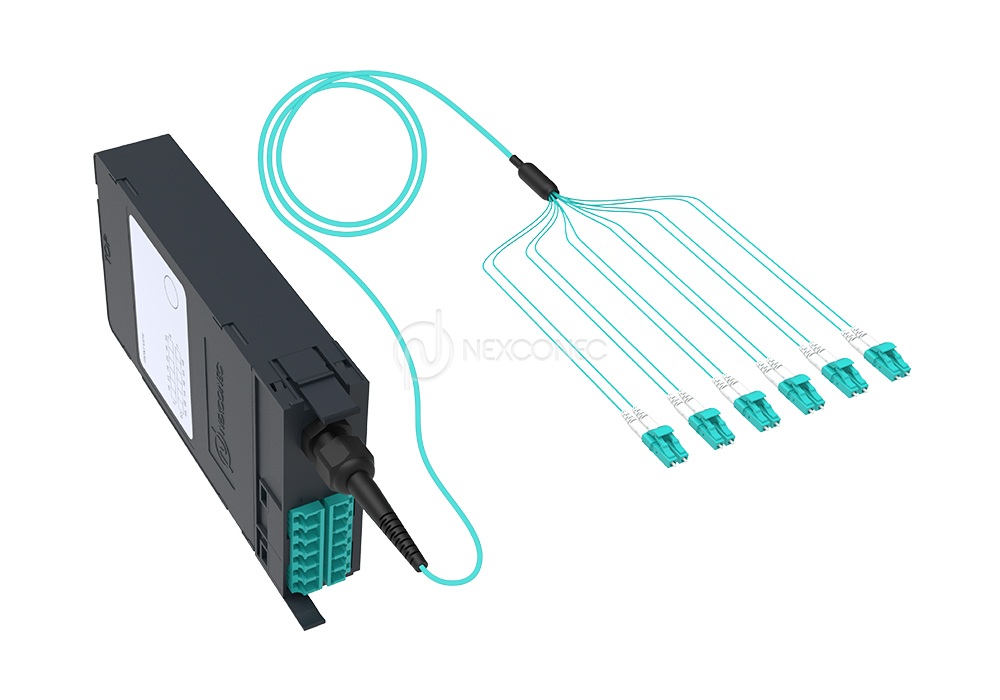

- Available in standard Single mode and Multimode fiber options
- Factory terminated 12FO LC fanout
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Supports SFP, QSFP, CFP applications
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Factory terminated 12FO LC fanout
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 173 x 28.90 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 12FO in LC |
| Adapters Ports | LC Adapters (Shuttered and Non-Shuttered Ports) |
| Cable Entries | Front |
| Max. Cable Diameter to Use | 8 mm |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM LC | MM LC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
