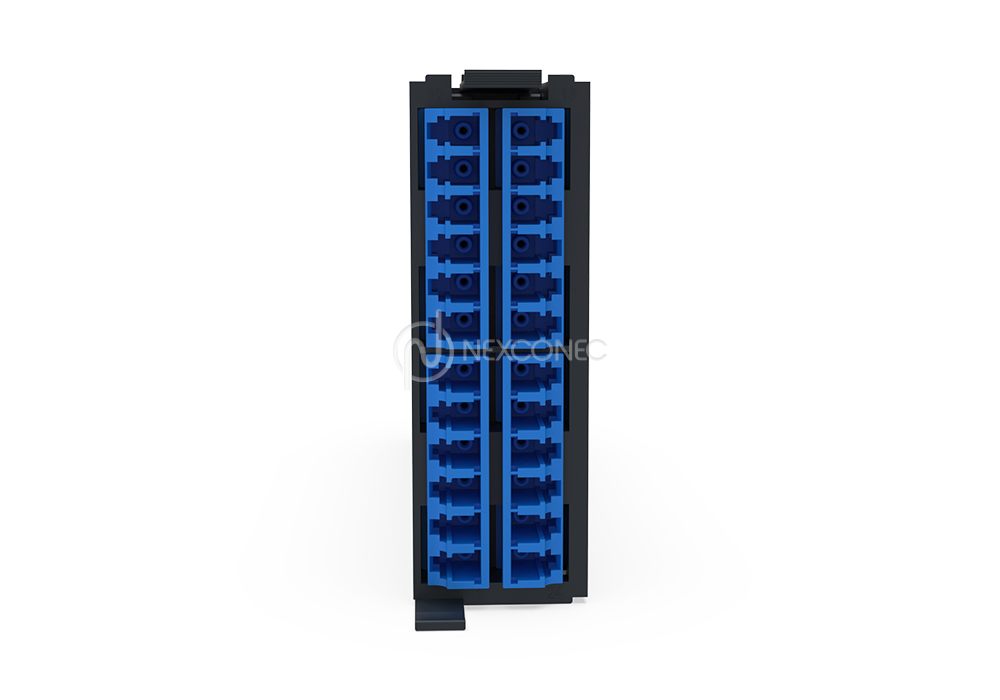

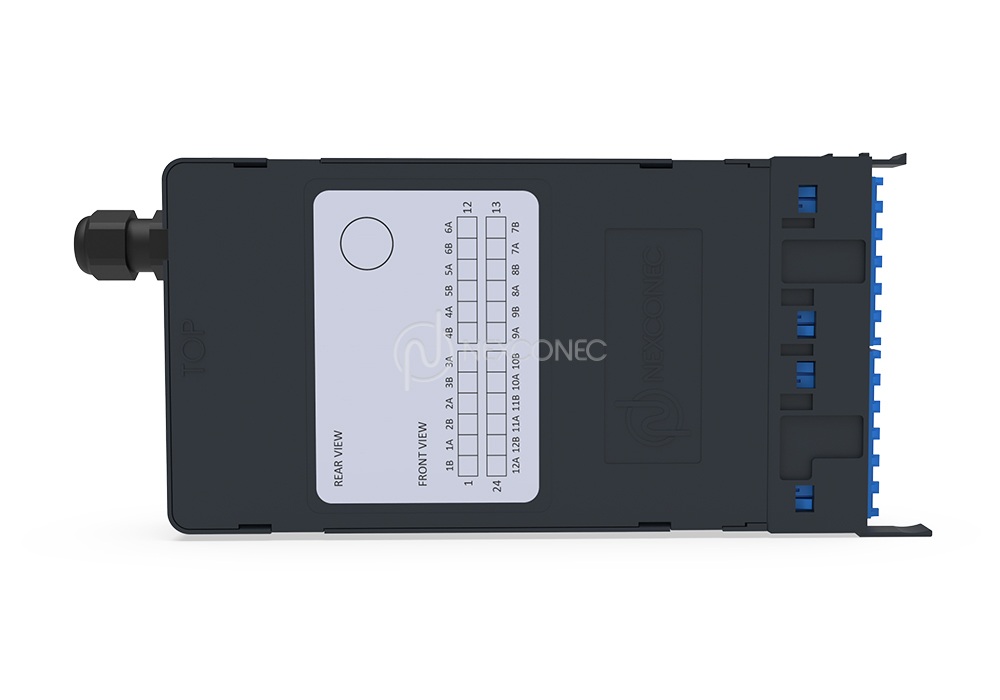

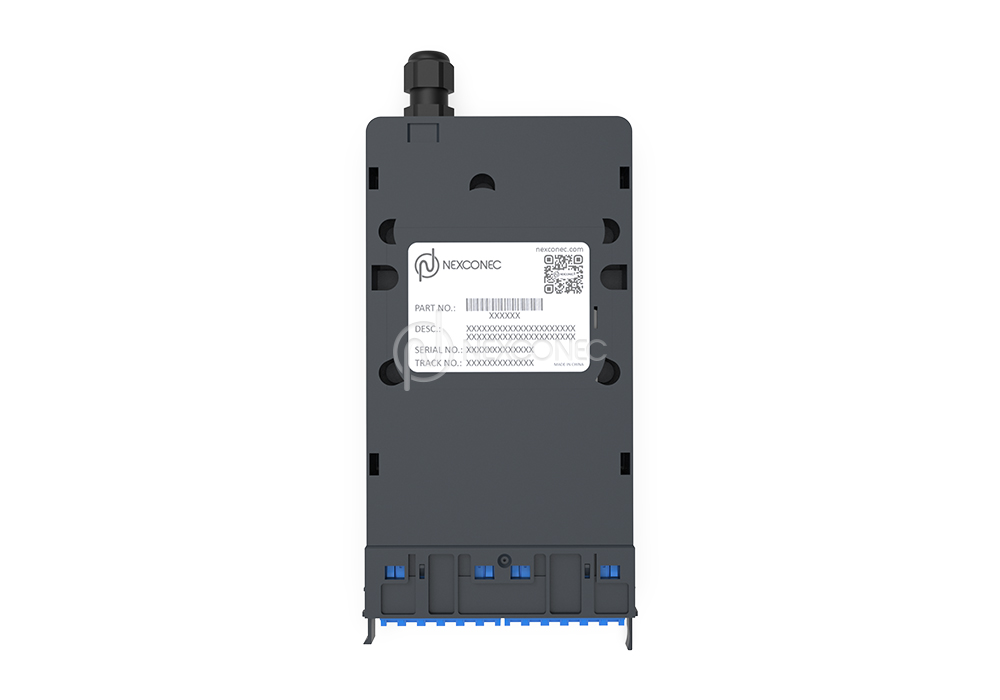

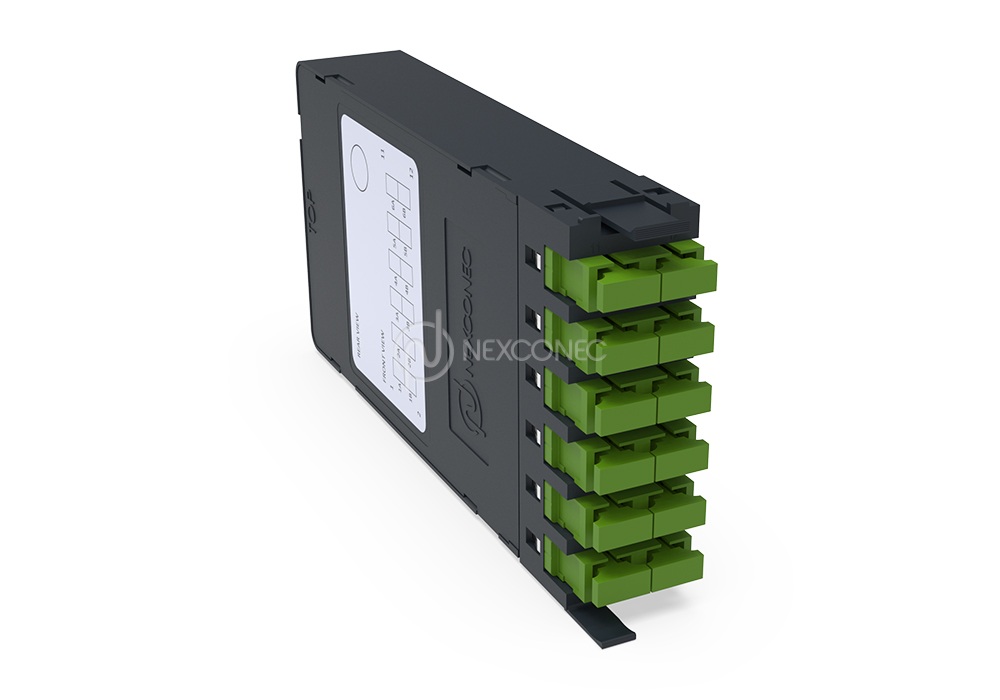

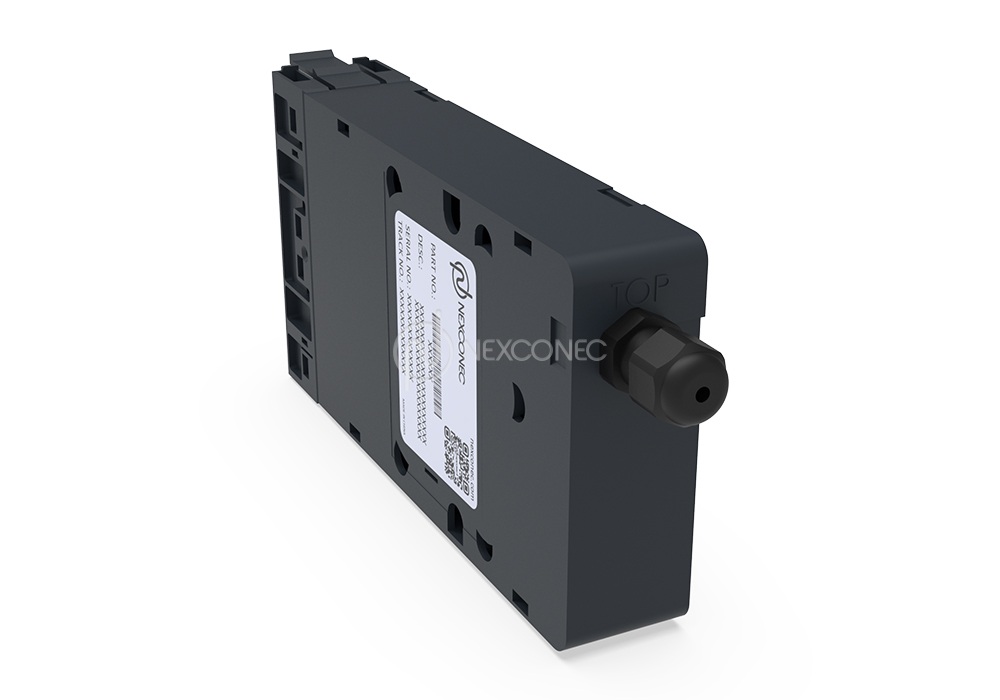

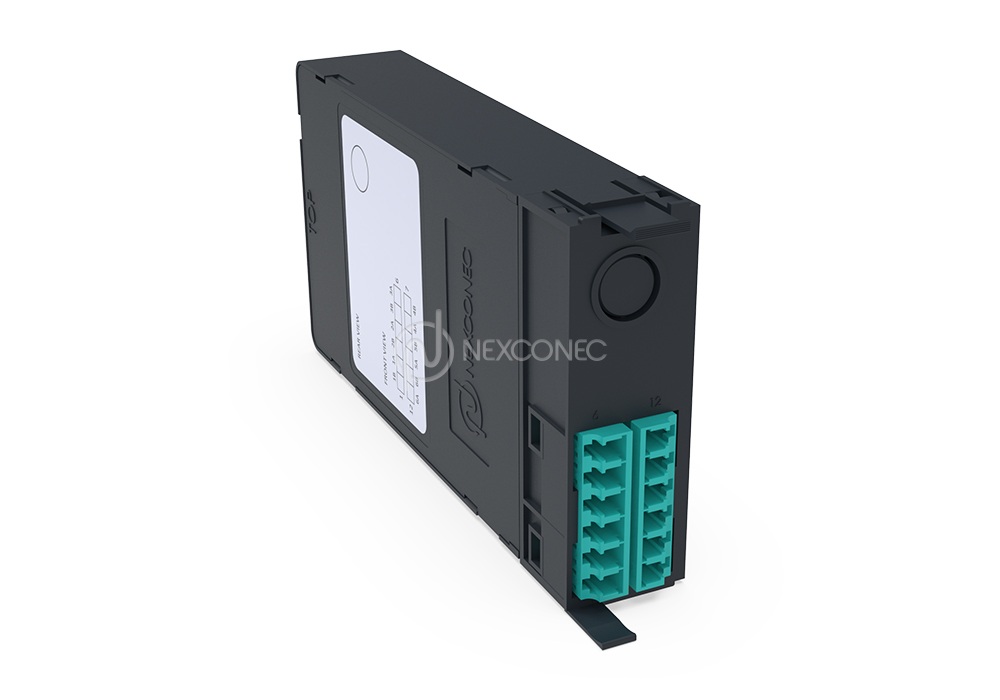

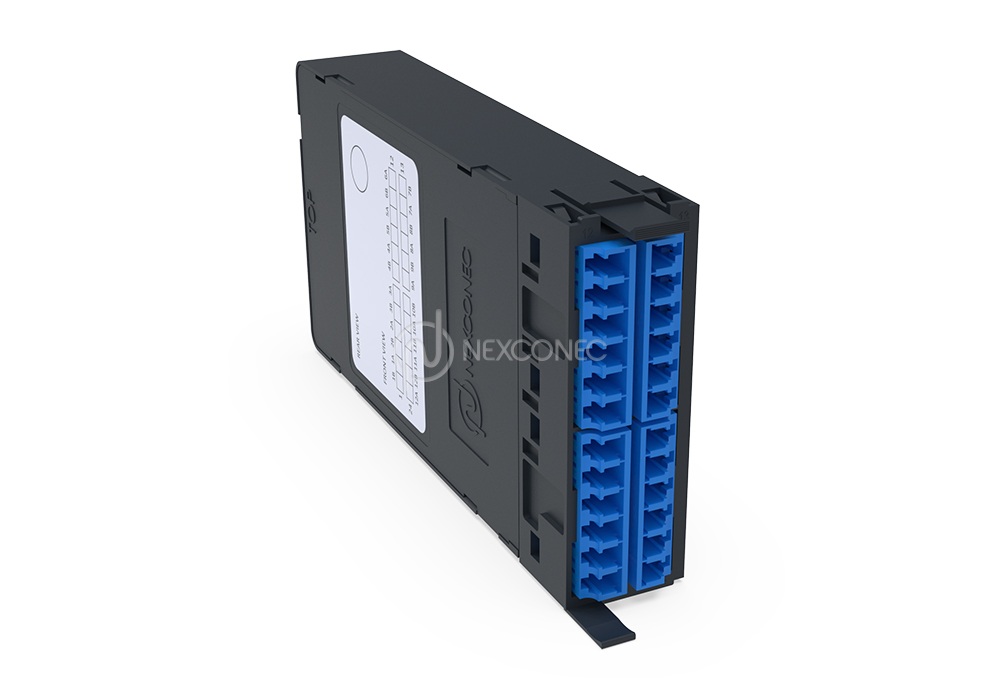

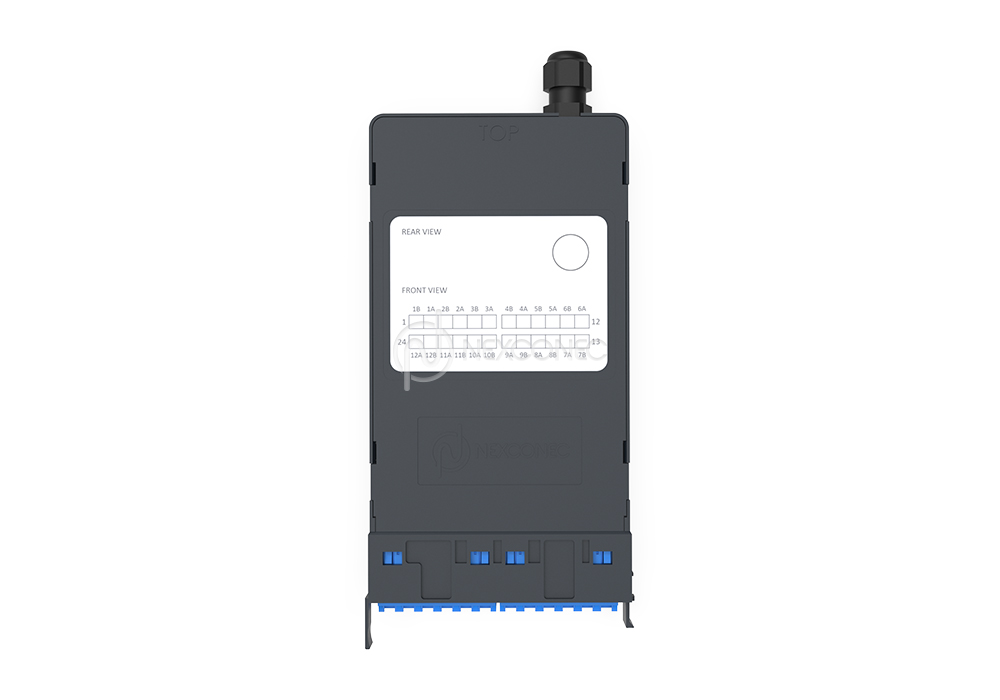

UPX SPLICE CASSETTE - UPXSPxx
NEXCONEC® UPX Fiber Optic splicing modules are engineered to facilitate the fusion splicing of micro, loose-tube, or ribbon cables to factory-terminated pigtails. Supporting high-density applications with up to 24 splices in an LC configuration, these modules offer exceptional flexibility. The internal splice clip is fully interchangeable, allowing the seamless integration of various splice protector types, including heat-shrink, ribbon, and sandwich (ANT) type.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Up to 24 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Up to 24 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 173 x 28.90 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 24FO/12FO in LC and 12FO in SC |
| Rear Cable Entries | 1x Cable Gland M12 |
| Adapters Ports | LC Adapters/ SC Adapters, Shuttered Ports |
| Fiber Glass | Raw Fiber 250um |
| Splice Holder | 40mm Heat Shrink Sleeves, Available in Ribbon |
| Max. Cable Diameter to Use | 8 mm |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM LC/SC | MM LC/SC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| UPXSP01 | UPX Splice Module LC/UPC 24FO Pigtails SM, Shuttered Ports |
| UPXSP02 | UPX Splice Module LC/APC 24FO Pigtails SM, Shuttered Ports |
| UPXSP03 | UPX Splice Module LC/UPC 24FO Pigtails MM OM3/4, Shuttered Ports |
| UPXSP04 | UPX Splice Module SC/UPC 12FO Pigtails SM |
| UPXSP05 | UPX Splice Module SC/APC 12FO Pigtails SM |
| UPXSP06 | UPX Splice Module SC/UPC 12FO Pigtails MM OM3/4 |
| UPXSP07 | UPX Splice Module LC/UPC 12FO Pigtails SM, Shuttered Ports |
| UPXSP08 | UPX Splice Module LC/APC 12FO Pigtails SM, Shuttered Ports |
| UPXSP09 | UPX Splice Module LC/UPC 12FO Pigtails MM OM3/4, Shuttered Ports |
* FT Orange color coding on request add FT. Standard 250um pigtails also available with Ribbon pigtails
