UPX ZERO RU BRACKET - UPXBK01
NEXCONEC® introduces the UPX Zero RU Bracket, a state-of-the-art product designed to enhance your networking infrastructure. This innovative, detachable bracket offers a sleek and space-saving solution for mounting UPX Zero RU equipment effortlessly on the wall, anywhere outside the rack, to free up valuable space in your work area. The bracket installs easily and quickly, creating a convenient point for the distribution of patch cables within the vertical cabling system.

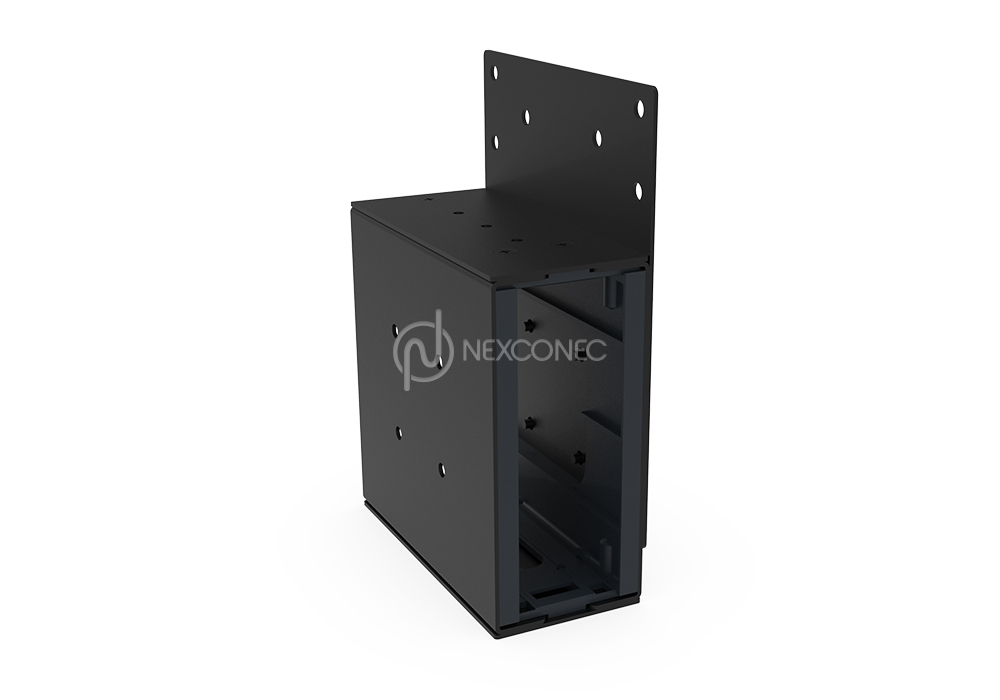

The UPX Zero RU Bracket accepts all types of Nexconec UPX range modules and adapter plates. The bracket is supplied unloaded; modules and adapter plates are supplied separately.
PRODUCT HIGHLIGHTS

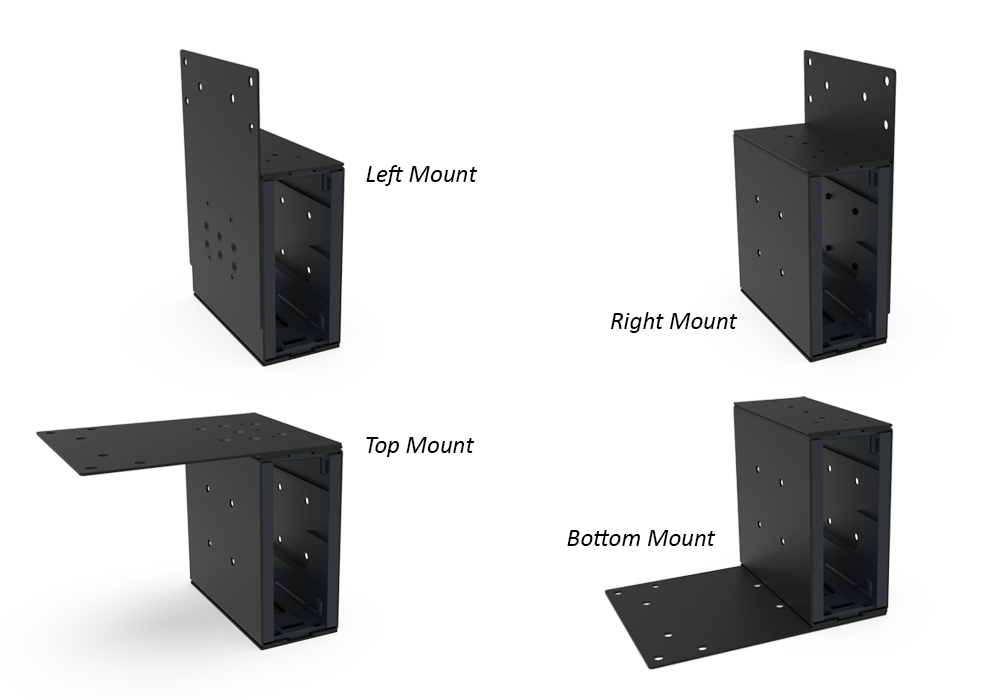

- Wall-mountable anywhere outside the rack - plate fixes left, right, top, or bottom, in any orientation
- Cassettes and plates locked in parked or maintenance position for easy patching

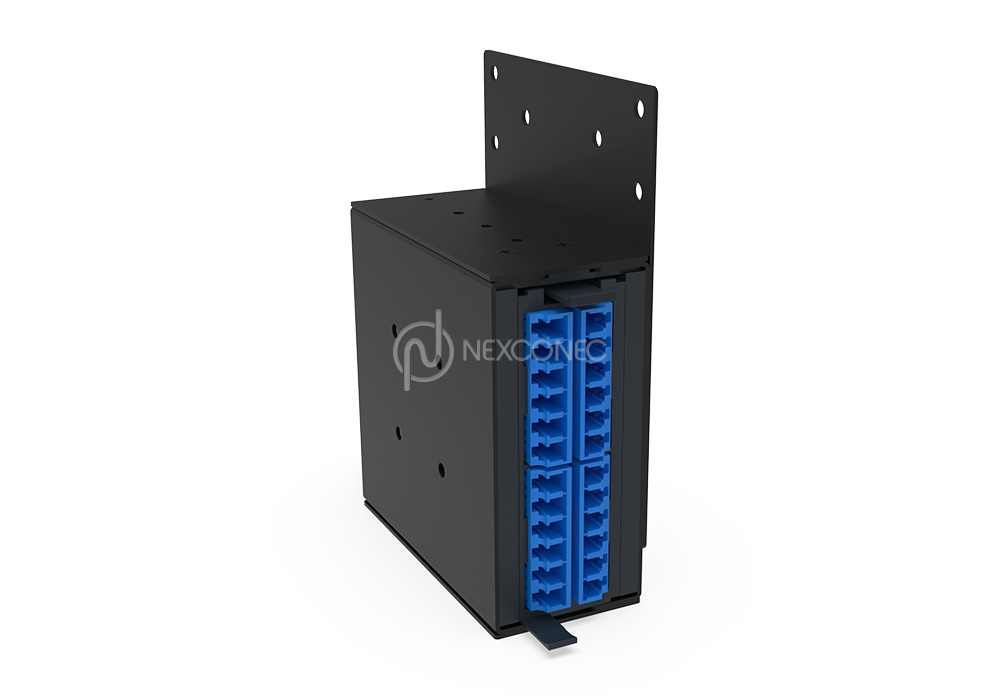

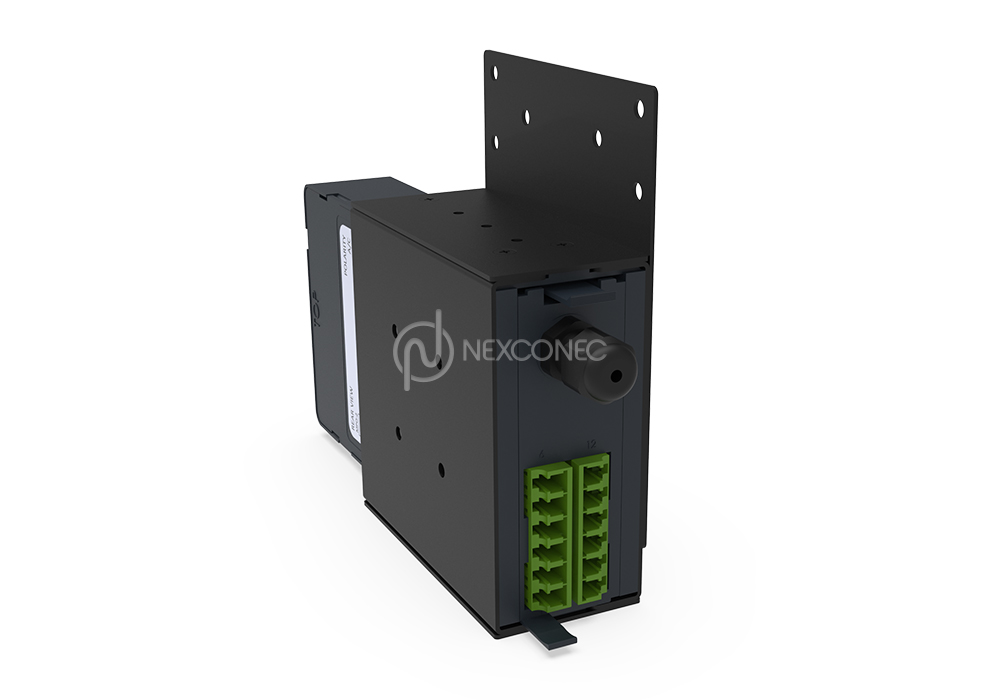

- 1 Slot UPX (Up to 24FO in LC, 12FO in SC, 36FO in CS, 48FO in SN)

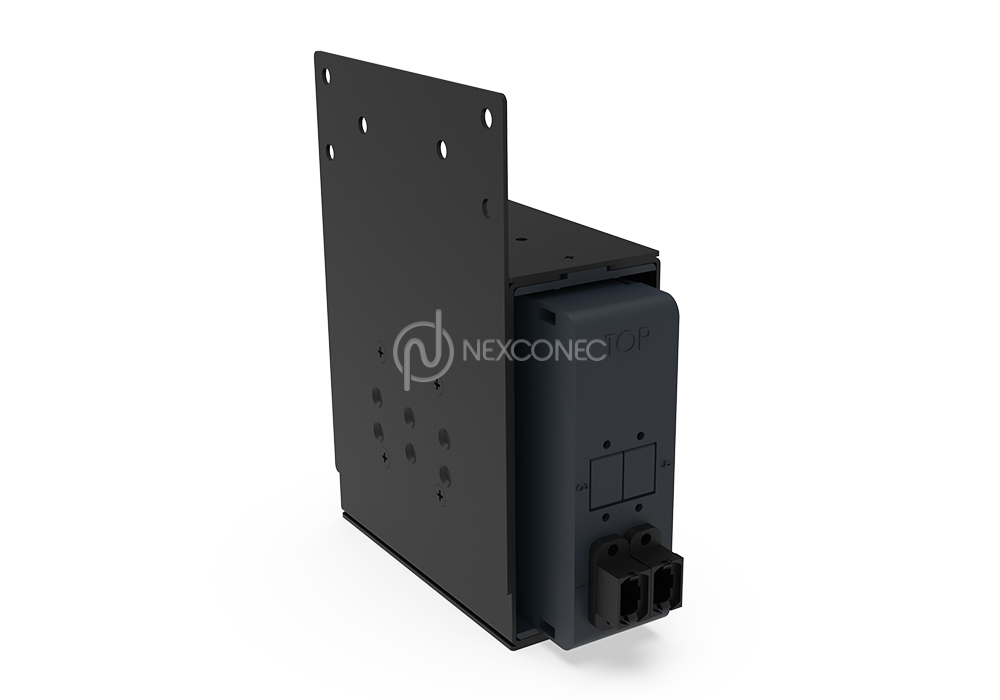

- Modular with MPO Cassette, Splice Cassette, Pre-terminated Cassettes or Adapter plates
FEATURES

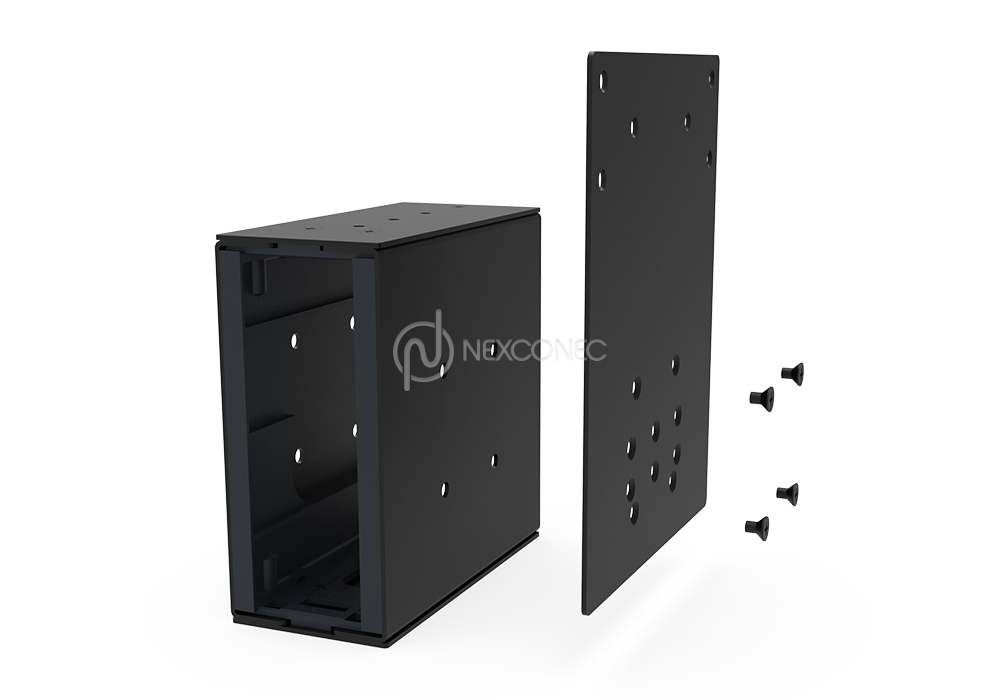

- Zero RU detachable mounting bracket
- Wall-mountable anywhere outside the rack - plate fixes left, right, top, or bottom, in any orientation
- Easily accessible and facilitates faster installation
- Cassettes and plates locked in parked or maintenance position for easy patching
- Space saving and utilizing solutions
- 1 Slot UPX (Up to 24FO in LC, 12FO in SC, 36FO in CS, 48FO in SN)
- Modular with MPO Cassette, Splice Cassette, Pre-terminated Cassettes or Adapter plates
- Material Compliant: RoHS, REACH / SVHC
- Telecommunication Standards: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754
APPLICATIONS
- Datacenter storage area network & Central Office, POP
- Indoor applications, Enterprise, Campus
- Wall-mount deployments outside the main equipment rack
- Fiber or copper patching in space-constrained work areas
- Temporary or permanent maintenance access points
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
PANEL SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Wall-mountable anywhere outside the rack (Plate fixes left, right, top, or bottom, in any orientation) |
| Access Type | Front access |
| Slot Type | (Snap-in) UPX Modules and UPX Plates |
| Number of Slots | 1 |
| Fiber Capacity | Up to 24FO in LC, 12FO in SC, 36FO in CS, 48FO in SN |
| Dimensions (W x D x H) | 44 x 93.7 x 135 mm |
| Height Unit | 94.4 mm |
| Material | Metal Part: Cold Rolled Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Net Weight | 0.5 KG |
| Material Compliant | RoHS, REACH / SVHC |
| Telecommunication Standards | TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754 |
| Part Number | Product Description |
|---|---|
| UPXBK01 | Zero RU UPX Bracket, 1 Slot (Unloaded) |
