Wall Mount Double Door 48 Ports SC - FW05

FW05 FW05 FW05 FW05 FW05 FW05 FW05 FW05

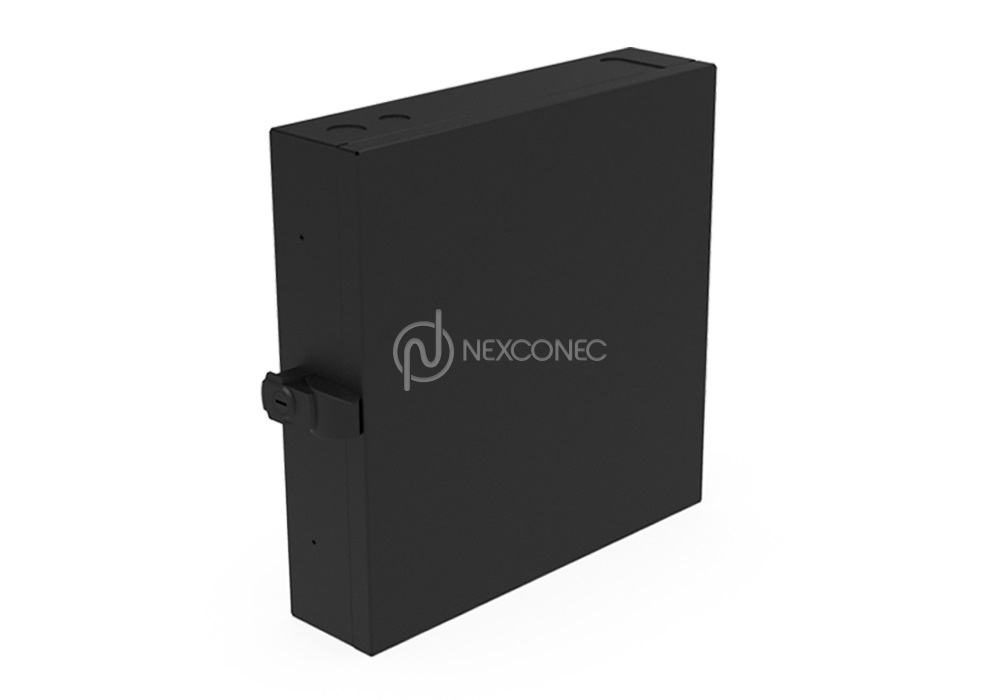

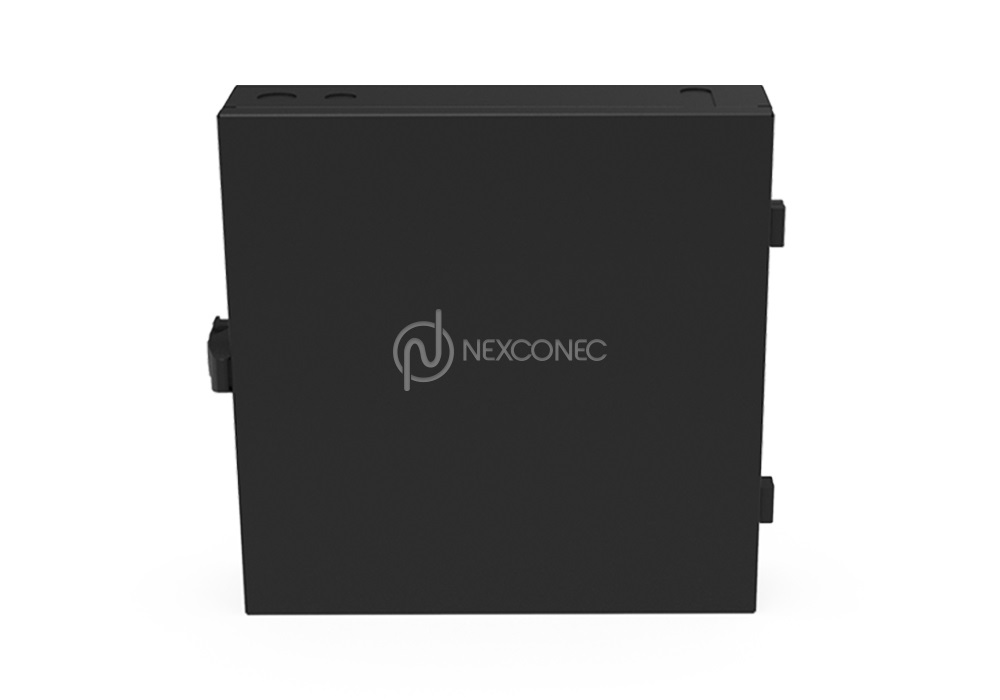

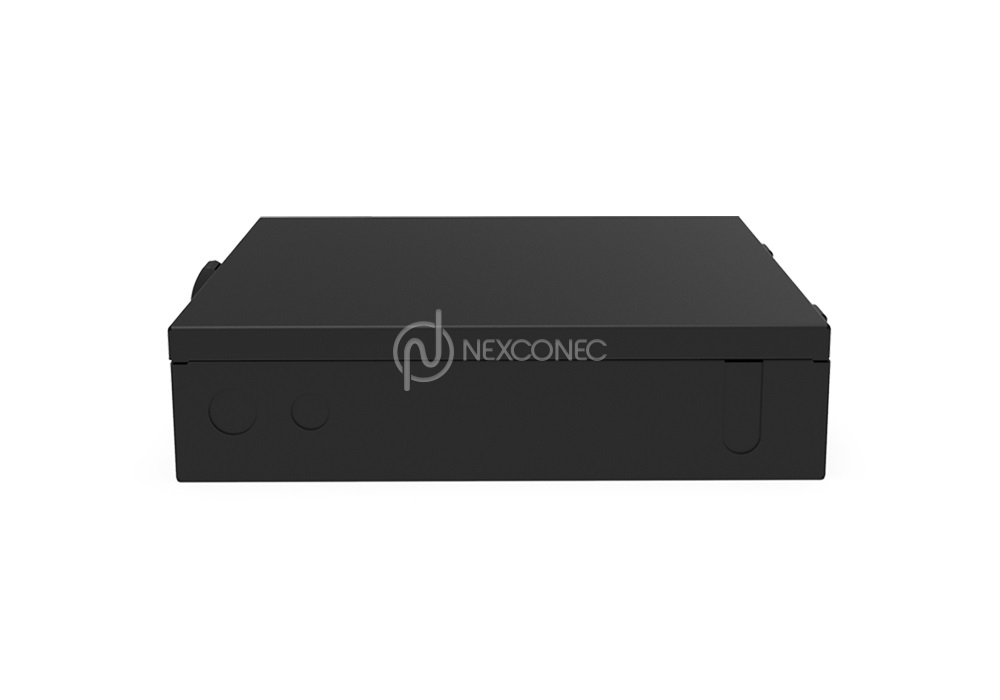

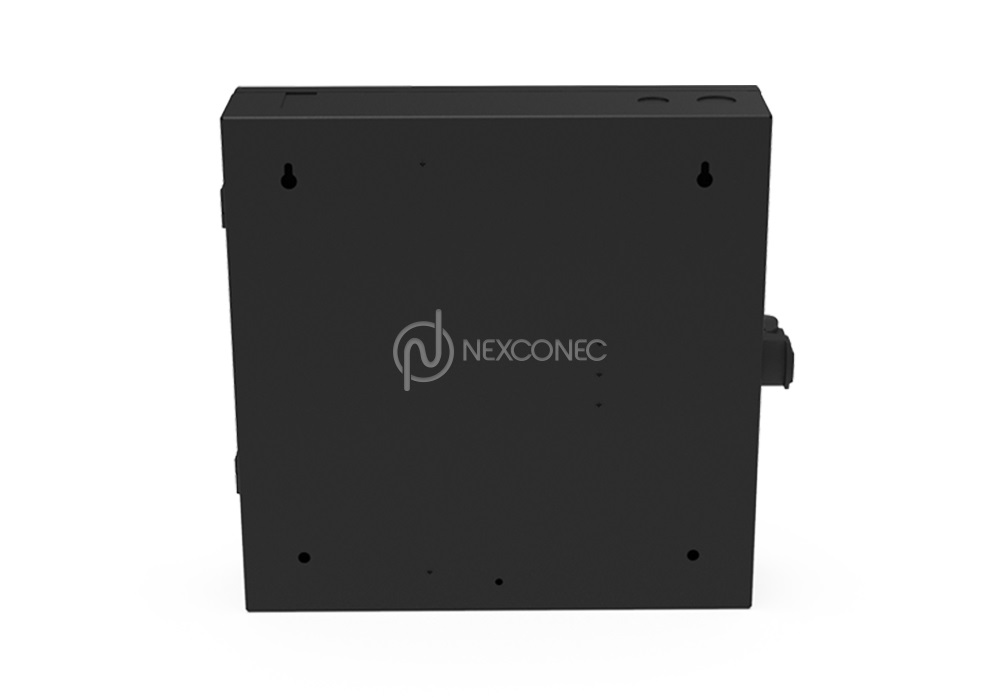

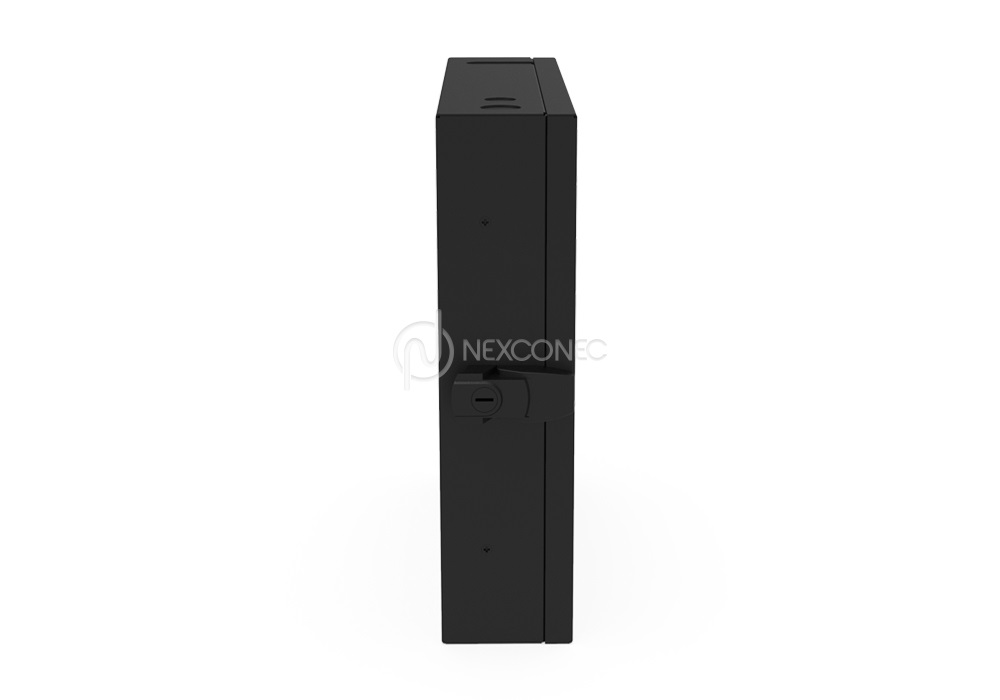

NEXCONEC Lockable Double Door distribution box is supplied unloaded as standard and offers the ability to terminate up to 48 fibers housed in a strong metal enclosure for indoor application.

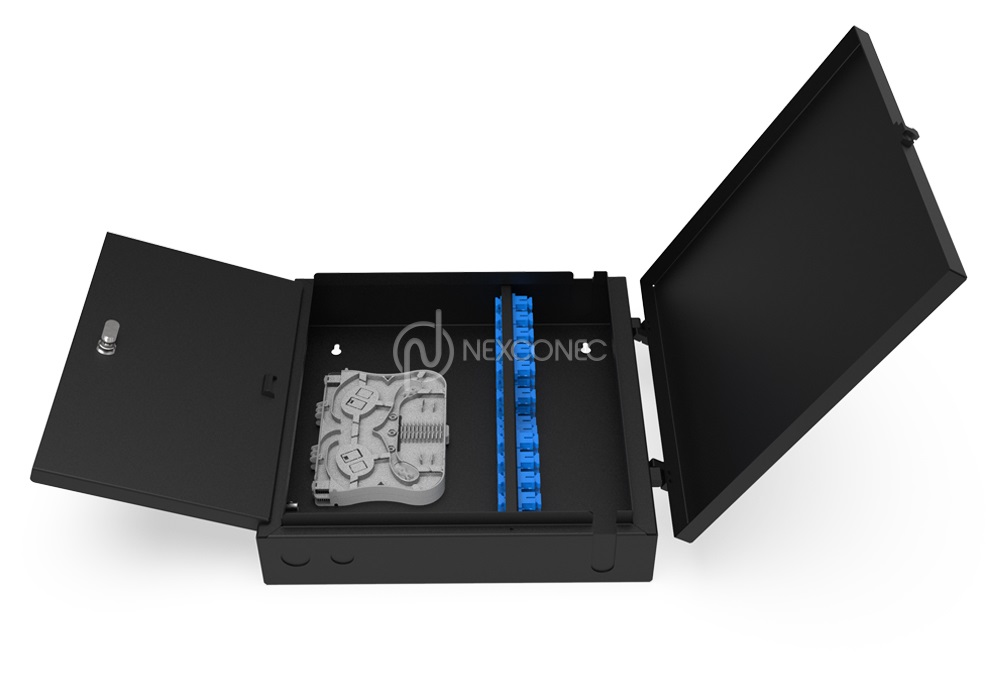

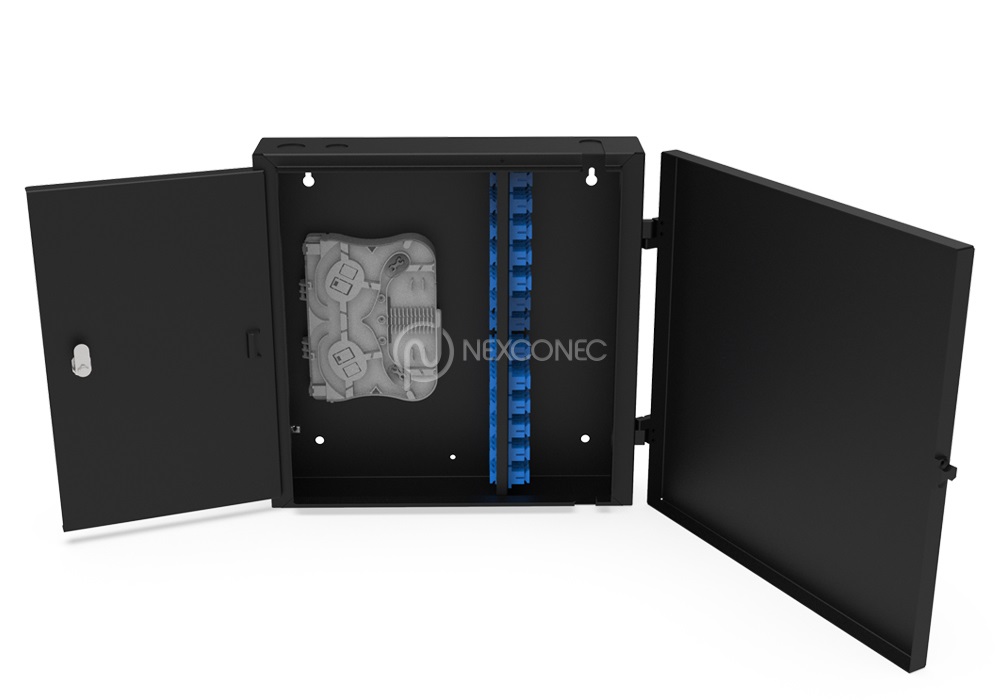

An internal splicing section offers a neat and tidy solution for housing up to the adapters and splicing area. A locking for the both sections: Splicing and Patching adds extra security when positioned in un-secure areas.

FEATURES AND APPLICATIONS
  • SC Simplex or LC Duplex Adapter type

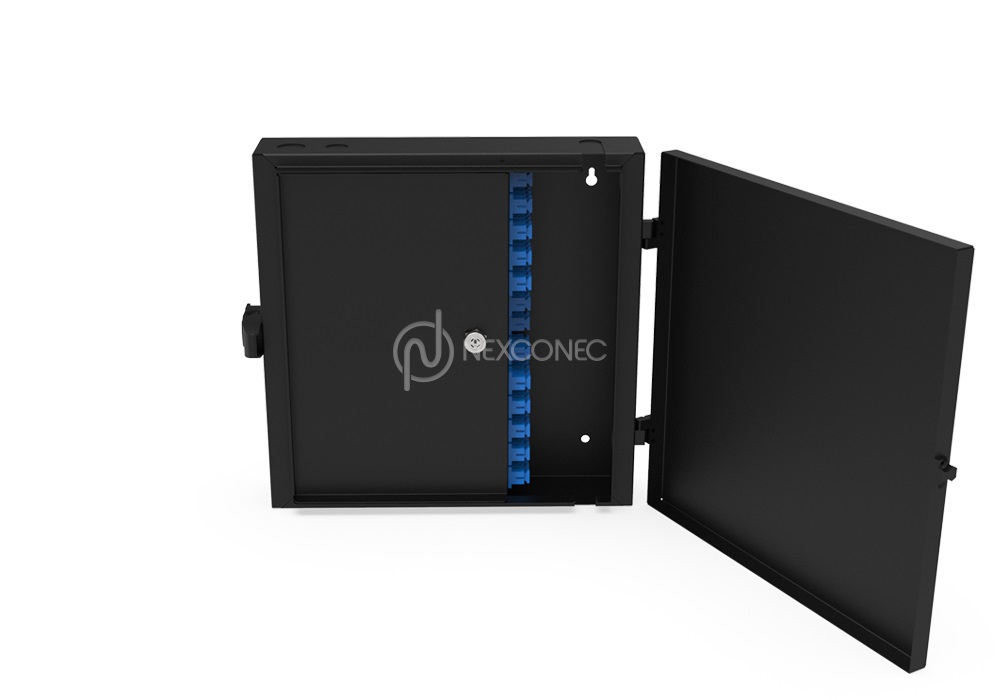

  • Double Door each lockable
  • Removable splice tray for easy installation
  • Accepts loose tube, distribution and pre-terminated cables
  • LAN /FTTx Networks
  • Data communication Networks
  • Indoor Application

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Value
Dimensions W x H x D 340 x 300 x 82.30
N° of Port 48 SC Simplex or LC Duplex
Max. Splicing Capacity 96 Splices with 4 Splice trays FSP01
Material Cold Rolled Steel
Operating Temperature -40 °C +60°C
Color Black
Compliant to RoHS, REACH, SVHC
Part Number Product Description
FW05 Indoor Lockable Wall Box Double Door Lockable 48 Positions FC/ST DX Unloaded
