1.5U 72 Ports SC SX/LC DX Pivot Patch Panel - PIV15

PIV15
PIV15
PIV15
PIV15
PIV15
PIV15
PIV15
PIV15
PIV15
PIV15
PIV15 PIV15 PIV15 PIV15 PIV15 PIV15 PIV15 PIV15 PIV15 PIV15

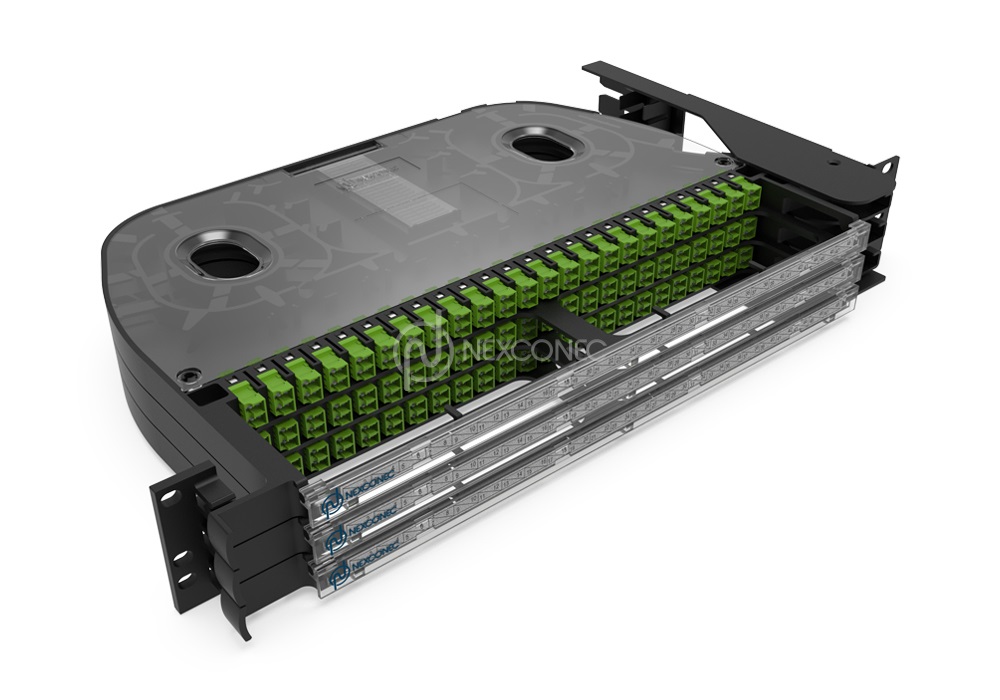

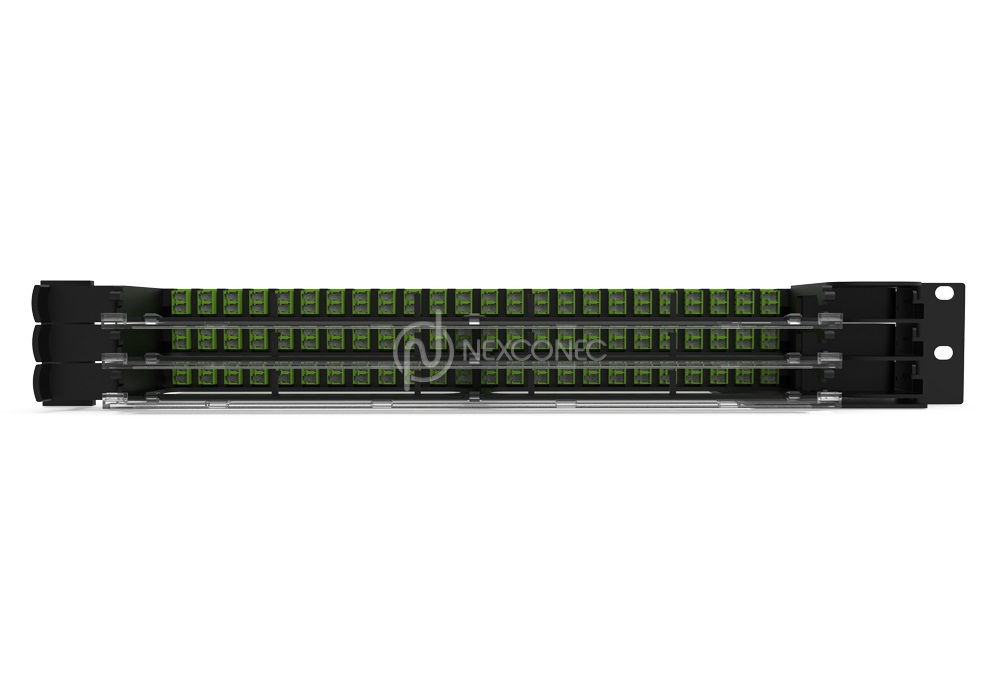

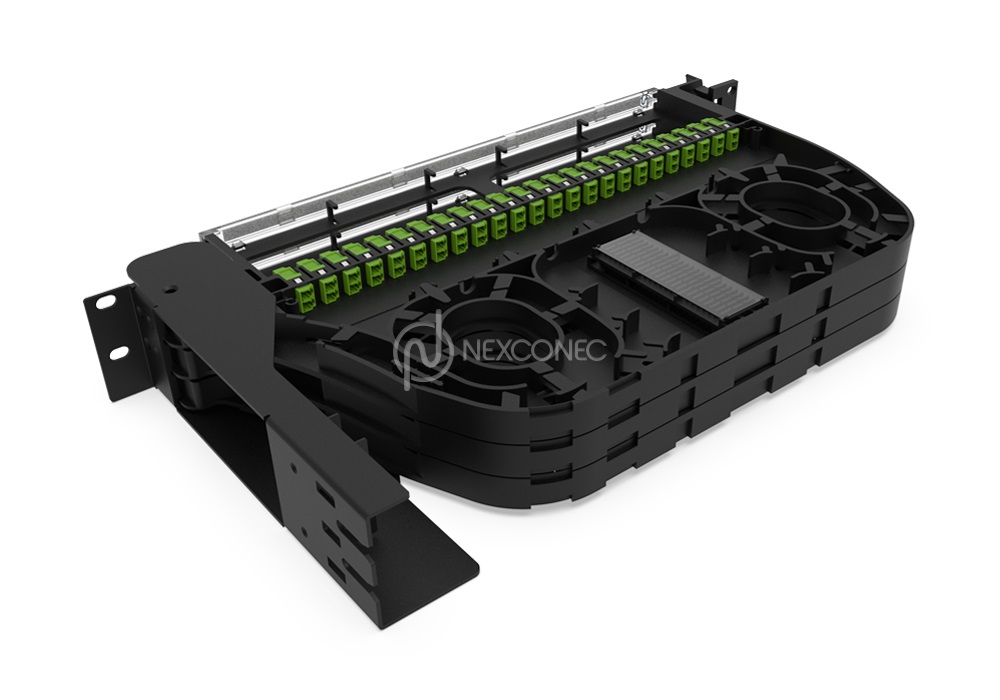

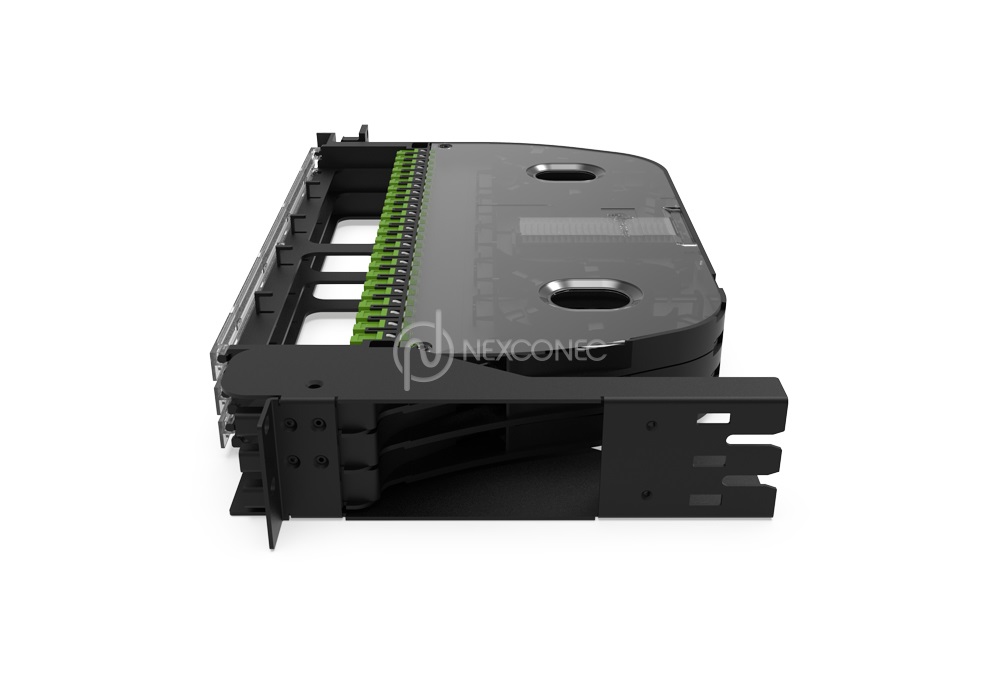

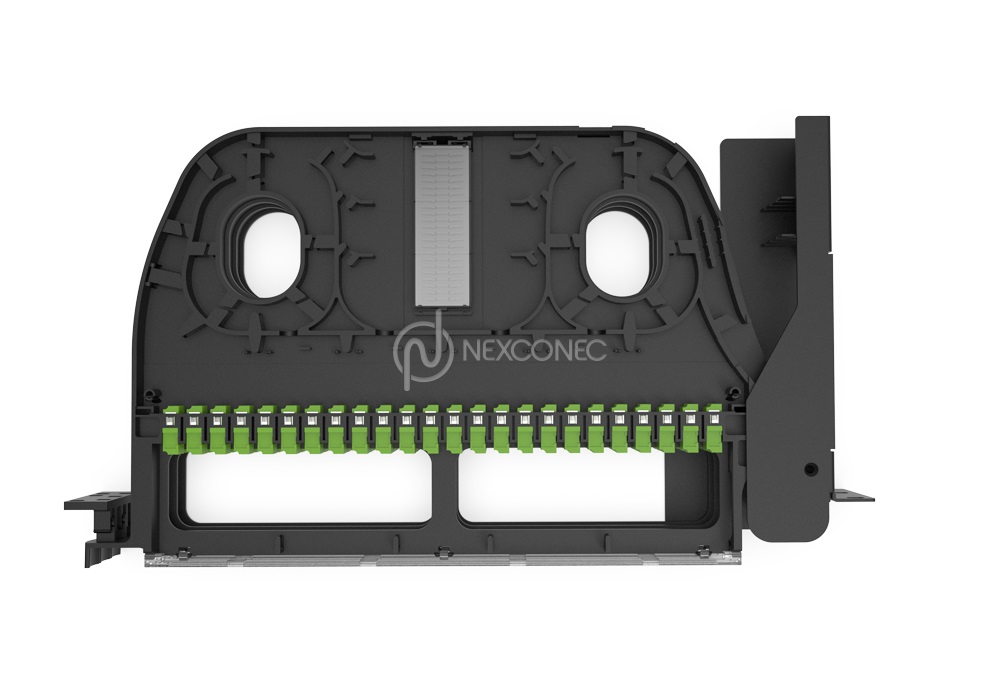

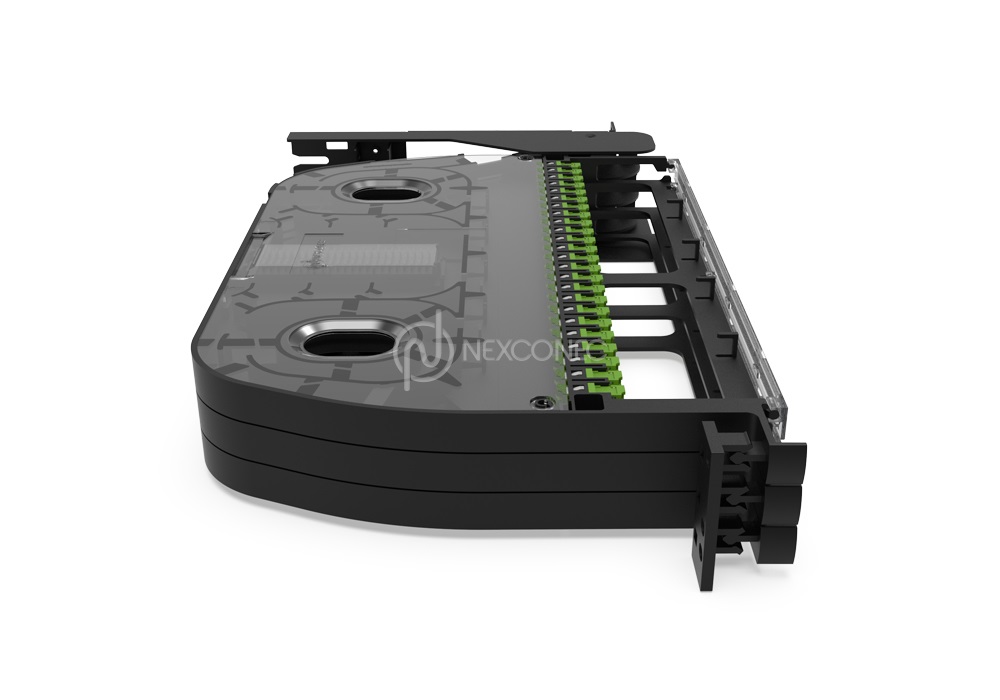

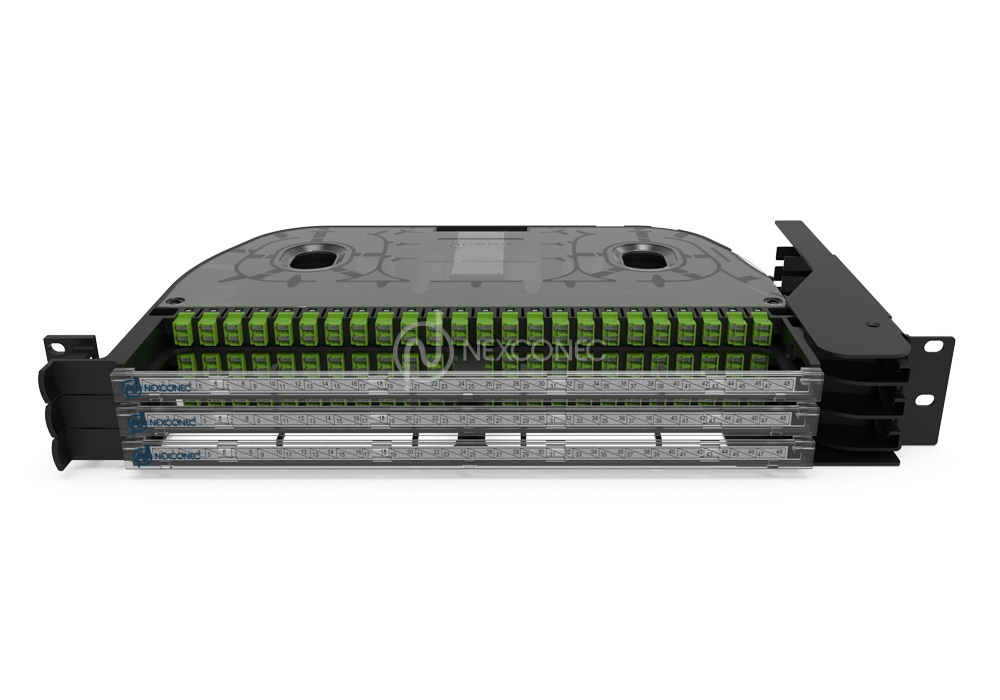

NEXCONEC® 1.5U Pivot Patch Panel is an innovative, high density pivot panel designed to accept 24 SC Simplex/LC Duplex adapters in each of ½ RU trays within 1.5U space (Up to 144FO in LC). Each tray effectively manages the incoming fibers, pigtails and splices. Each tray offers individual pivoting up to 120° to ensure easy access during installation or rework without any interference with the existing cable or fibers.

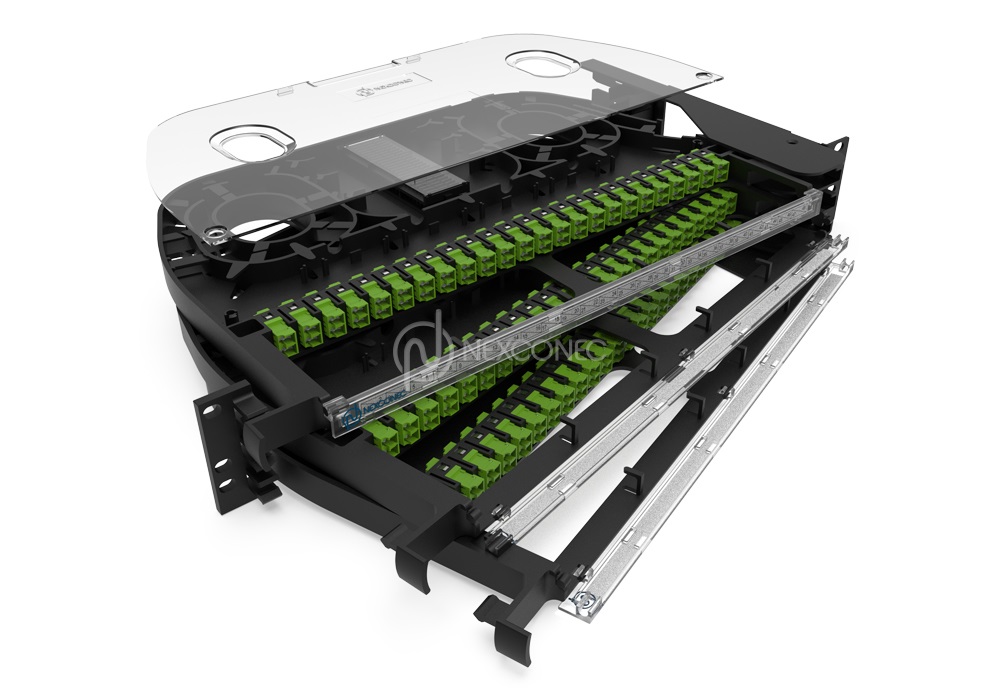

The remarkable panel design includes a detachable see-through lid and a transparent hinged drop-down door to ensure easy access, simplifies labelling and maintenance routines. Ventilation tracts within the panel enable constant airflow, facilitating optimal cooling for the active equipment with utmost efficiency.

The pivot panel can be pre-loaded completely with the required adapters and pigtails.

PRODUCT HIGHLIGHTS
  • 1.5U overall with ½ RU individual trays
  • Up to 144FO in LC on 1.5U
  • Accepts loose tube, distribution and pre-terminated cables
  • Transparent lid for easier maintenance and verification
  • Enhanced labelling on the front door providing patch cords protection and better identification
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
FEATURES
  • 1.5U overall with ½ RU individual trays
  • Up to 144FO in LC on 1.5U
  • Accepts loose tube, distribution and pre-terminated cables

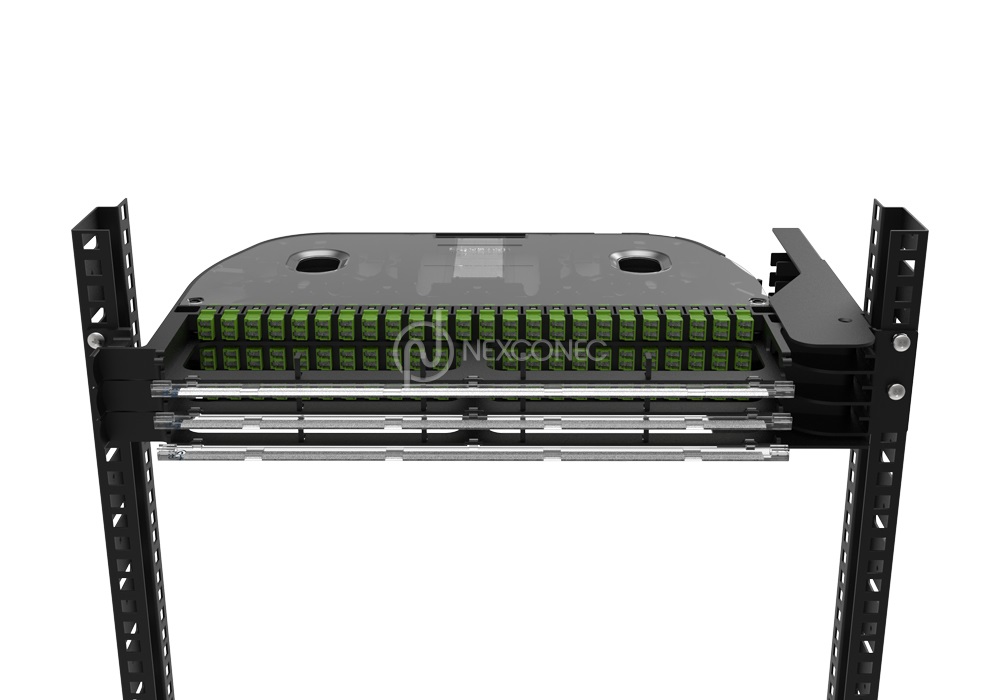

  • Standard 19” or 21" Rack mounting type
  • High durability & light weight PC & PC+ABS material
  • Transparent lid for easier maintenance and verification
  • Enhanced labelling on the front door providing patch cords protection and better identification
  • Available in shuttered dust proof LC/SC adapters
  • Simple and easy installation with integrated fiber routing
  • Right or Left Hinged Swing-out
APPLICATIONS
  • Datacenter storage area & Central office, POP
  • Fiber to the home (FTTH)
  • Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
  • Data communication and Telecommunication networks
PANEL SPECIFICATIONS
Parameters Value
Mounting Type Rack 19” or 21"
Opening Type Right or Left Hinge Swing-out - 120° degrees
Access Type Front and Side access
Front Cable Management Front manager with Hinged transparent drop-down door
Cable Entry Direction Side Cable Entry
Side Cable Management Each tray supports up to 4 tubes of 5mm
Slot Type SC Simplex/ LC Duplex Footprint
Number of Ports 72 Ports [3x (24 each ½ RU tray)]
Fiber Capacity 72FO in SC, 144FO in LC
Splicing 6x Splice Holder for 40/60mm Heat Shrink Splice Protectors
* Also Available in Ribbon Splice and Mechanical ANT Splice Protectors
Accessories Included in package: 4x Cage Nuts & Screws
Height Unit 1.5U
Dimensions (W x D x H in MM) 421.5 x 265.1 x 65.5 mm
Material PC & PC + Fiber Glass (20%)
Housing Color Black or Grey (RAL 7035)
Compliance RoHS, REACH SvHC
Application Indoor IP20
Lockable No
Net Weight 3 Kg
PIGTAIL SPECIFICATIONS (SINGLE FERRULE CONNECTOR)
Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB
PIGTAIL BUFFER CHARACTERISTICS
Parameters Unit Value (Simplex)
Nominal Buffer Diameter μm 900 +50/-50
Crush Resistance N/100mm 500
Maximum Tensile Load N 6
Minimum Bending Radius mm 15
Operating Temperature ˚C -20 ~ +60
Part Number Product Description
PIV15R 1.5U 72 Ports SC Simplex/LC Duplex Pivot Patch Panel (Right Side Bracket)
PIV15L 1.5U 72 Ports SC Simplex/LC Duplex Pivot Patch Panel (Left Side Bracket)
* Add ‘G’ at the end of the Part Number for Telecom panels in Grey color. (Example: PIV15RG or PIV15LG)
