1U 24 Ports SC DX/LC QD Sliding Patch Panel - MP2PP02

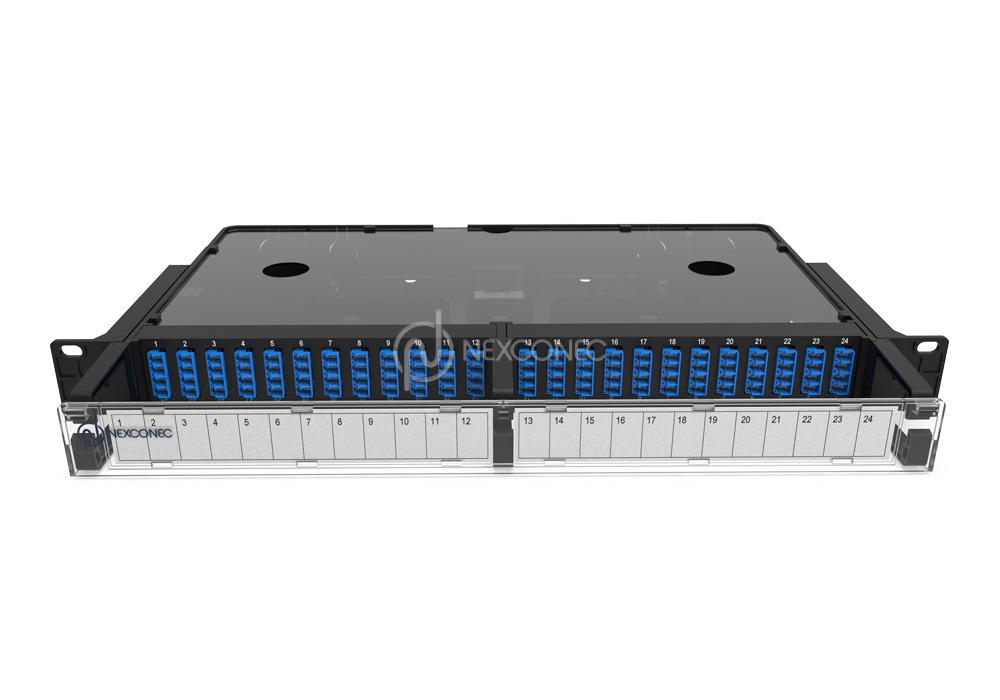

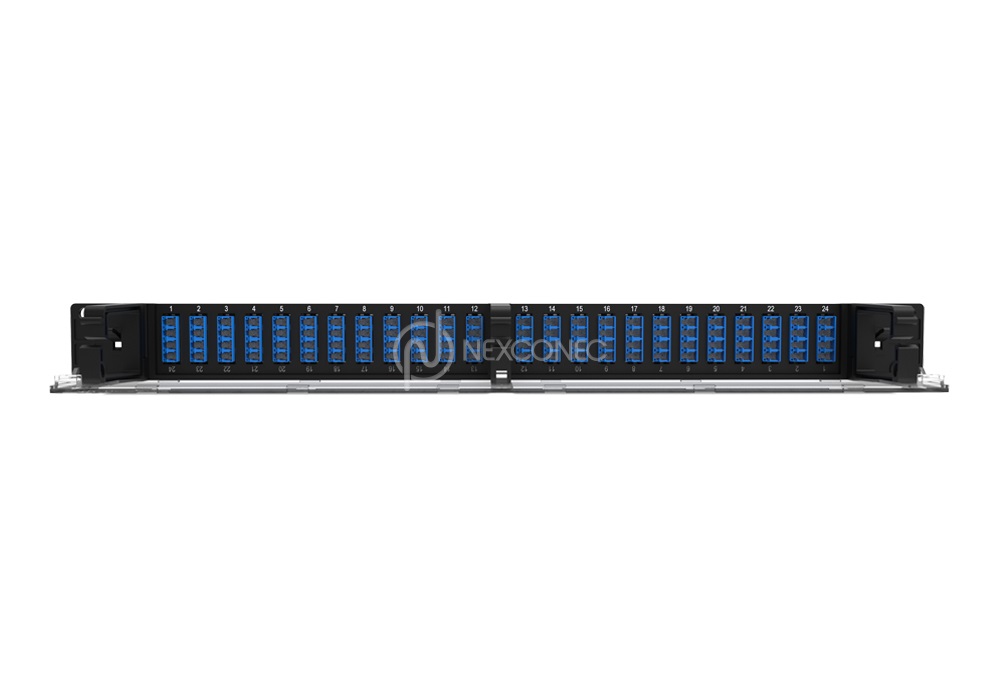

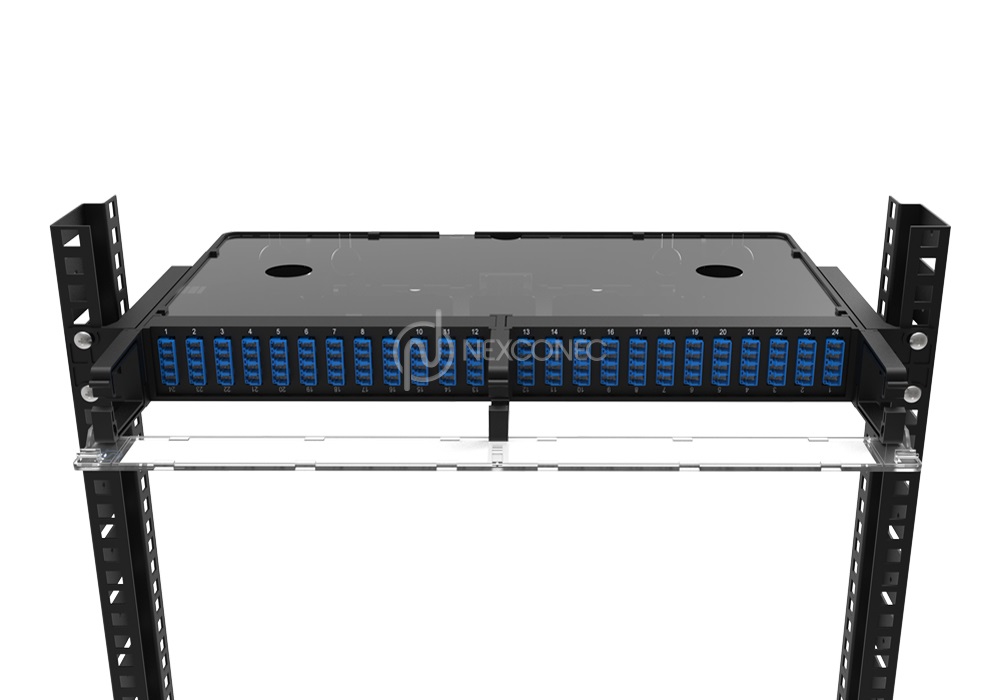

NEXCONEC® 1U Sliding Patch Panel accepts 24 adapters SC Duplex/LC Quad within 1U space (Up to 96FO in LC). The panel can be pre-loaded completely with the required adapter plates and pigtails.

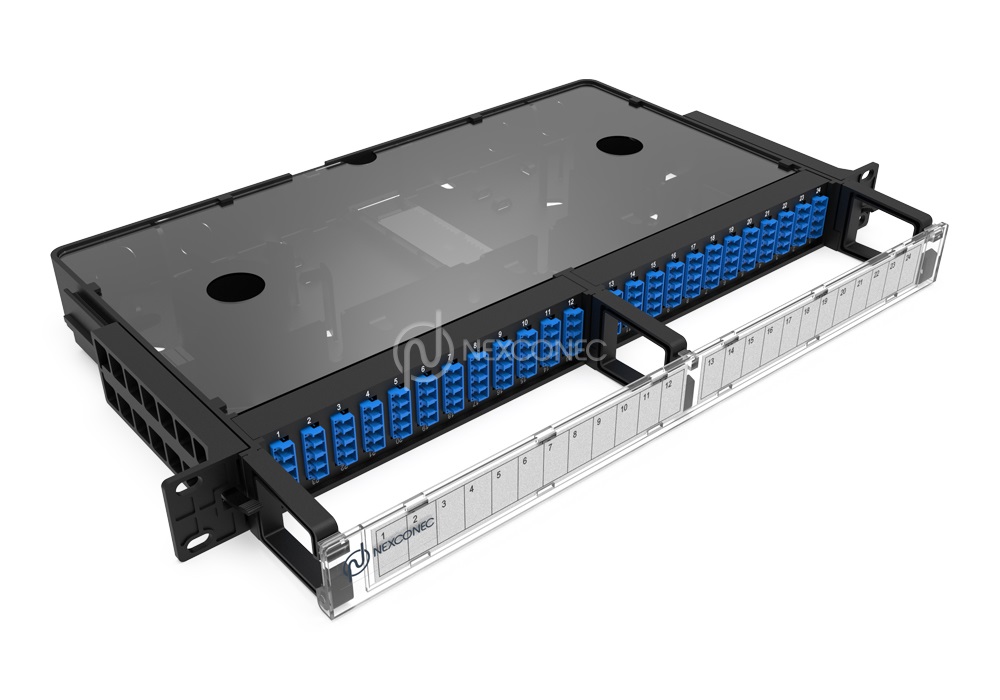

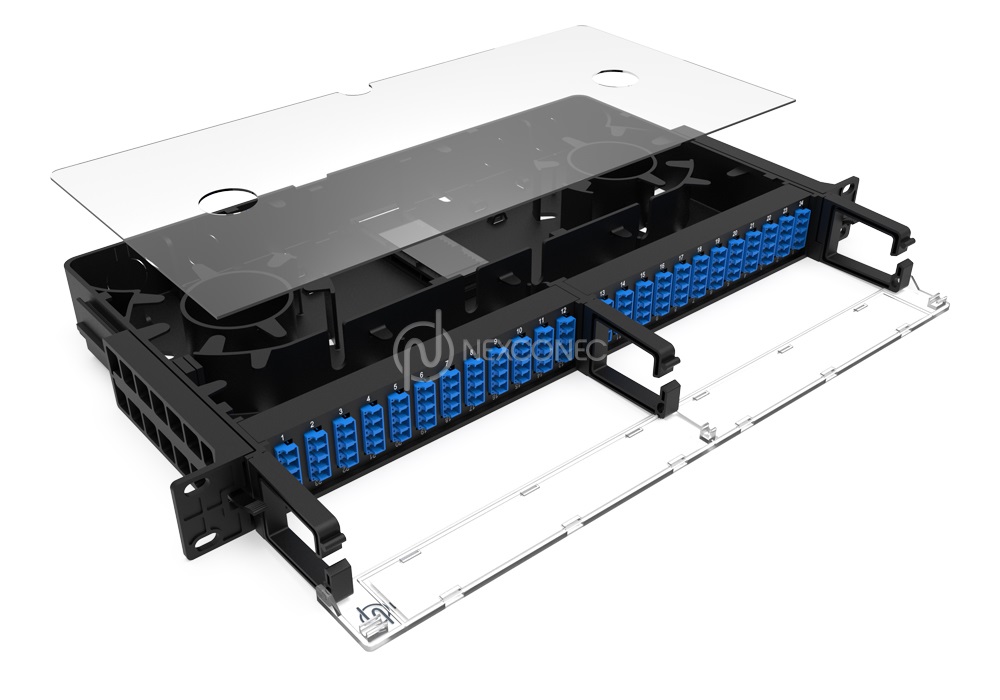

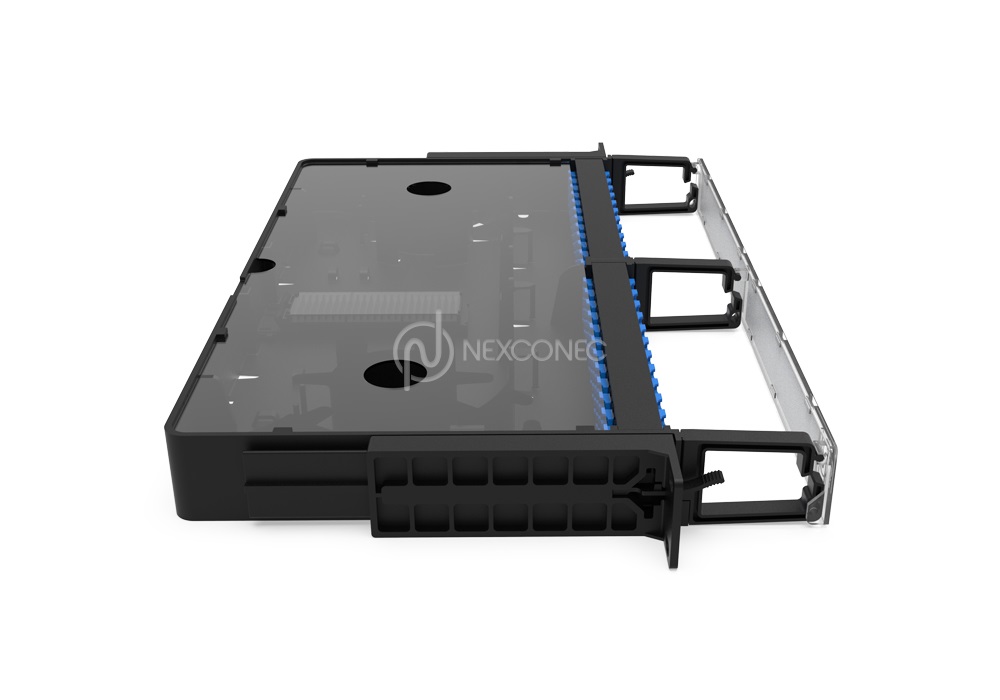

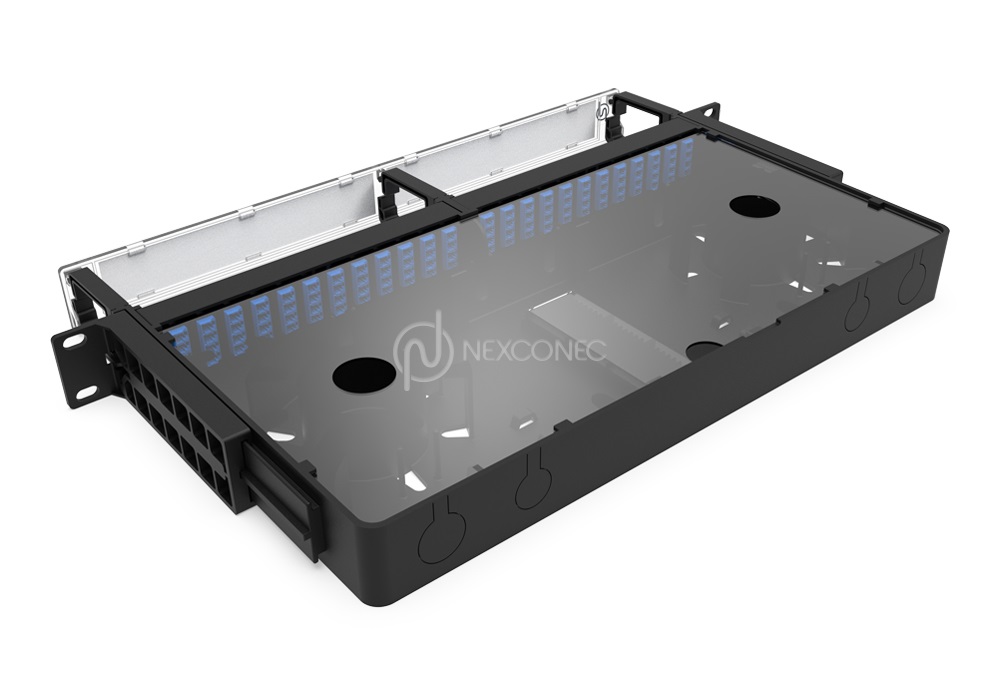

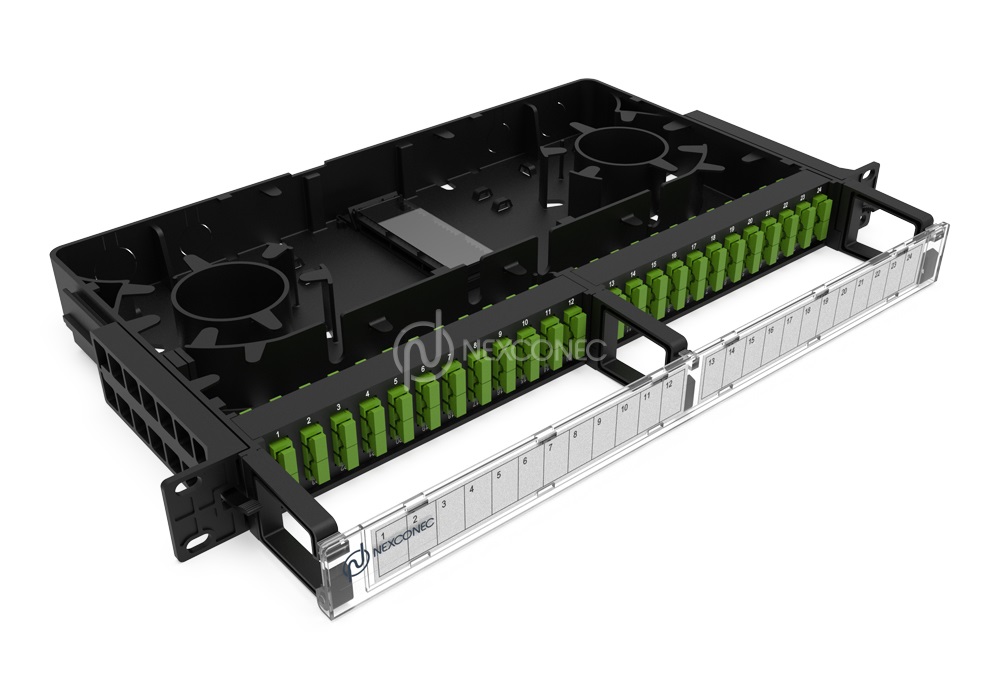

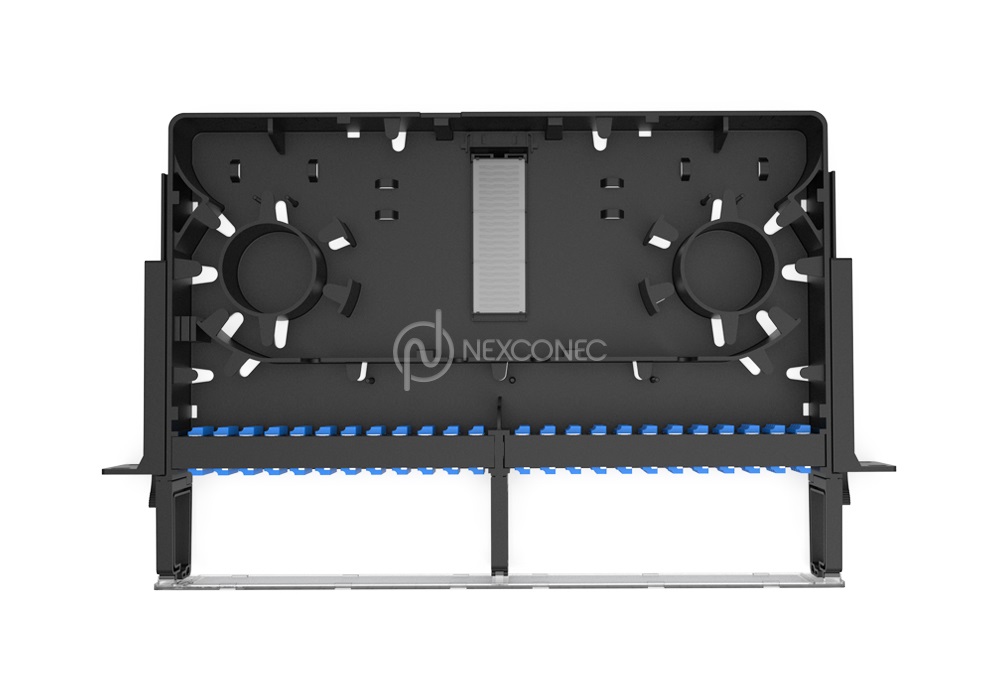

The unique panel design incorporates a removable see-through lid & a transparent hinged drop-down door, providing a smooth slide mechanism facilitated by effortless lock-and-release plastic latches on two sides. This design enables it to fully extend when sliding out. Additionally, it ensures easy access & simplifies labelling, maintenance routines and installation activities.
PRODUCT HIGHLIGHTS
- Up to 96FO in LC on 1U
- High durability & light weight PC & PC+ABS material
- Transparent lid for easier maintenance and verification
- Available in shuttered dust proof LC/SC adapters
- Simple and easy installation with integrated fiber routing
- RoHS, REACH SvHC
FEATURES
- Up to 96FO in LC on 1U

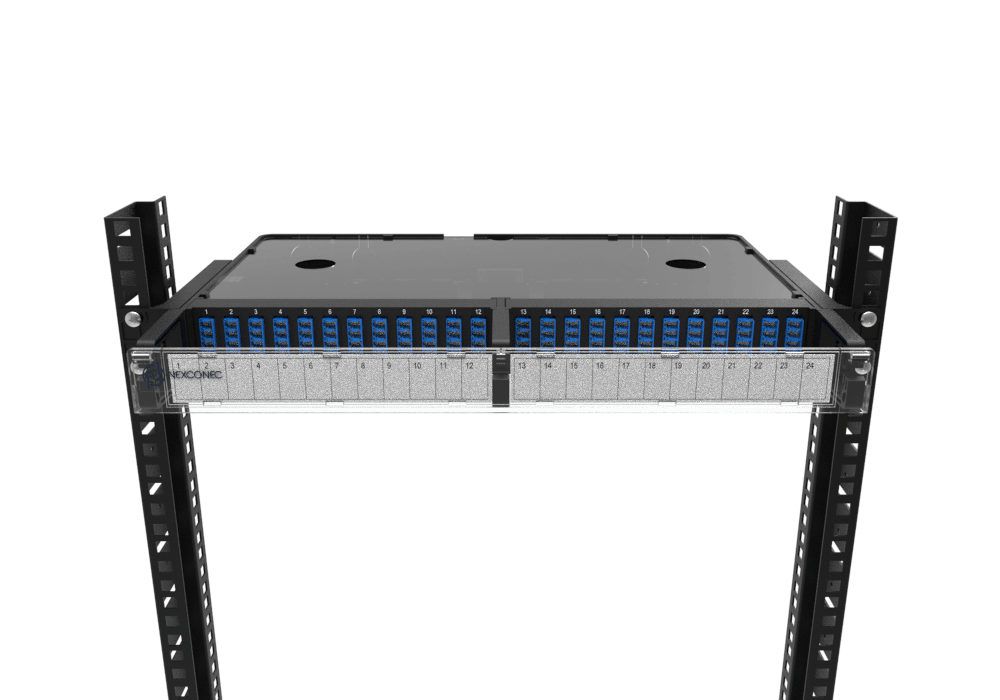

- Standard 19” Rack mounting type
- High durability & light weight PC & PC+ABS material

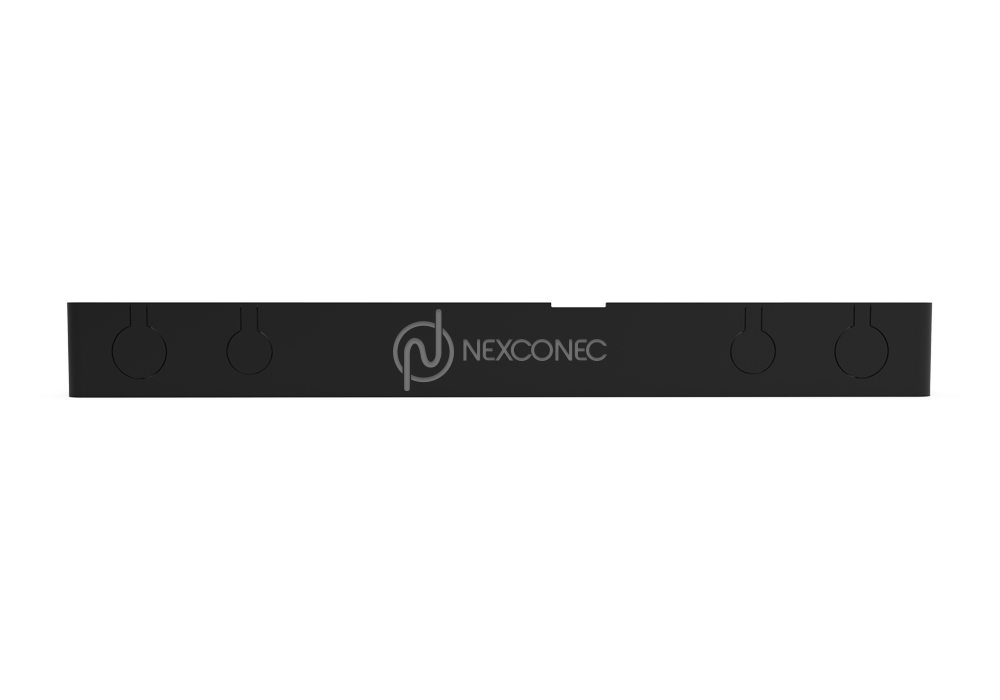

- 4 Rear Cable entries
- Accepts Indoor and Outdoor Pre-terminated cables and conventional splicing
- Transparent lid for easier maintenance and verification
- Enhanced labelling on the front door providing patch cords protection and better identification
- Available in shuttered dust proof LC/SC adapters
- Simple and easy installation with integrated fiber routing
- RoHS, REACH SvHC
APPLICATIONS
- Data centers, Premises installations, Enterprise networks
- Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Indoor applications
PANEL SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Sliding Tray |
| Access Type | Front and Rear access |
| Front Cable Management | Front manager with Hinged transparent drop-down door |
| Cable Entry Direction | Rear |
| Rear Cable Management | 4 Cable Entries (OD: 2x PG13.5 and 2x PG16 mm) |
| Slot Type | SC Duplex/ LC Quad Footprint |
| Number of Ports | 24 Ports |
| Fiber Capacity | 48FO in SC, 96FO in LC |
| Height Unit | 1U |
| Dimensions (W x D x H in MM) | 482 x 290.1 x 43.5 mm |
| Material | PC & PC+ABS |
| Housing Color | Black or [Grey (RAL 7035) Optional] |
| Compliance | RoHS, REACH SvHC |
| Application | Indoor IP20 |
| Lockable | No |
| Net Weight | 1.5 Kg |
PIGTAIL SPECIFICATIONS (SINGLE FERRULE CONNECTOR)
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
PIGTAIL BUFFER CHARACTERISTICS
| Parameters | Unit | Value (Simplex) |
|---|---|---|
| Nominal Buffer Diameter | μm | 900 +50/-50 |
| Crush Resistance | N/100mm | 500 |
| Maximum Tensile Load | N | 6 |
| Minimum Bending Radius | mm | 15 |
| Operating Temperature | ˚C | -20 ~ +60 |
| Part Number | Product Description |
|---|---|
| MP2PP02* | 1U 24 Ports SC Duplex/LC Quad Sliding Patch Panel (Black) |
* Add “G” at the end of Part Number for Telecom panels in Grey color. (Example: MP2PP02G).
Included kit in the package: 1x Gland PG13.5, 1x Cable Tie, 4x Cage Nuts & Screws, 4x Splice Holders.
