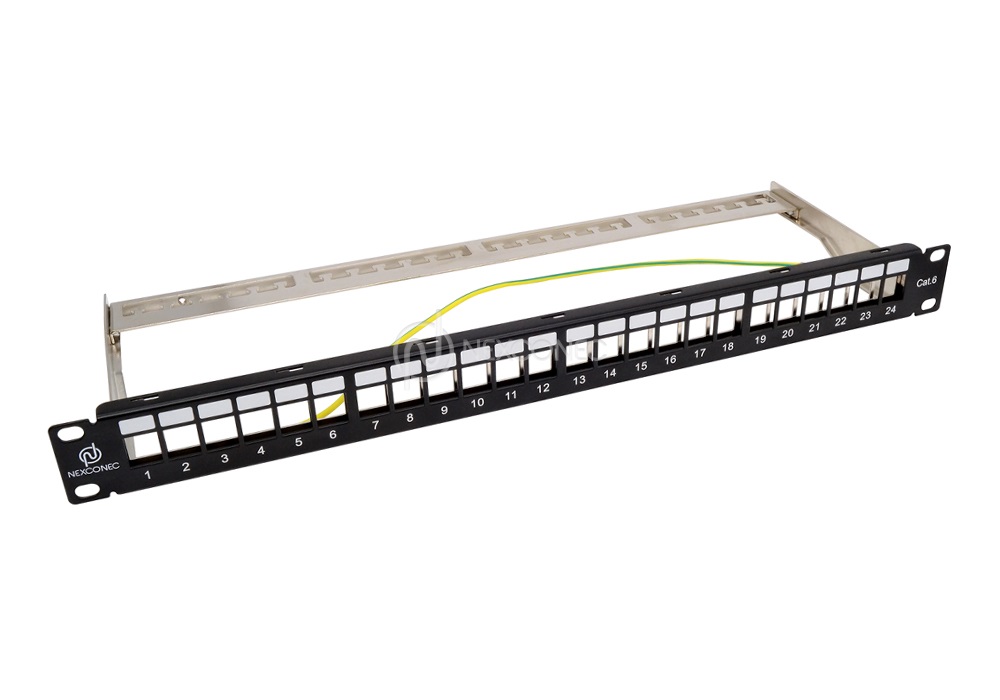

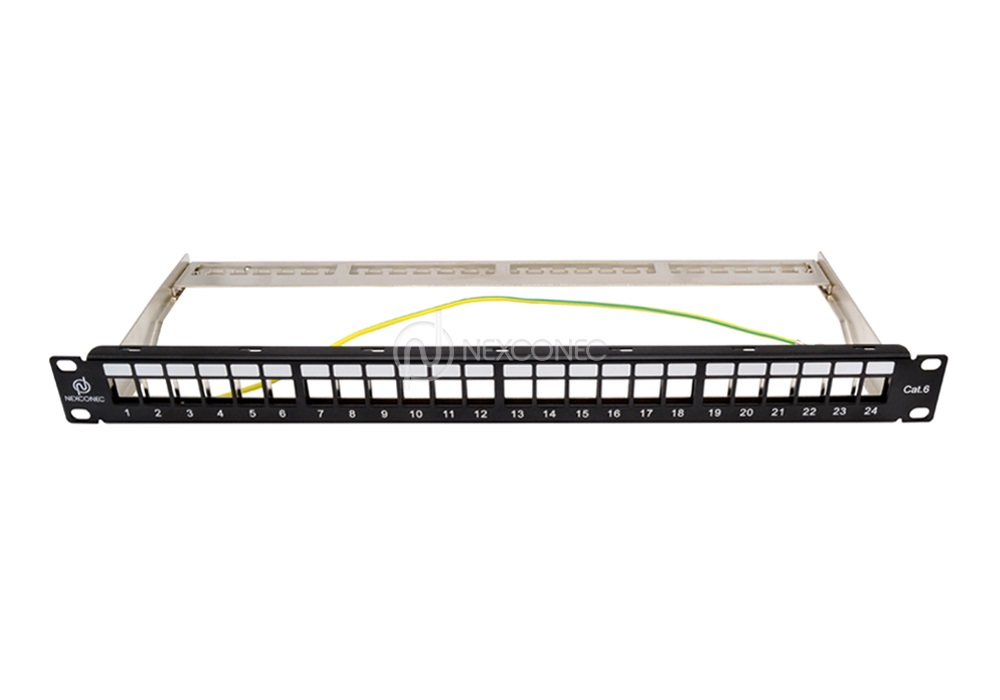

1U 24 Ports STP Unloaded Patch Panel - CMX1SUN
NEXCONEC 1U 24 ports unloaded shielded keystone patch panel allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame.

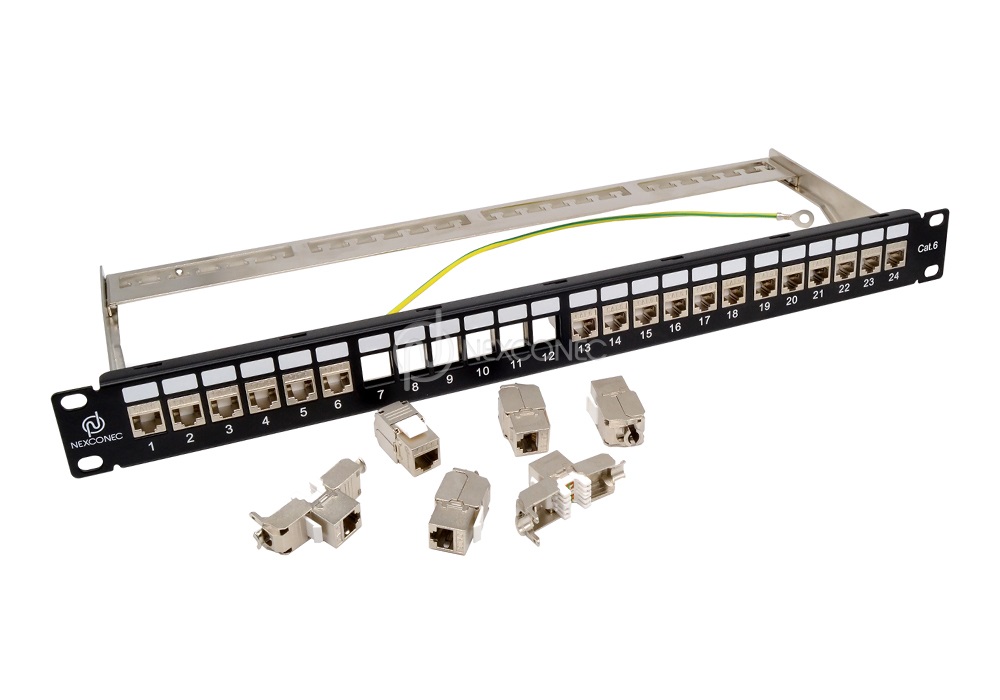

With the port identification number, which help the end user to recognize the ports while/after installation. When mounted with NEXCONEC shielded keystone jacks for Cat 5E, Cat 6 and Cat 6A, your completed panel will conform to ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.

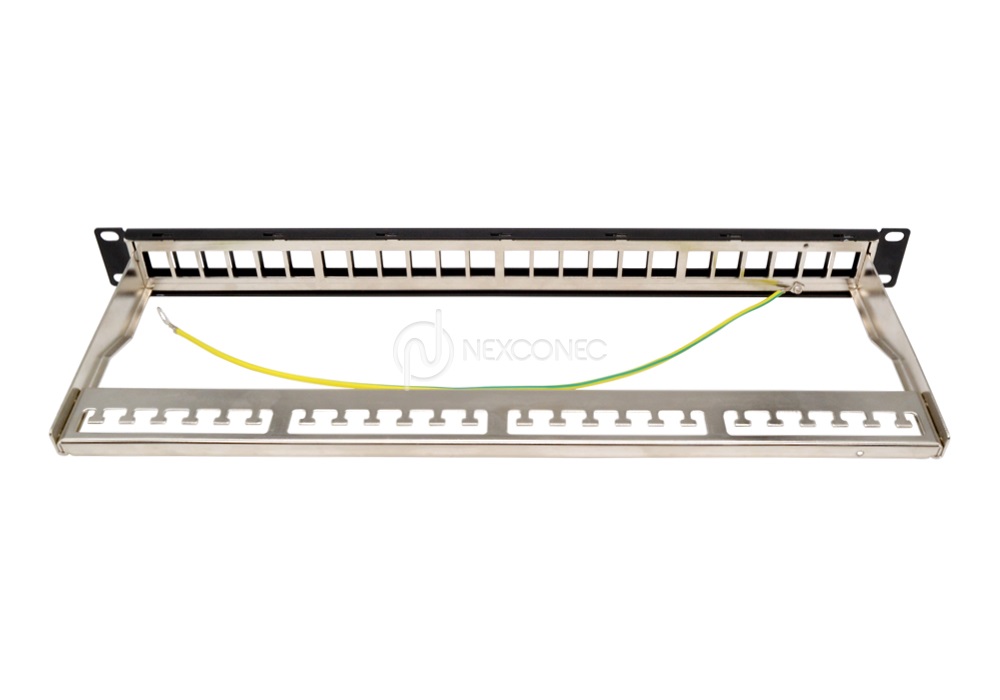

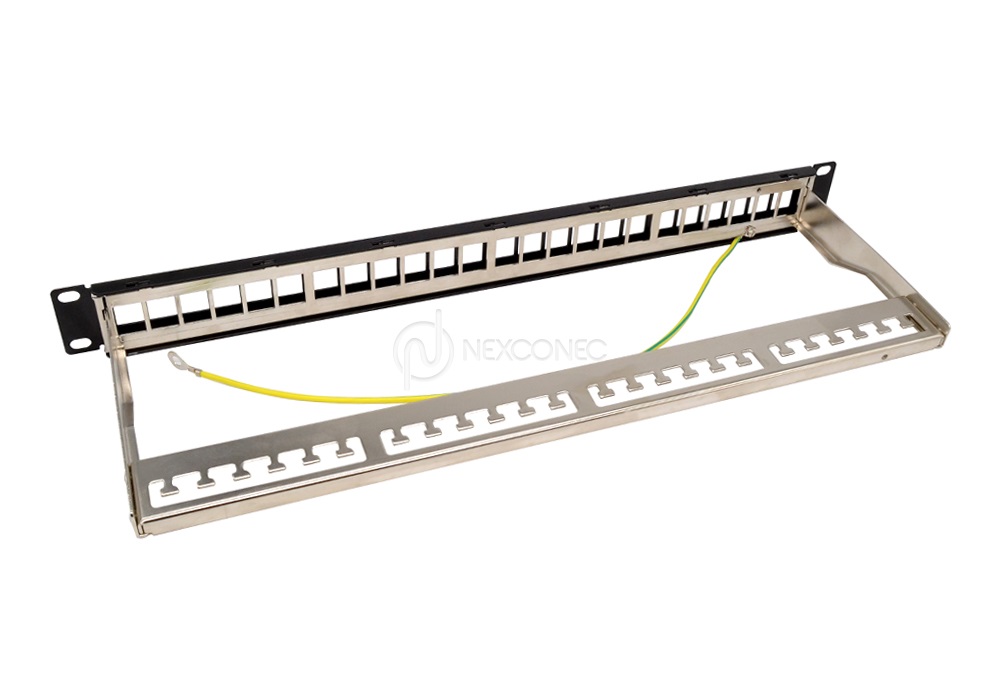

This unloaded keystone jack patch panel comes with cable ties, cage nuts and rear cable management bar as standard.
FEATURES AND APPLICATIONS
- Detachable modular design for better installation
- Compatible with all NEXCONEC STP keystone jacks
- 19’’ rack mountable
- Support up to 24port in 1U height
- Supplied with rear cable managers and fixings
- Connection between wall outlets or equipment’s
- Compatible with all categories of shielded keystone jacks
| Parameters | Value |
|---|---|
| U Size | 1U (44.4mm) |
| Depth | 151.5mm |
| Frame Material | Cold-rolled steel |
| Material Thickness | 1.6mm |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Width | 482mm |
| Net Weight | 0.9KG |
| Packed Weight | 1.1KG |
| Color | Black, RAL 9004 |
| Part Number | Product Description |
|---|---|
| CMX1SUN | NEXCONEC 1U 24port STP KJ Patch Panel Unloaded |
