1U 4 Ports SC Fiber Panel & Shelve - PPST1

PPST1 PPST1 PPST1 PPST1 PPST1 PPST1 PPST1 PPST1 PPST1

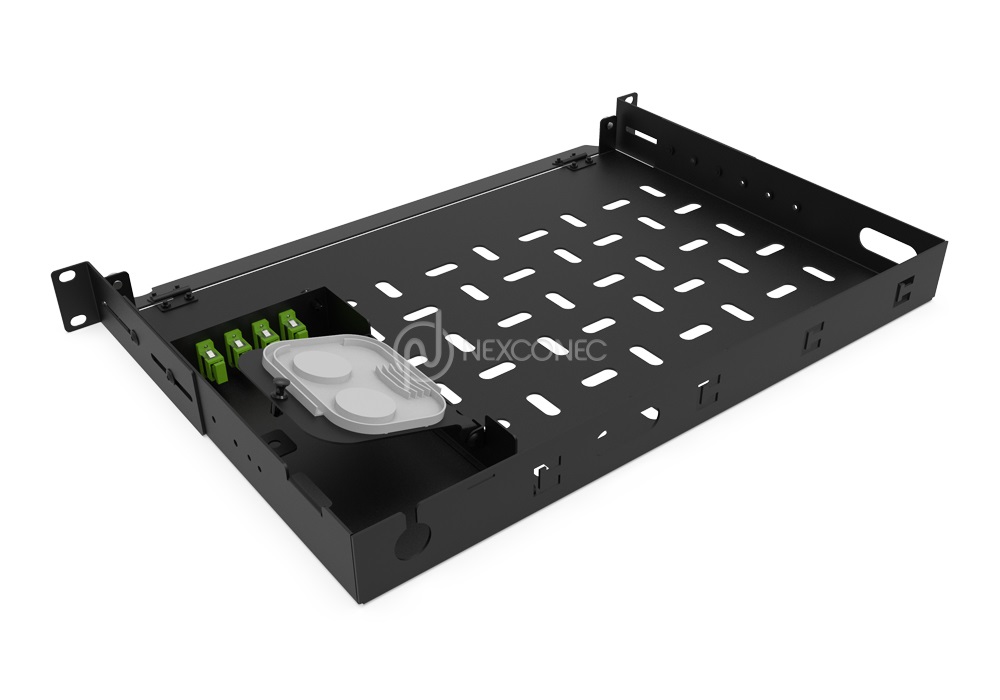

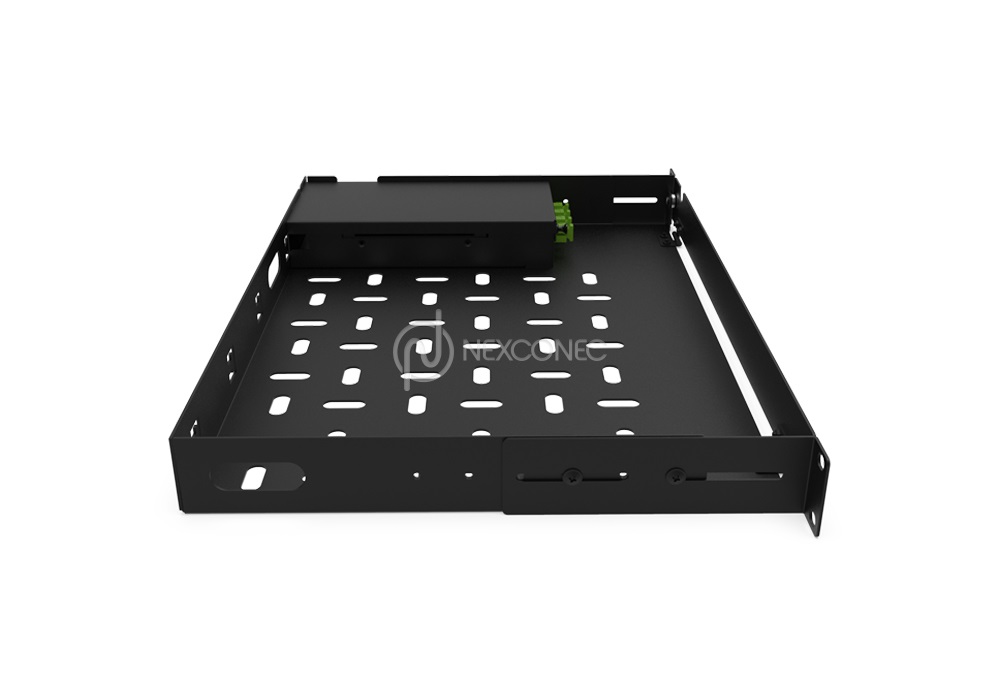

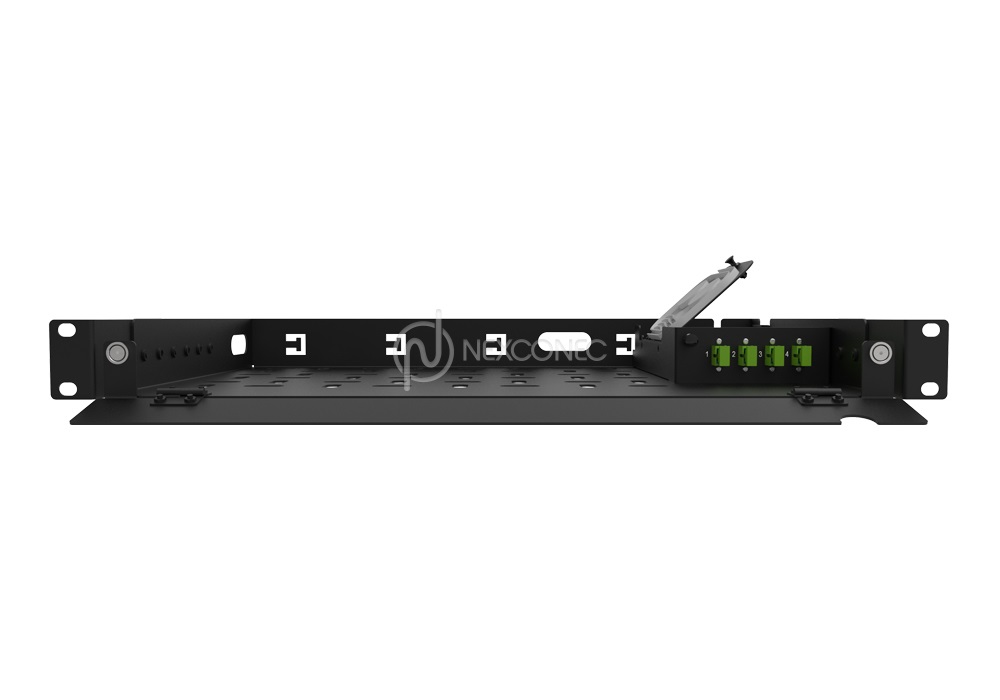

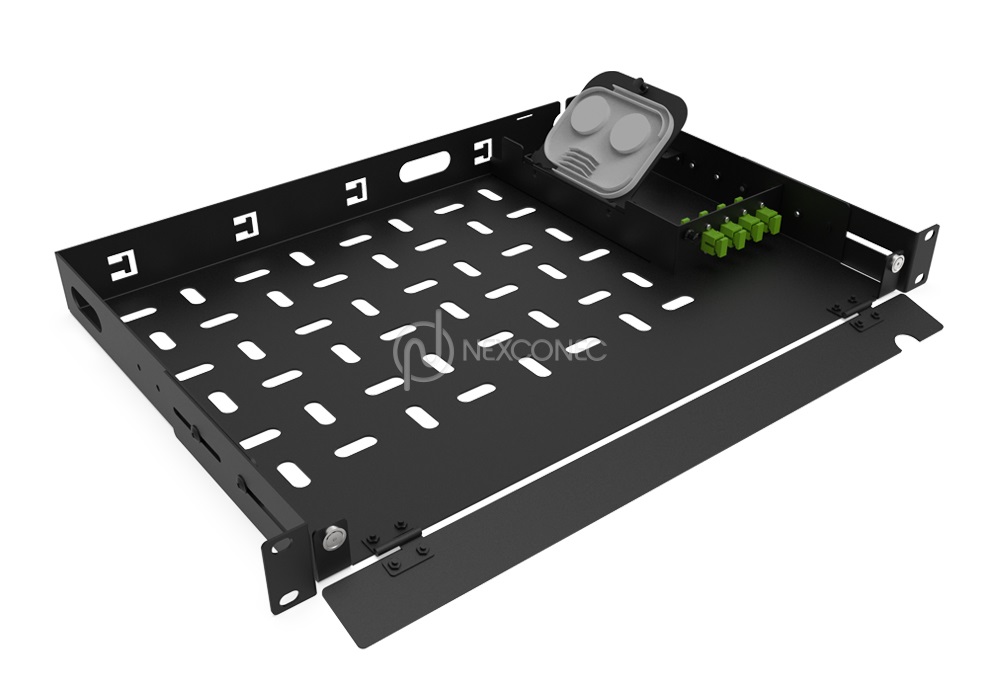

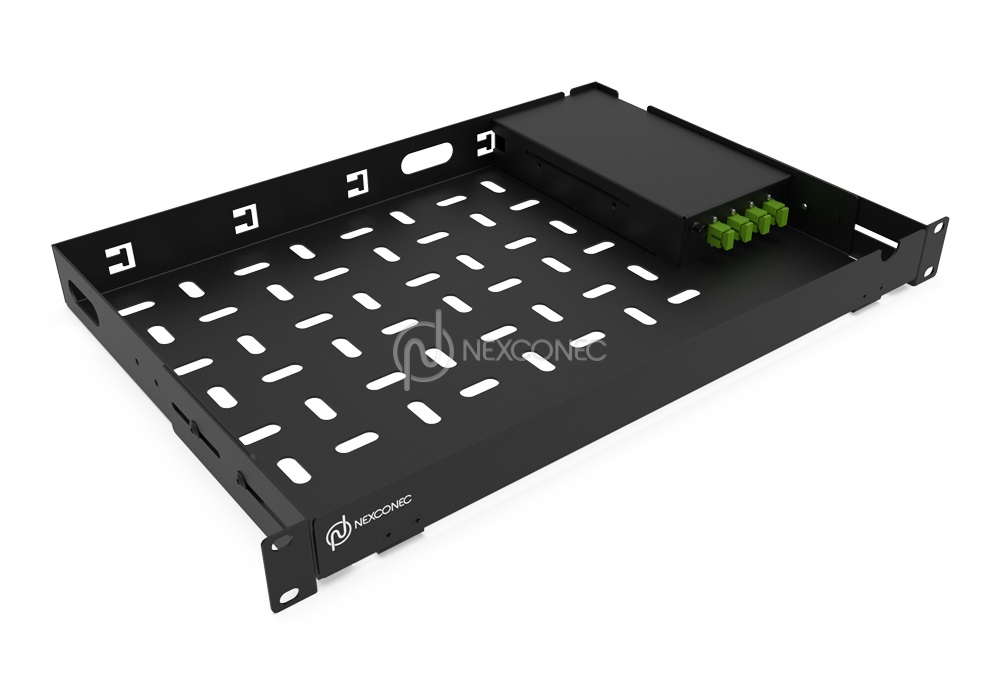

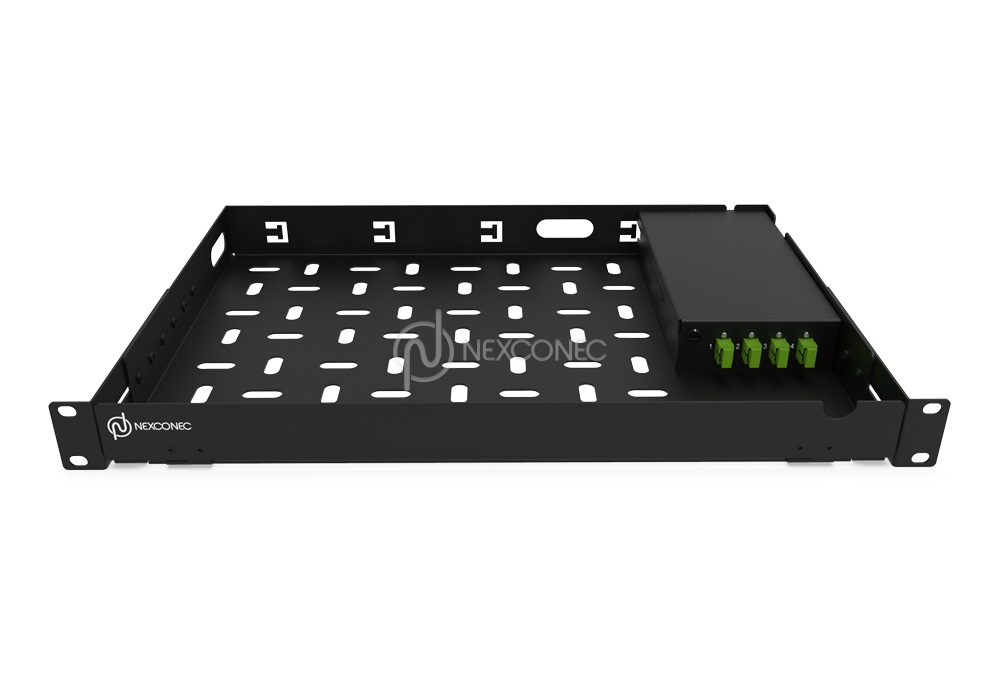

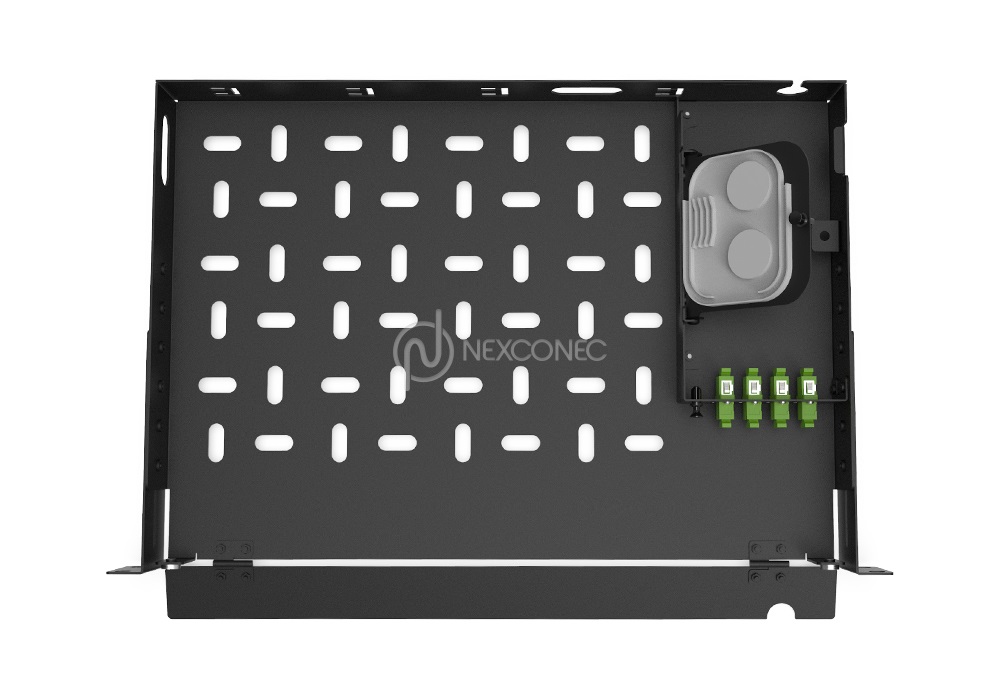

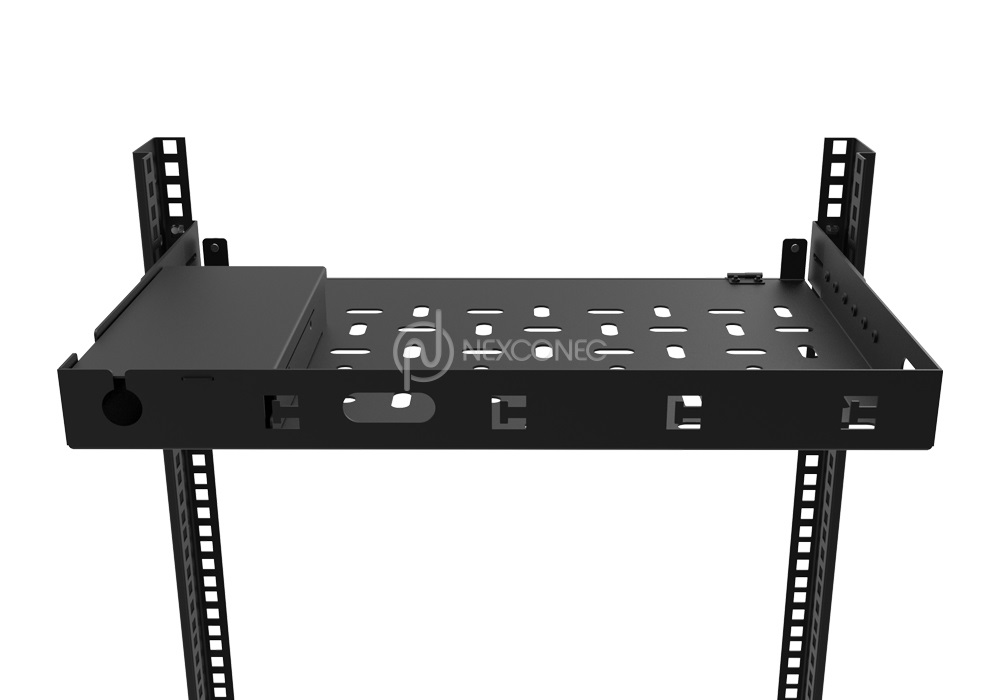

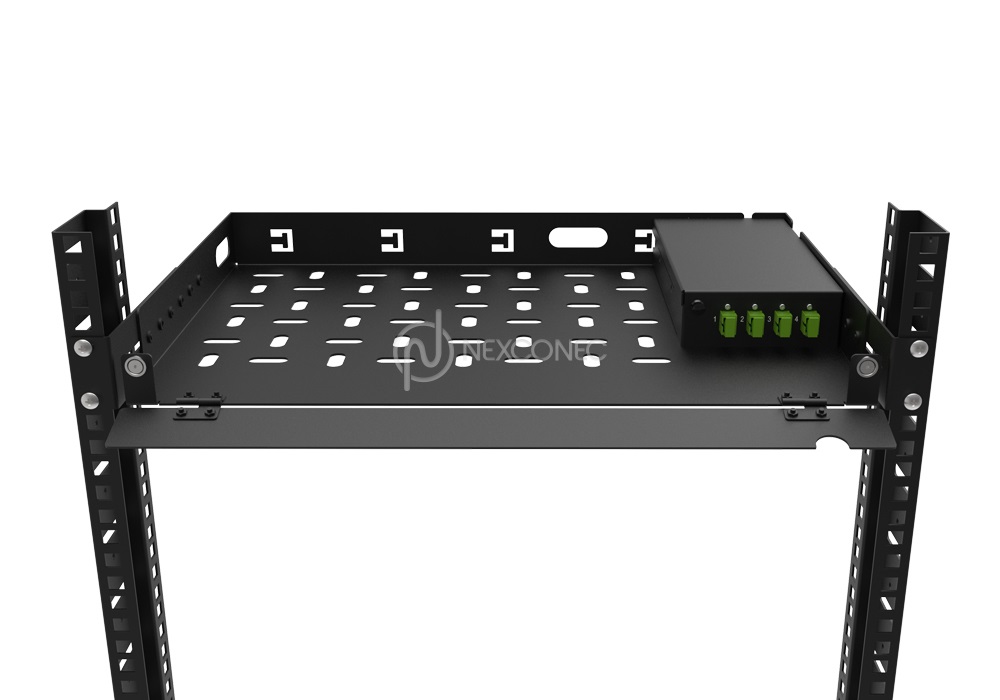

NEXCONEC® 1U 4 ports SC fiber optic panel & shelve, mounted on 19” standard network racks. Optical module of this panel is equipped with 4x SC simplex adapter ports & a splice tray for the storage and splicing of 4 fibers and another Electro-optical compartment provides maximum size of (W)324mm x (D) 286mm large space for fiber/cables management.

Use this fiber cable storage patch panel in the telecommunication room, data centers for storage of excess fibers and cables to make your fiber cable management neat and professional.

FEATURES AND APPLICATIONS
  • Standard 19” Rack mounting type
  • Recessed panel bracket mounting
  • Accommodate excess fiber cables
  • Up to 4FO Splicing
  • 2 openings dedicated to the passage of cables (optical, electrical)
  • Enterprise network & Datacenter

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Value
Mounting Type Rack 19”
Opening Type Hinged Front Door
Access Type Front access
Cable Entry Direction Rear
Rear Cable Management Cable entry slots
Slot Type SC Simplex Footprint
Number of Ports 4x SC Simplex
Splice Capacity 4FO
Splice Accessories Splice tray, Bunny clips, Cable gland
Height Unit 1U
Dimensions (W x D x H in MM) 438 x 308.6 x 43.5
Shelve Dimensions (W x D in MM) 324 x 286
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Net Weight 2.5 Kg
Part Number Product Description
PPST1 1U Fiber Storage Panel 4xSC Simplex Unloaded
