1U Fiber Storage Sliding Panel - STOP01

STOP01 STOP01 STOP01 STOP01 STOP01 STOP01 STOP01 STOP01 STOP01

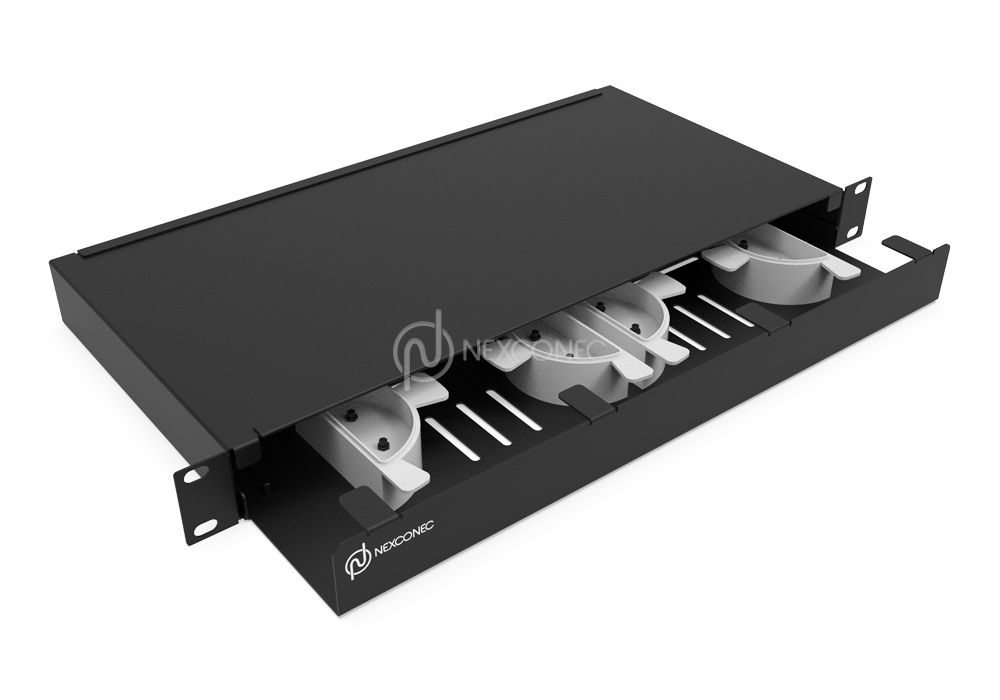

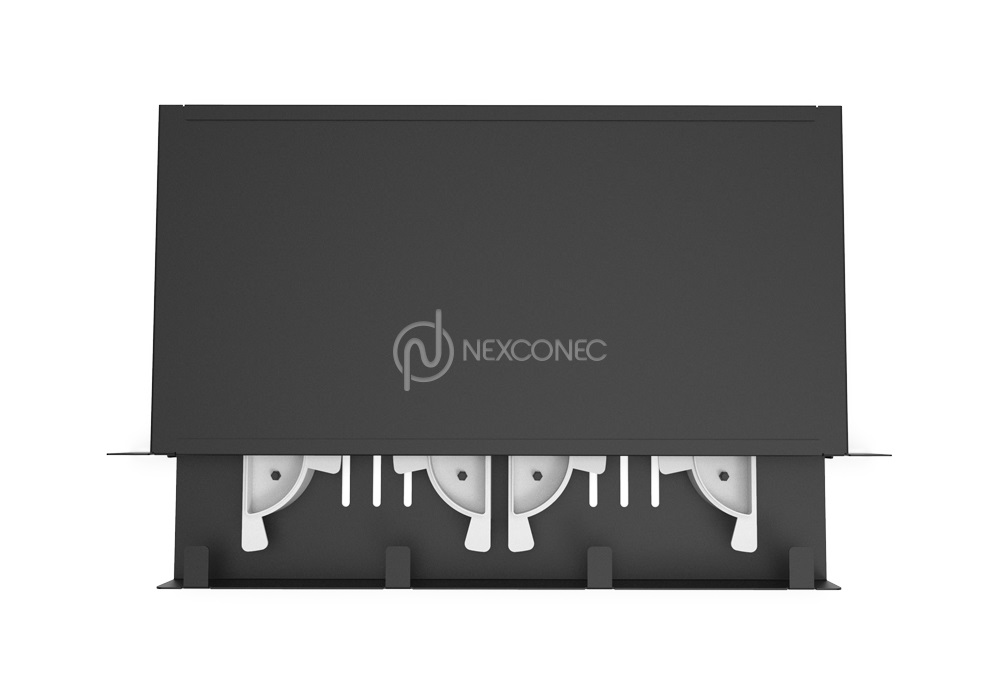

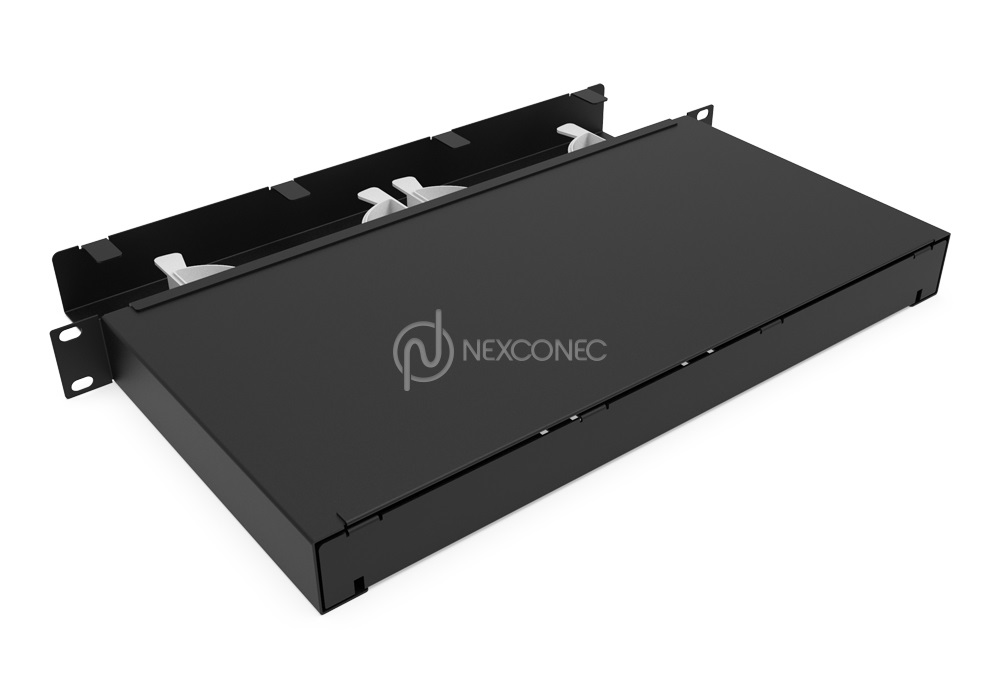

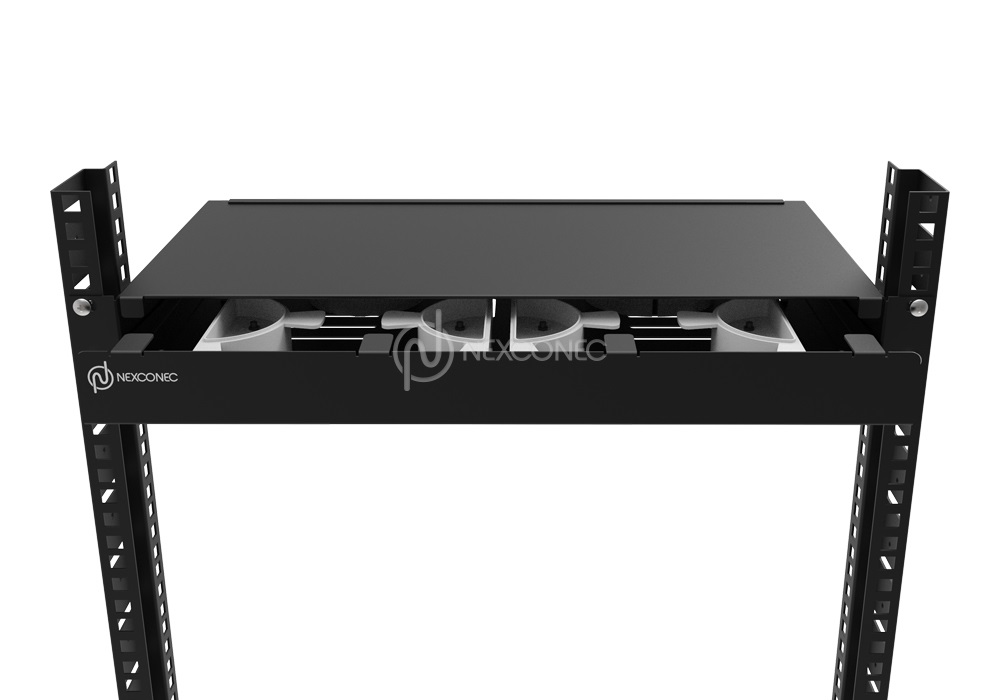

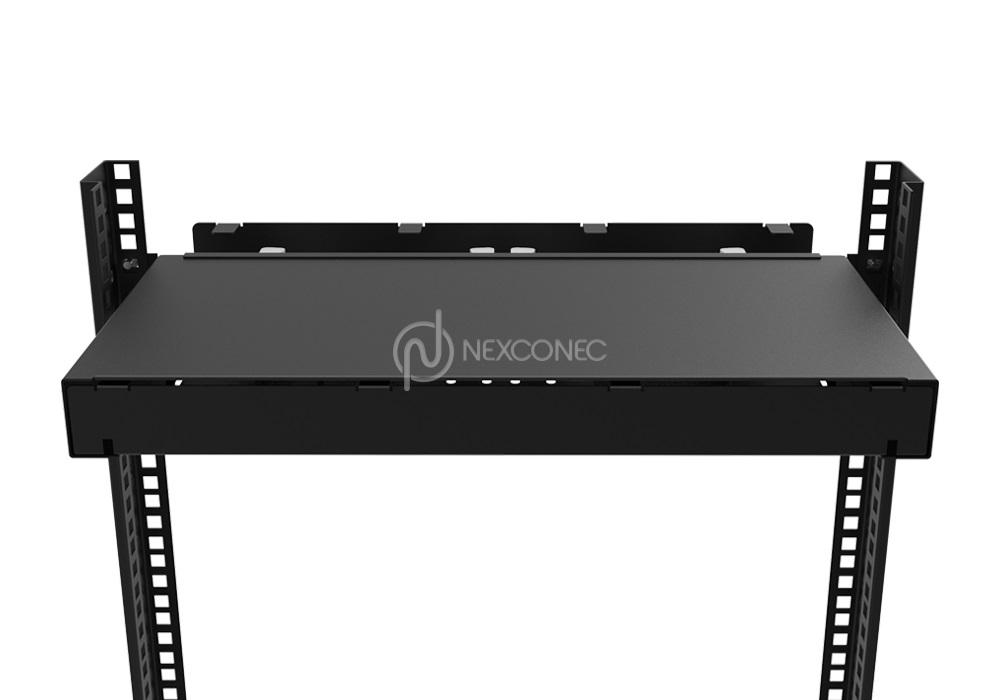

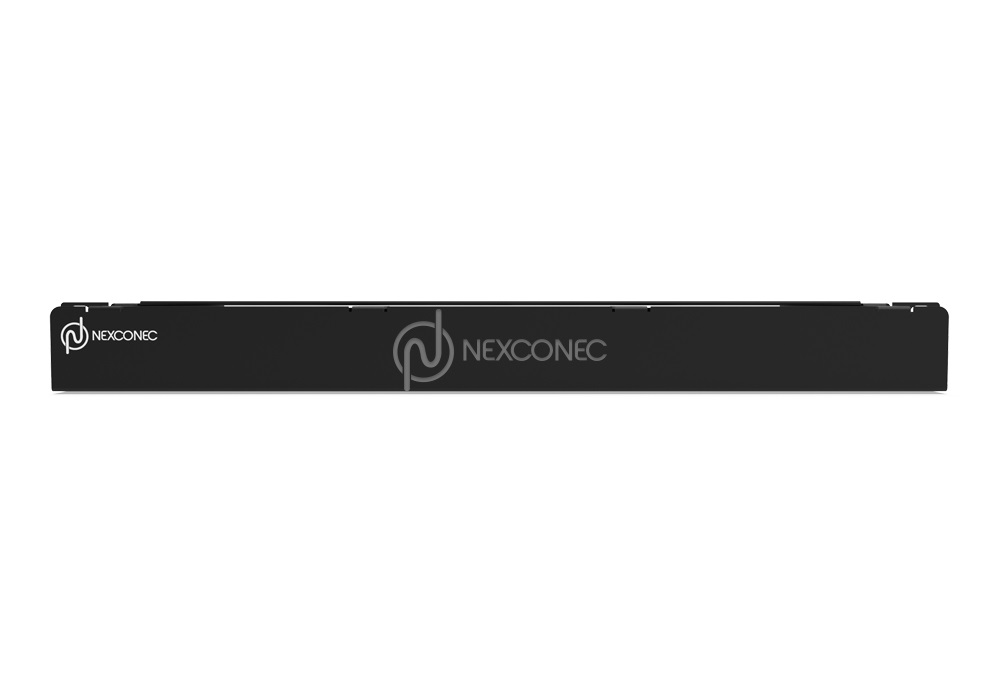

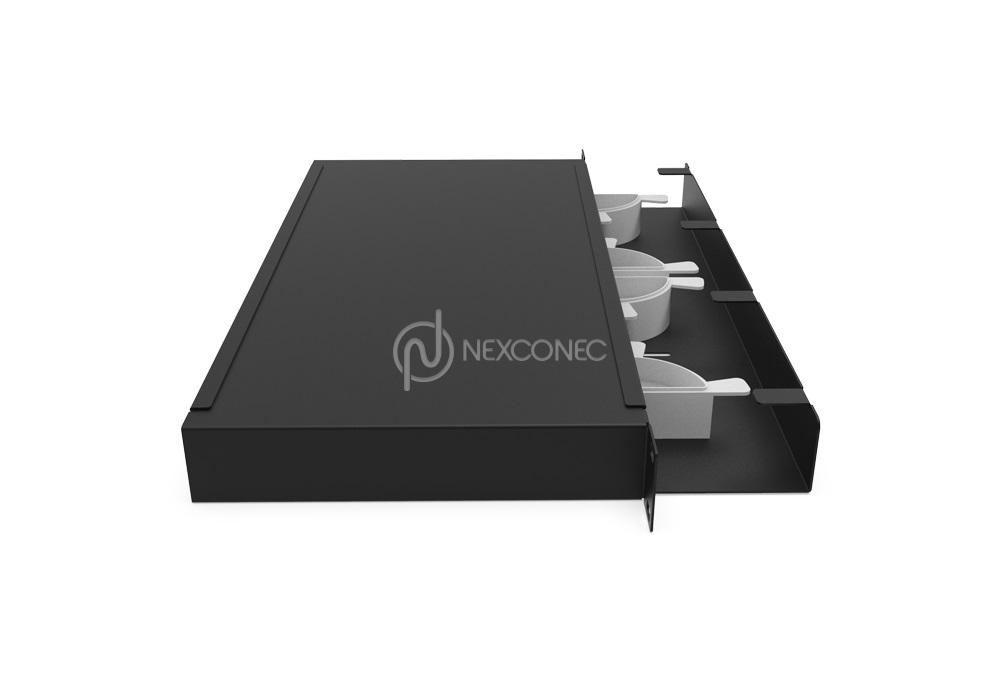

Nexconec 1U fiber cable storage sliding panel, mounted on 19” network racks. This slide-out tray fiber cable storage patch panel could make your fiber cable management neat and professional in the telecommunication room, data centers to storage excess fibers and cables.

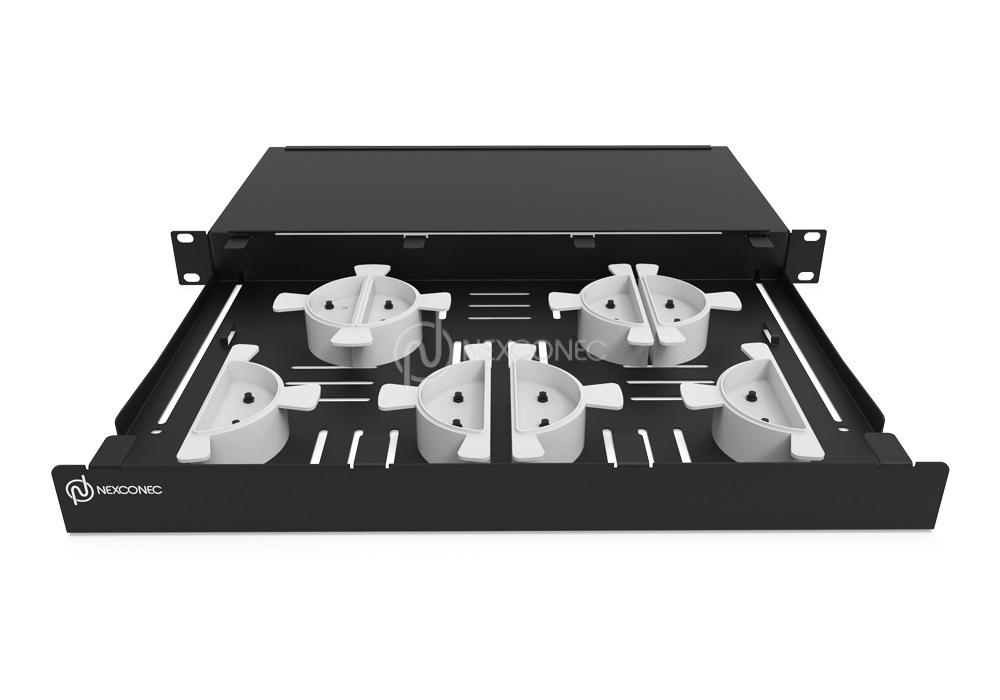

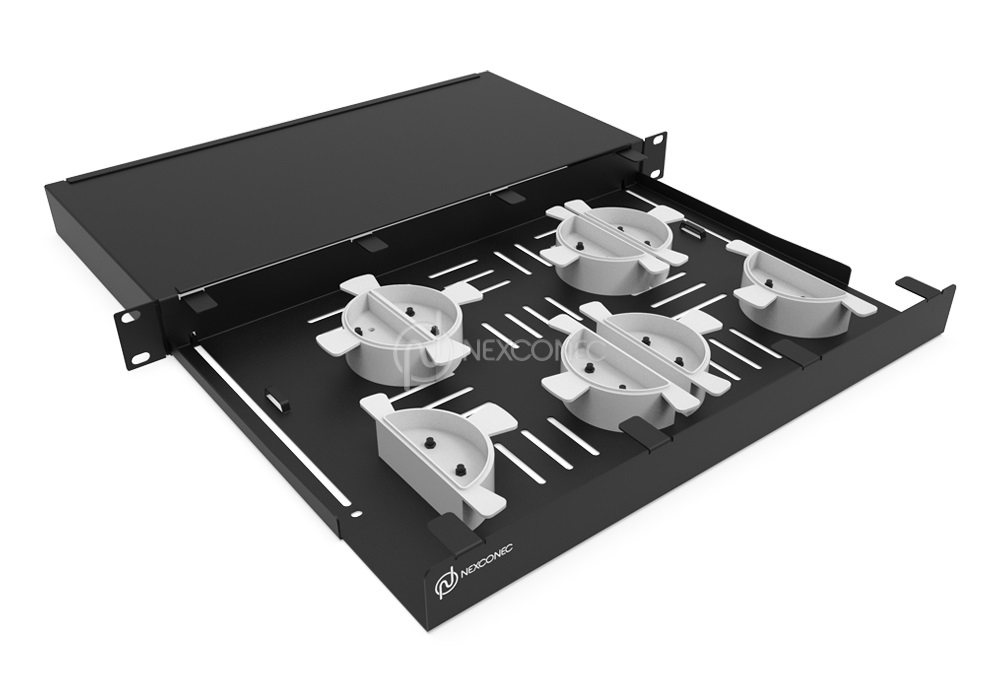

Easy front access with inner cable management spools which provides protection and coiling of the excess lengths of the patch cords.

FEATURES AND APPLICATIONS
  • Recessed panel bracket mounting
  • Accommodate excess fiber cables
  • Fits standard 19” rack
  • Enterprise network & Datacenter
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and conventional Splicing

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Value
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Dimensions (W x D x H in MM) 482 x 300 x 43.7
Shelve Dimensions (W x D in MM) 429 x 300
Net Weight 2.5 Kg
Parameters Value
Opening Type Slide-out Shelve
Functionality Slack Storage
Accessories Symmetrical Spools
Access Type Front access
Cable Entry Direction Sides right and left
Rear Cable Management None
Part Number Product Description
STOP01 1U 19’’ Fiber Storage Sliding Panel Unloaded

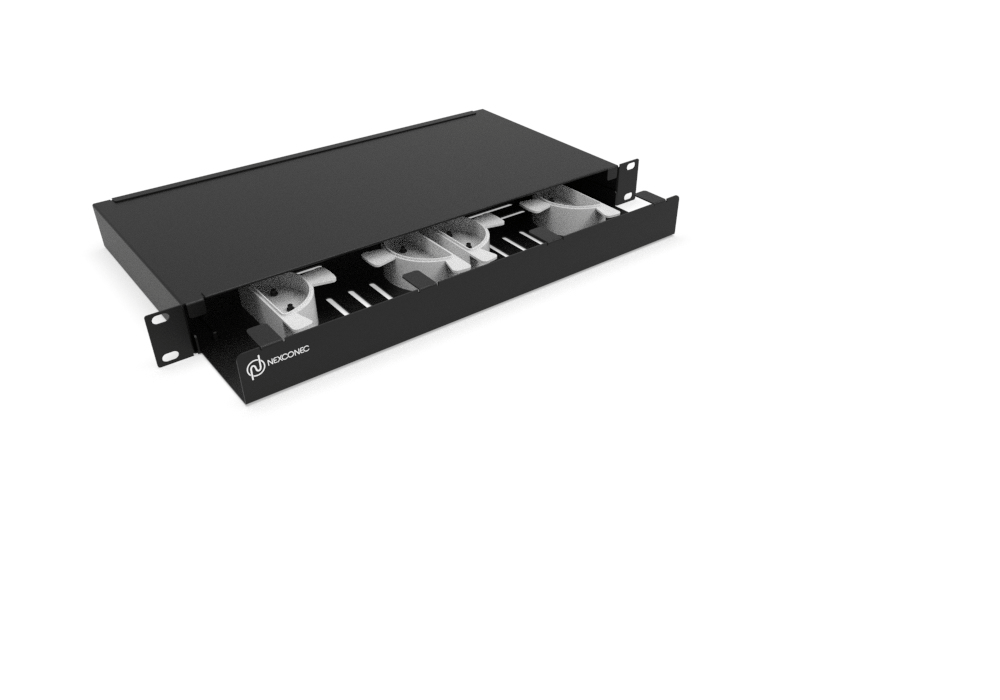

360° XR Viewer
