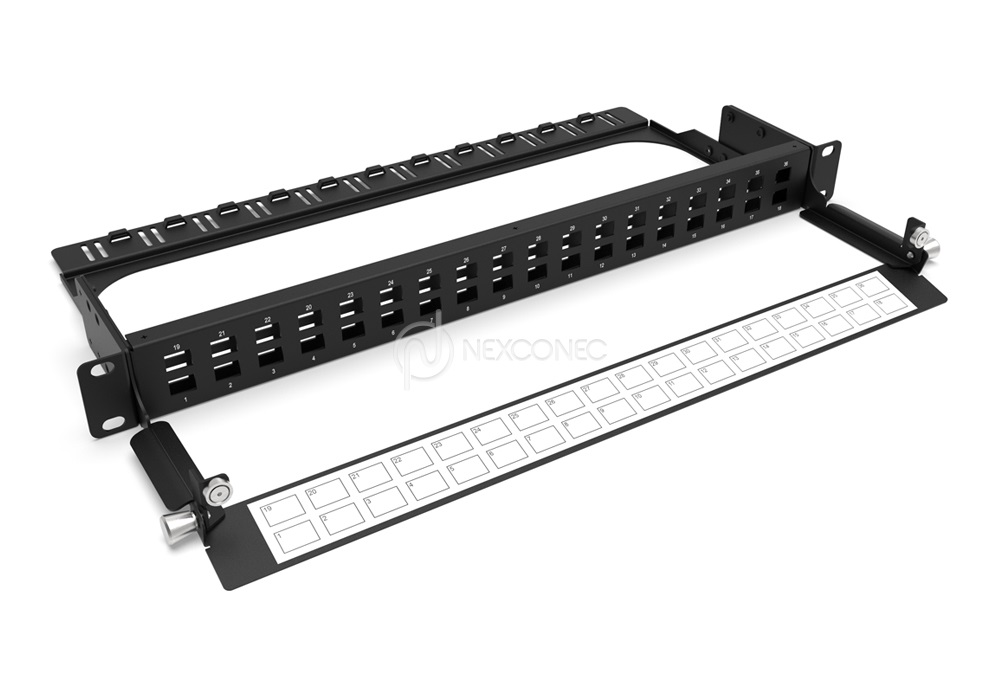

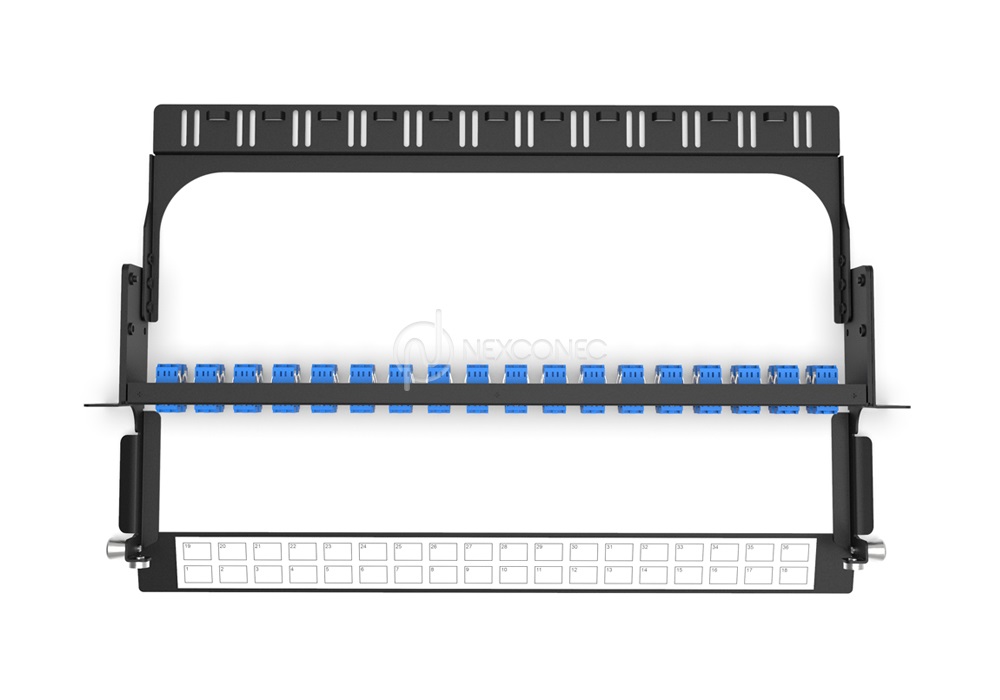

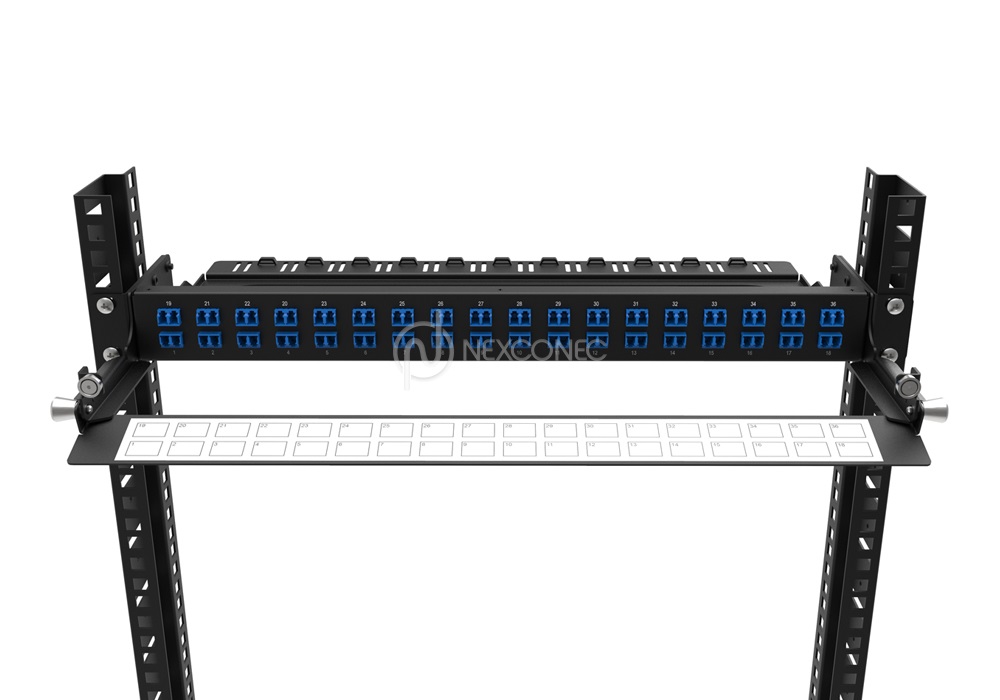

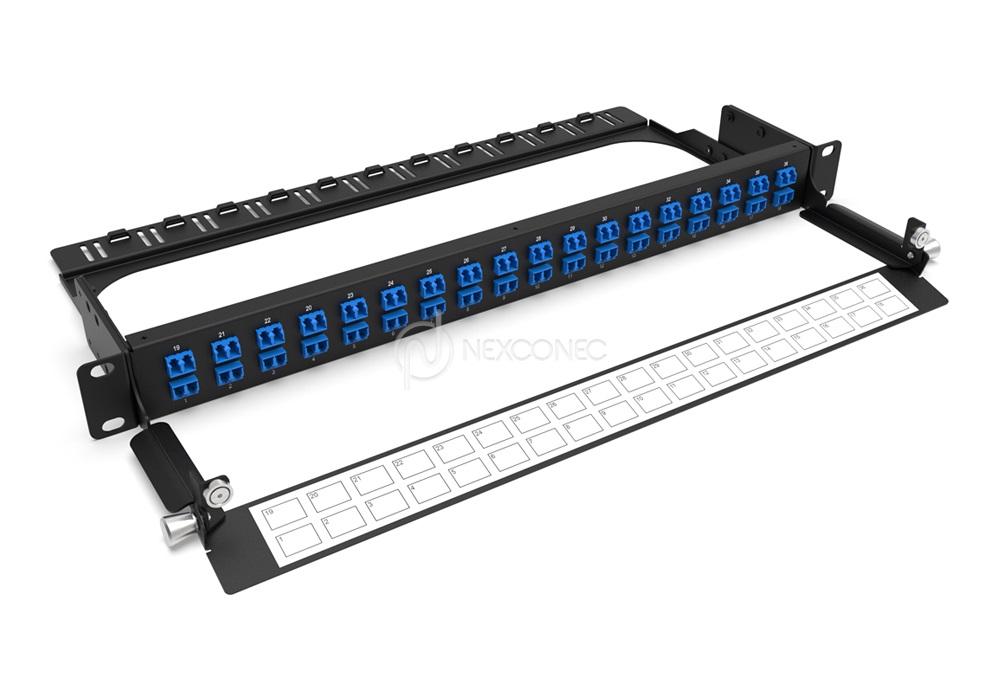

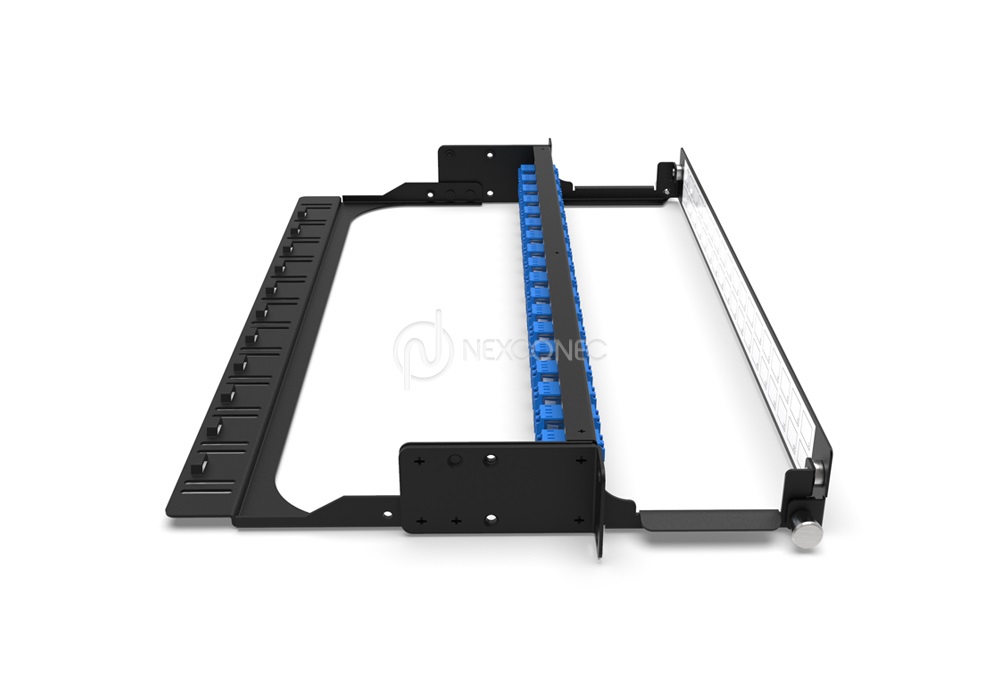

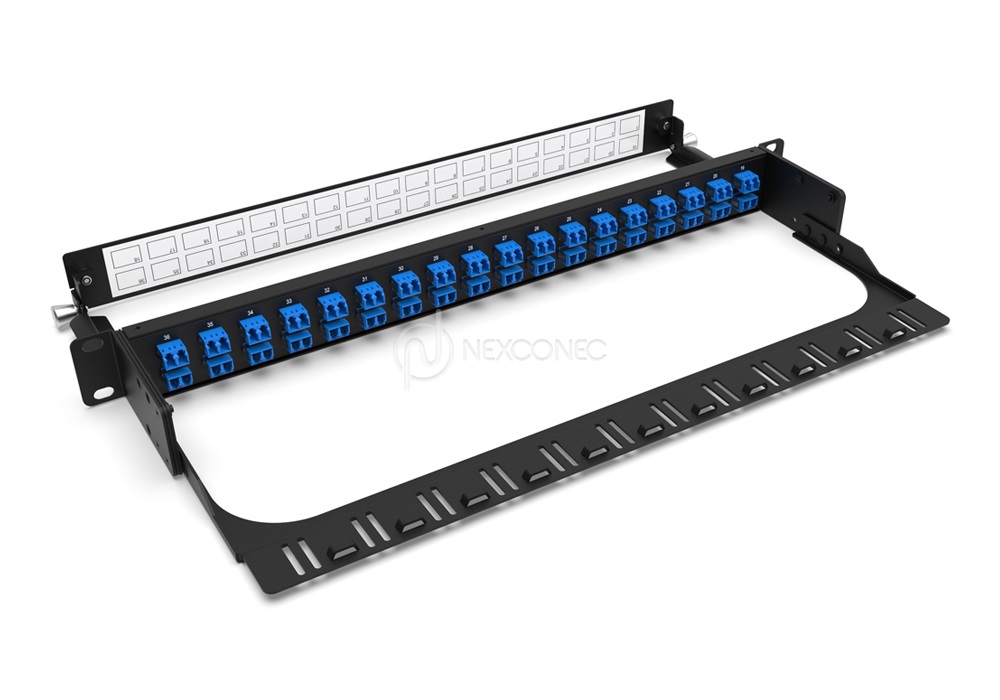

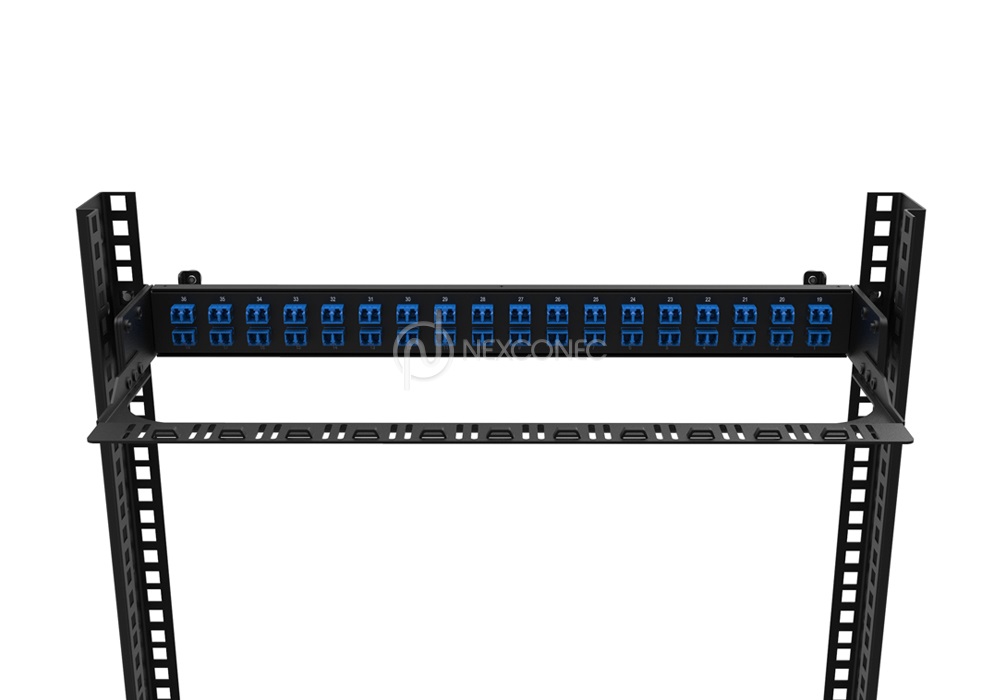

1U Patching Panel (up to 72FO) - BPP02
Nexconec Breakout Patching Panel is designed to provide housing for connections from an incoming preterm or trunks from the rear of the panel to patch cords on the front. The Open frame allows for quick and easy installation. It accepts up to 72FO with LC.
FEATURES AND APPLICATIONS
- 1U height with SC, LC or MPO Thru Adapters
- Up to 72FO in LC
- Channel to route the patch cords to the rear of the rack within the 1U space
- RoHS, REACH and SVHC
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 490 x 285.6 x 44 |
| Net Weight | 2.3KG |
| Opening Type | Fixed |
|---|---|
| Access Type | Front access |

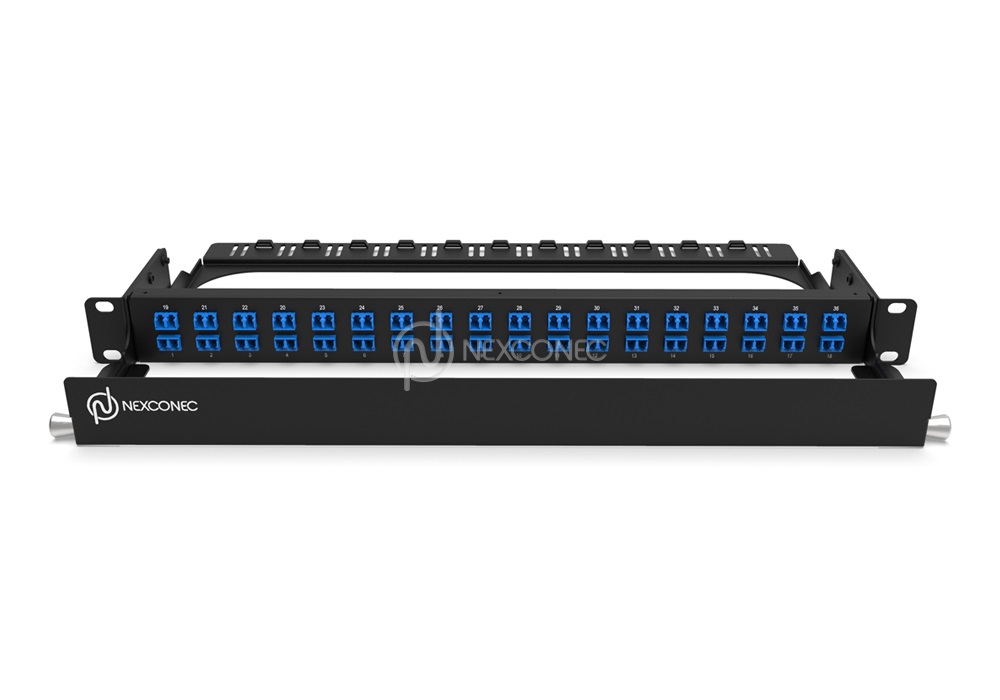

| Front Cable Management | Removable hinged door |
| Cable Entry Direction | Rear and Front |
| Rear Cable Management | Support bar |
| Slot Type | SC Simplex / LC Duplex or MPO/MTP Footprint |
| Number of Slots | 36 Ports SC Simplex /LC Duplex |
| Fibre Capacity | Up to 72 in LC / 36 in SC |
| Part Number | Product Description |
|---|---|
| BPP02 | 1U Patching Panel 36 ports SC SX/LC Duplex Unloaded (up to 72LC) |
