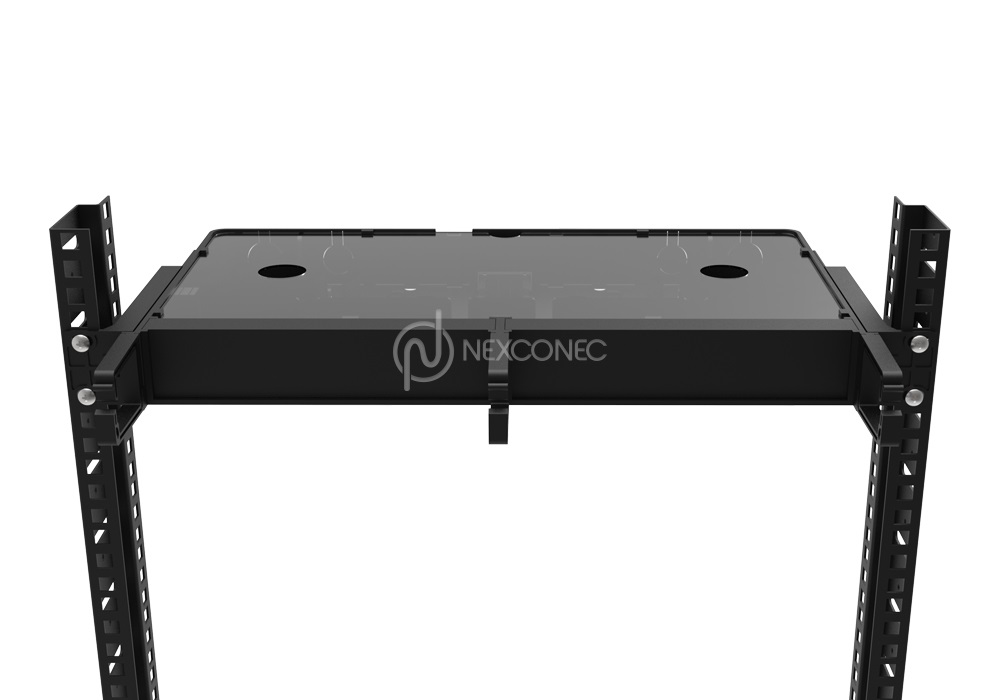

1U Sliding Splice Patch Panel - MP2PP00

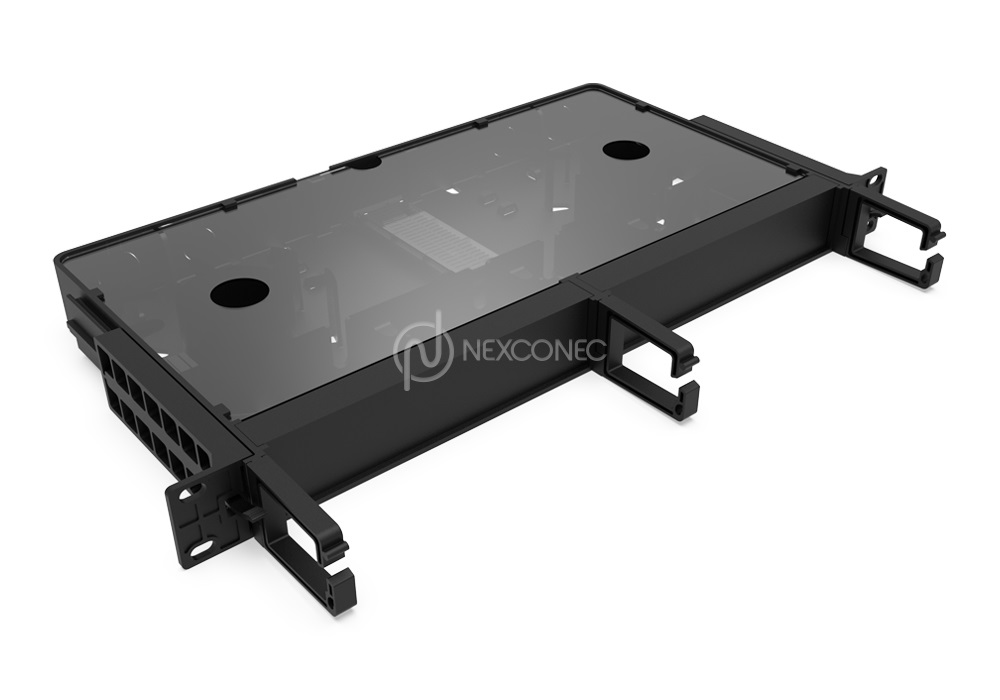

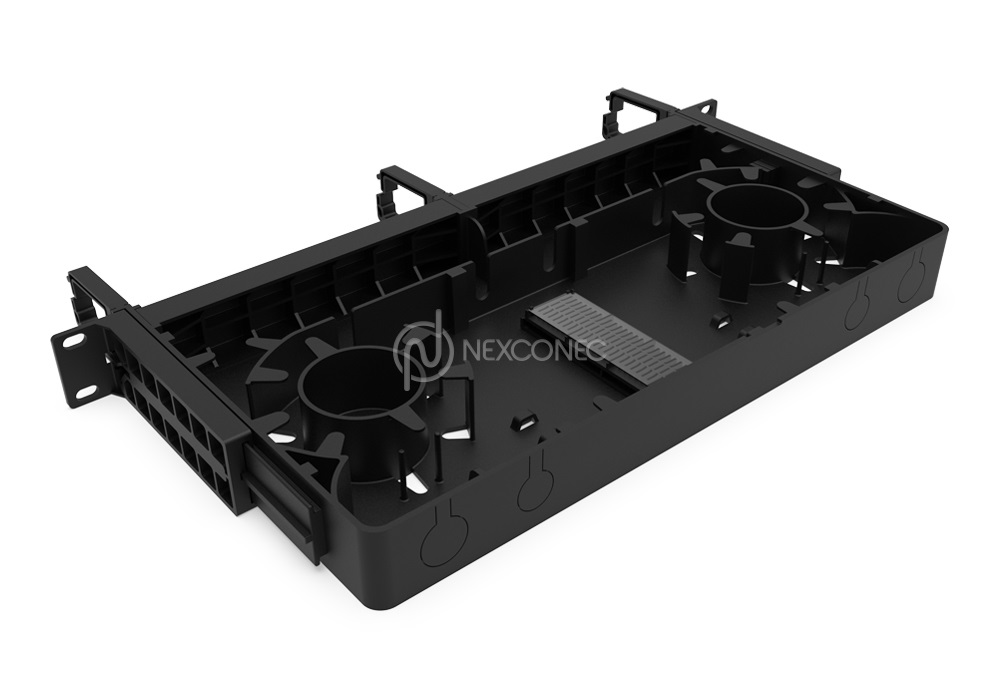

NEXCONEC® innovative 1RU Sliding Splice Patch Panel has been designed to accept up to 96 fibers. The 4x splice holders allows splicing of up to 24 fibers per unit. The use of the molded spools ensures the protection of fiber bend radius for the incoming and exiting cables as well as storage of fibers for future use.

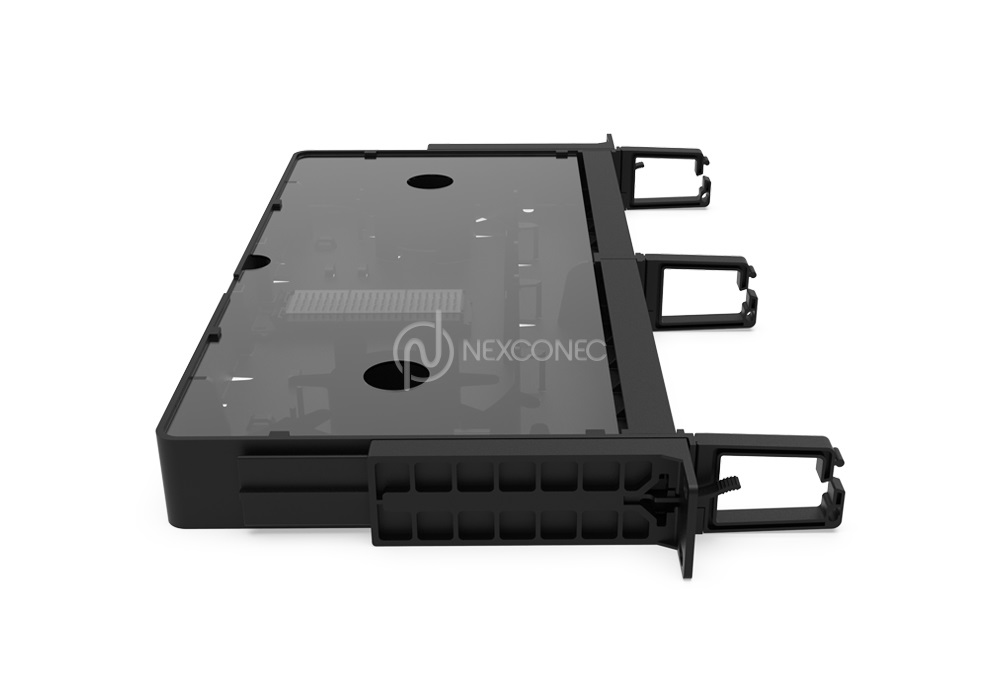

Featuring a removable transparent lid and the distinctive panel design providing a smooth slide mechanism facilitated by effortless lock-and-release plastic latches on two sides. Furthermore, the design permits the panel to fully extend when sliding out, ensuring convenient access. Not only does it simplify labeling, maintenance routines, and installation activities, but it also promotes easy visibility and facilitates quick adjustments.
PRODUCT HIGHLIGHTS
- Up to 96FO Splicing
- Suitable for up to 4 incoming cables

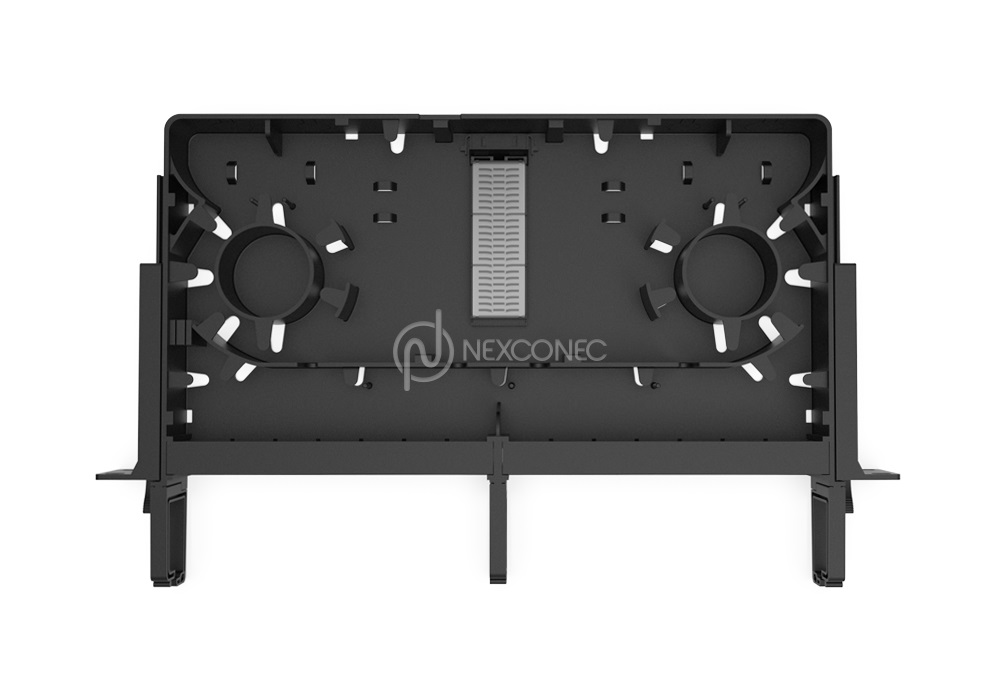

- Splicing and fiber bend radius integrated in the tray
- Detachable hooks for cable management between panels

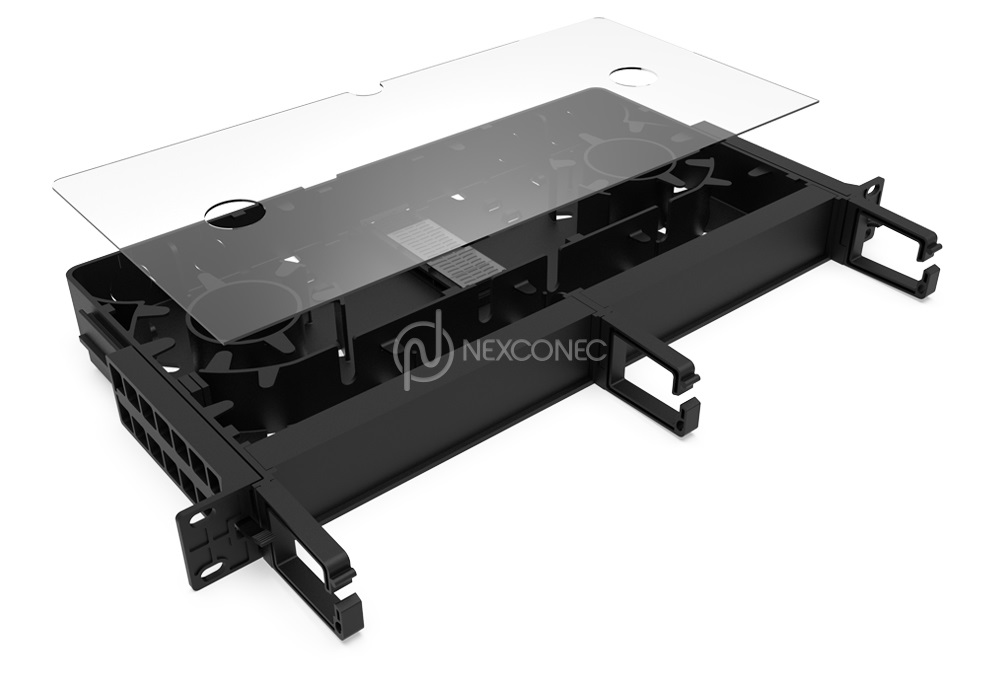

- Transparent lid for easier maintenance and verification
- Optional Ribbon splice holders
FEATURES
- Up to 96FO Splicing

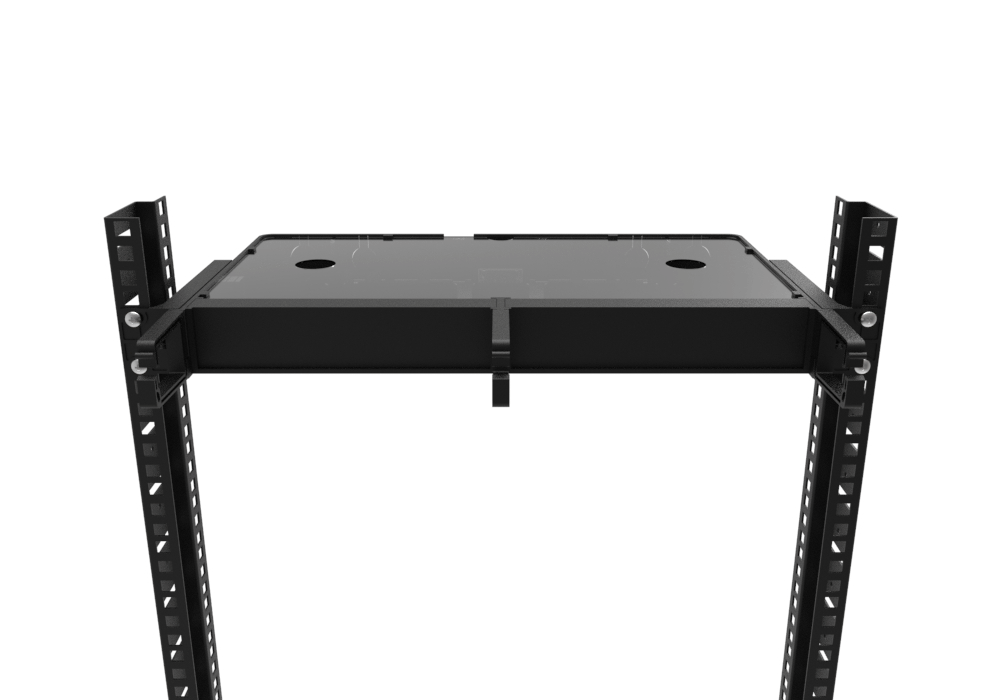

- Standard 19” Rack mounting type
- Suitable for up to 4 incoming cables
- Splicing and fiber bend radius integrated in the tray
- Detachable hooks for cable management between panels
- Transparent lid for easier maintenance and verification
- Optional Ribbon splice holders
- RoHS, REACH SvHC
APPLICATIONS
- Data centers, Premises installations, Enterprise networks
- Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Indoor applications
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Sliding Tray |
| Access Type | Front and Rear access |
| Front Cable Management | Detachable Hooks |
| Cable Entry Direction | Rear |

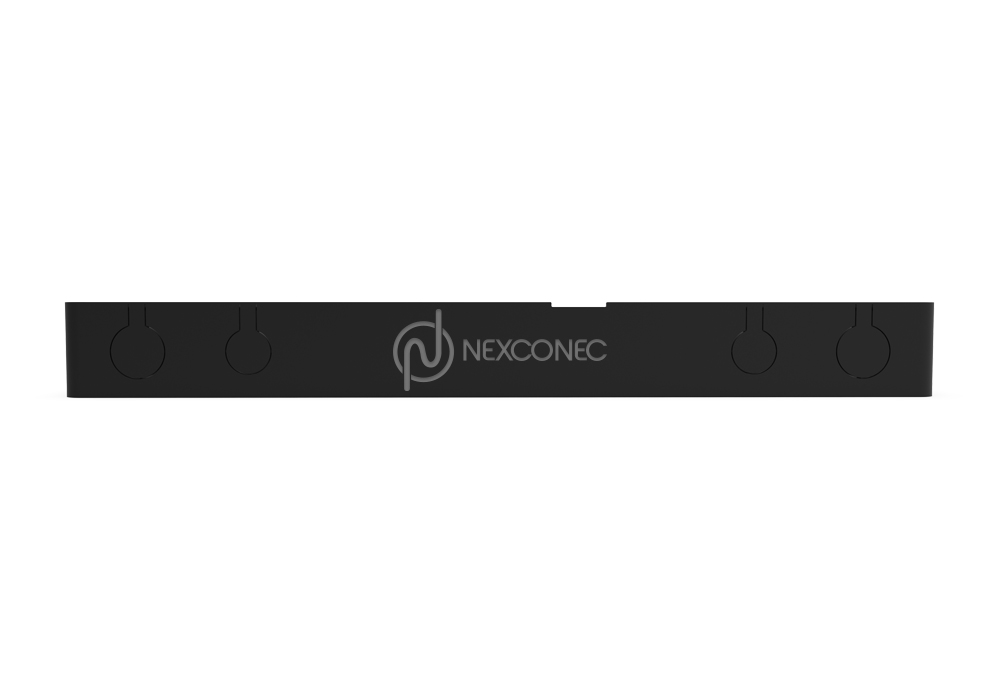

| Rear Cable Management | 4 Cable Entries (OD: 2x PG13.5 and 2x PG16 mm) |
| Height Unit | 1U |
| Dimensions (W x D x H in MM) | 482 x 287 x 43.5 mm |
| Material | PC & PC+ABS |
| Housing Color | Black or [Grey (RAL 7035) Optional] |
| Compliance | RoHS, REACH SvHC |
| Application | Indoor IP20 |
| Lockable | No |
| Net Weight | 1.5 Kg |
| Part Number | Product Description |
|---|---|
| MP2PP00* | 1U Sliding Splice Patch Panel Up to 96FO (Black) |
