1U UTP Unloaded Patch Panel - CMX1UKUN

CMX1UKUN CMX1UKUN CMX1UKUN CMX1UKUN CMX1UKUN CMX1UKUN CMX1UKUN

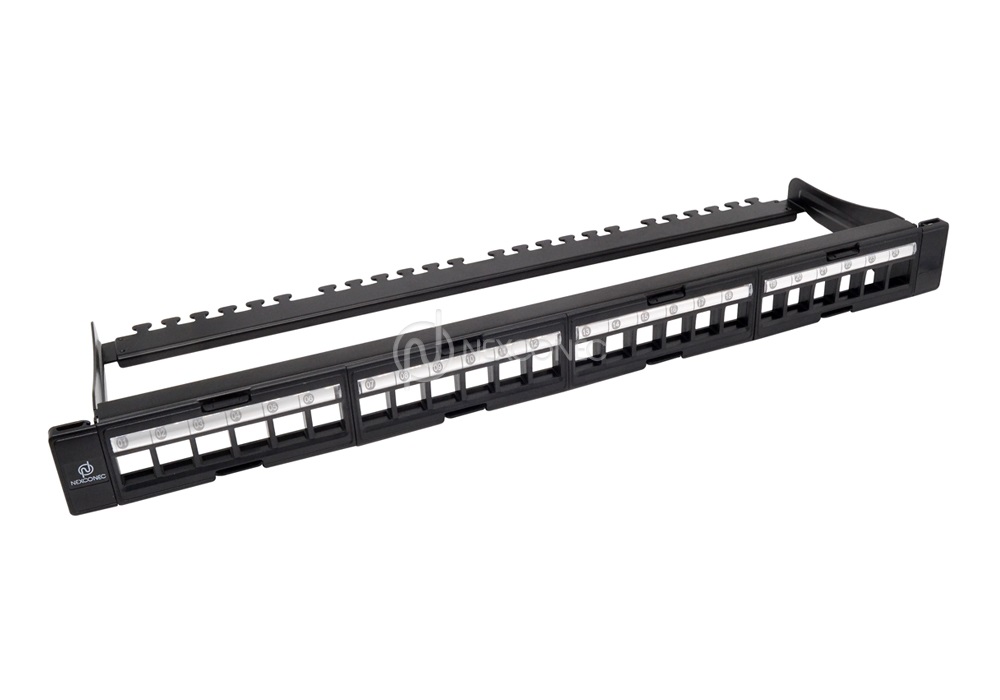

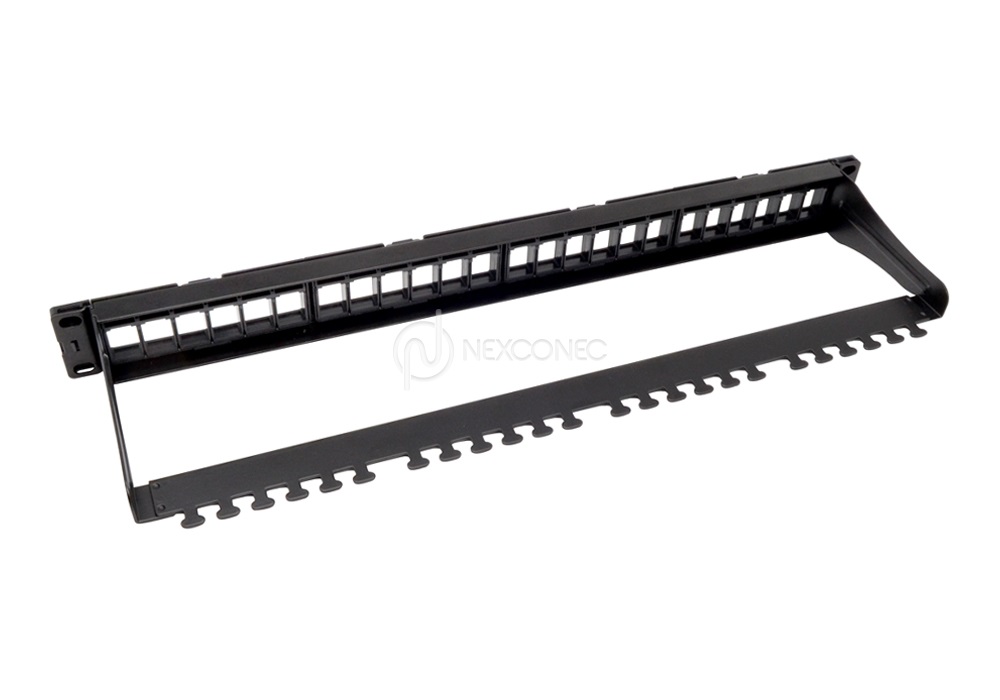

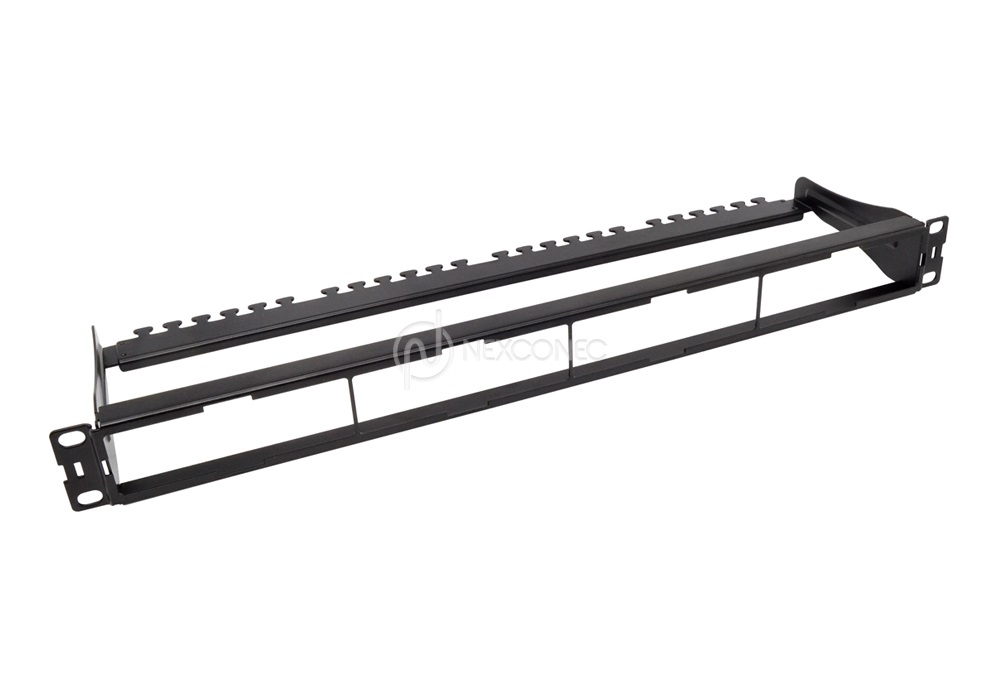

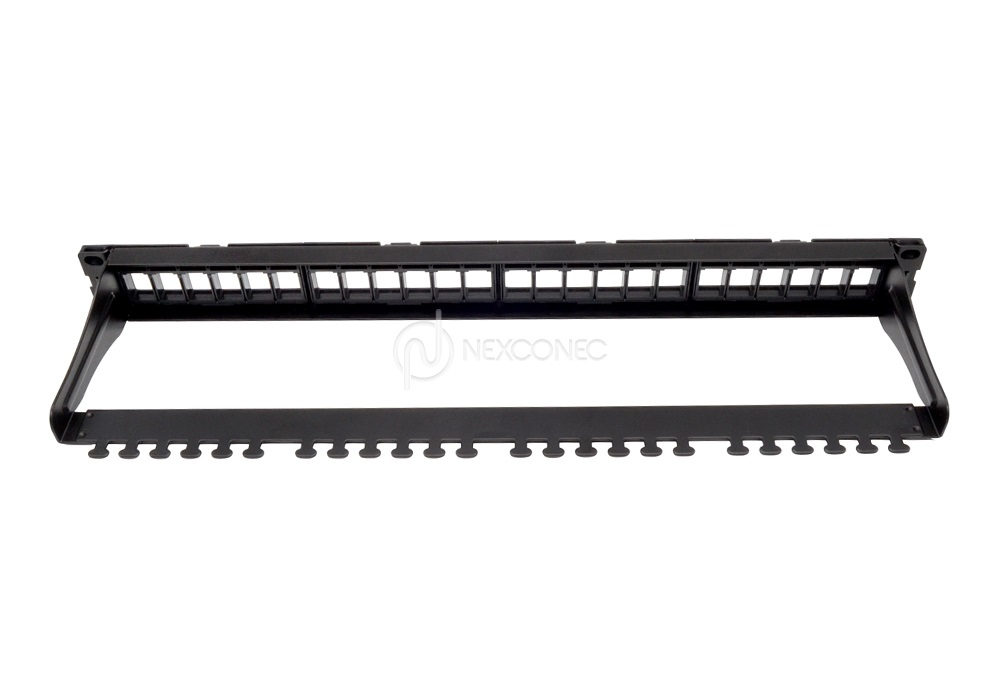

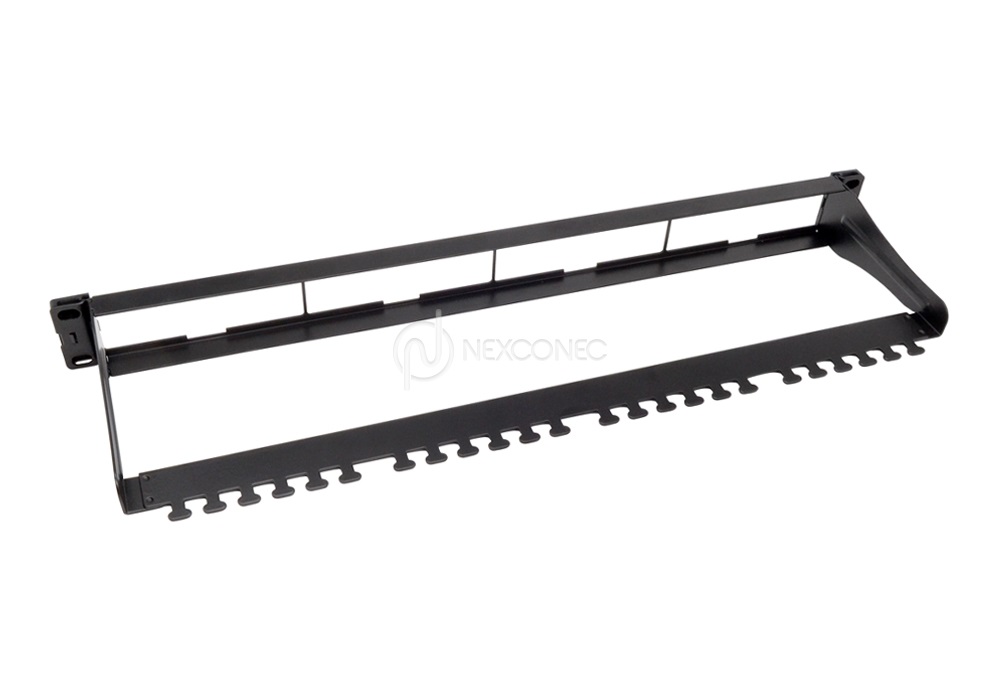

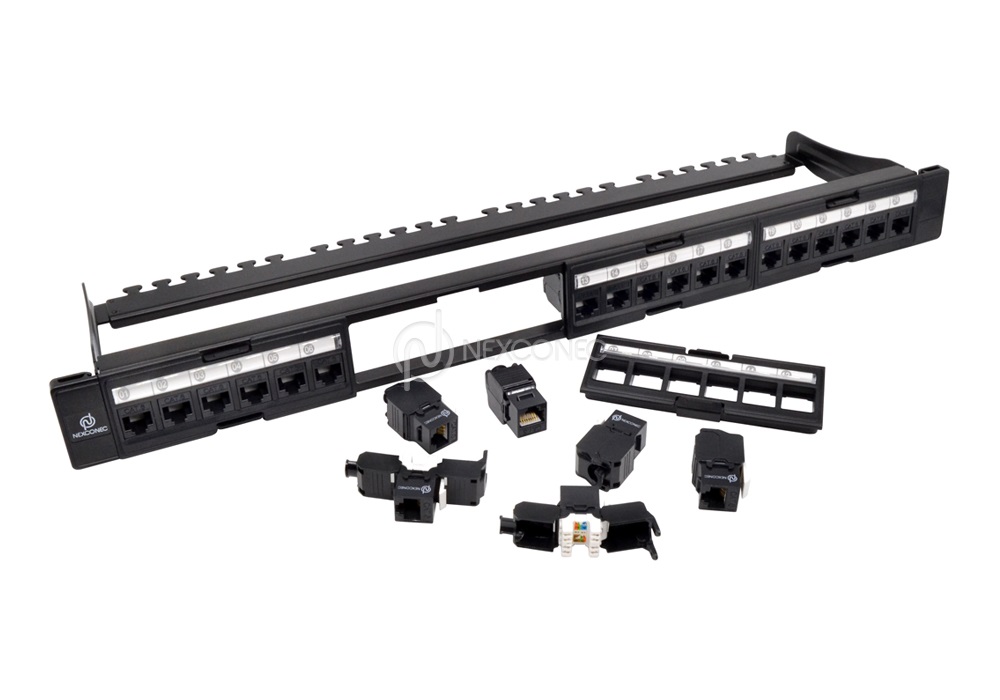

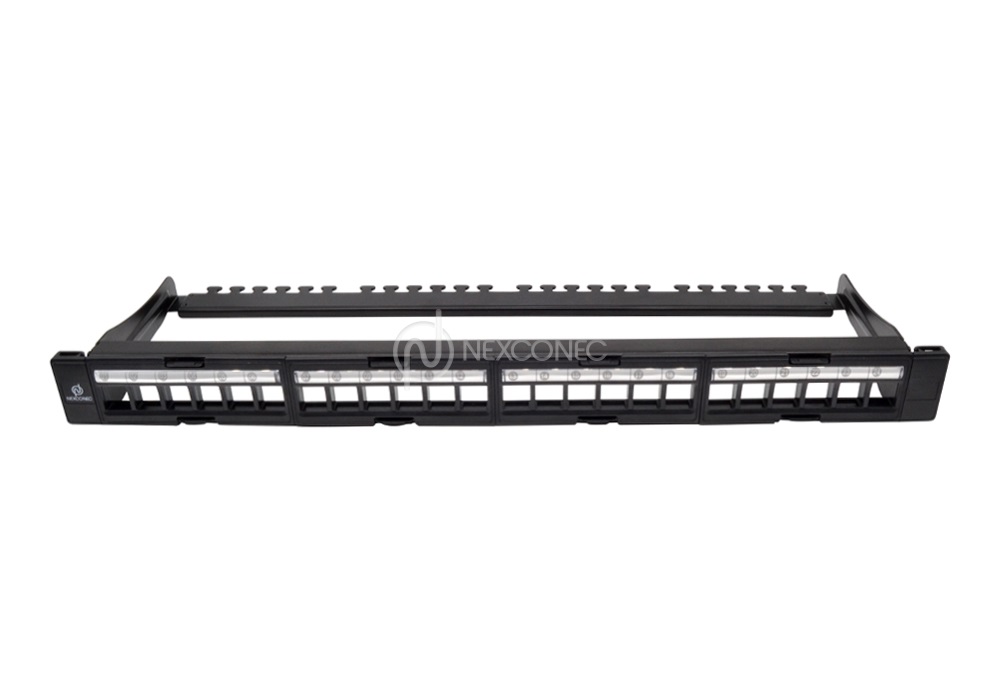

NEXCONEC 1U 24 ports unloaded keystone patch panel allows flexibility for the users during installations. It gives you the benefits of only using ports required by installing the desired number of jacks into the frame. The 4 front modules are removable which provides the easier and faster installation of keystone jacks.

With the port identification number which help the end user to recognize the ports while/after installation. When mounted with NEXCONEC unshielded keystone jacks for Cat 5E, Cat 6 and Cat 6A, your completed panel will conform to ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.

This unloaded keystone jack patch panel comes with cable ties, cage nuts and rear cable management bar as standard.

FEATURES AND APPLICATIONS
  • Detachable modular design for better installation
  • Compatible with all NEXCONEC UTP keystone jacks
  • 19’’ rack mountable
  • Support up to 24port in 1U height
  • Supplied with rear cable managers and fixings
  • Connection between wall outlets or equipment’s
  • Compatible with all categories of unshielded keystone jacks

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
U Size 1U (44.4mm)
Depth 135.7mm
Net Weight 0.7KG
Frame Material Cold-rolled steel
Material Thickness 1.6mm
Operating Temperature -10°C / +60°C
Compliance ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7
RoHS Compliant
Warranty 12 Months
Width 482.6mm
Packed Weight 0.85KG
Color Black, RAL 9004
Detachable Front Module ABS material, Black
Part Number Product Description
CMX1UKUN NEXCONEC 1U 24port KJ Patch Panel Unloaded
