3U 144 Ports SC SX/LC DX Pivot Patch Panel - PIV03

PIV03
PIV03
PIV03
PIV03
PIV03
PIV03
PIV03
PIV03
PIV03
PIV03
PIV03 PIV03 PIV03 PIV03 PIV03 PIV03 PIV03 PIV03 PIV03 PIV03

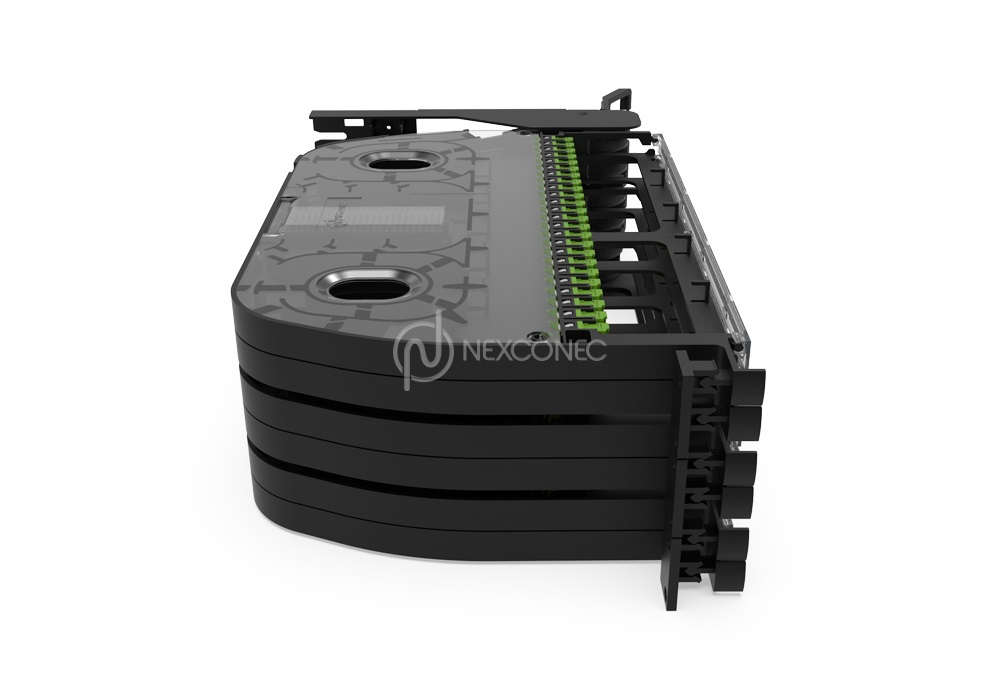

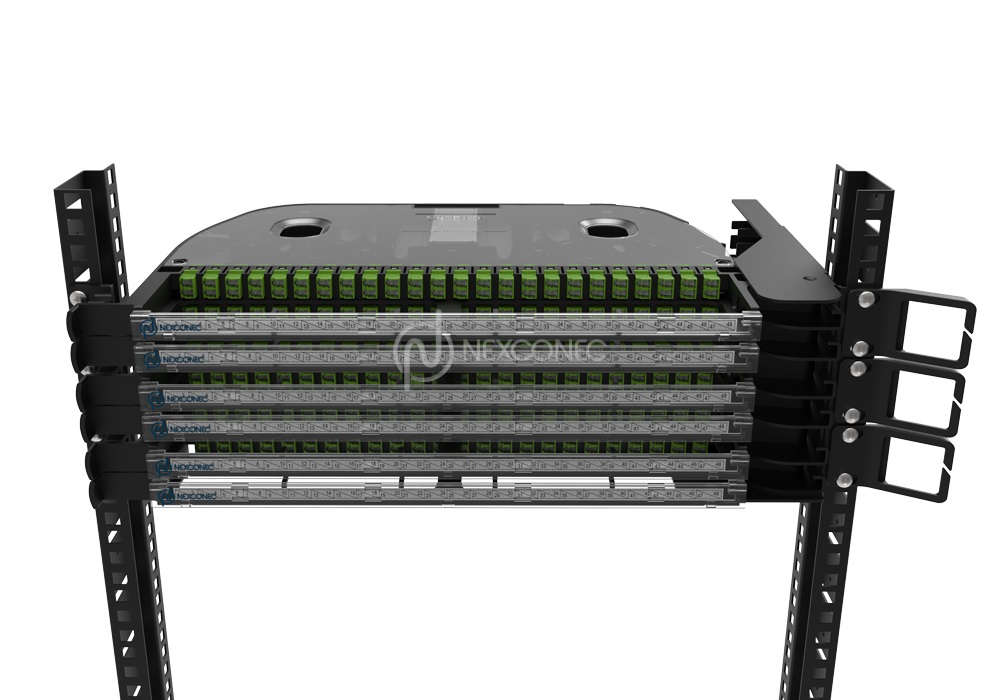

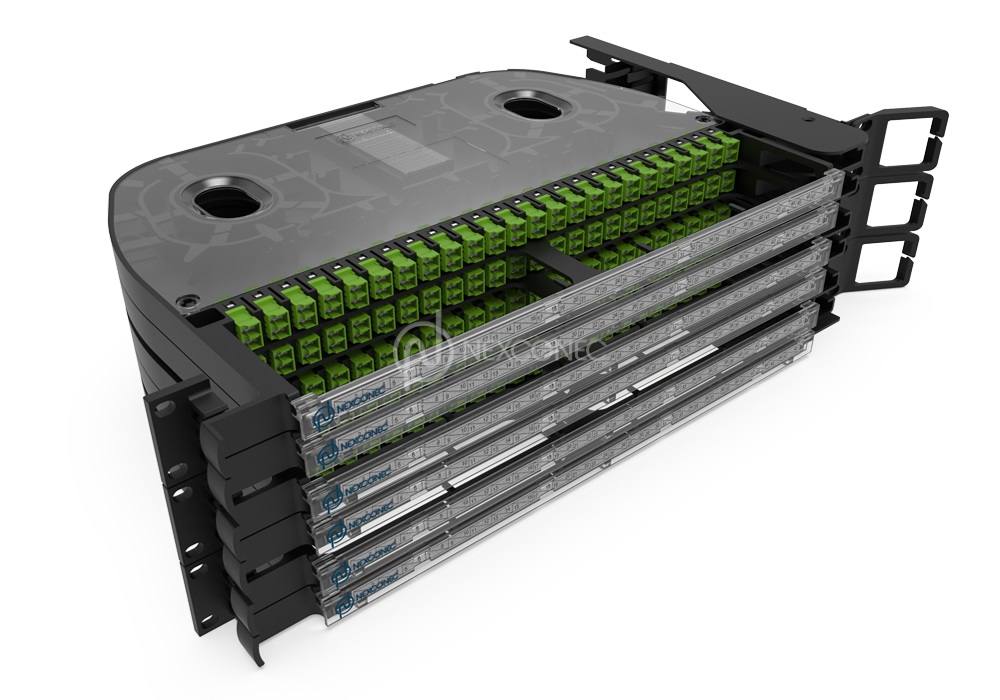

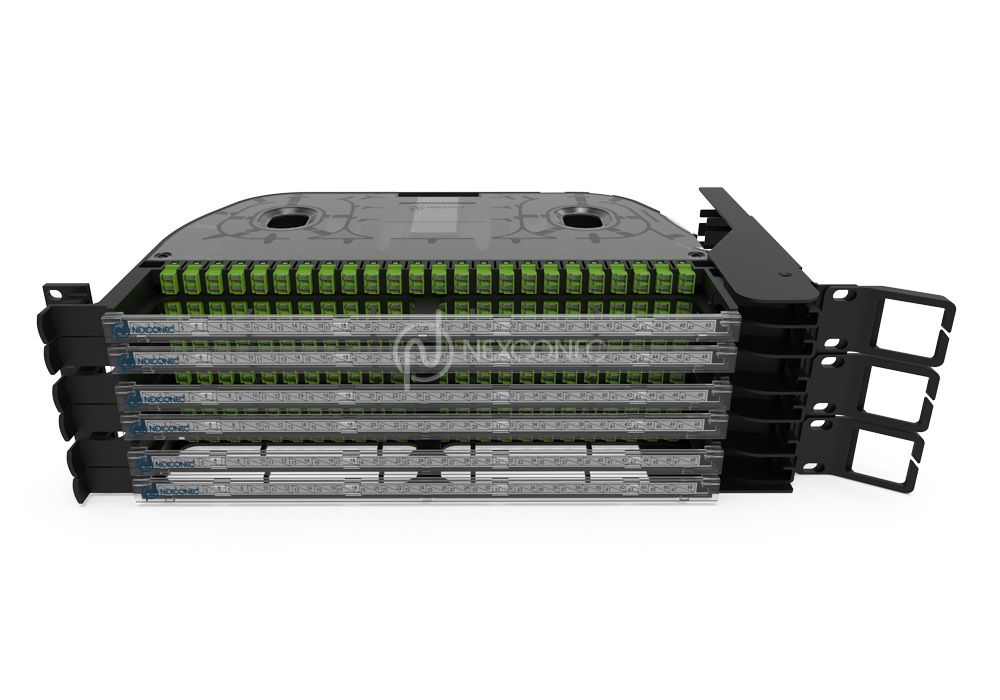

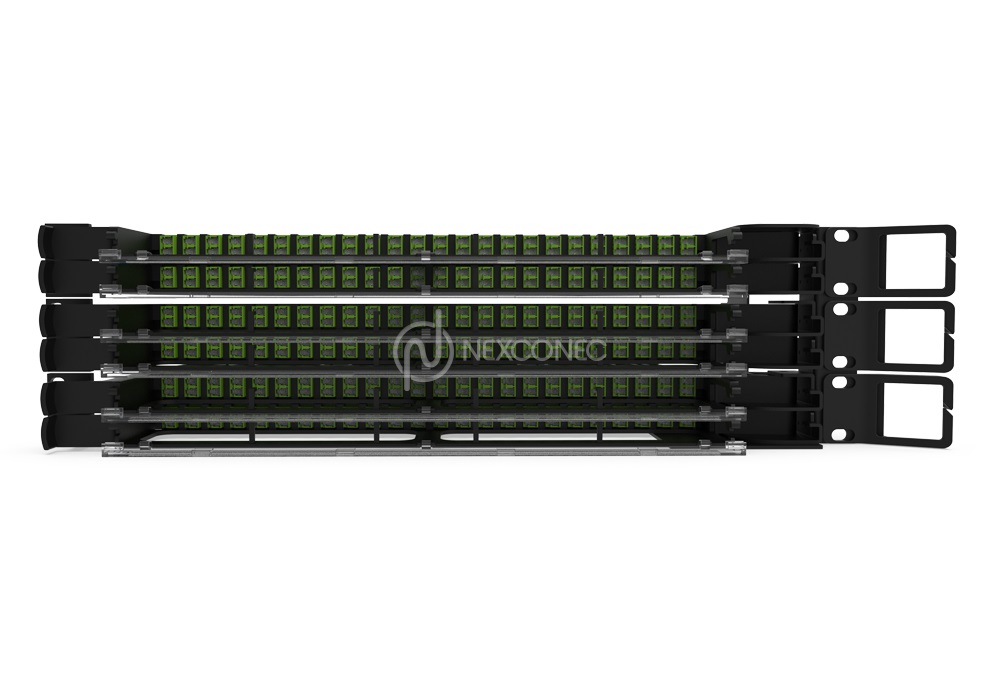

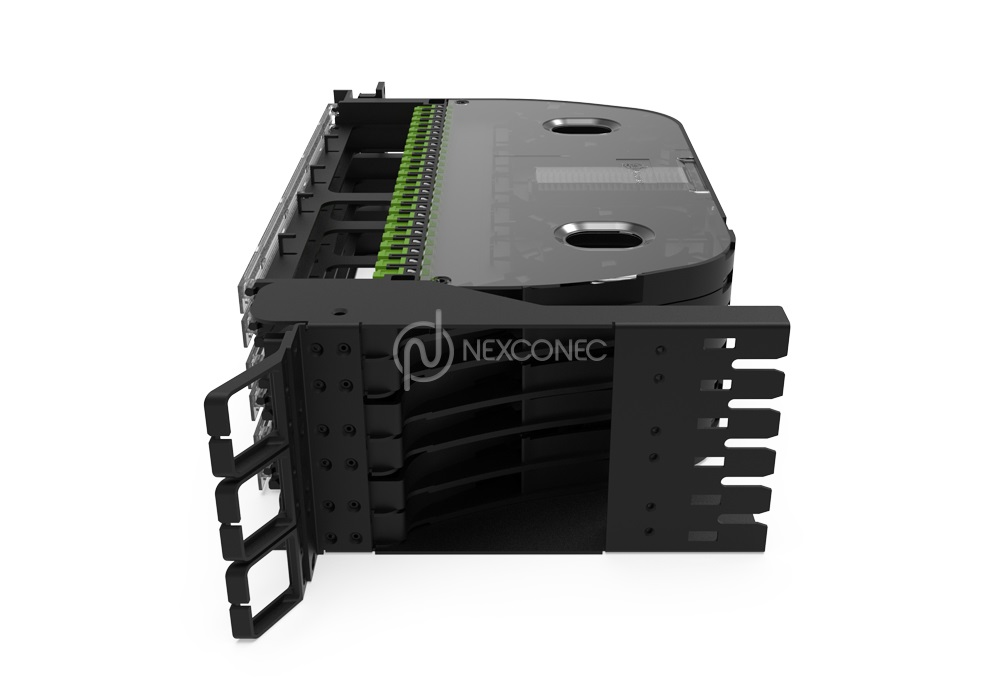

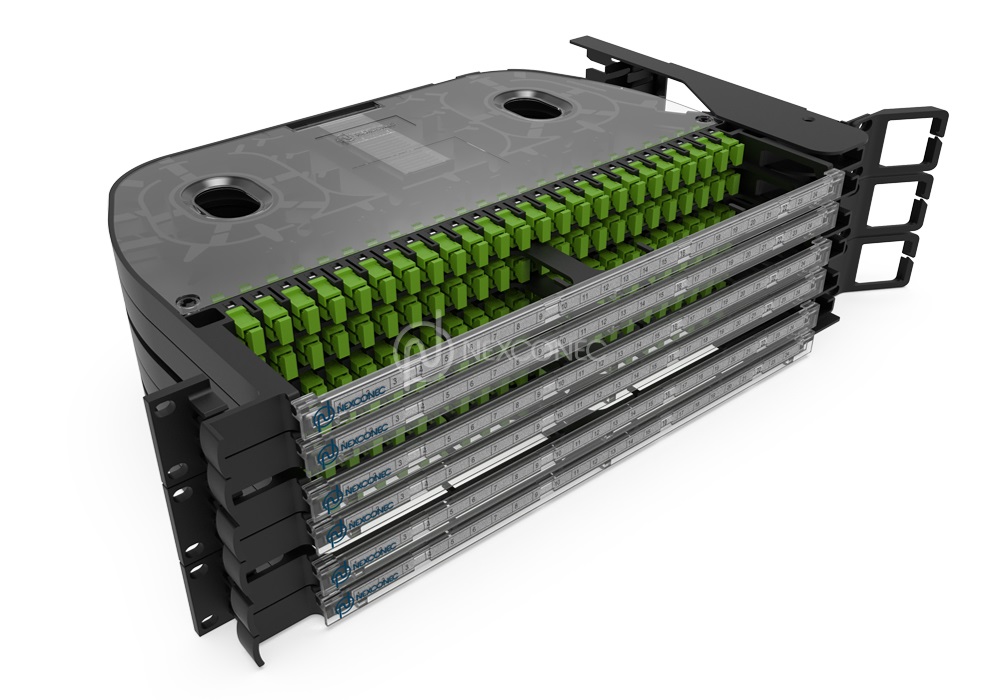

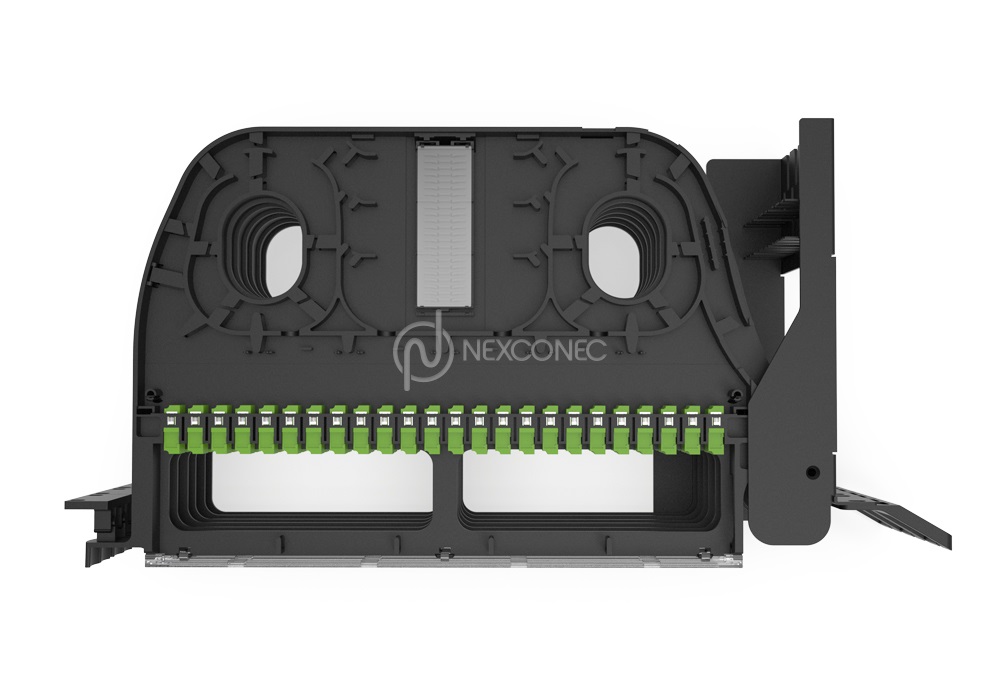

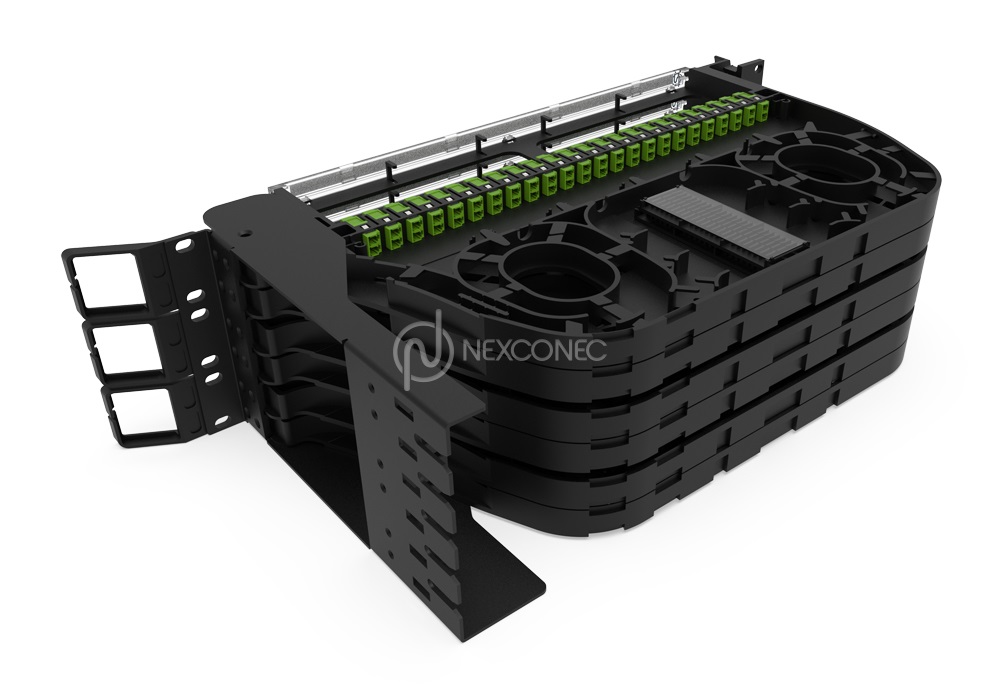

NEXCONEC® 3U Pivot Patch Panel is a cutting-edge, super high density pivot panel designed to accept 24 SC Simplex/LC Duplex adapters in each of six ½ RU trays in the 3U space (Up to 288FO in LC). This innovative panel effectively organizes incoming fibers, pigtails, and splices. Each tray is designed with the convenience of 120° individual pivoting, ensuring hassle-free access during installation or rework, without any disruption to existing cables or fibers.

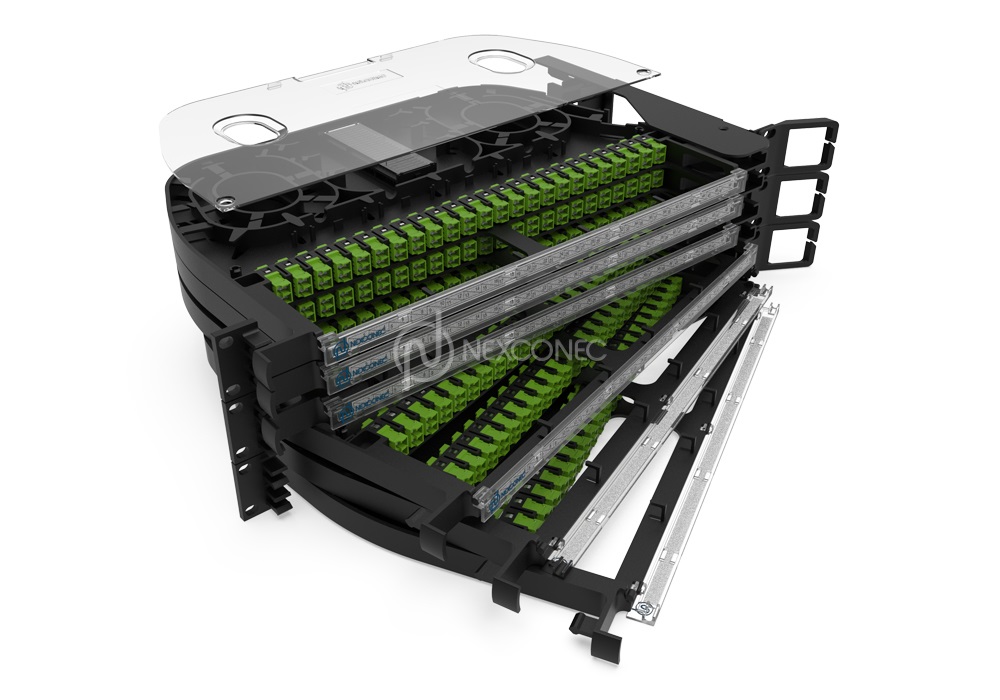

The remarkable design of the panel incorporates a detachable see-through lid and transparent hinged drop-down doors in each ½ RU trays for effortless accessibility, streamlining labeling and maintenance procedures. Incorporated ventilation pathways within the panel guarantee uninterrupted airflow, ensuring superior cooling for the active equipment with unparalleled efficiency.

The pivot panel can be pre-loaded completely with the required adapters and pigtails.

PRODUCT HIGHLIGHTS
  • 3U overall with six ½ RU individual trays
  • Up to 288FO in LC on 3U
  • Accepts loose tube, distribution and pre-terminated cables
  • Transparent lid for easier maintenance and verification
  • Enhanced labelling on the front door providing patch cords protection and better identification
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
FEATURES
  • 3U overall with six ½ RU individual trays
  • Up to 288FO in LC on 3U
  • Accepts loose tube, distribution and pre-terminated cables
  • Standard 19” or 21" Rack mounting type
  • High durability & light weight PC & PC+ABS material
  • Transparent lid for easier maintenance and verification
  • Enhanced labelling on the front door providing patch cords protection and better identification
  • Available in shuttered dust proof LC/SC adapters
  • Simple and easy installation with integrated fiber routing
  • Right or Left Hinged Swing-out
APPLICATIONS
  • Datacenter storage area & Central office, POP
  • Fiber to the home (FTTH)
  • Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
  • Data communication and Telecommunication networks
PANEL SPECIFICATIONS
Parameters Value
Mounting Type Rack 19” or 21"
Opening Type Right or Left Hinge Swing-out - 120° degrees
Access Type Front and Side access
Front Cable Management Front manager with Hinged transparent drop-down door
Cable Entry Direction Side Cable Entry
Side Cable Management Each tray supports up to 4 tubes of 5mm
Slot Type SC Simplex/ LC Duplex Footprint
Number of Ports 144 Ports [6x (24 each ½ RU tray)]
Fiber Capacity 144FO in SC, 288FO in LC
Splicing 12x Splice Holder for 40/60mm Heat Shrink Splice Protectors
* Also Available in Ribbon Splice and Mechanical ANT Splice Protectors
Accessories Included in package: 8x Cage Nuts & Screws, 3x Side Cable Manager
Height Unit 3U
Dimensions (W x D x H in MM) 421.5 x 265.1 x 132.1 mm
Material PC & PC + Fiber Glass (20%)
Housing Color Black or Grey (RAL 7035)
Compliance RoHS, REACH SvHC
Application Indoor IP20
Lockable No
Net Weight 4 Kg
PIGTAIL SPECIFICATIONS (SINGLE FERRULE CONNECTOR)
Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB
PIGTAIL BUFFER CHARACTERISTICS
Parameters Unit Value (Simplex)
Nominal Buffer Diameter μm 900 +50/-50
Crush Resistance N/100mm 500
Maximum Tensile Load N 6
Minimum Bending Radius mm 15
Operating Temperature ˚C -20 ~ +60
Part Number Product Description
PIV03R 3U 144 Ports SC Simplex/LC Duplex Pivot Patch Panel (Right Side Bracket)
PIV03L 3U 144 Ports SC Simplex/LC Duplex Pivot Patch Panel (Left Side Bracket)
* Add ‘G’ at the end of the Part Number for Telecom panels in Grey color. (Example: PIV03RG or PIV03LG)
