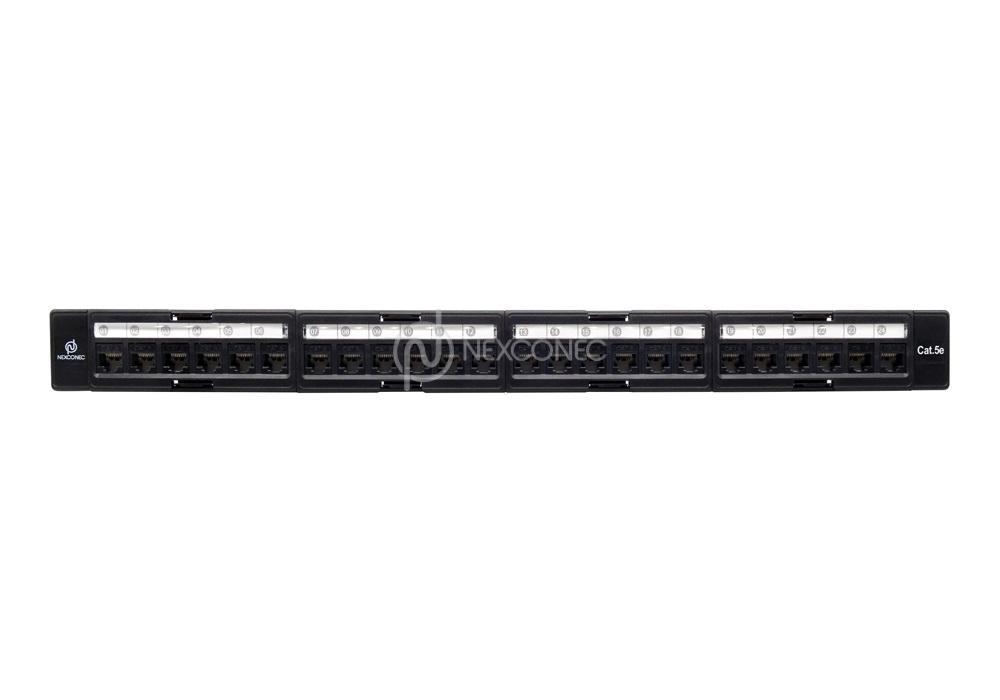

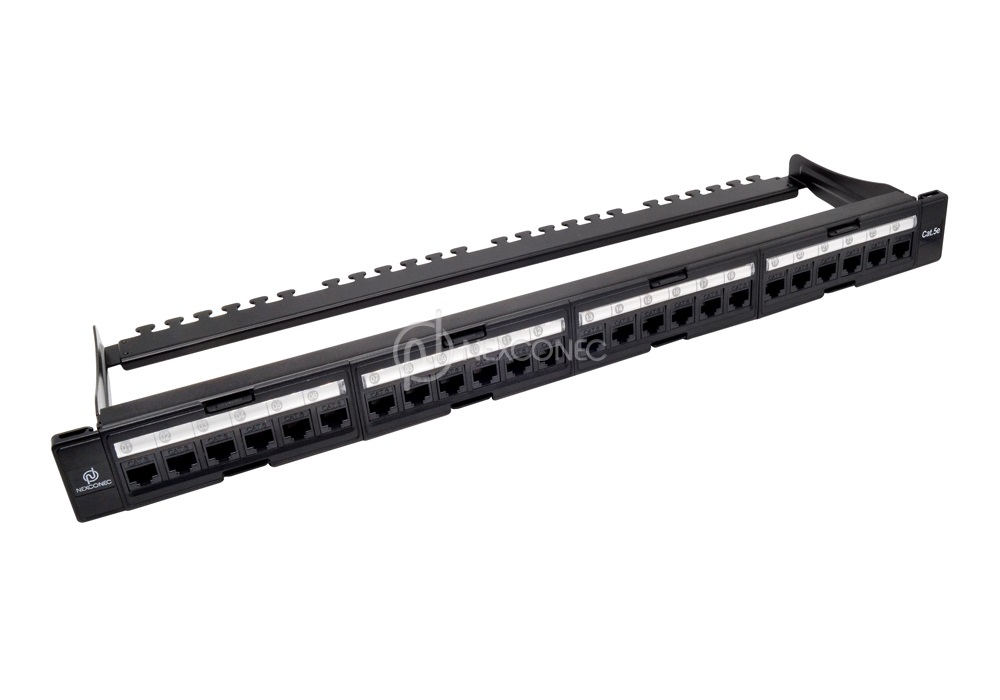

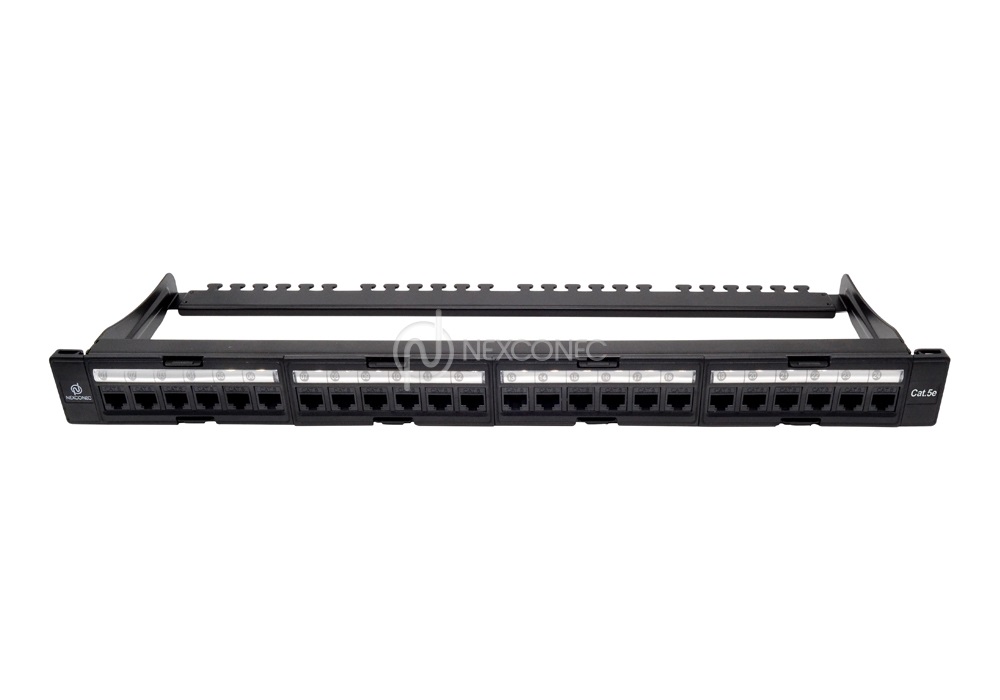

CAT5e UTP Flat Keystone Jack Patch Panel - CM5E1UKBK
NEXCONEC Category 5E UTP keystone jack patch panels are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications. The patch panel is specifically designed to fit NEXCONEC Category 5e UTP keystone jacks.
Each single piece of Category 5e UTP keystone jacks is well sit in each port of the patch panel which gives great flexibility to installations on site.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance
- RJ45 24port fully loaded in 1U panel
- Toolless UTP keystone jacks

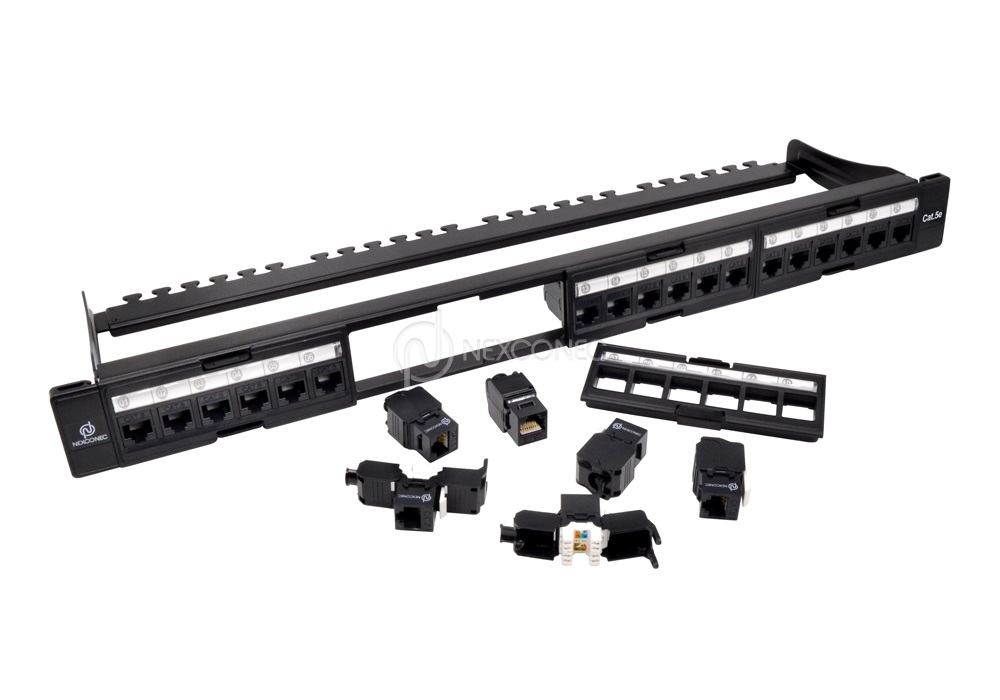

- 4 Removable blocks for easier installation and maintenance

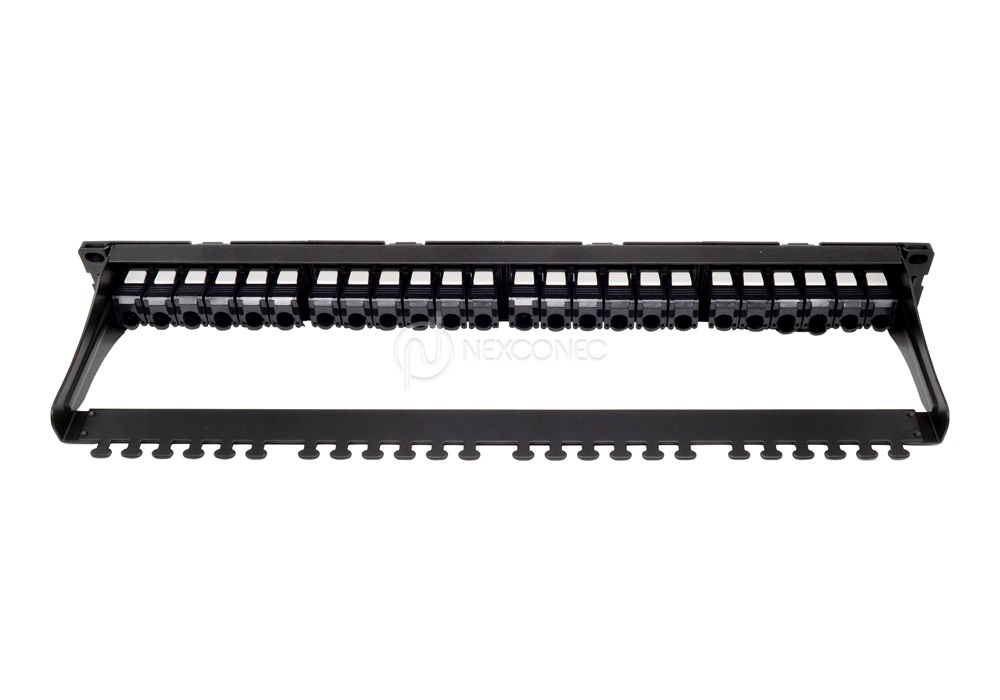

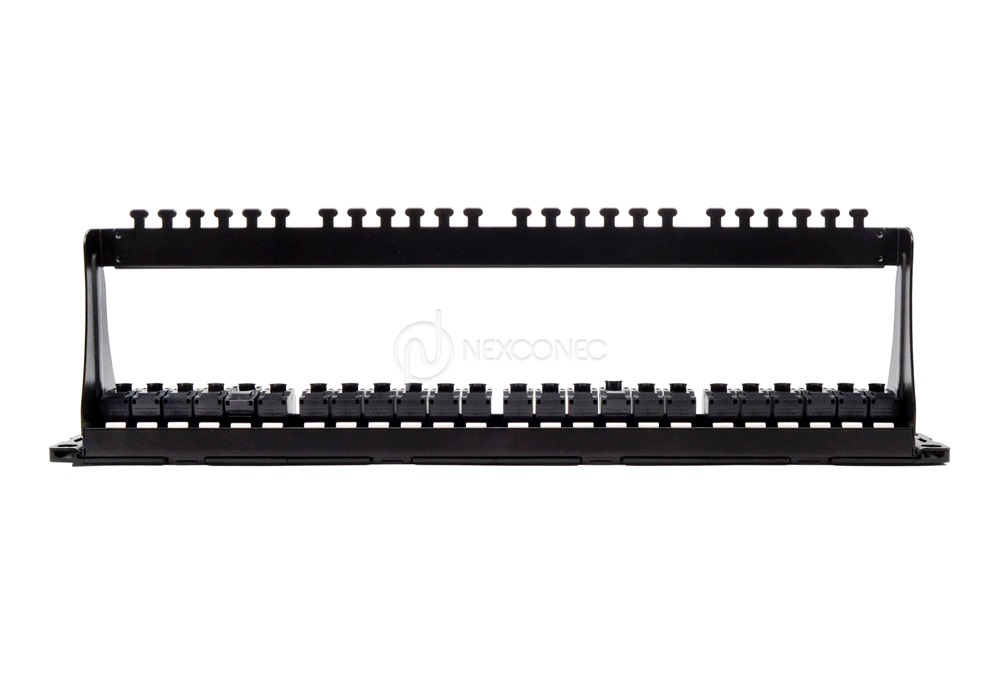

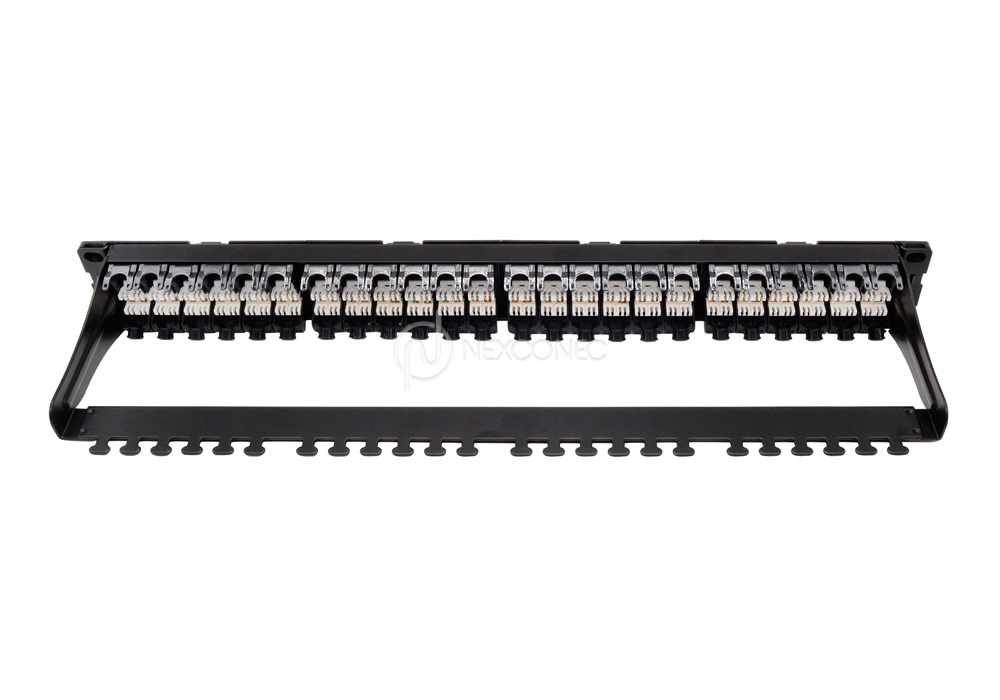

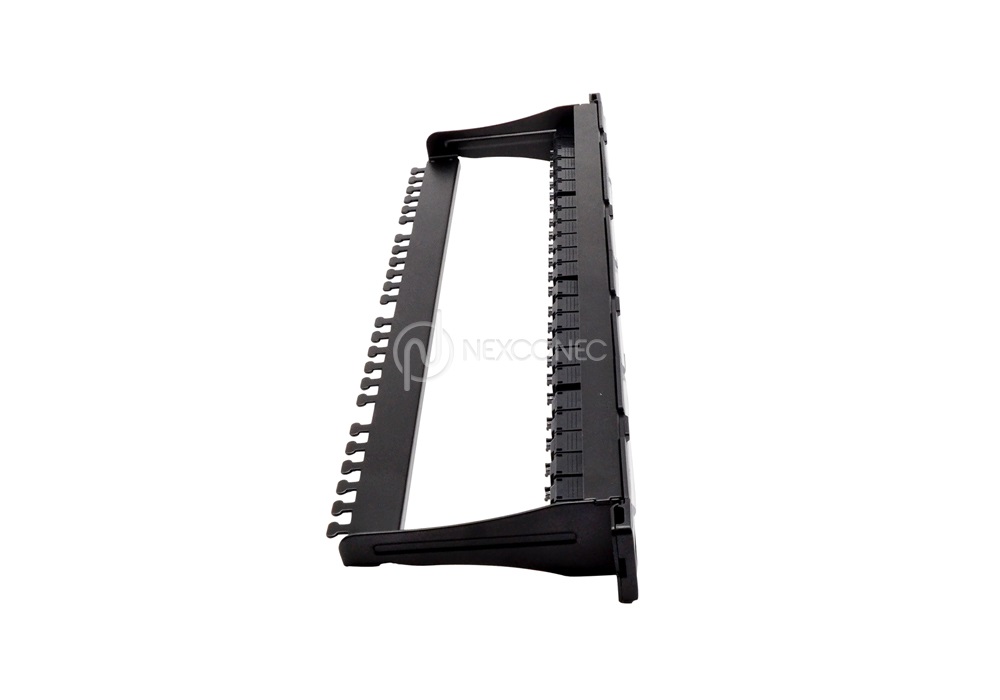

- Supplied with rear cable managers and fixings
- Port numerically identified
- Supports category 5e (Class D) networks running up to 100MHz applications
- Connection between wall outlets or equipment
| Parameters | Value |
|---|---|
| Height | 44.4mm |
| Width | 482.6mm |
| Housing Material | PC UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 135.7mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM5E1UKBK | NEXCONEC CAT5E 1U 24port UTP Black Keystone jacks Patch Panel |
