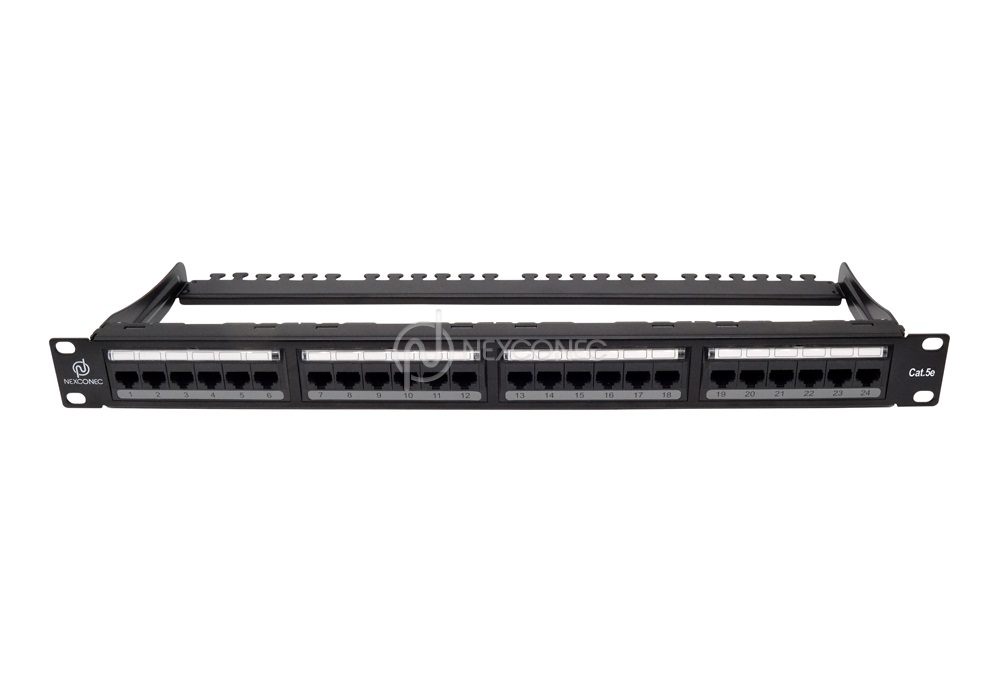

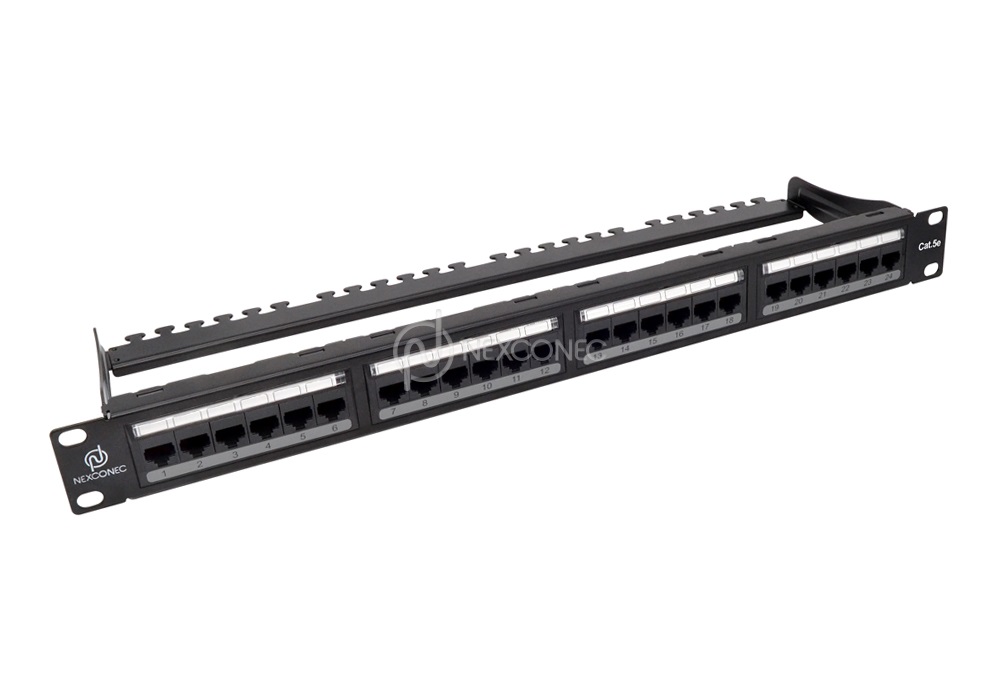

CAT5e UTP PCB Patch Panel - CM5E1UP

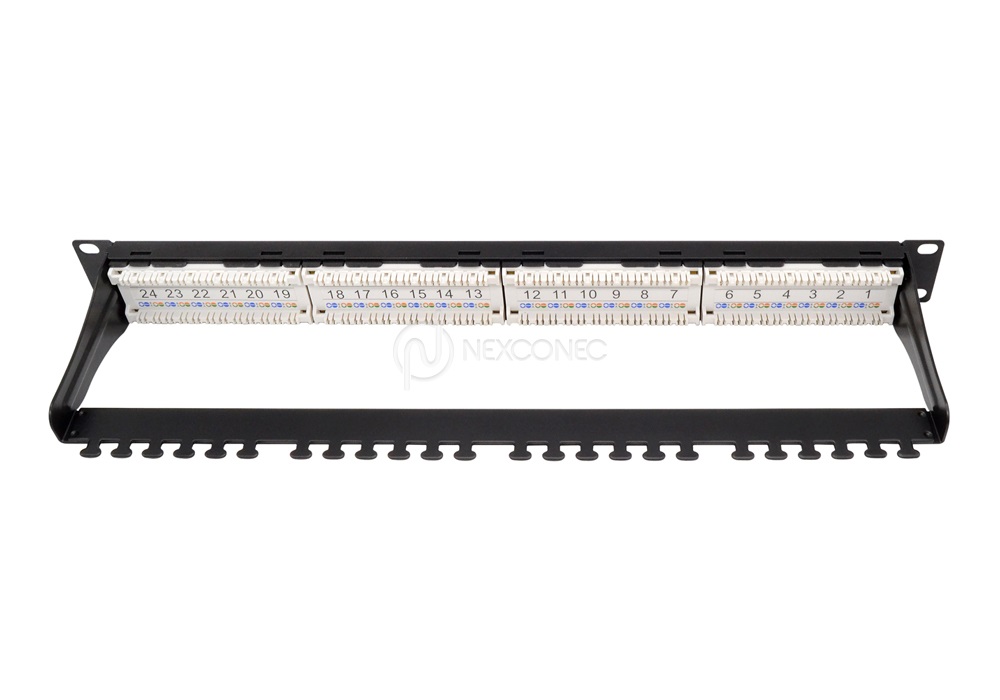

NEXCONEC Category 5e Printed Circuit Board (PCB) Unshielded Twisted Pair (UTP) patch panels conform to class D performance. The PCB is fully sealed for extra protection, and in-line IDC blocks. Wiring diagram assists termination to either 568A or 568B wiring standards. Available in 1U 24 ports or 2U 48 ports. All panels are supplied with rear cable management bars and fixings.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance requirements

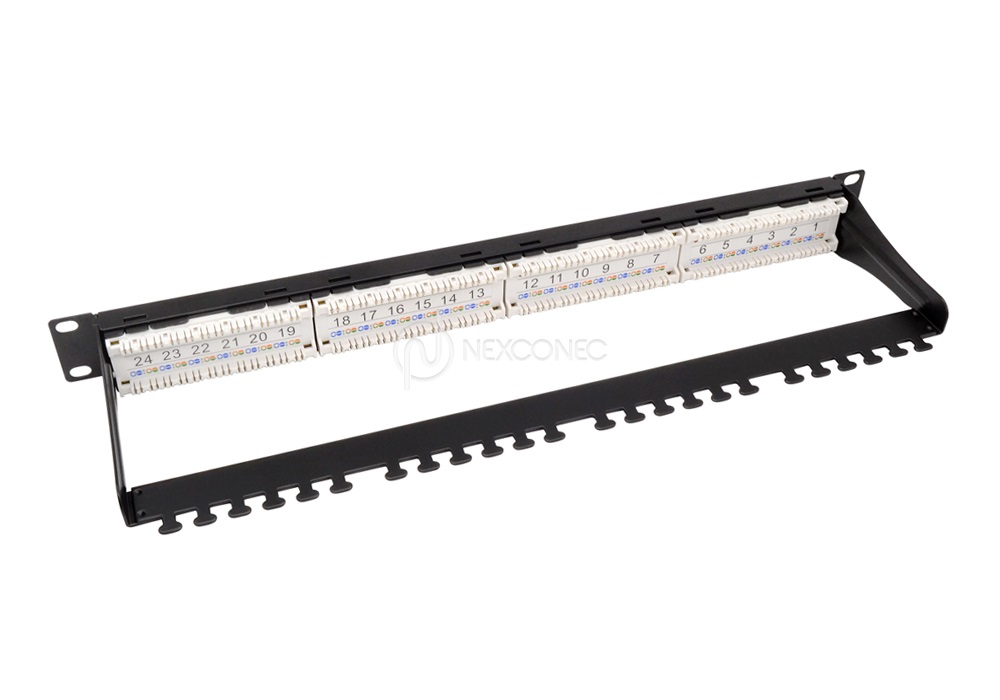

- 110 style IDC punch down type
- 19’’ rack mountable

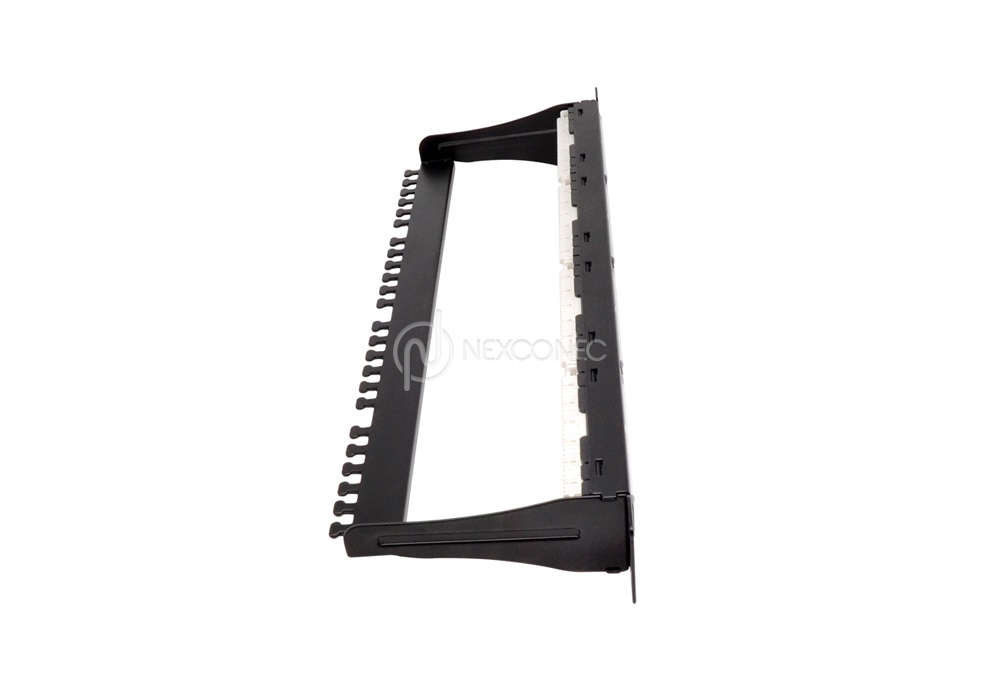

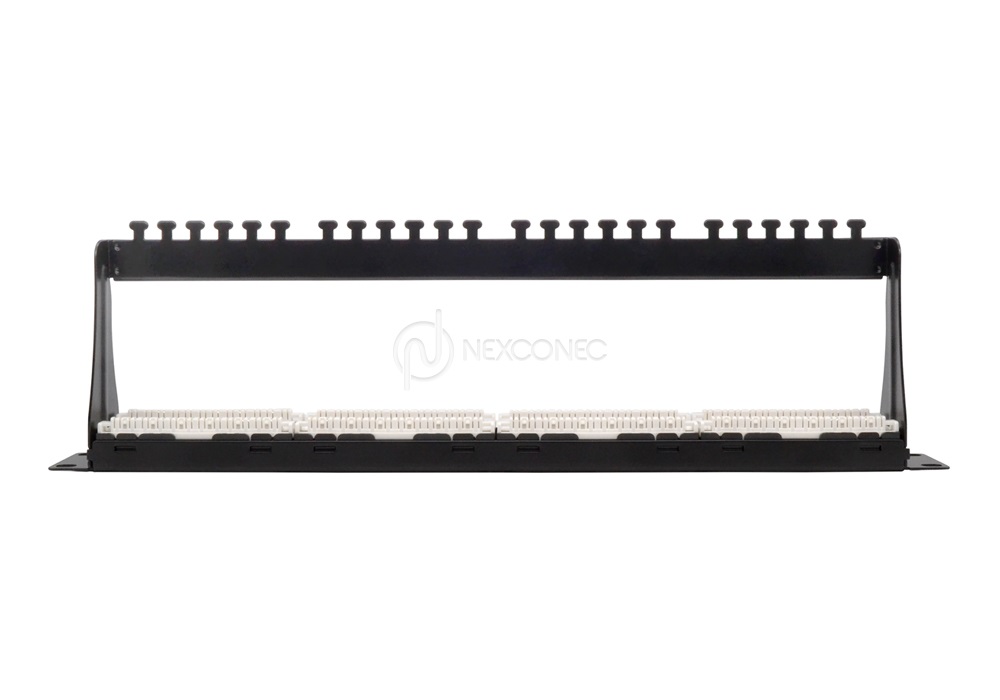

- Supplied with rear cable manager
- Available in 1U 24port and 2U 48port
- Removable port identification labelling
- Supports category 5e (Class D) networks running up to 100MHz applications
| Parameters | Value |
|---|---|
| Height | 44.4mm |
| Width | 482.6mm |
| Housing Material | PBT + 15% GF UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | PC UL94V-0 Contact: Bronze + Nickel Plating |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 134mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM5E1UP | NEXCONEC CAT5E 1U 24port UTP PCB Patch Panel |
| CM5E2UP | NEXCONEC CAT5E 2U 48port UTP PCB Patch Panel |
