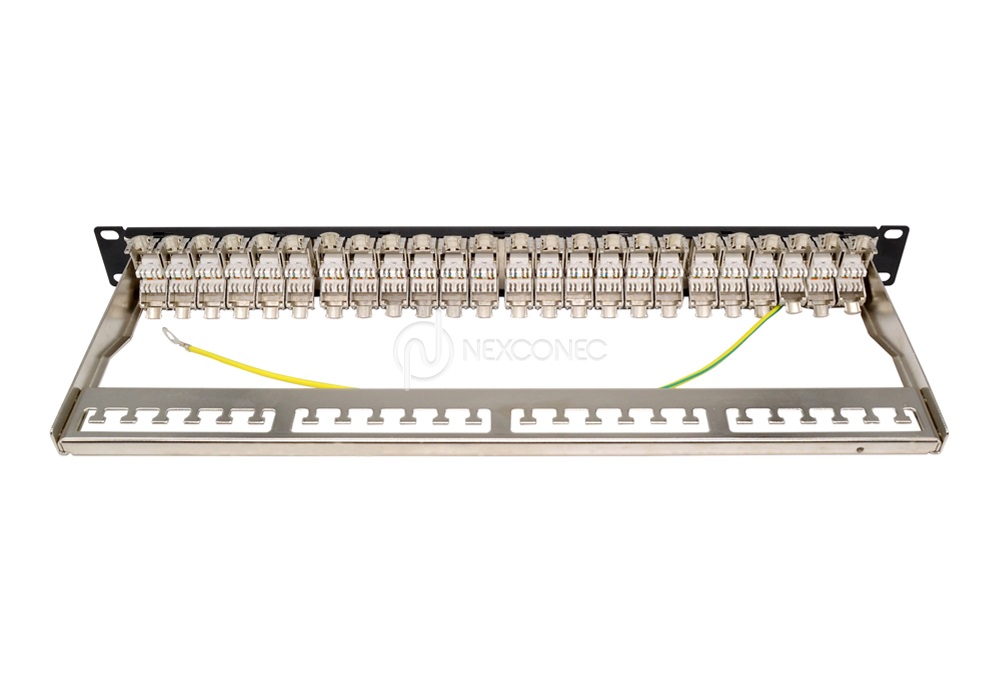

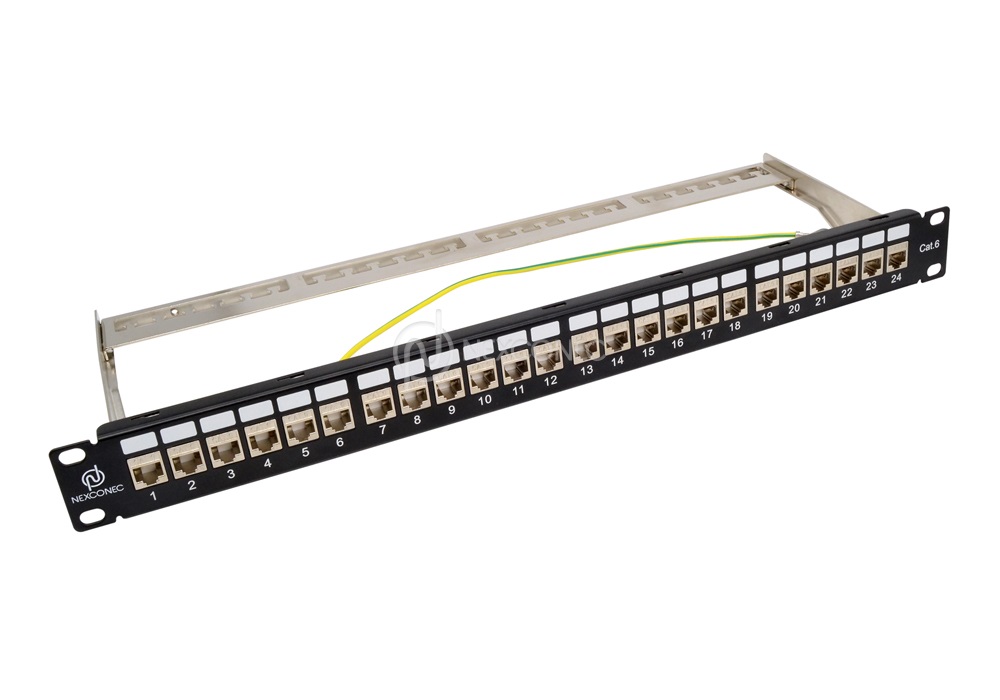

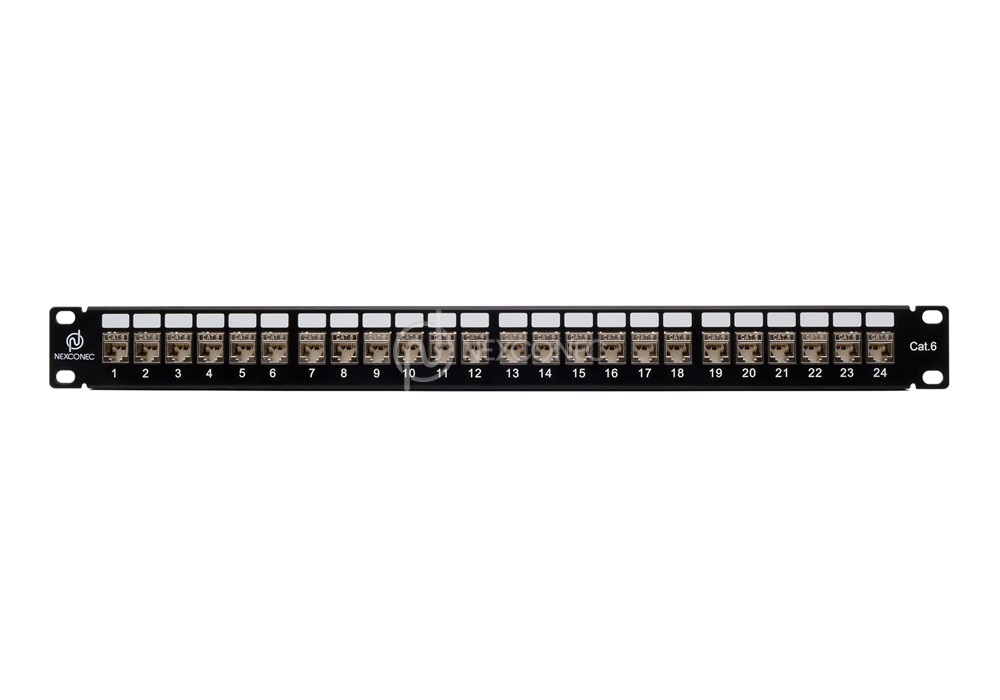

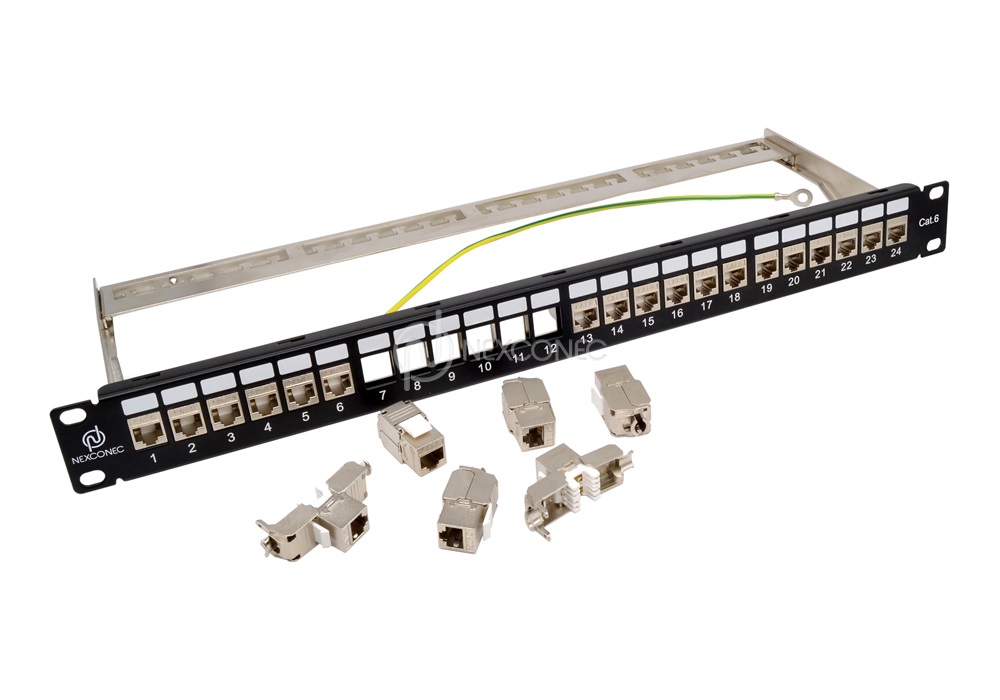

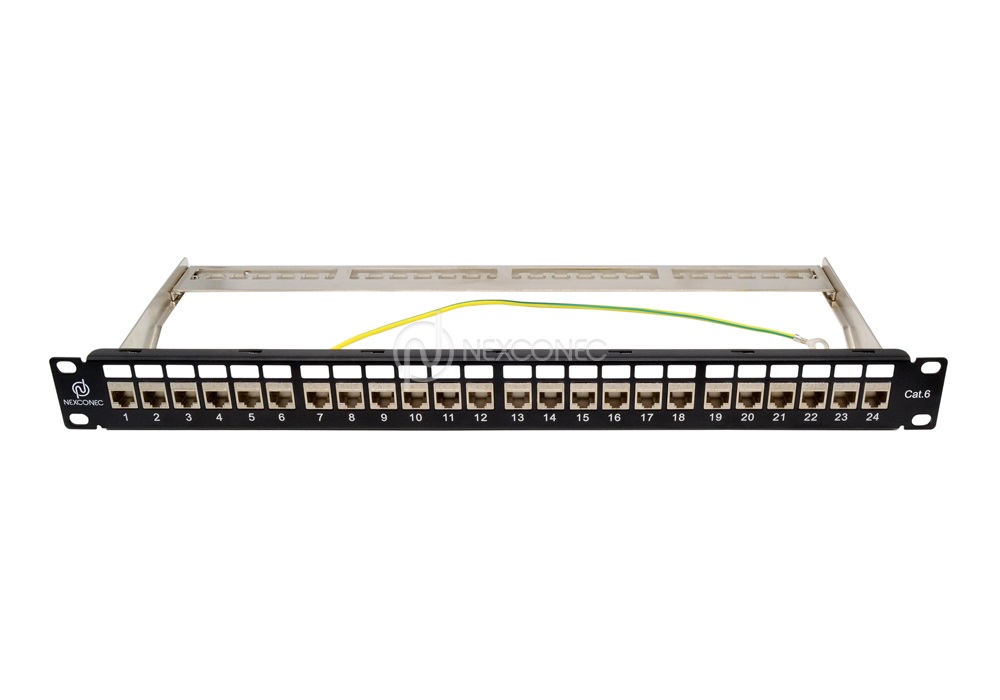

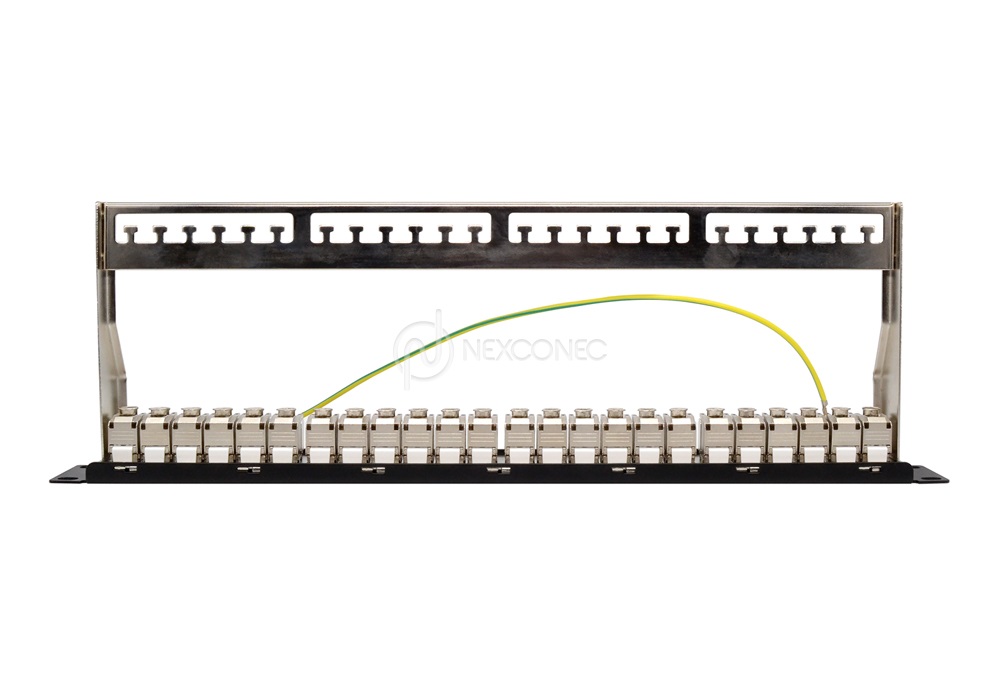

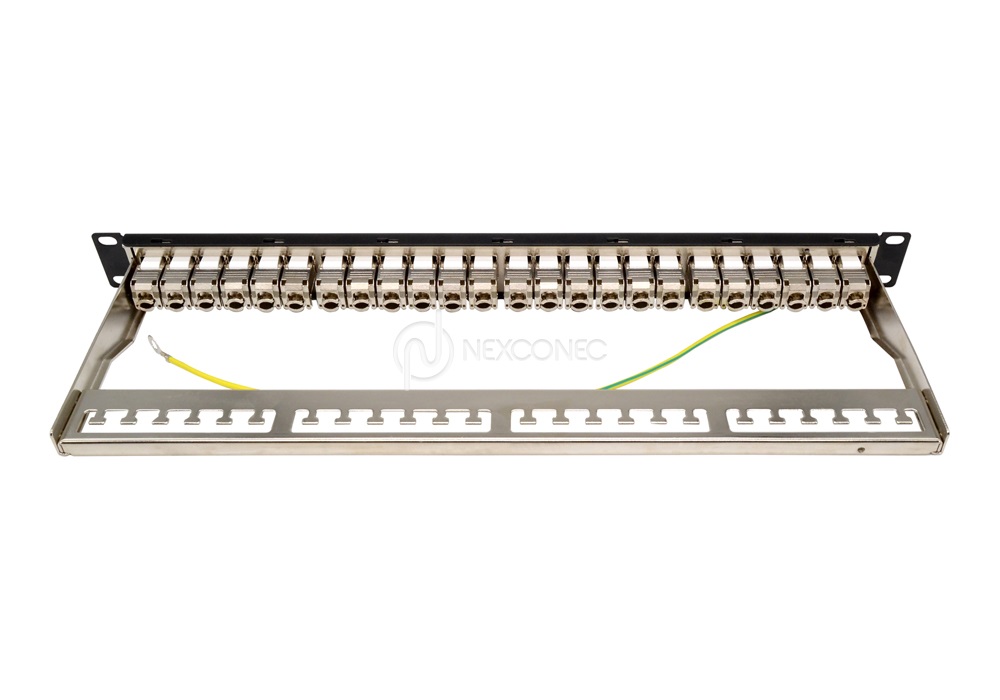

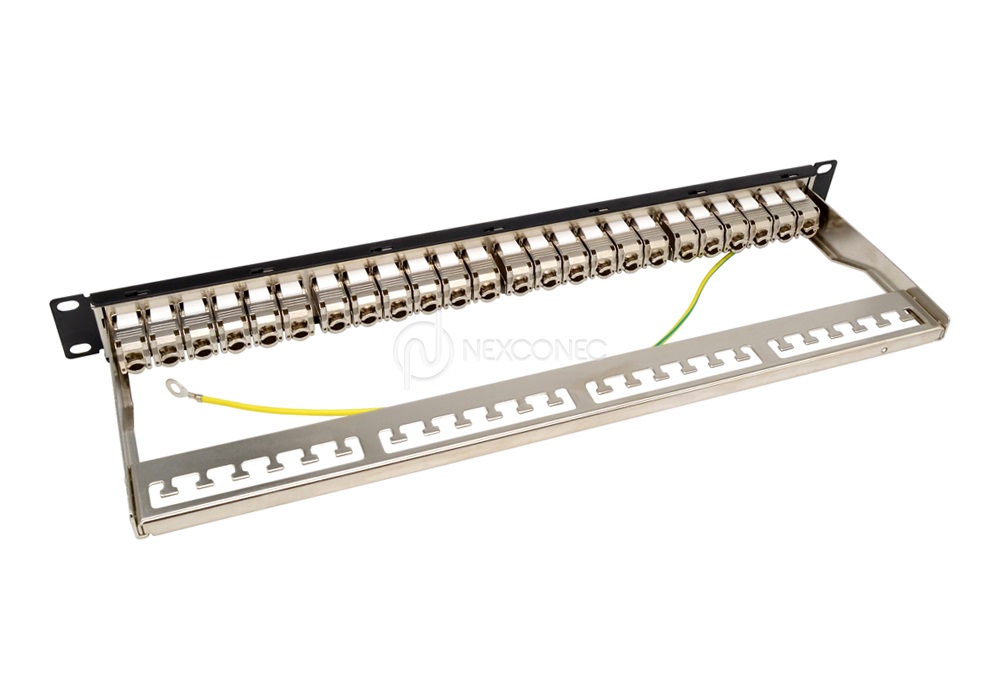

CAT6 STP Flat Keystone Jack Patch Panel - CM61SKME
NEXCONEC Category 6 STP keystone jack patch panels are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications. The patch panel is specifically designed to fit NEXCONEC Category 6 STP keystone jacks.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance
- RJ45 24port fully loaded in 1U panel
- Tool less Shielded keystone jacks
- 19’’ rack mountable
- Supplied with rear cable managers and fixings
- Port numerically identified
- Supports category 6 (Class E) networks running up to 500MHz applications
- Connection between wall outlets or equipment
- Backwards compatible with category 6 and 5e distribution systems
| Parameters | Value |
|---|---|
| Height | 44.45mm |
| Width | 482mm |
| Housing Material | PC UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 151.5mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM61SKME | NEXCONEC CAT6 1U 24port STP KJ Patch Panel |
