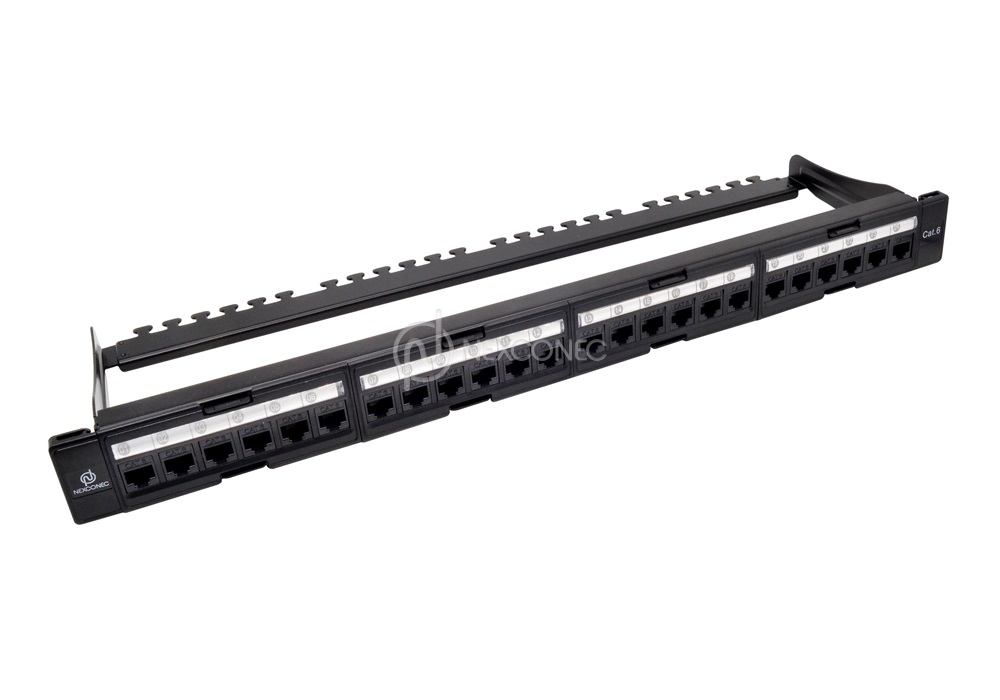

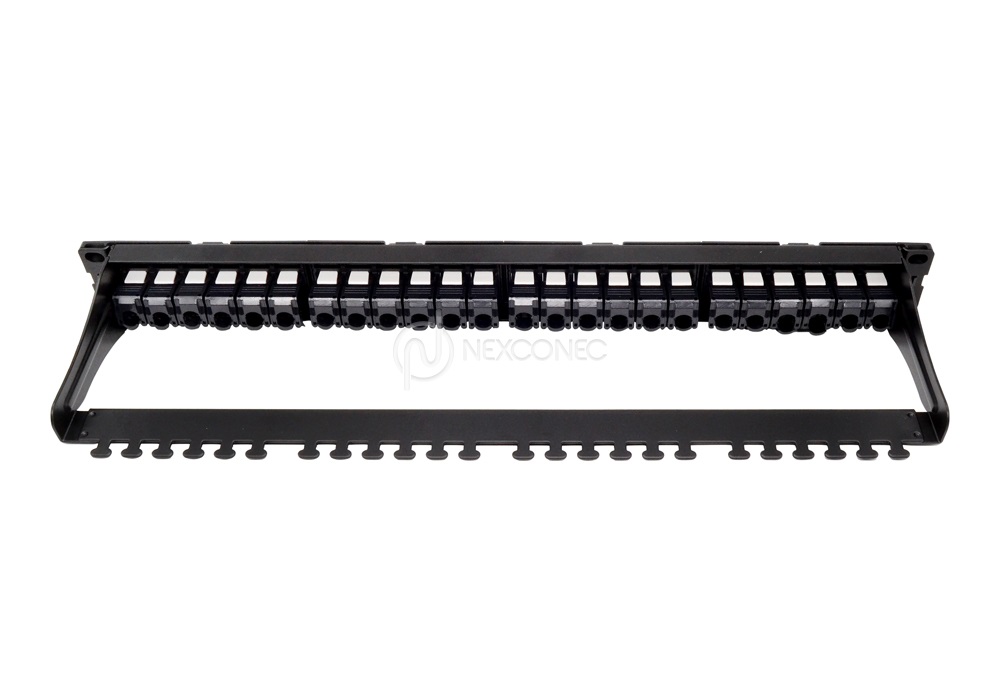

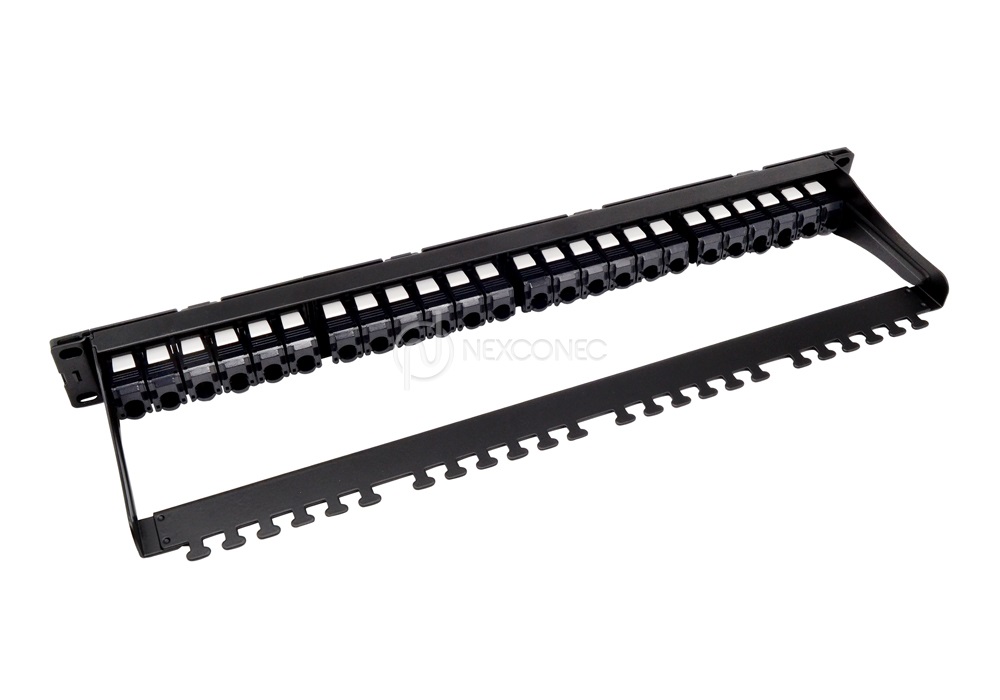

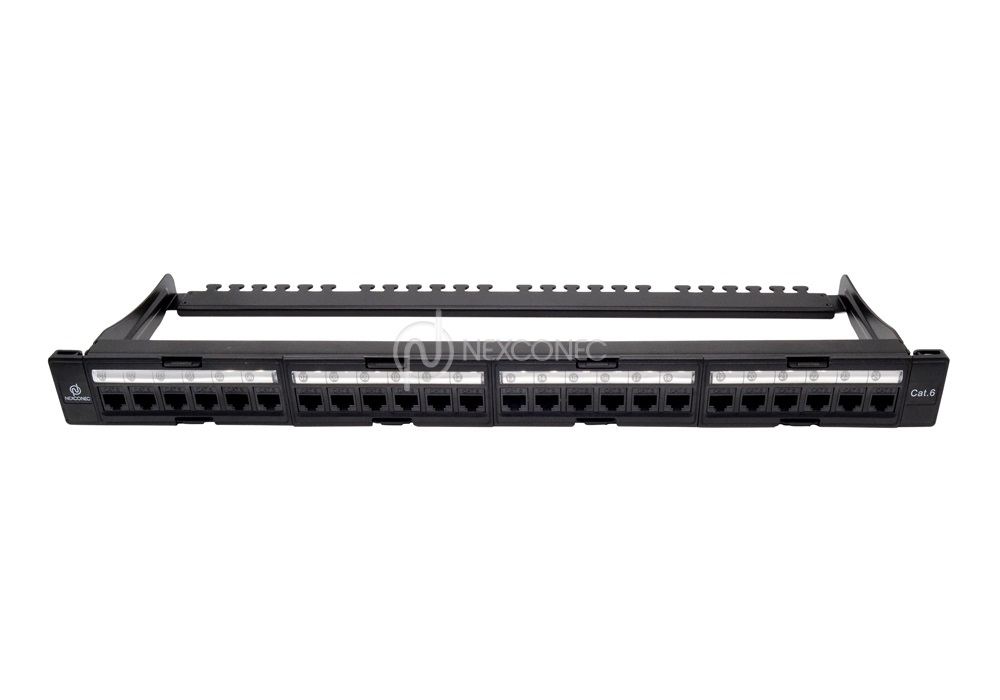

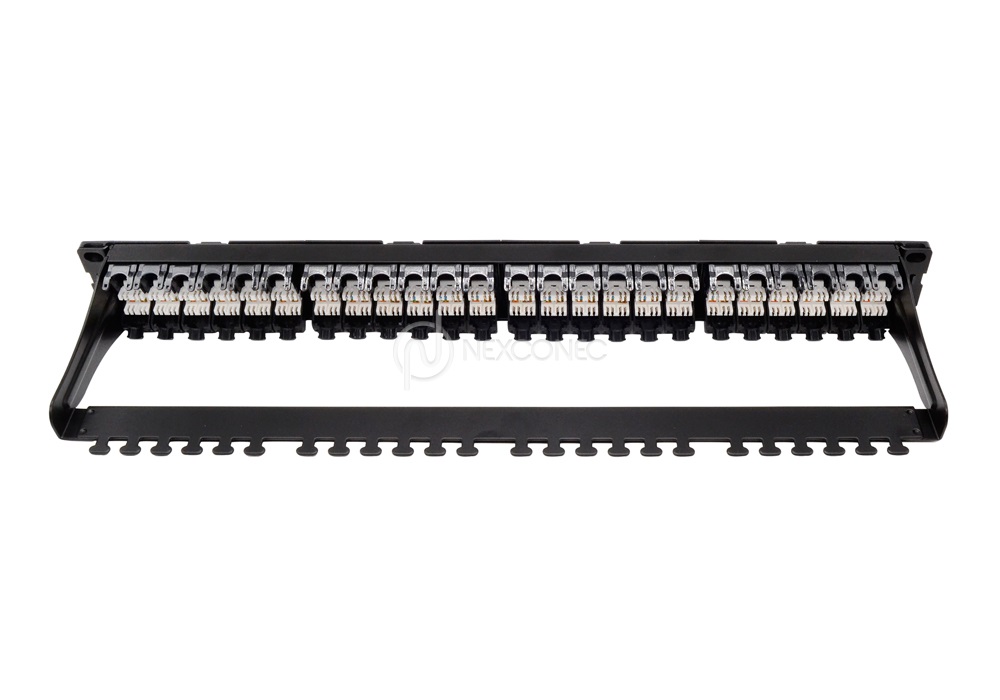

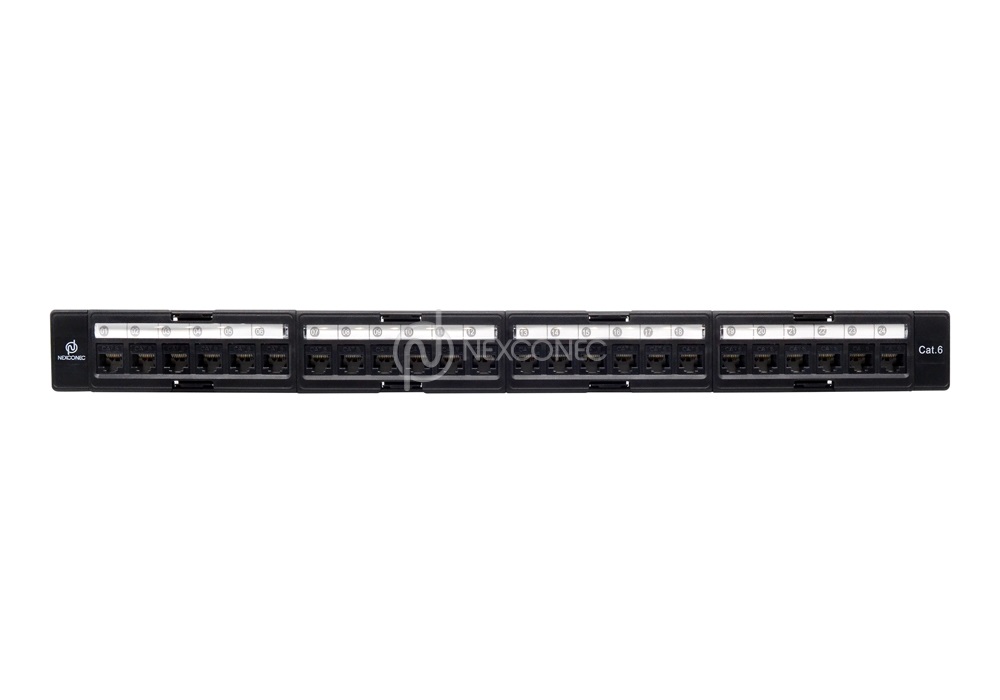

CAT6 UTP Flat Keystone Jack Patch Panel - CM61UKBK

CM61UKBK CM61UKBK CM61UKBK CM61UKBK CM61UKBK CM61UKBK CM61UKBK CM61UKBK CM61UKBK

NEXCONEC Category 6 UTP keystone jack patch panels are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high speed network applications. The patch panel is specifically designed to fit NEXCONEC Category 6 UTP keystone jacks.

Each single piece of Category 6 UTP keystone jacks is well sit in each port of the patch panel which gives great flexibility to installations on site.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA performance
  • RJ45 24port fully loaded in 1U panel
  • Compatible with all NEXCONEC UTP keystone jacks
  • 19’’ rack mountable

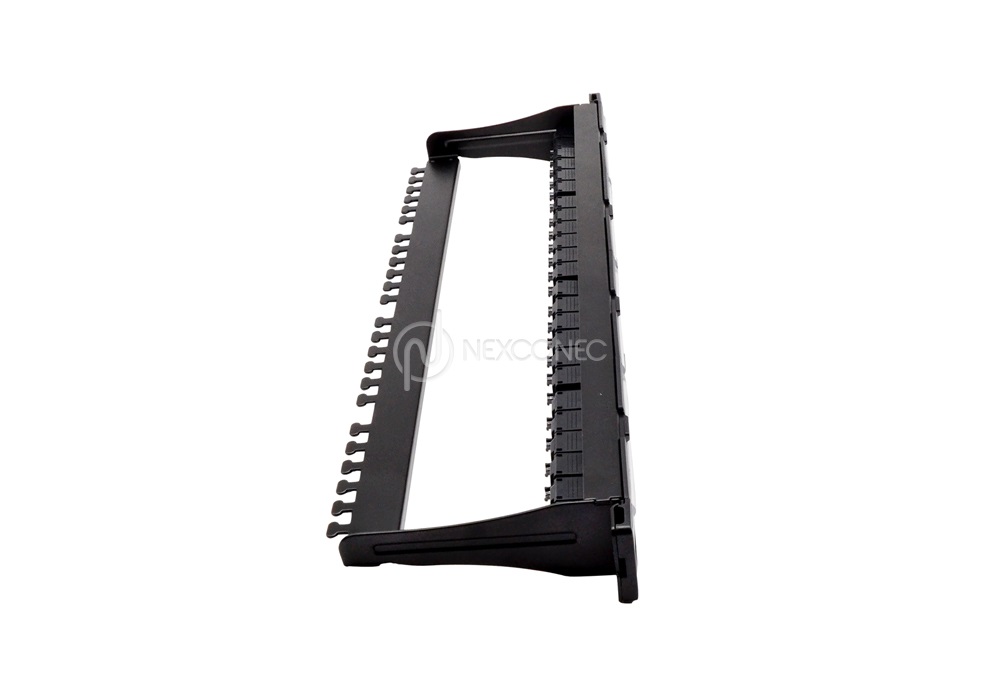

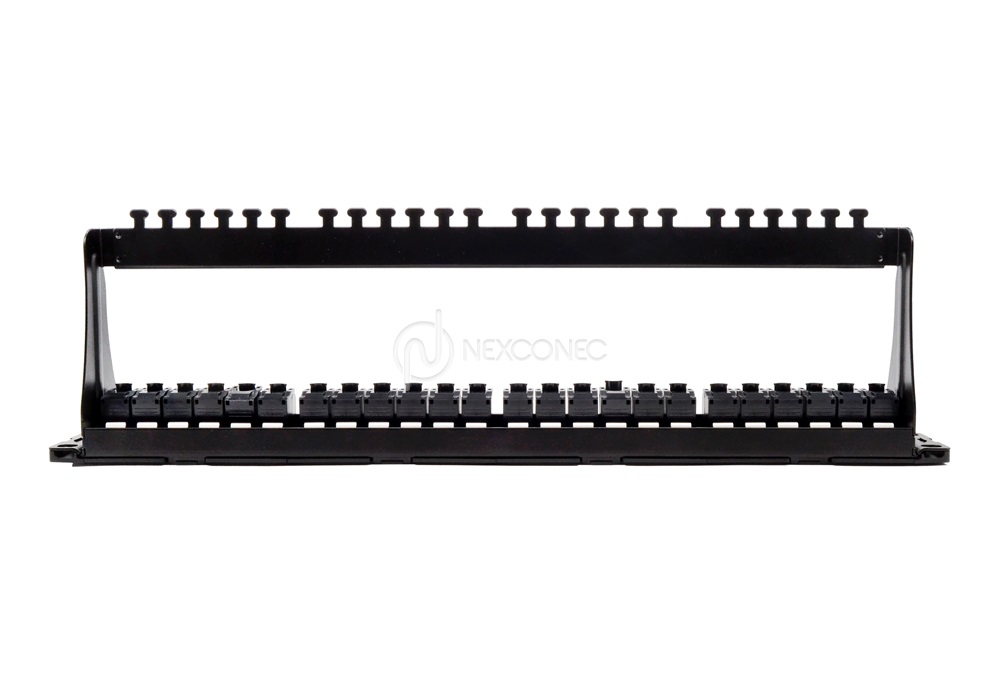

  • Supplied with rear cable managers and fixings
  • Port numerically identified
  • Supports category 6 (Class E) networks running up to 250MHz applications
  • Connection between wall outlets or equipment
  • Backwards compatible with category 5e distribution systems

Product Information

pdfDATASHEET.pdf View Download
Parameters Value
Height 44.4mm
Width 482.6mm
Housing Material PC UL94V-0
IDC Material Phosphor Bronze Stamp Pin 0.35mm
Contact Material Phosphor Bronze + Gold Plated pins
RJ45 Jack Life Min. 750 Insertions
IDC Life Min. 200 Terminations
Termination Wiring TIA-568A or TIA-568B
Operating Temperature -10°C / +60°C
Compliance ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified
RoHS Compliant
Warranty 12 Months
Depth 135.7mm
Panel Frame Carbon Steel, Powder Coating
Part Number Product Description
CM61UKBK NEXCONEC CAT6 1U 24port UTP black Keystones Jack Patch Panel
