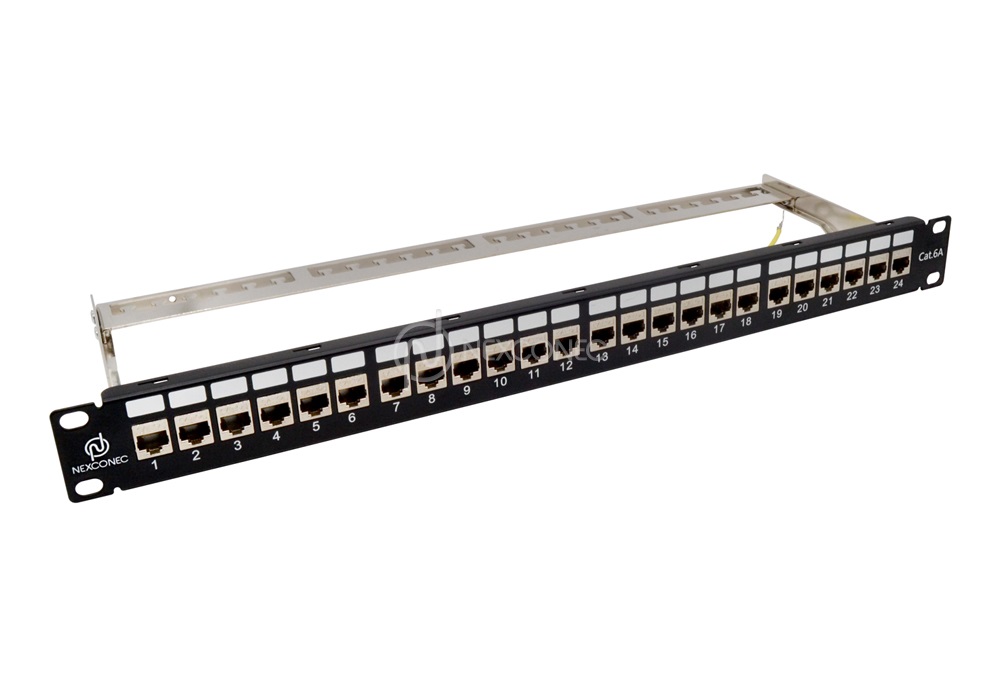

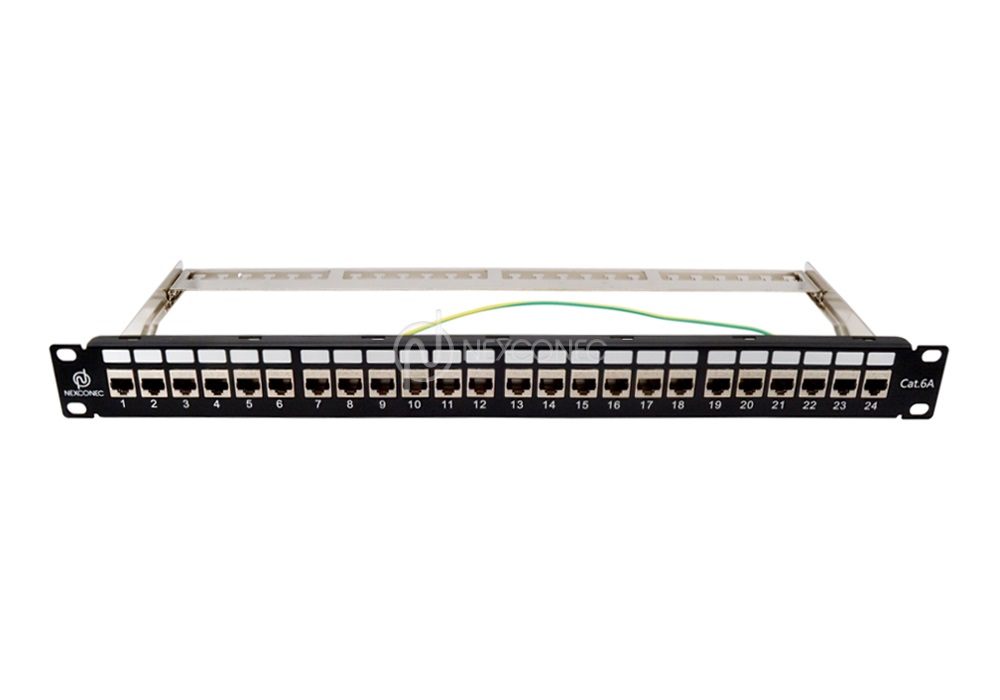

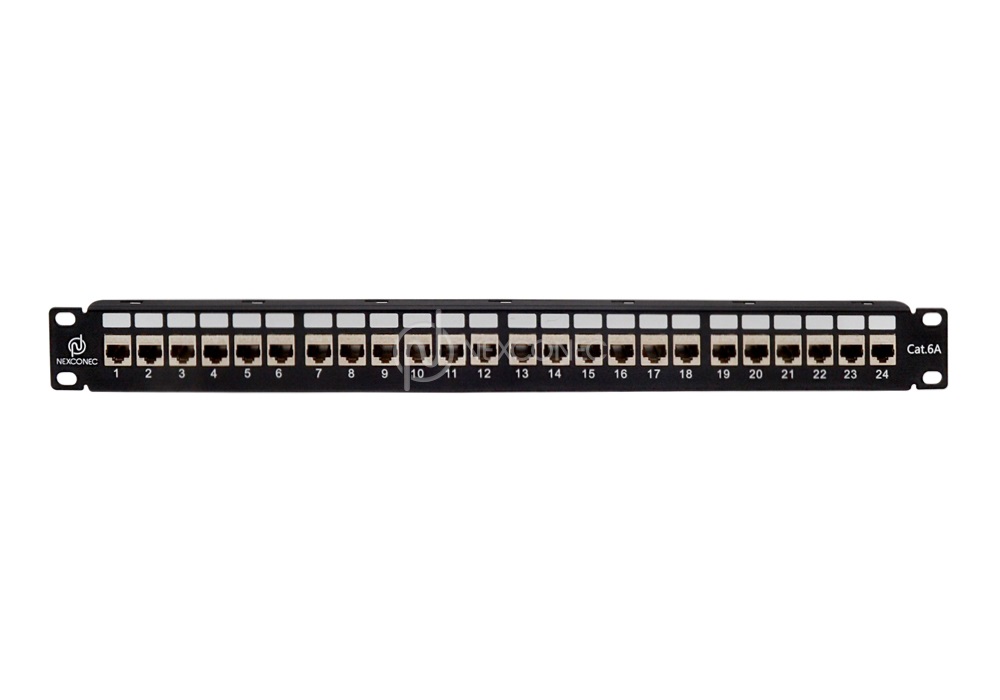

CAT6A STP Feed Thru Adapter Patch Panel - CM6A1SF
NEXCONEC Category 6A STP feed-through adapter patch panels are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications. Category 6A feed-through adapters support all applications designed for Class EA networks as defined within ISO/IEC 11801:2011 including 10GBASE-TX (10 Gigabit Ethernet).
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance
- Small form RJ45 feed-through adapters 24port fully loaded in 1U panel
- 19’’ rack mountable

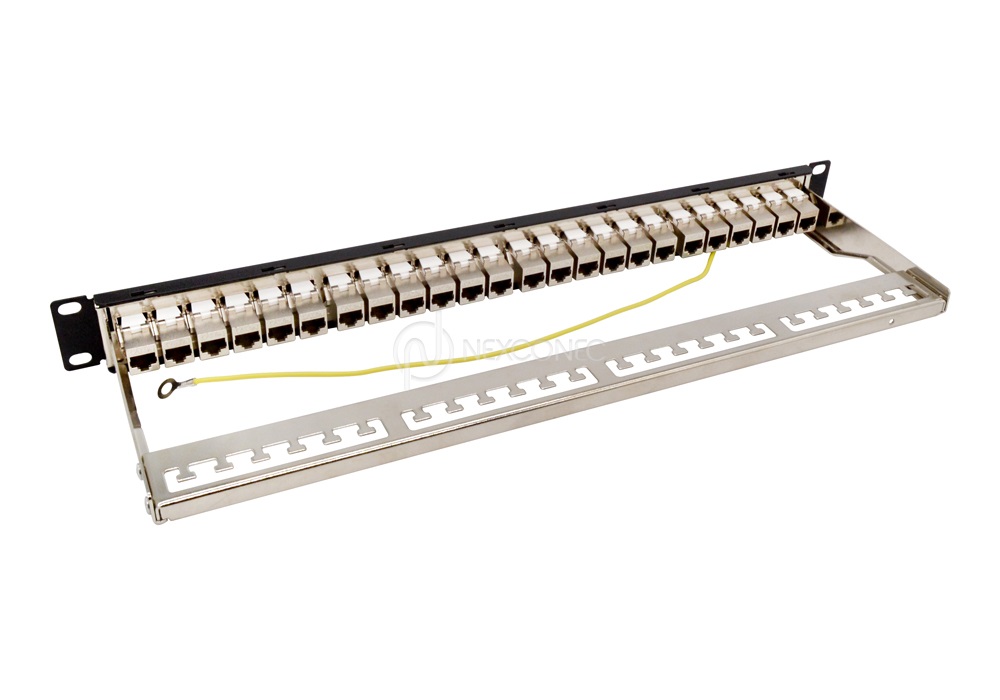

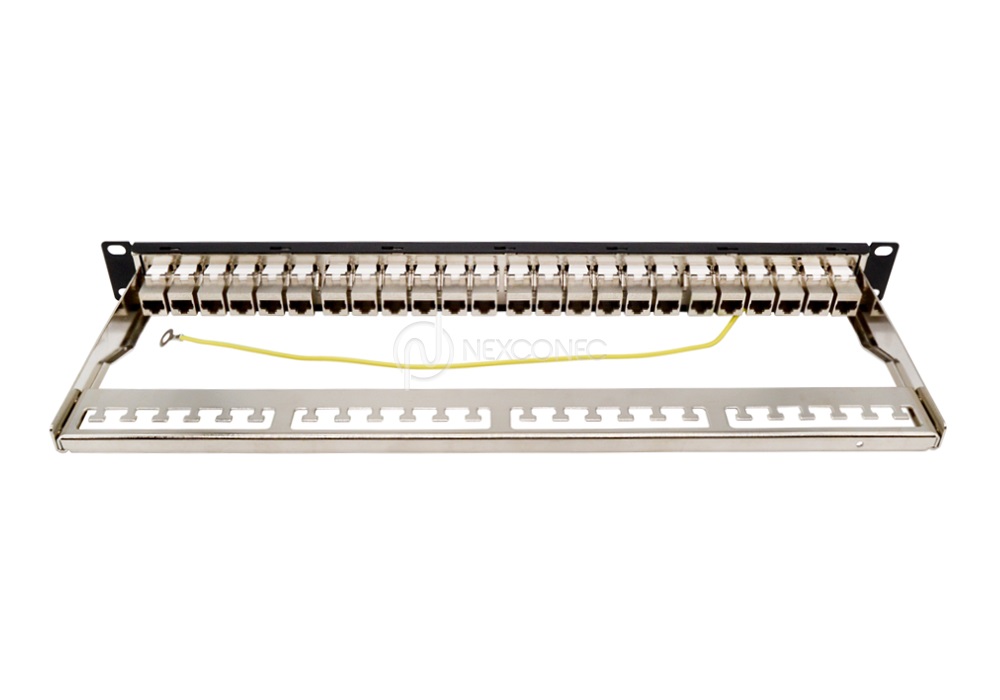

- Supplied with rear cable managers and fixings
- Port numerically identified
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment
- Backwards compatible with category 6 and 5e distribution systems
| Parameters | Value |
|---|---|
| Height | 44.45mm |
| Width | 482mm |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| RJ45 Jack Life | Min. 750 Insertions |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 151.5mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM6A1SF | NEXCONEC CAT6A 1U 24port STP Feed-Thru. Adapter Patch Panel |
