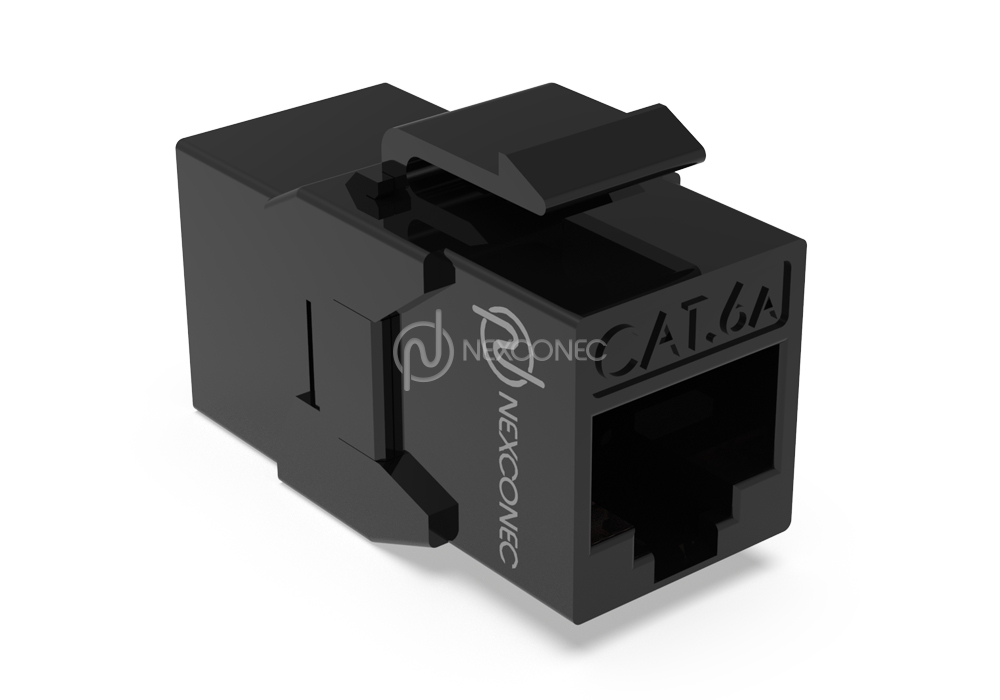

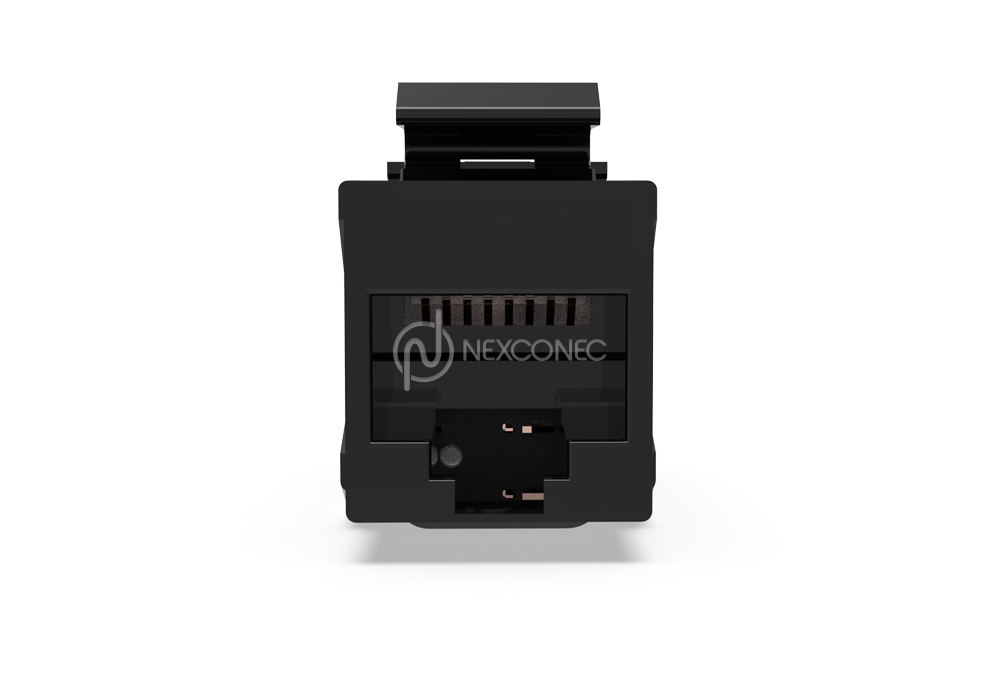

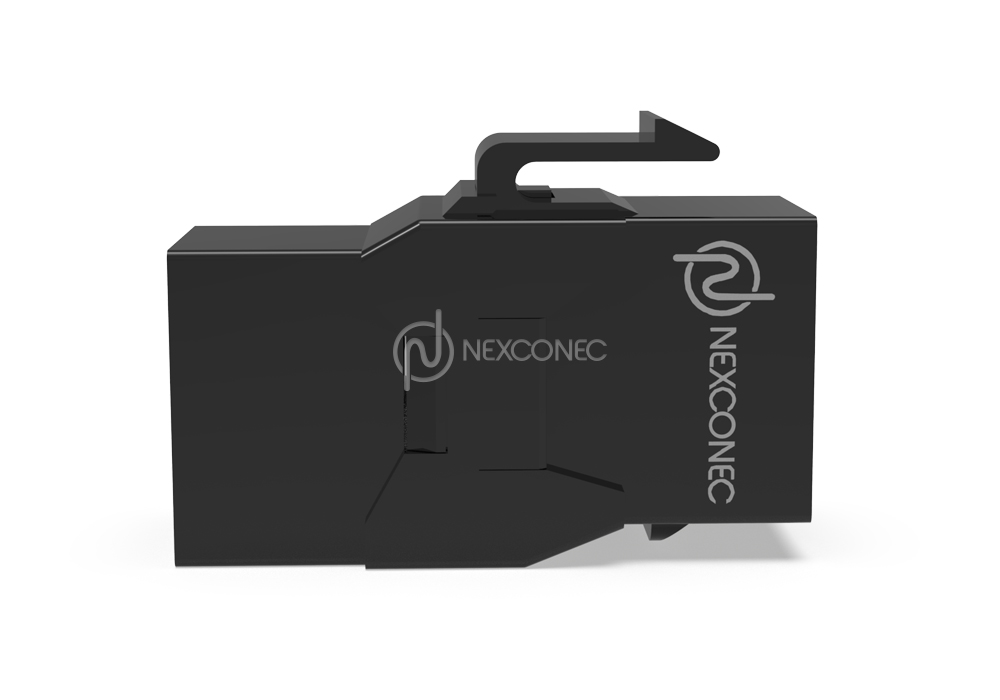

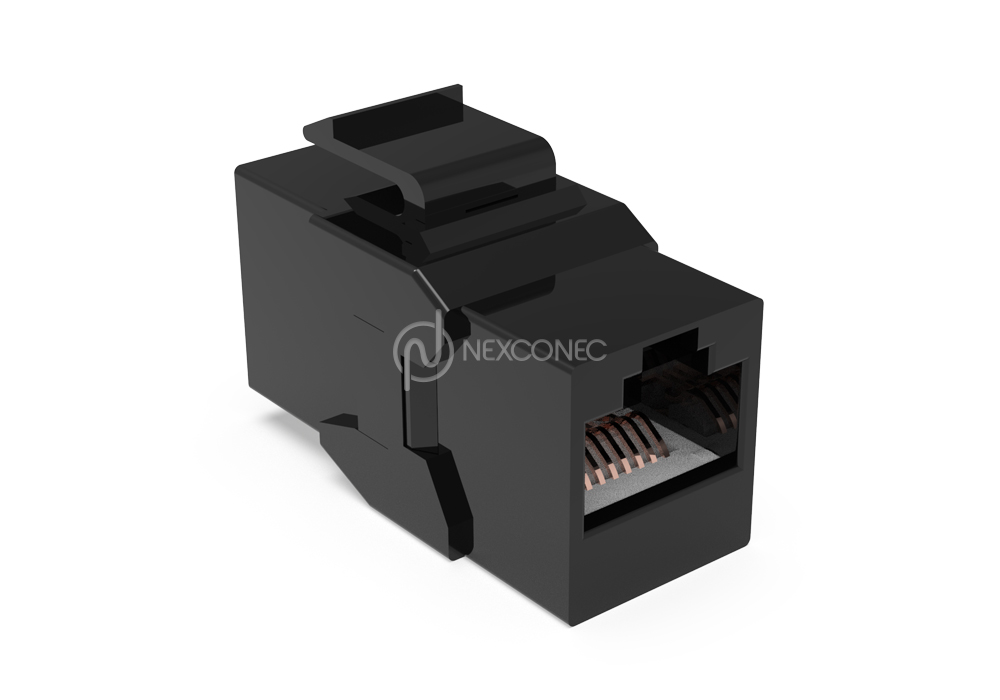

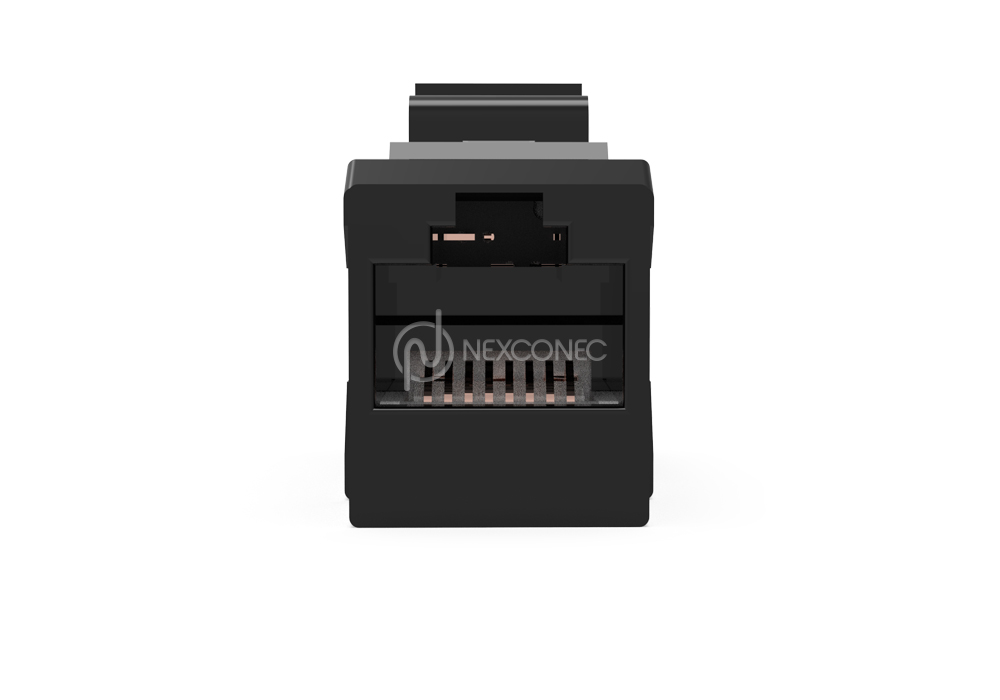

CAT.6A UTP Feed Thru Adapter - CN6AUFBK
NEXCONEC® Category 6A unshielded feed-through adapters conform to line performance requirements of IEC and TIA for Class-EA/Category 6A systems. They follow the industry standard RJ45 footprint and due to small form design, they are perfect for higher density applications and short plug to plug data room back-up installations. Category 6A UTP feedthrough adapter supports all applications designed for Class-EA networks as defined within ISO/IEC 11801: 2011 including ATM 1200, 1000BASE-TX (Gigabit Ethernet).
PRODUCT HIGHLIGHTS
- Small form RJ45 footprint design
- Fits all keystone style faceplates and floor boxes
- Suitable for patch panel installation
- Easy and fast snap-in installation (plug and play)
- Support Class-EA/Category 6A standards networks
FEATURES
- Small form RJ45 footprint design
- Fits all keystone style faceplates and floor boxes
- Suitable for patch panel installation
- Easy and fast snap-in installation (plug and play)
APPLICATIONS
- Support Class-EA/Category 6A standards networks
- ANSI/TIA/EIA-568-C.2
| Parameters | Value |
|---|---|
| Shell Material | ABS+PC UL 94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin |
| Contact Material | Phosphor Bronze Gold over Nickel Plating |
| Shield Material | Bronze, Nickel Plated |
| Jack Contact Life | Min. 750 Insertions |
| Retention Strength | 7.7Kg between jack and plug |
| Insertion Force | 20N Max. (IEC 60603-7-4) |
| Operating Temperature | -10 ~ +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 12 Months |
| Packing | 25pcs per carton |
| Part Number | Product Description |
|---|---|
| CN6AUFBK | NEXCONEC CAT.6A UTP Feed Thru. Adapter (Black) |

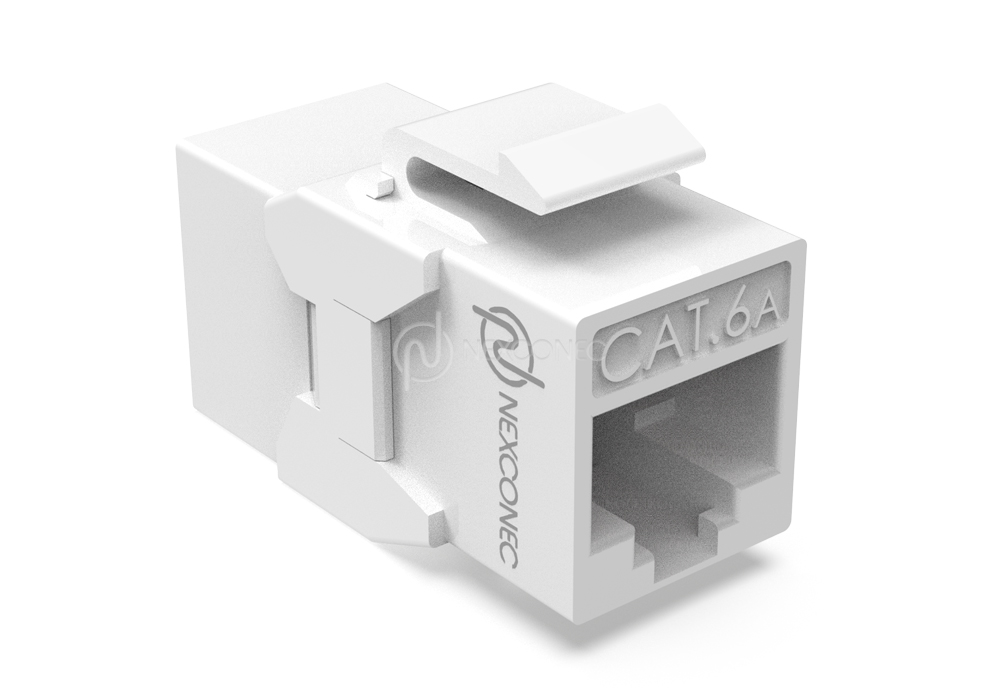

| CN6AUFWH | NEXCONEC CAT.6A UTP Feed Thru. Adapter (White) |
