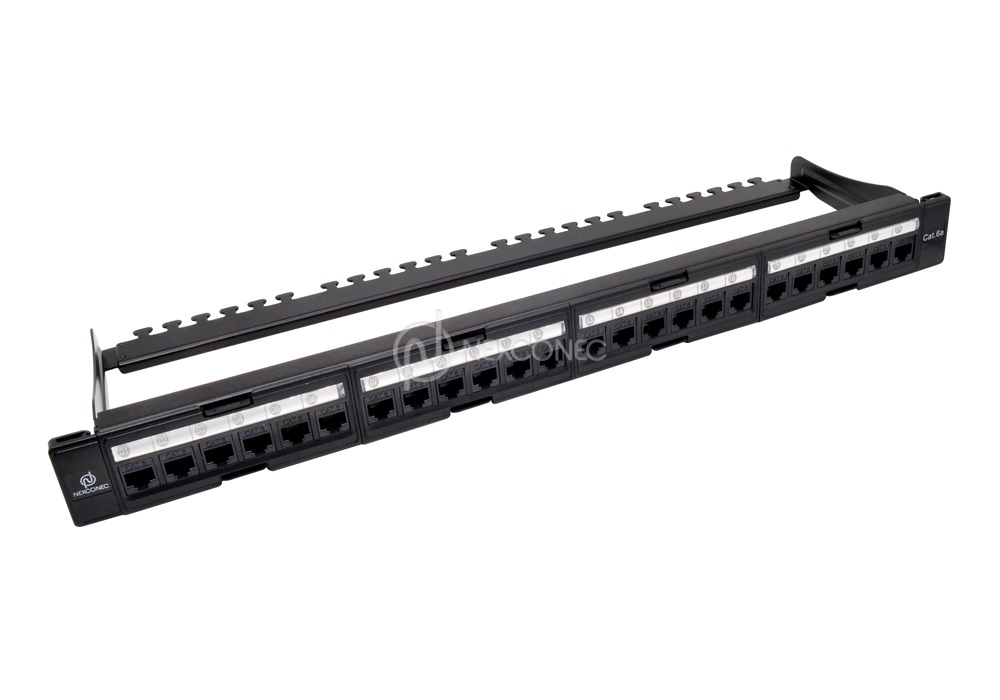

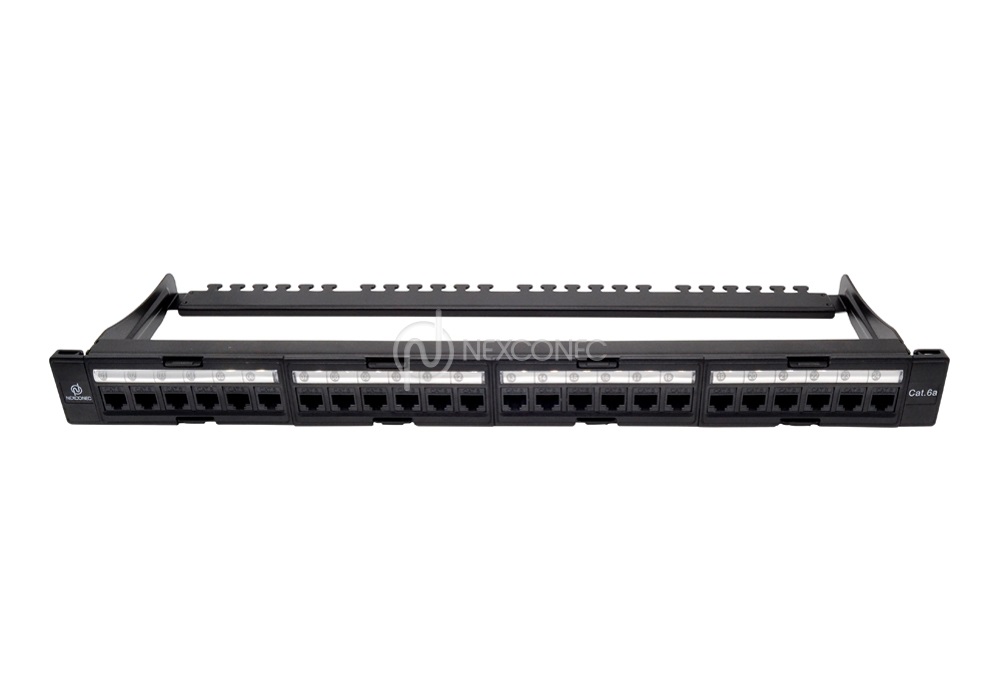

CAT6A UTP Flat Keystone Jack Patch Panel - CM6A1UKBK
NEXCONEC Category 6A UTP keystone jack patch panels are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications. The patch panel is specifically designed to fit NEXCONEC Category 6A UTP keystone jacks.

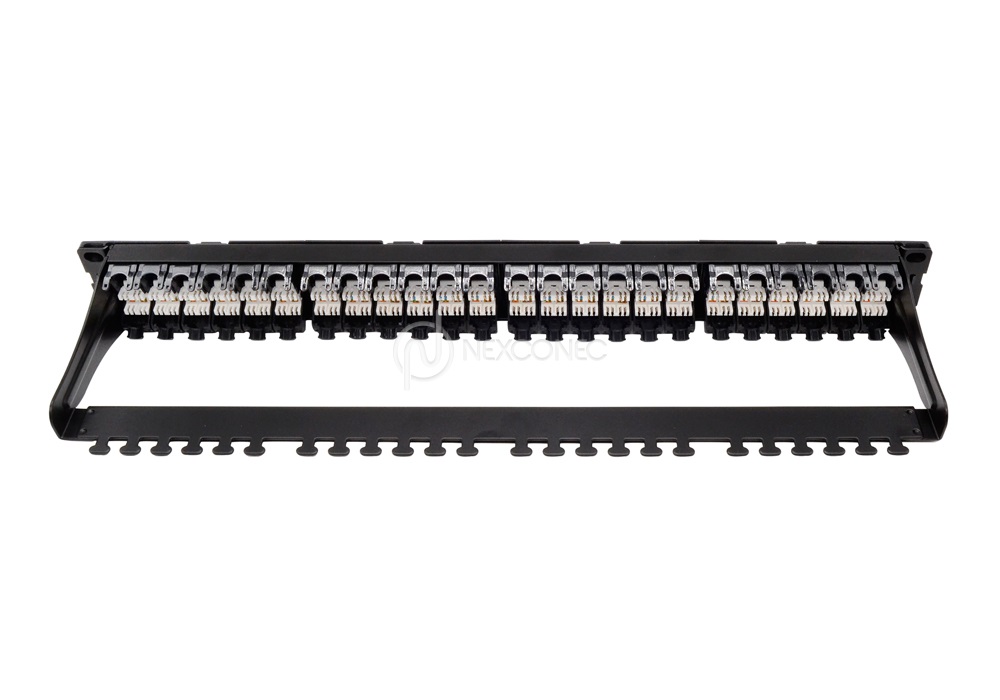

Each single piece of Category 6A UTP keystone jacks is well sit in each port of the patch panel which gives great flexibility to installations on site.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA performance

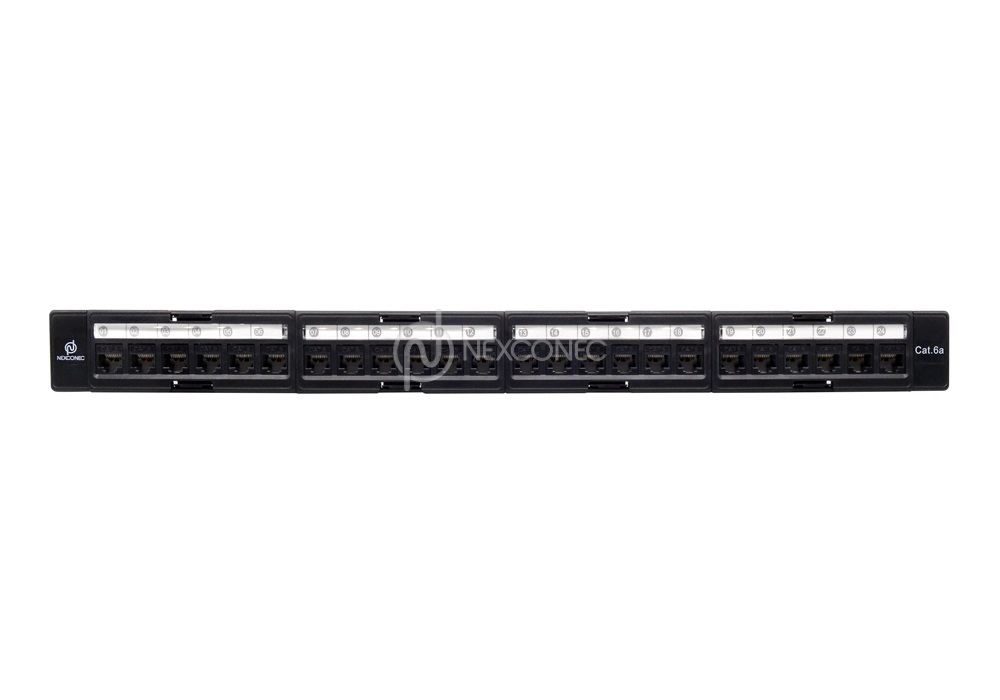

- RJ45 24port fully loaded in 1U panel
- Compatible with all NEXCONEC UTP keystone jacks
- 19’’ rack mountable

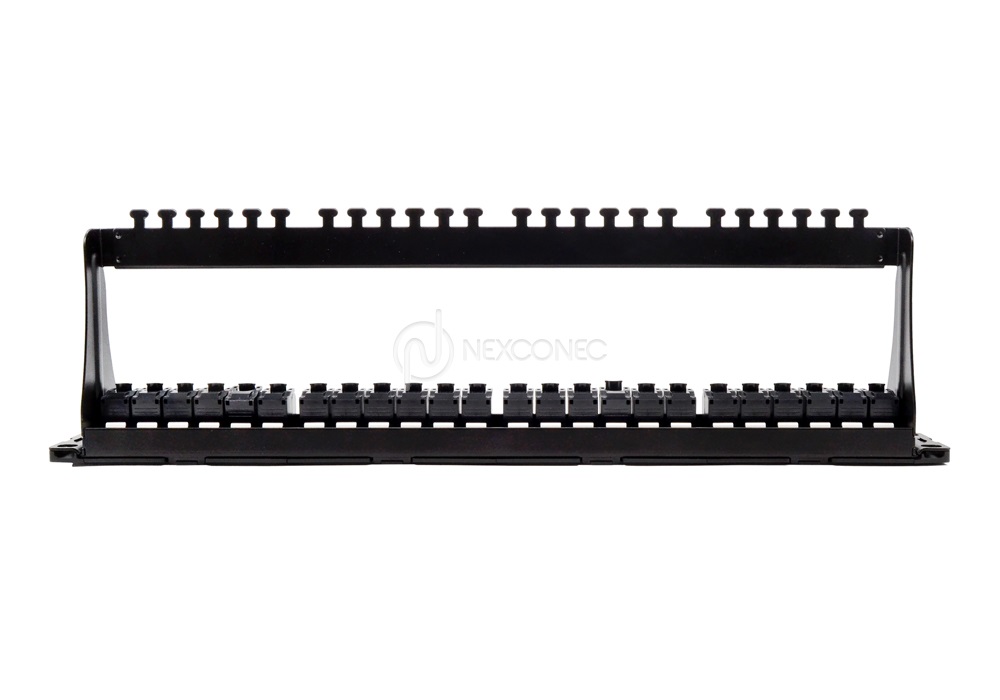

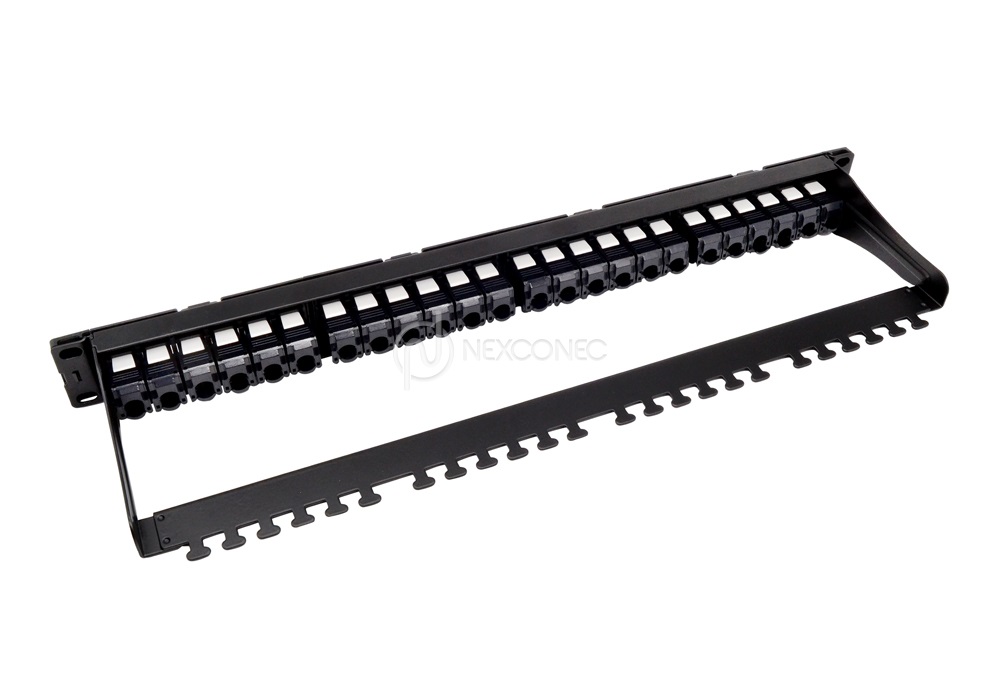

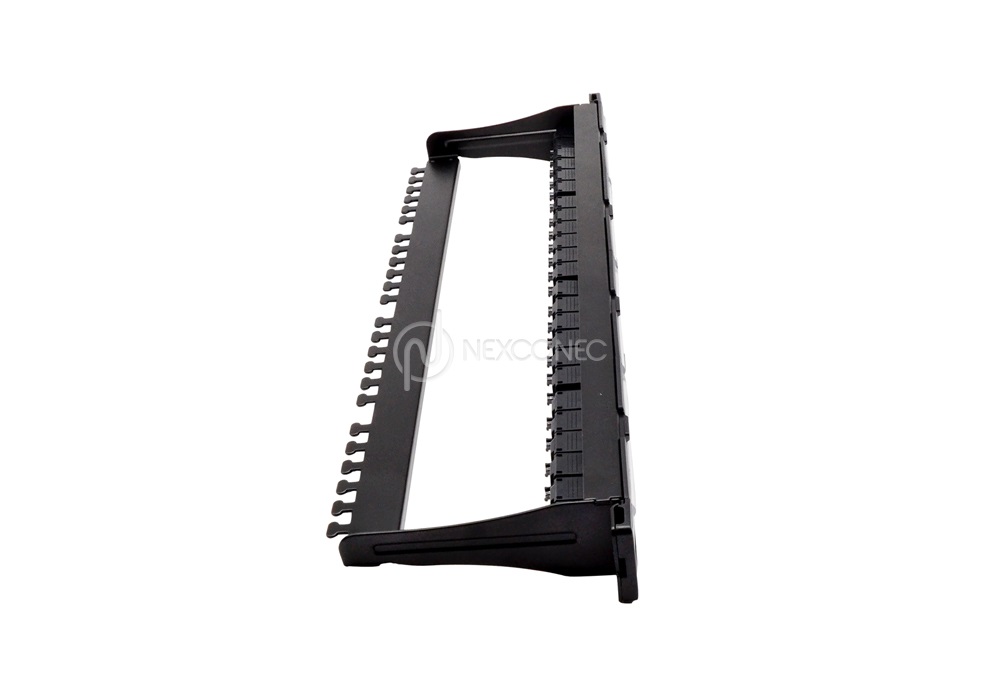

- Supplied with rear cable managers and fixings
- Port numerically identified
- Supports category 6A (Class EA) networks running up to 500MHz applications
- Connection between wall outlets or equipment
- Backwards compatible with category 6 and 5e distribution systems
| Parameters | Value |
|---|---|
| Height | 44.4mm |
| Width | 482.6mm |
| Housing Material | PC UL94V-0 |
| IDC Material | Phosphor Bronze Stamp Pin 0.35mm |
| Contact Material | Phosphor Bronze + Gold Plated pins |
| RJ45 Jack Life | Min. 750 Insertions |
| IDC Life | Min. 200 Terminations |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified |
| RoHS | Compliant |
| Warranty | 12 Months |
| Depth | 135.7mm |
| Panel Frame | Carbon Steel, Powder Coating |
| Part Number | Product Description |
|---|---|
| CM6A1UKBK | NEXCONEC CAT6A 1U 24port UTP Black Keystone Jacks Patch Panel |
