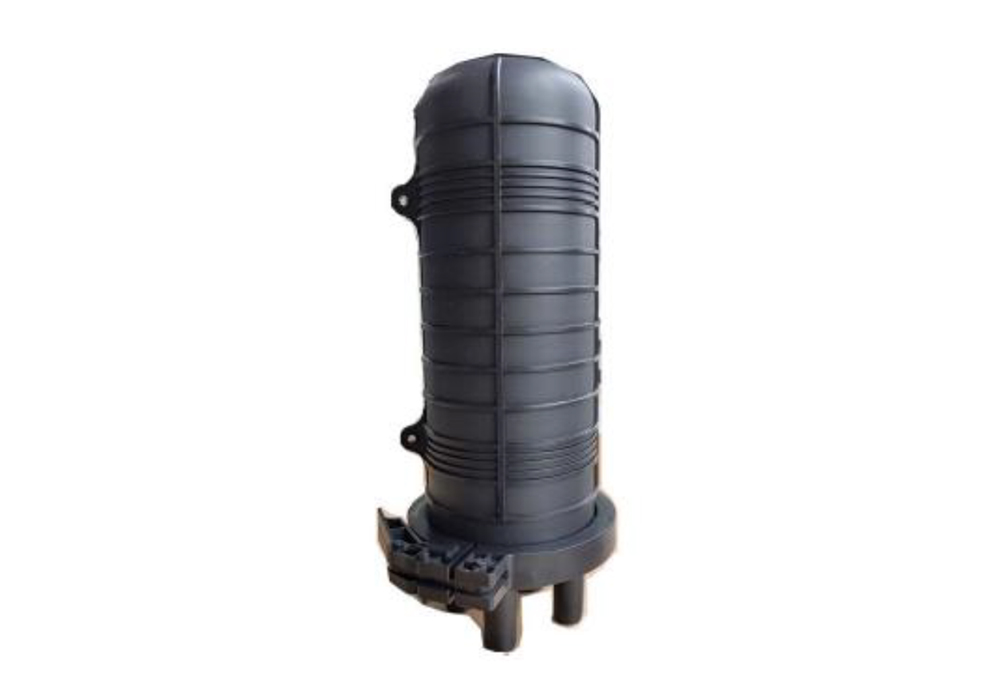

Dome Enclosure - OC-DO07
NEXCONEC Compact Dome Enclosure is the best designed and innovative solution for fiber cabling installation. It only requires its silicone rubber sealing gasket to ensure the good sealing performance of fiber cable, up to 96fibers of fiber count. The different sizes of cable entrances provide the great flexibility for cables installation.
FEATURES AND APPLICATIONS
- Up to 144 cores capacity
- Outdoor Airproofing performance IP68
- Easy management and maintenance
- FTTx Access Network
- Telecommunication network
- LAN/WAN, CATV
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 410 x 205 mm |
| Weight (Kg) | 1.70 - 2.50 Kg |
| Material | ABS+ PP Fiber Glass |
| Max. Capacity (Fibers) | 96 Fibers |
| Maximum Number of Splice Trays | 4 |
| Capacity of Splice Tray | Max 24 single Fusion splices |

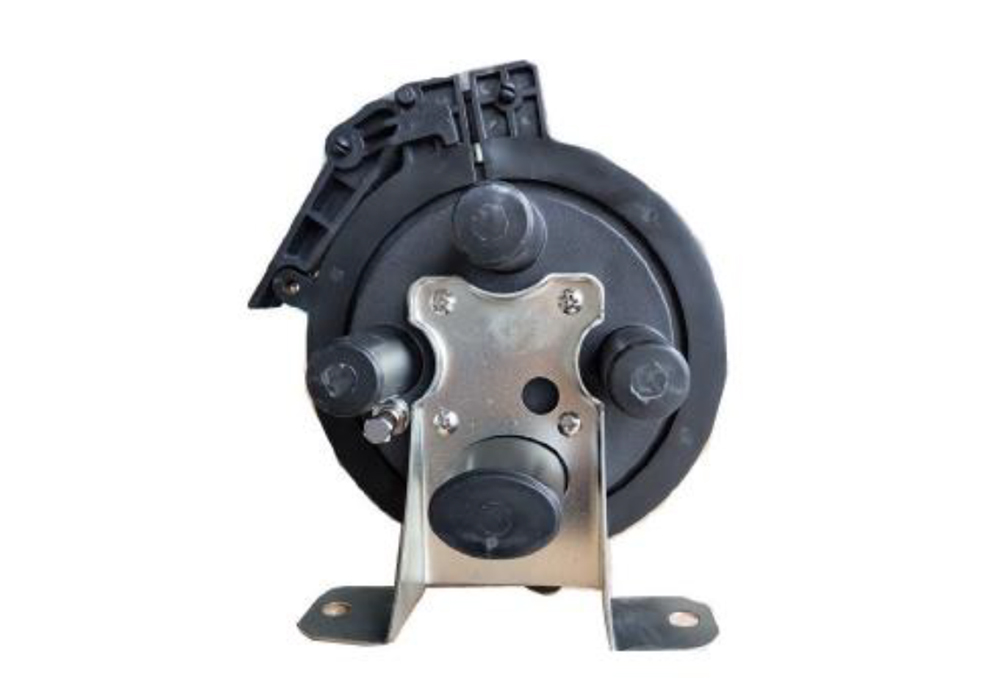

| Cable Entrances | 4 |
| Suitable Fiber Cable OD | Round Φ18mm - Oval Φ24x35mm |
| Sealing Structure | Heat Shrink Sealing |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~+65℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO07-24 | FO Dome Enclosure 24FO H/S |
| OC-DO07-48 | FO Dome Enclosure 48FO H/S |
| OC-DO07-72 | FO Dome Enclosure 72FO H/S |
| OC-DO07-96 | FO Dome Enclosure 96FO H/S |
