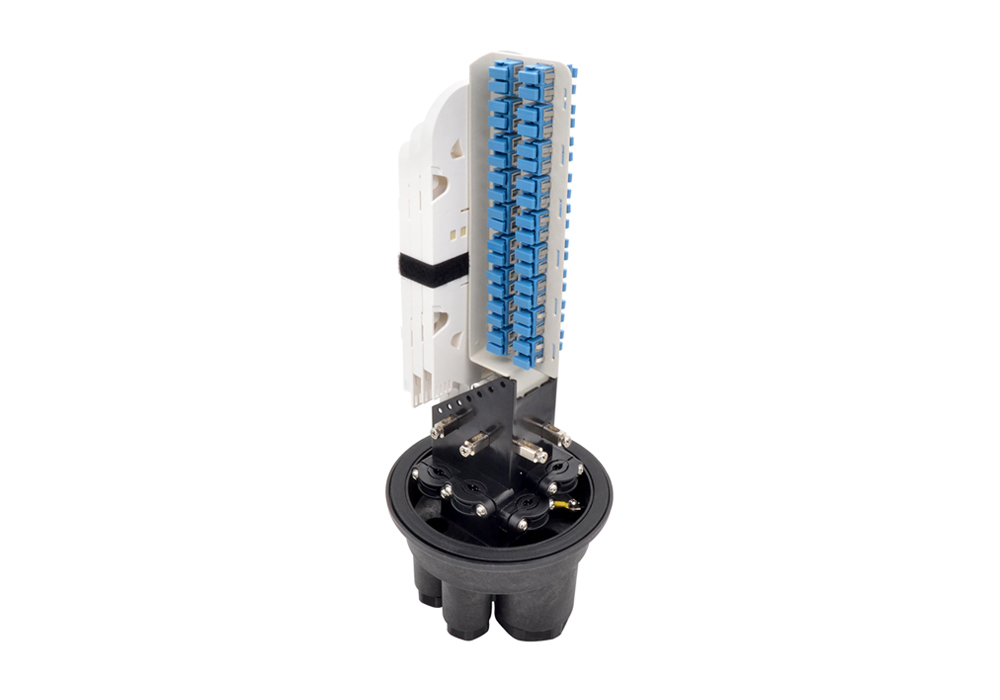

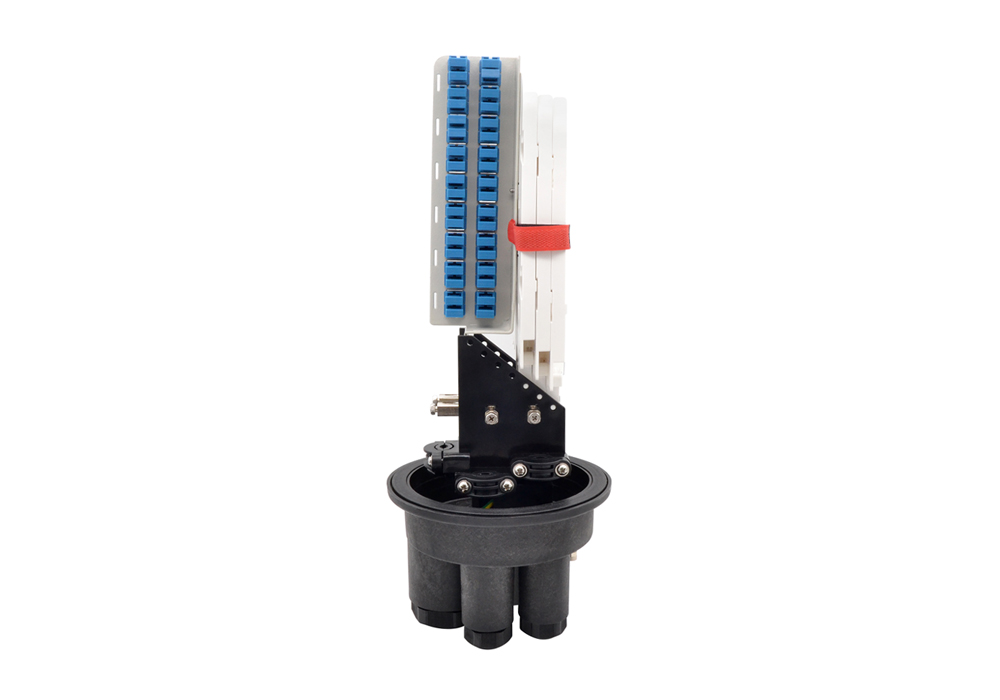

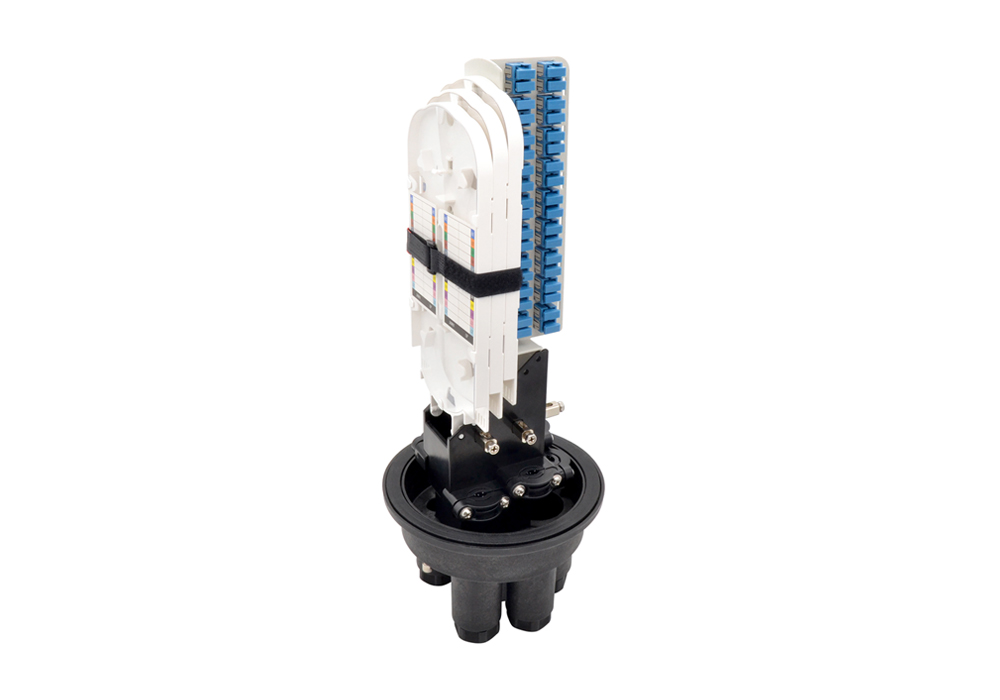

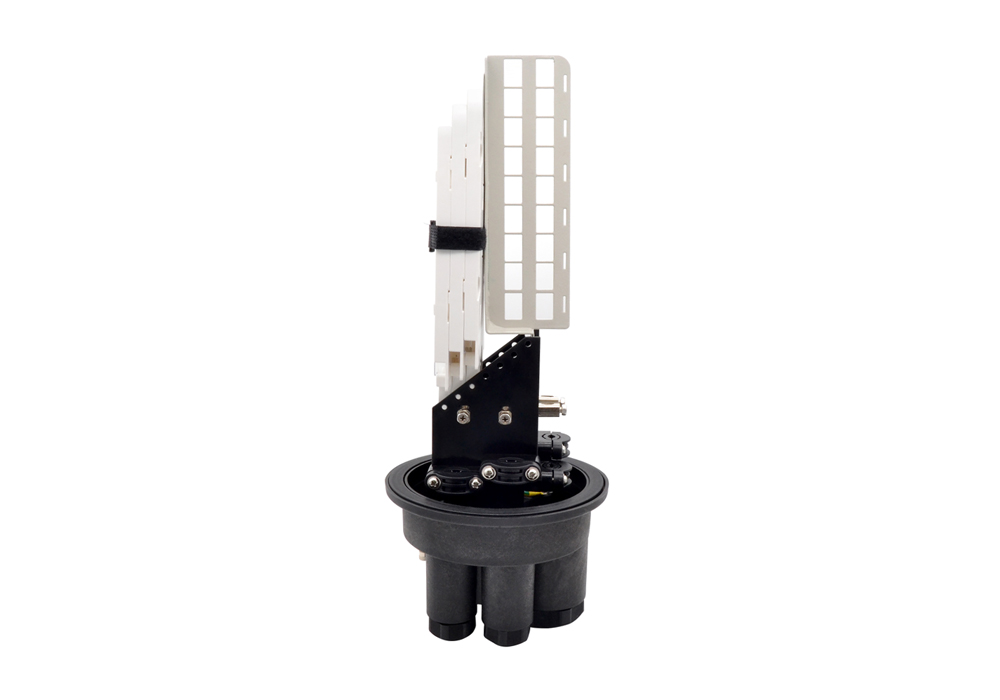

Dome Enclosure - OC-DO09
NEXCONEC Dome closure is the best designed and innovative solution for fiber cabling installation. It adopts fully IP68 mechanical sealing structure for good sealing performance of fiber cable over 48 fibers. It can be installed PLC Splitter up to 2x 2:32 with 36 SC Simplex Adapters ports. Multi-application and installations with Aerial, Pole Mounting and Wall Mounting.
FEATURES AND APPLICATIONS
- Up to 48 cores capacity
- Mechanical Sealing of cables entries
- Airproofing performance IP68
- Insulation Resistance
- PLC Splitter up to 2x 1:32
- 36 Ports SC Adapters
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 450 x 230 mm |
| Weight (Kg) | 4.20-4.80 Kg |
| Material | PP+GF |
| Max. Capacity (Fibers) | 48 |
| Maximum Number of Splice Trays | 3 |
| Capacity of Splice Tray | Max 24 single Fusion splices |
| Adapter Ports | 36x SC Simplex Adapter Ports |
| PLC Splitter Capacity | 1x32 PLC or 2x32 PLC |
| Cable Entrances | 5 |
| Suitable Fiber Cable OD | Small port : Φ5-Φ7, 4ports Large Round port : Φ10-Φ17.5, 1port |
| Optional Cable Sealing Inserts | See order Informations |
| Sealing Structure | Mechanical |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~ +55℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO09-12 | FO Dome Enclosure 12FO Splice cap, Splitter 32ports SC SX Adapt unloaded |
| OC-DO09-24 | FO Dome Enclosure 24FO Splice cap, Splitter 32ports SC SX Adapt unloaded |
| OC-DO09-48 | FO Dome Enclosure 48FO Splice cap, Splitter 32ports SC SX Adapt unloaded |
