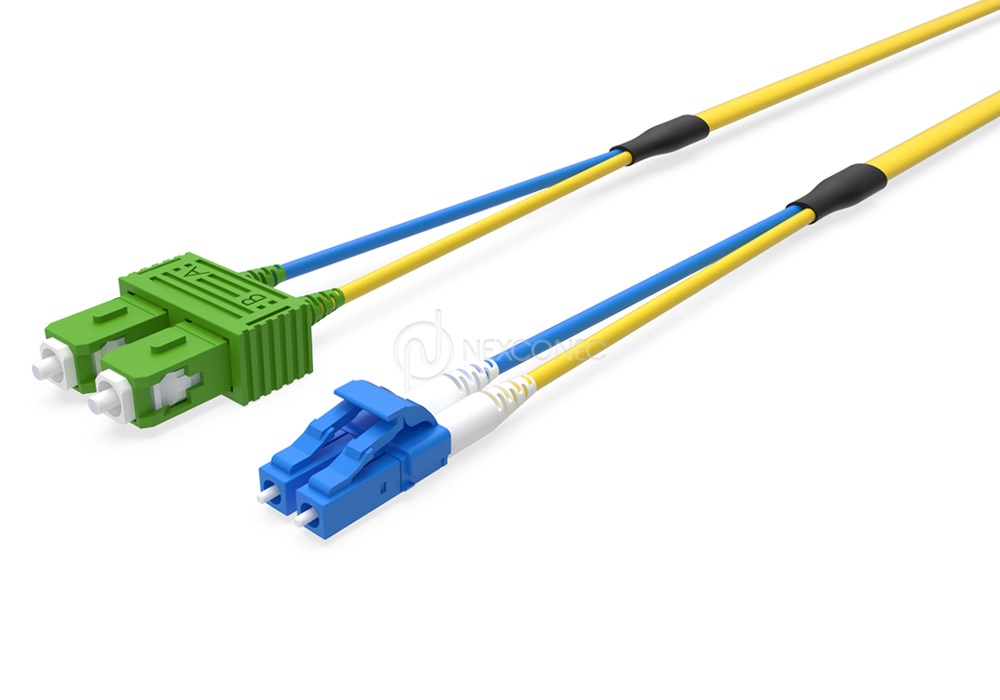

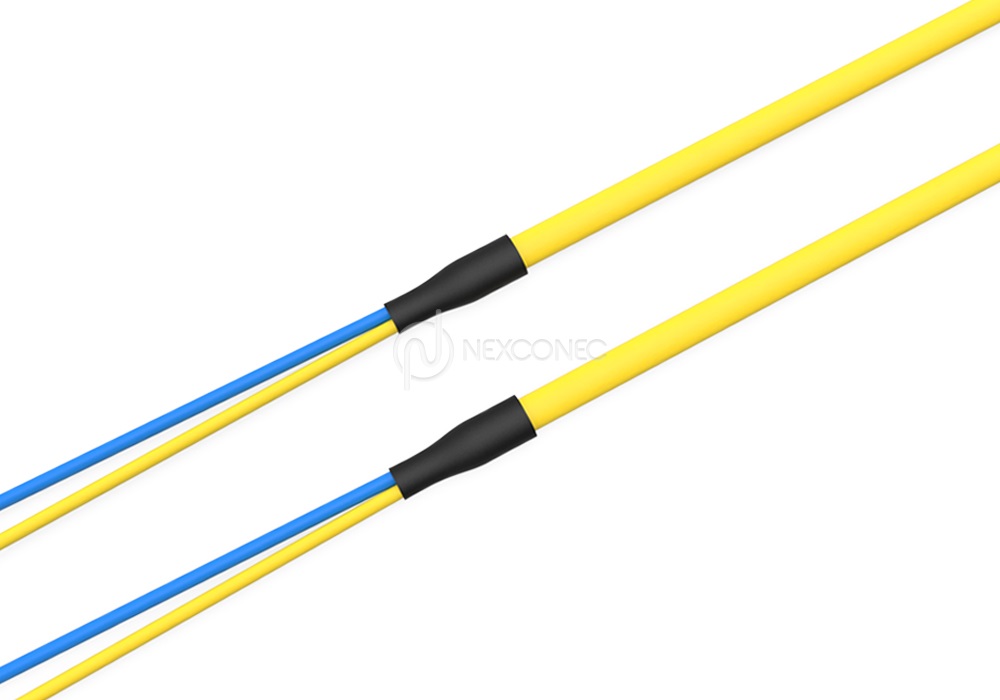

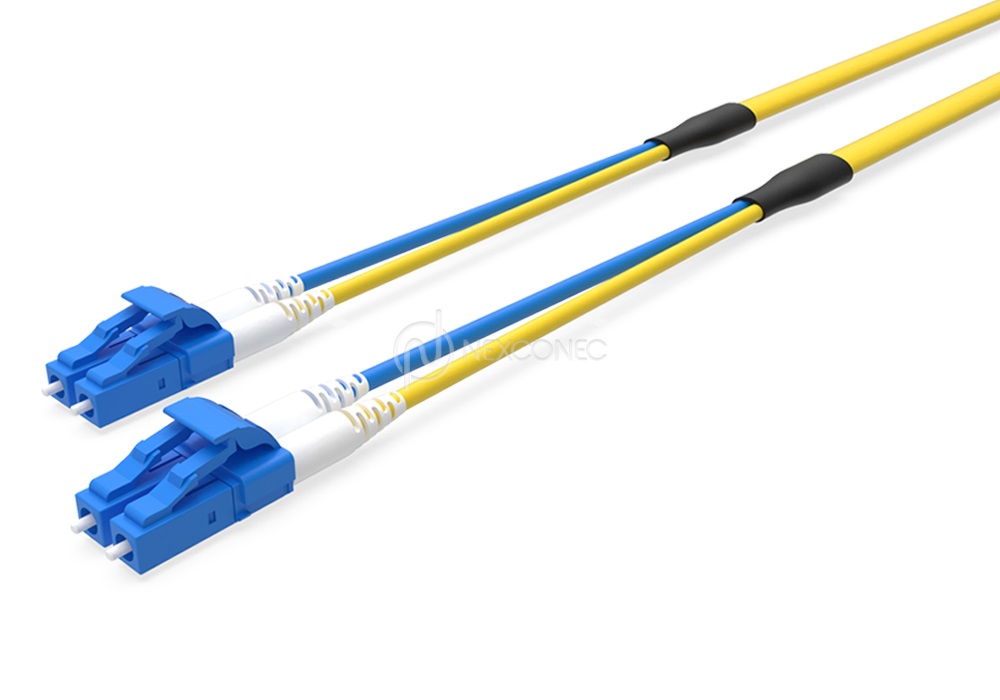

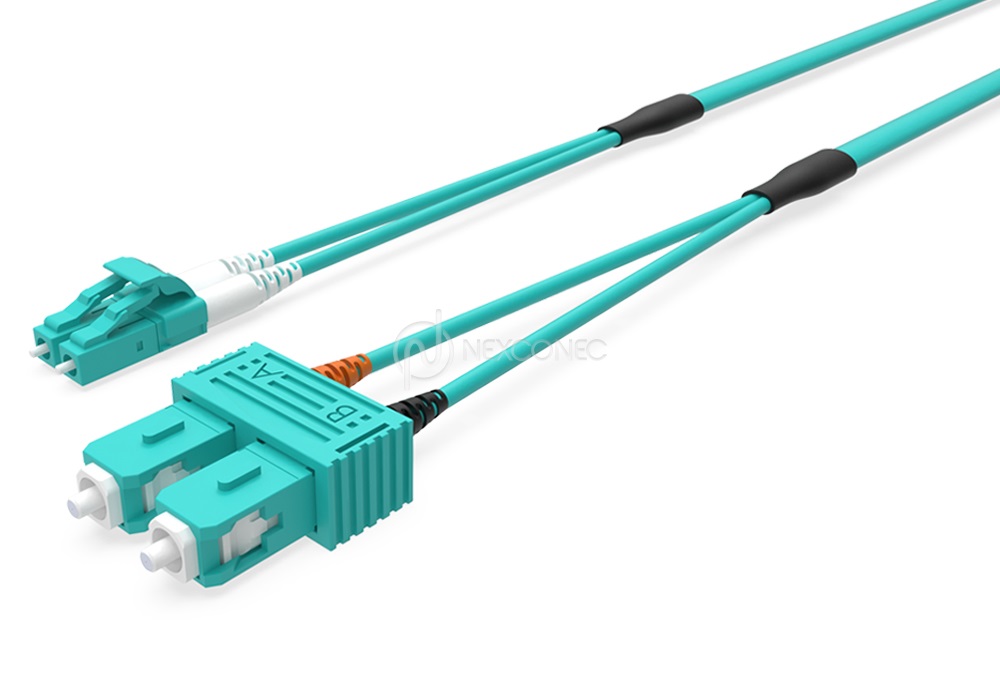

Flat Twin Duplex Patch Cord
NEXCONEC® Flat Twin Duplex Patch Cord provide a more robust alternative to standard zipped duplex patch cables and provides good protection against kinking and crushing, two of the most common issues faced when installing cables. In spite of the additional durability, the cable is still flexible and very compact.
Recommended for patching where frequent handling is required, or internal fiber runs where a stiffer, more rugged cable is required, these are available in Multimode and Single Mode with all of the standard connector options. The cable used is also known as a Flat Twin or Duplex Breakout Cable.
FEATURES AND APPLICATIONS
- Flexible and compact
- Crush & kink resistance
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality
- All Assemblies are factory tested and come with test certificate
- Available in custom length
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers
- FTTx
- Broadband network
- Fiber-to-the-home
SINGLE FERRULE CONNECTOR
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
CABLE CHARACTERISTICS
| Parameter | Unit | Value | |
|---|---|---|---|
| Outer Diameter | mm | 3.0 x 5.0 | 3.8 x 6.6 |
| Inner Simplex Cable Diameter | mm | 2.0 | 3.0 |
| Long Term Tensile Strength | N | 100 | 160 |
| Short Term Tensile Strength | N | 200 | 300 |
| Long Term Crush Resistance | N/mm | 300 | |
| Short Term Crush Resistance | N/mm | 1000 | |
| Minimum Static Bending Radius | 30 | 38 | |
| Minimum Dynamic Bending Radius | 60 | 76 | |
| Storage Temperature | °C | -20 ~ +60 | |
| Operating Temperature | °C | -5 ~ +50 | |
