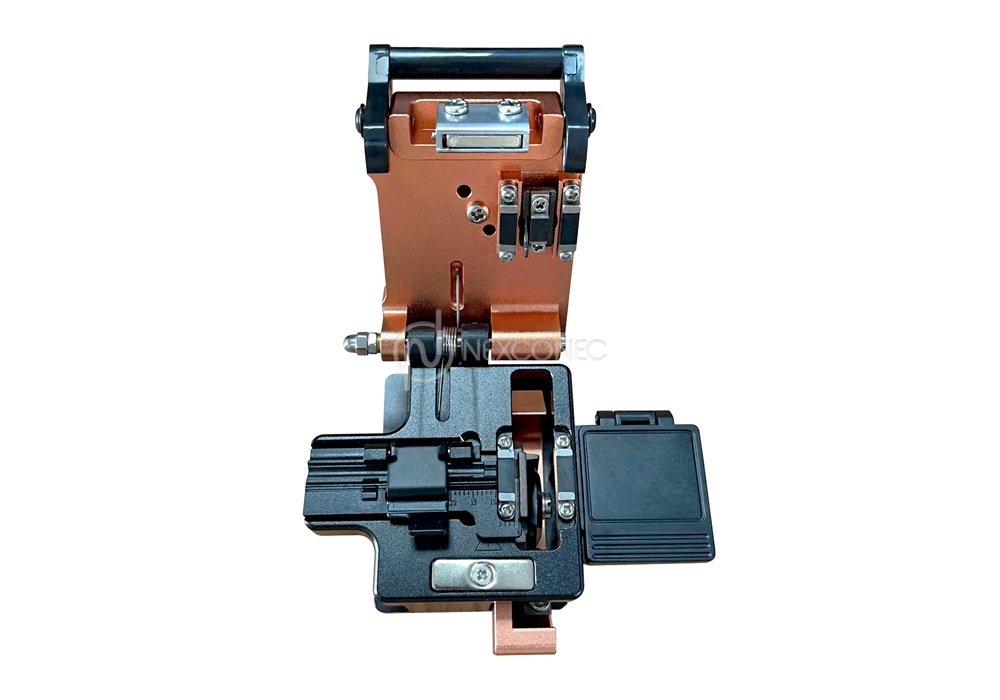

High Performance Optical Fiber Cleaver - CLEAV01
Nexconec high performance optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
FEATURES AND APPLICATIONS
- With fiber collection box
- Compact body & light weight
- High Precision Cleaves
- Single mode or Multimode Use
- 16 Position Rotatable and Replicable Blade
| Parameters | Value |
|---|---|
| Dimensions | 62 x 60 x 60 mm |
| Material | Silica glass |
| Cladding Diameter | Ø 125um |
| Fiber Count | Single |
| Cleave Length | 5~20mm (Ø 0.25) / 10~20mm (Ø 0.9) |
| Cleave Angle (Typ.) | 0.5 degrees with single fiber |
| Off-Cut Collector | Optional |
| Single Fiber Adapter | Pre-fitted (AP-FC6M) |
| Field Replaceable Blade | Yes, Use FCP-20BL |
| Blade Life *1 | 48000 |
| Weight | Approx. 380g |
| Part Number | Product Description |
|---|---|
| CLEAV01 | High Performance Optical Fiber Cleaver |
