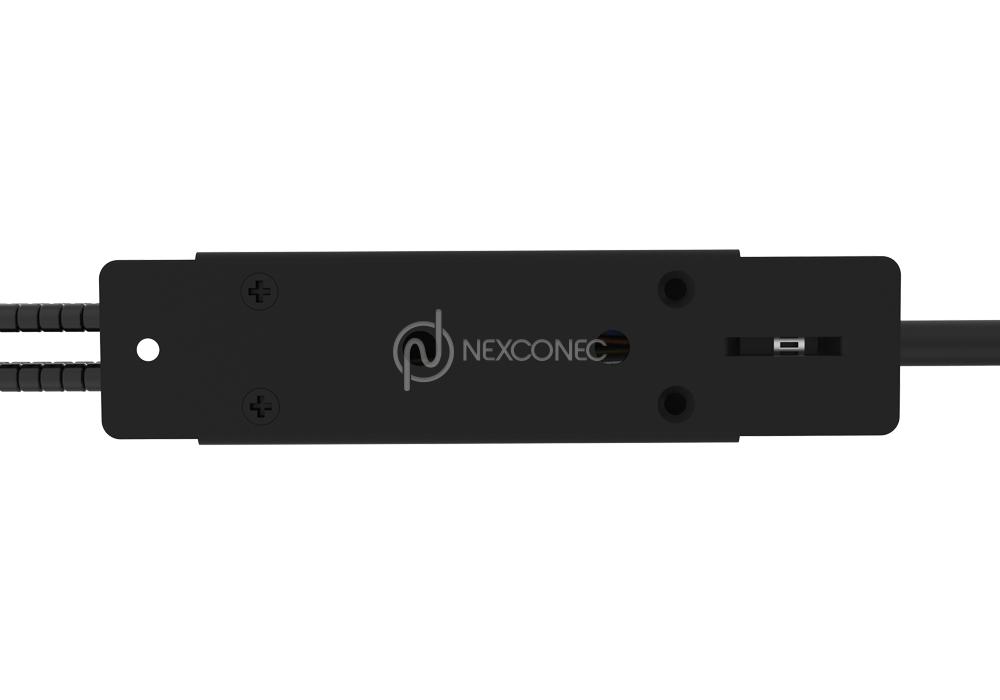

Mini Fiber Transition Breakout Unit - TRBR04

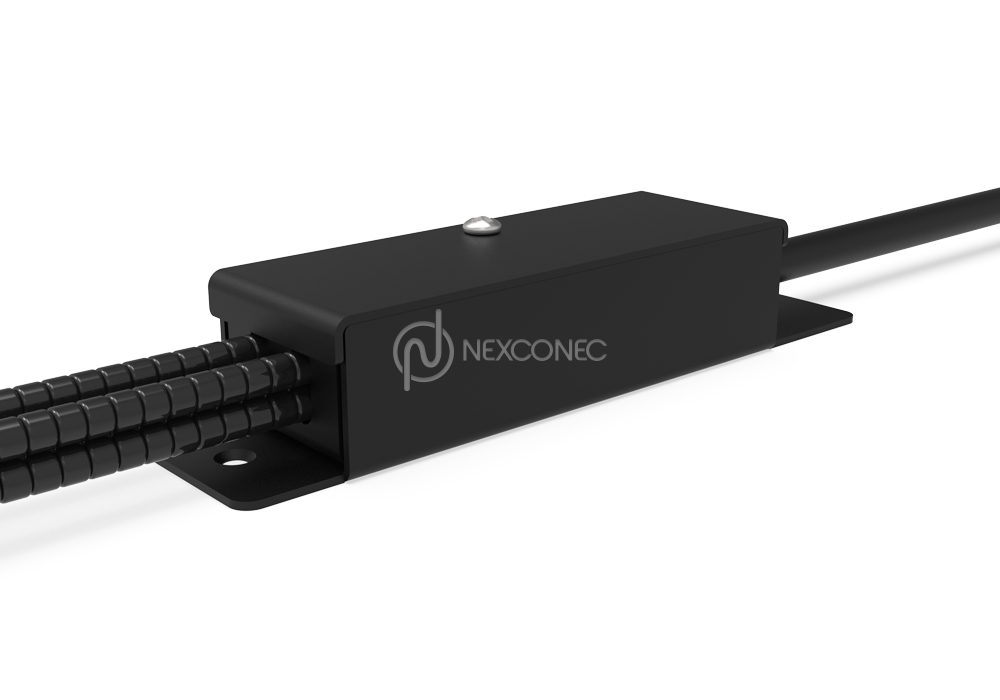

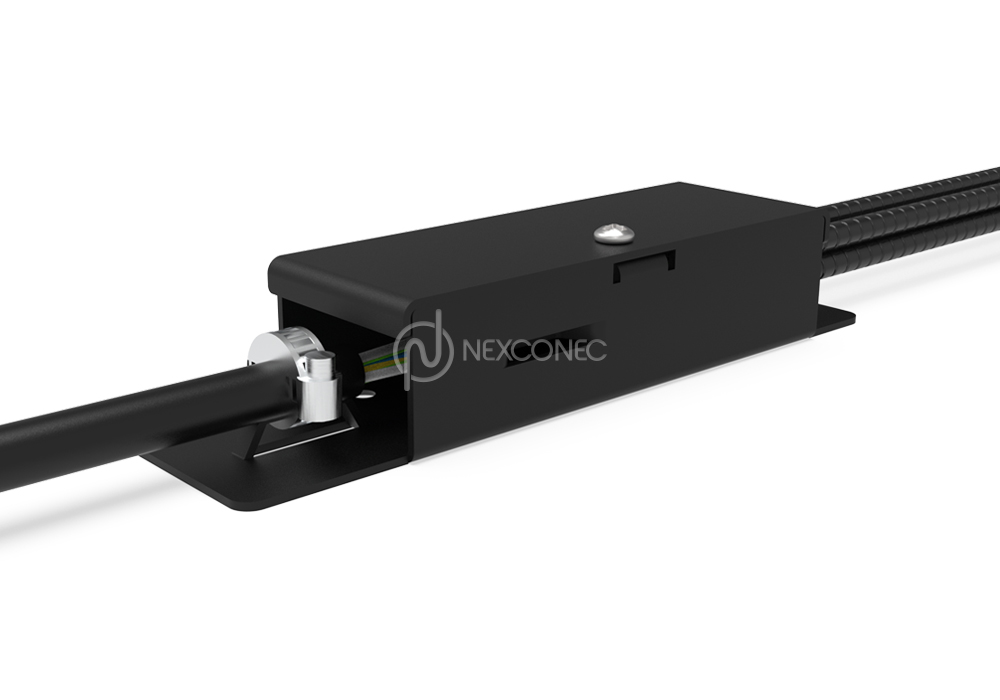

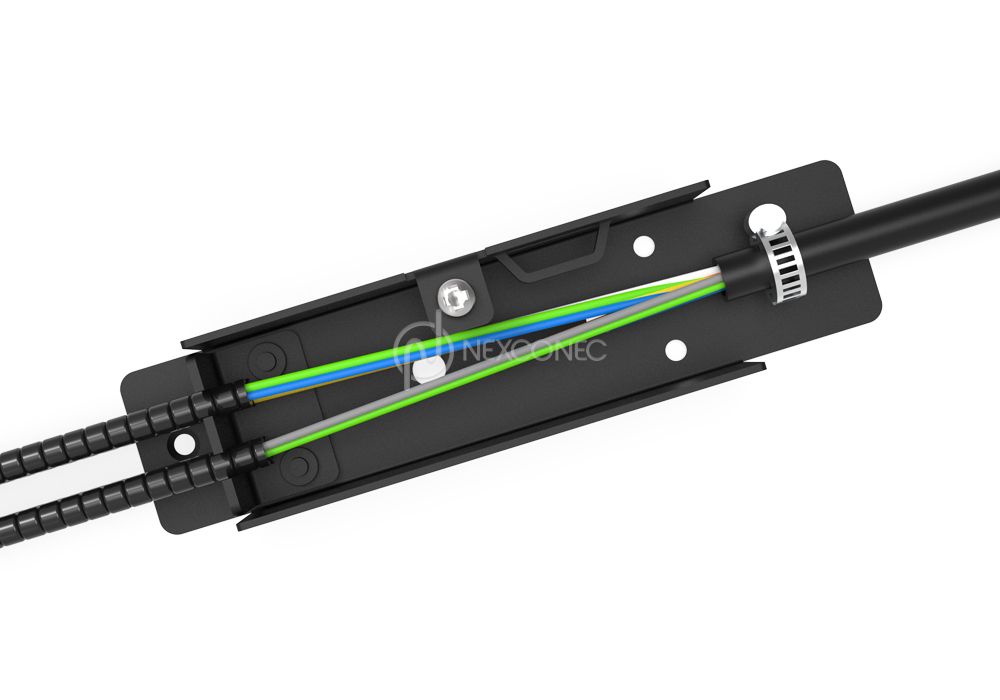

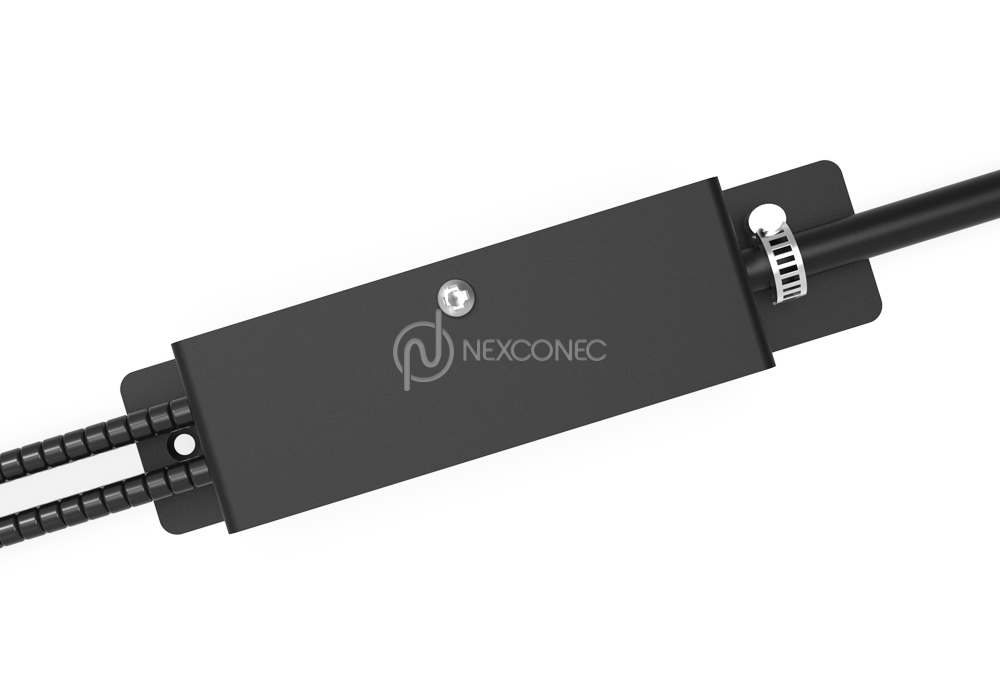

NEXCONEC® Mini Fiber Transition Breakout Box solution is designed for enhanced cable management, helping to organize incoming multi-fiber cables into separate, clearly defined conduits for streamlined routing and improved accessibility. This compact breakout unit serves as a dependable transition point, enabling clean and orderly connections to NGX or LGX splice modules, as well as other standard splicing units or termination panels.
Its straightforward design simplifies installation and reduces cable congestion, making it an ideal choice for indoor fiber networks. The breakout box is engineered to support up to 6 corrugated tubes, offering flexible distribution to meet diverse cabling requirements.
PRODUCT HIGHLIGHTS

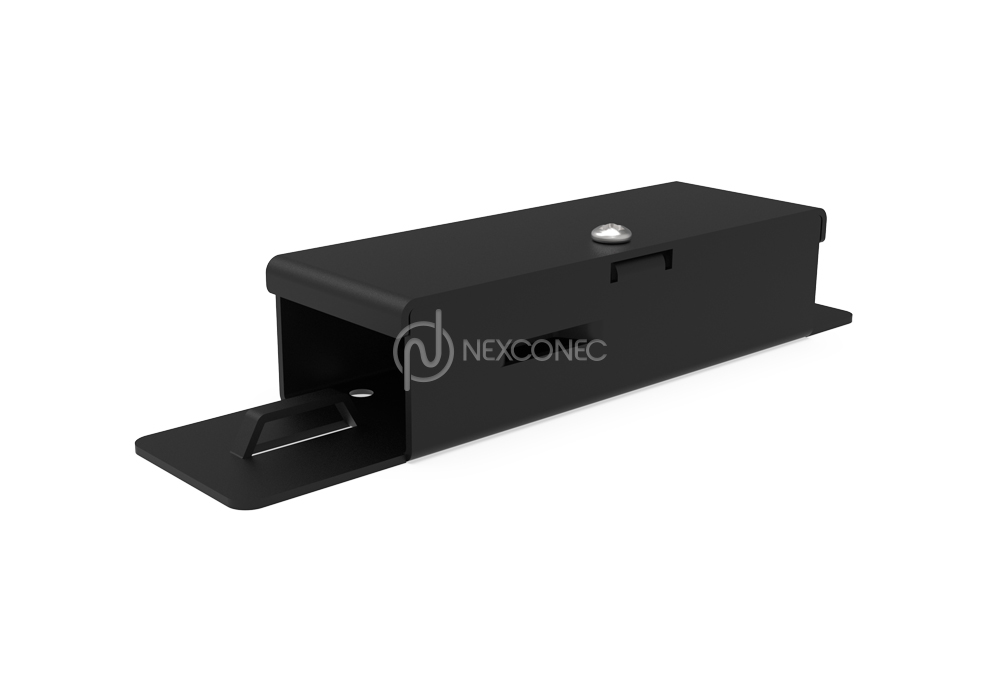

- Robust and reliable metal breakout box enclosure with removable cover
- 72FO capacity or Up to 144FO (If 2x Microtubes of 12FO per tube)
- Up to 6 conduits of 5mm
- Integrated Bend Radius Protection
- Quick and easy installation
FEATURES
- Robust and reliable metal breakout box enclosure with removable cover
- 72FO capacity or Up to 144FO (If 2x Microtubes of 12FO per tube)
- Up to 6 conduits of 5mm
- Integrated Bend Radius Protection
- Quick and easy installation
APPLICATIONS
- Enterprise network, Telecom & Datacenter
- Smart Building Infrastructure
- Broadcast & AV Networks
- Fiber Optic Breakout for Security Systems
- Indoor applications
| Parameters | Value |
|---|---|
| Dimensions (W x D x H) | 30.5 x 125 x 22.2 mm |
| Material | Cold Rolled Steel |
| Housing Color | Black (RAL 9004) |
| Application | Indoor IP20 |
| Number of Tubes | Up to 6 conduits of 5mm |
| Fiber Capacity | 72FO (Up to 144FO, If 2x Microtubes of 12FO per tube) |
| Net Weight | 0.2 Kg |
| Compliance | RoHS, REACH & SvHC |
| Fixation | Zero U, with screws |
| Accessories Included | 1x Metal Cable tie |
| Part Number | Product Description |
|---|---|
| TRBR04 | Mini Fiber Transition Breakout Unit 6x Tubes |
| TUBE5-50 | Corrugated Conduit (Ø 5mm, Inner Ø 3.1mm) Roll of 50 meter |
