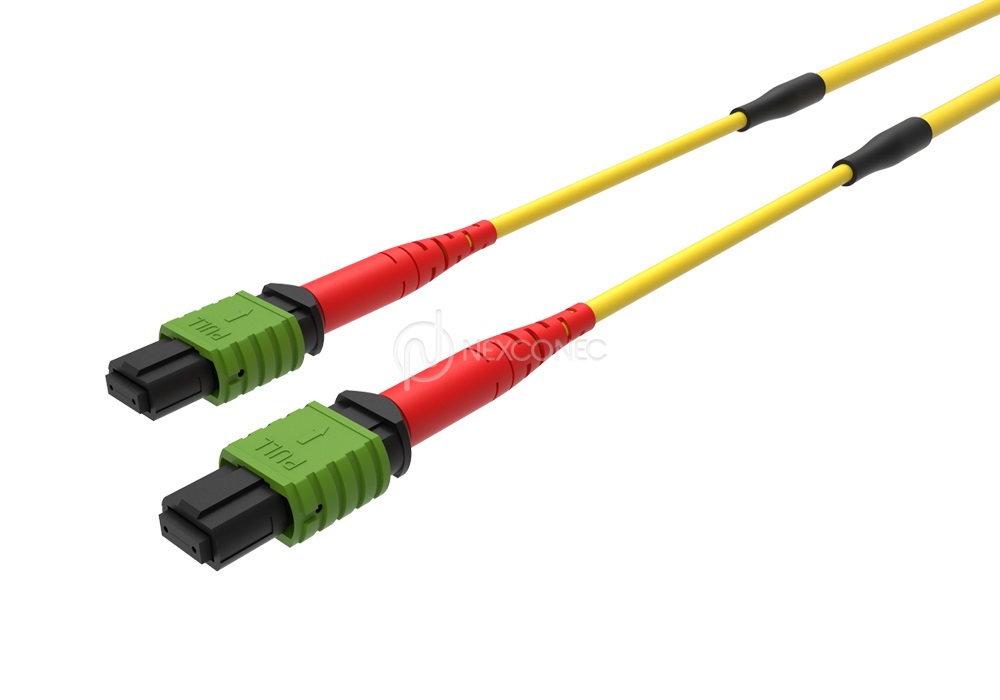

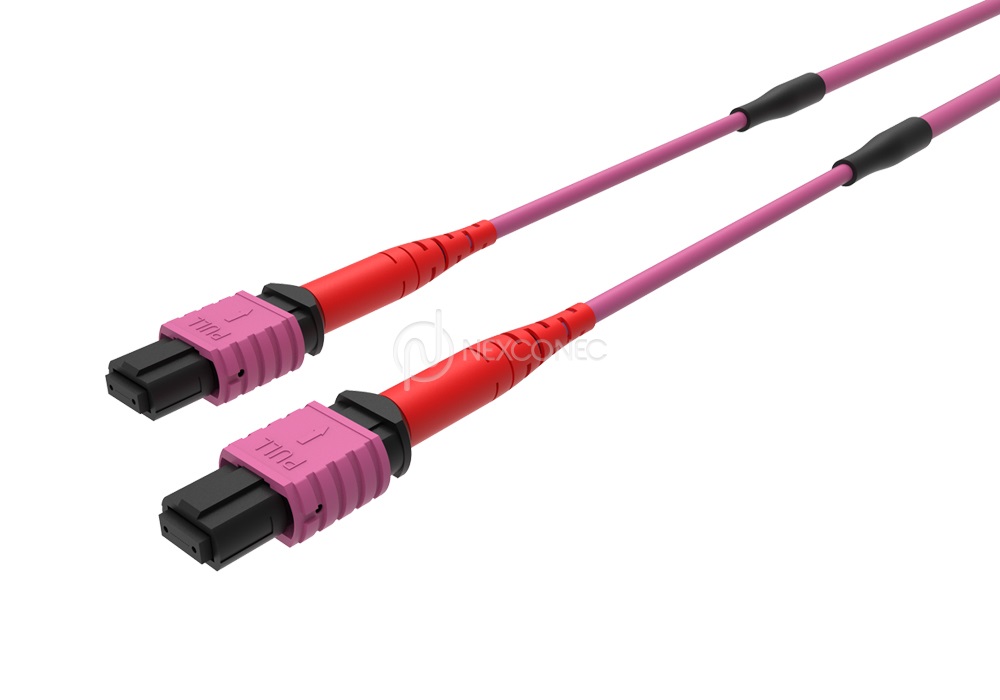

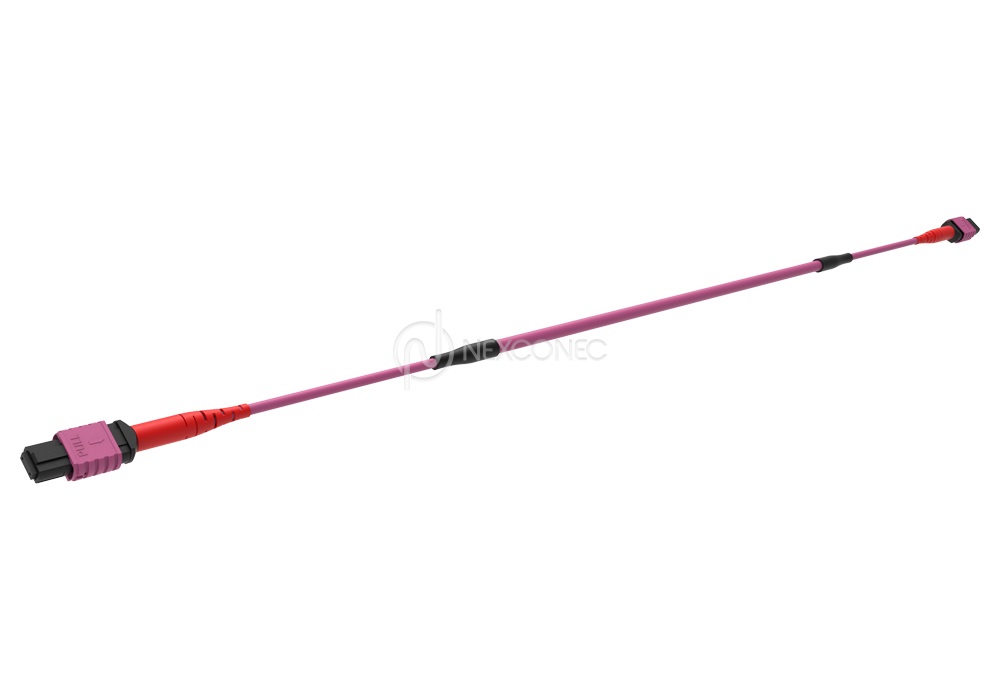

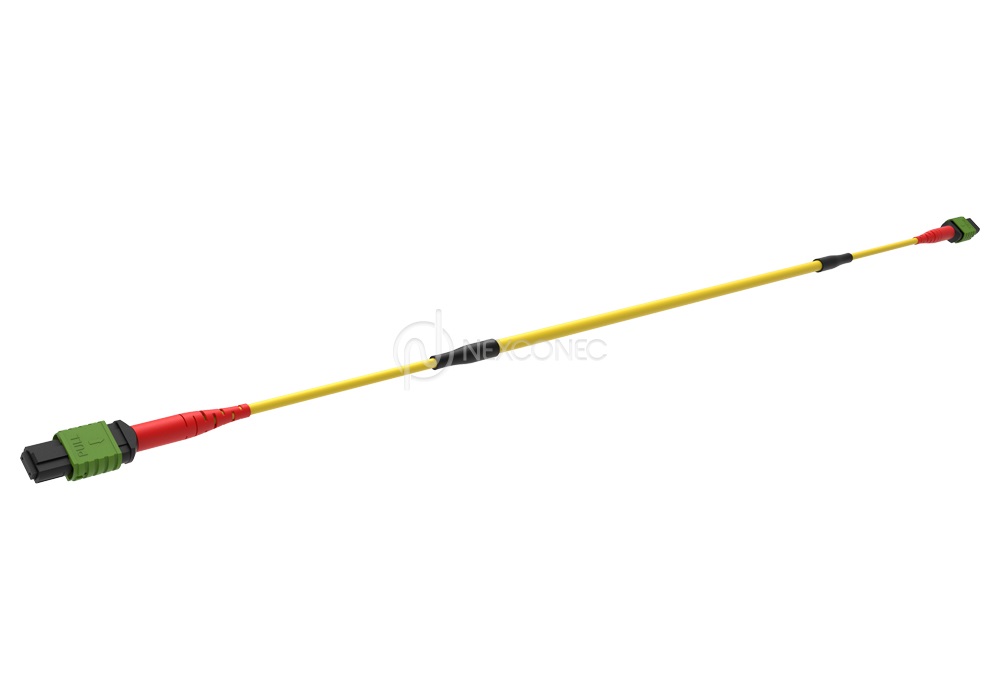

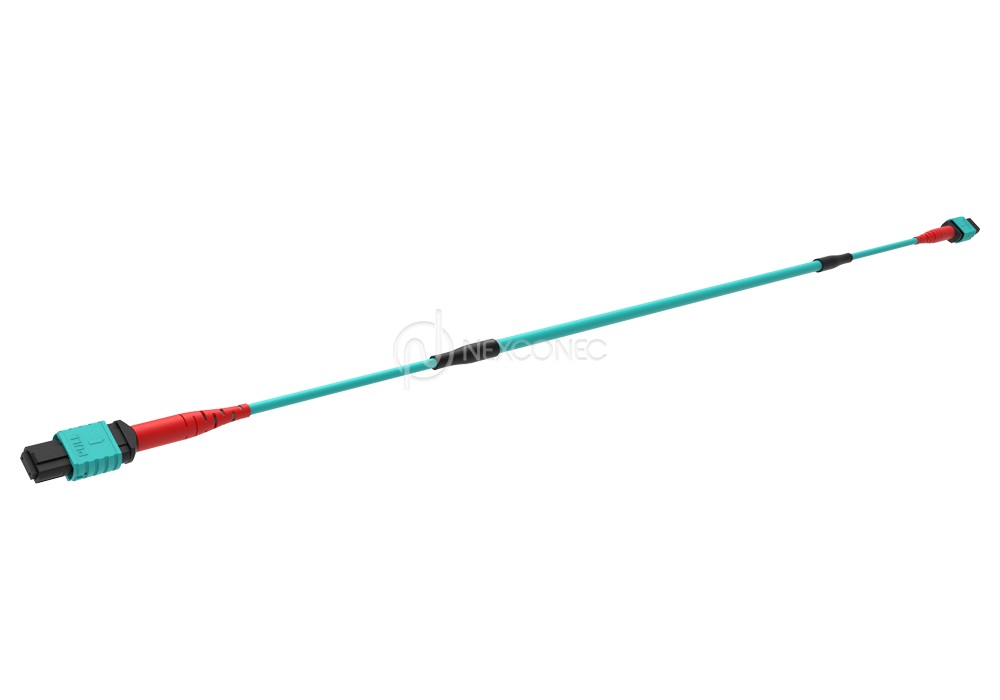

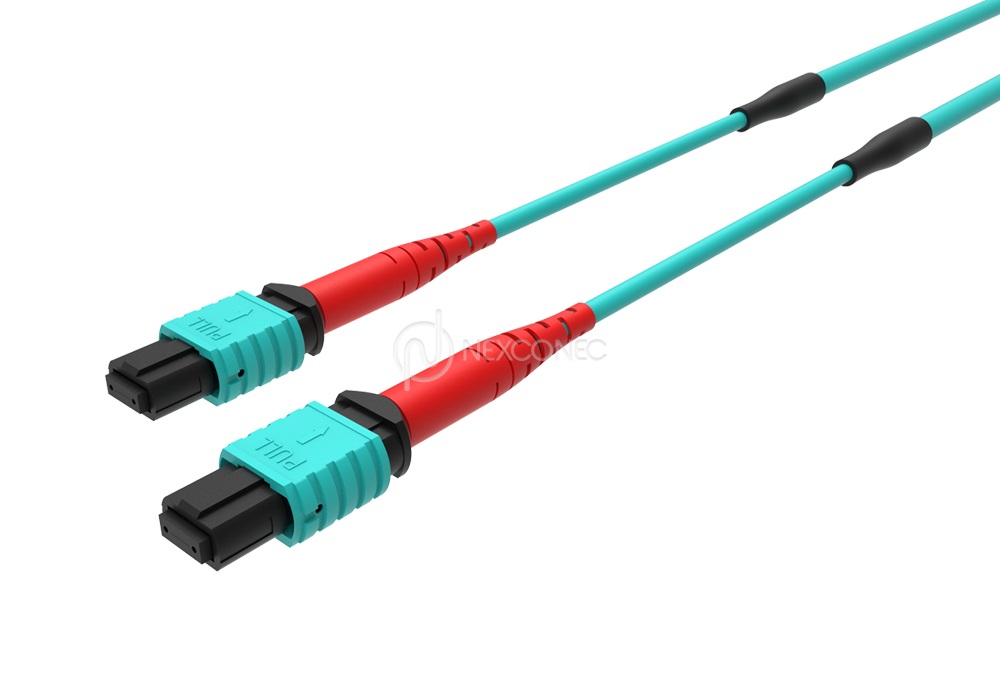

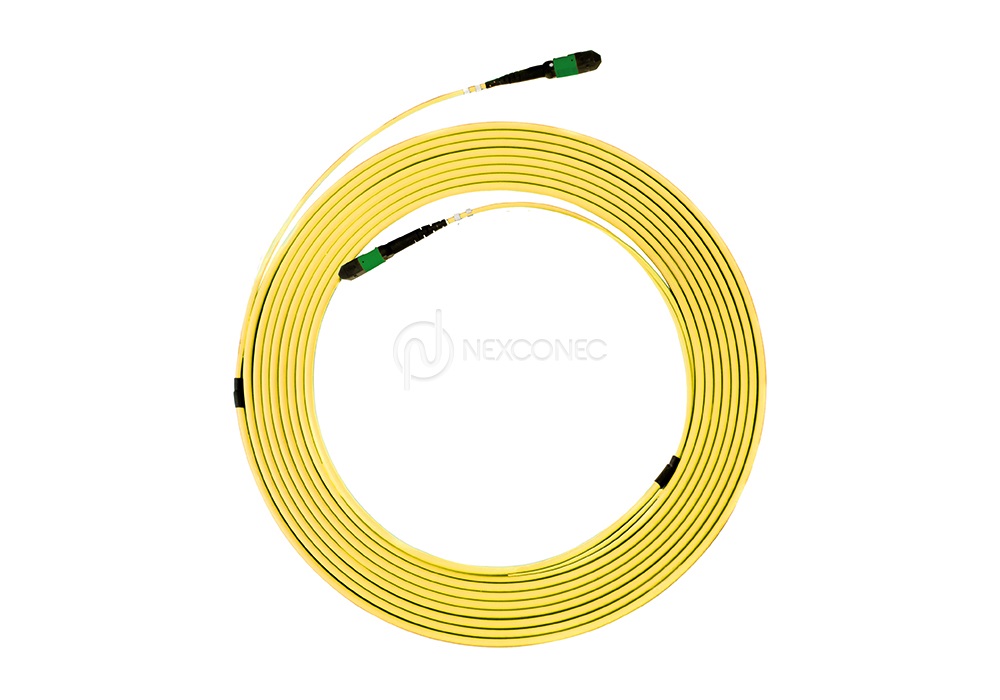

MTP®/MPO Trunks Base-24
NEXCONEC MTP®/MPO 24 fiber ferrule cable assemblies are designed for cable infrastructures which are currently used for, or which are due to be upgraded to, parallel optics 40/100G protocols such as 100G BASE-SR10 or 40G BASE-SR4. The Assemblies are built using 24 fiber ferrule interface, MTP®/MPO connectors, which can be used directly with CFP/CXP 100G transceivers or, when used together with transition modules/cables, can provide 40/100G parallel transceivers or legacy non-parallel optics 4/8/10/16G Ethernet/ fiber channel protocol networks.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality

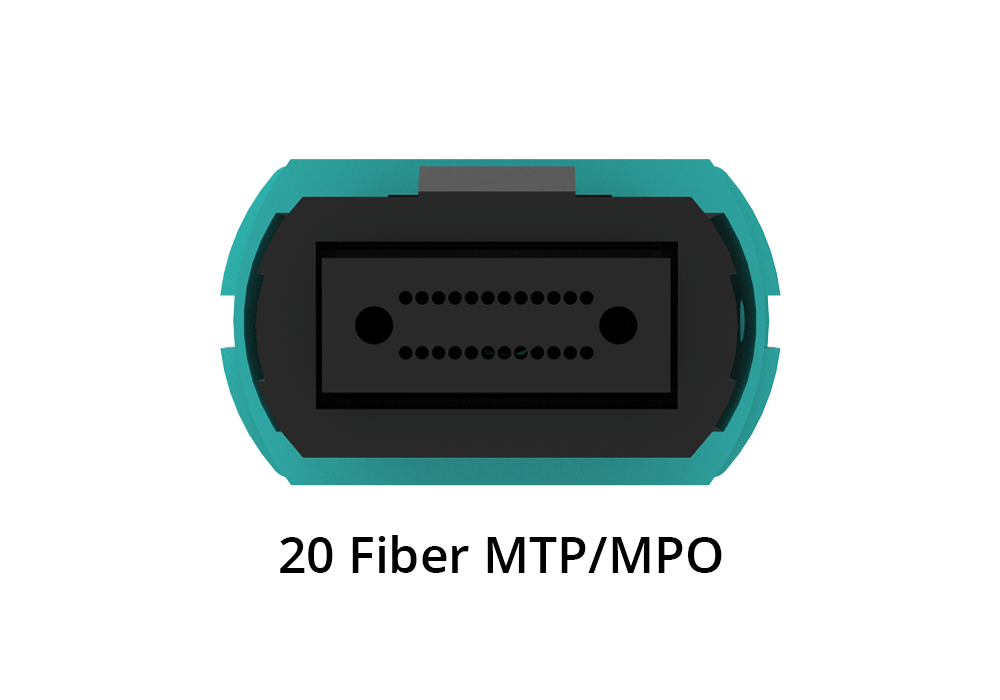

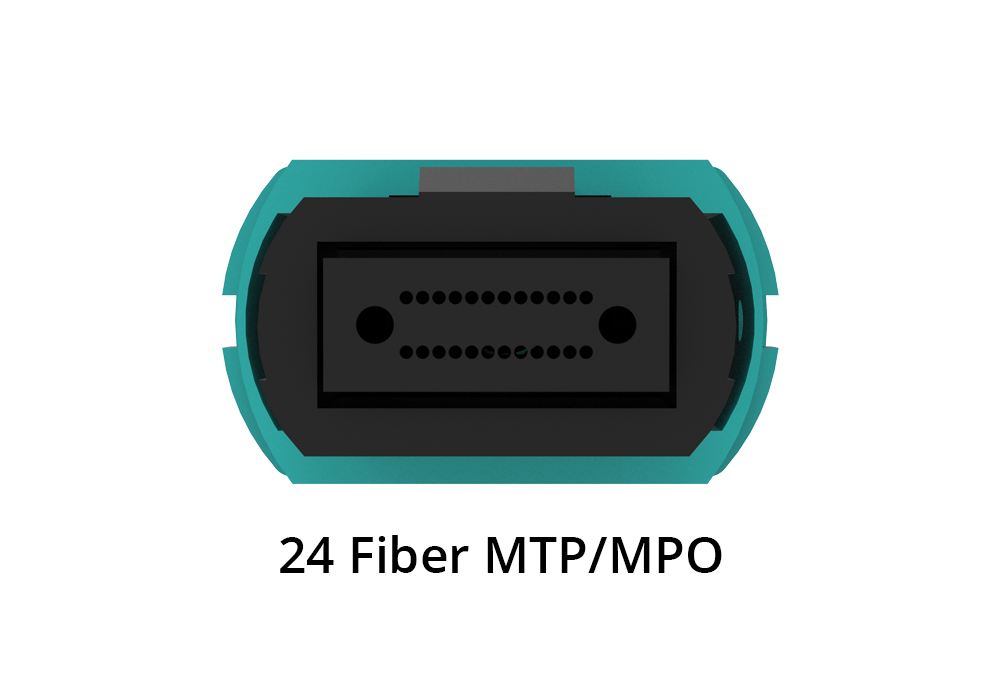

- Cable terminated with base-20, base-24 fiber MTP/MPO Connectors
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- CPR Euro classes certified on demand
- Telecommunication networks
- Data center infrastructure
- Parallel optics: 100Gbps protocol
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM APC – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM APC – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
Note: MTP®/MPO Single mode (SM) Connectors are APC by default. But Multimode (MM) Connectors are available in UPC and APC options.
| Cable Characteristics | Units | Value | ||||
|---|---|---|---|---|---|---|
| Fiber Count | 24 | 48 | 72 | 96 | 144 | |
| Outer Diameter | mm | 4.5 | 9.6 | 11.2 | 13.3 | 17.5 |
| Tensile Strength (Long Term) | N | 150 | 200 | 300 | 300 | 300 |
| Tensile Strength (Short Term) | N | 400 | 600 | 1000 | 1000 | 1000 |
| Crush Resistance (Short Term) | N/100mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Minimum Bending Radius | mm | 10D (Static) / 20D (Dynamic) | ||||
| Cable/Tail Material | LSZH or PVC | |||||
| Strength Member | Aramid Yarn | |||||
| Operating Temperature | ˚C | -20 ~ +70 | ||||
| CPR Reaction to Fire Classification | Certified | Cca-s1a,d0,a1 | B2ca-s1a,d0,a1 | |||
*** For higher fiber counts please refer to our cable datasheet.
