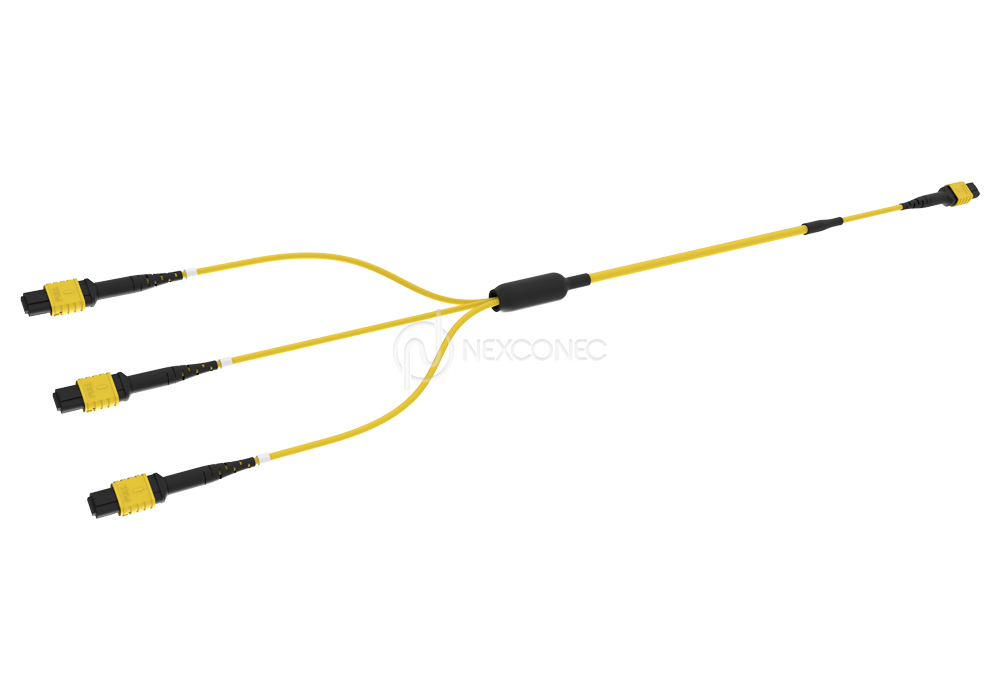

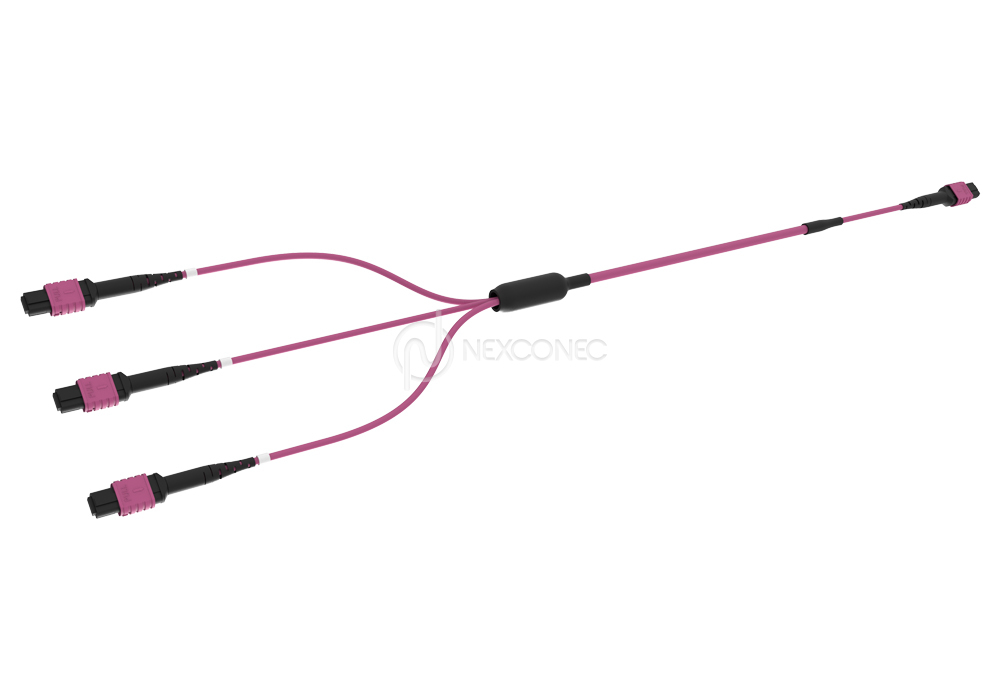

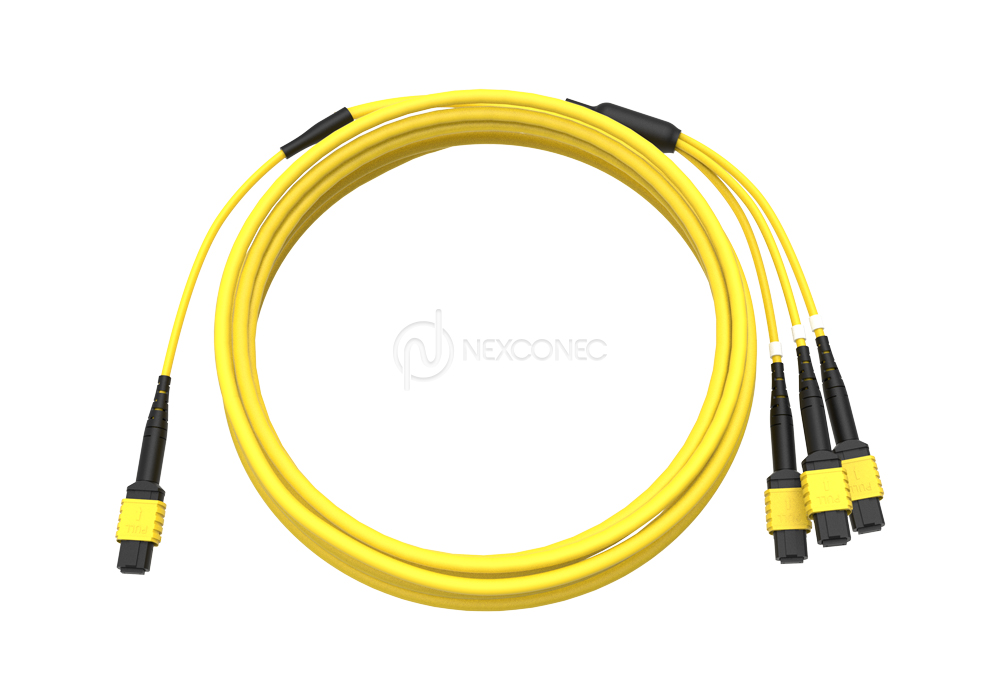

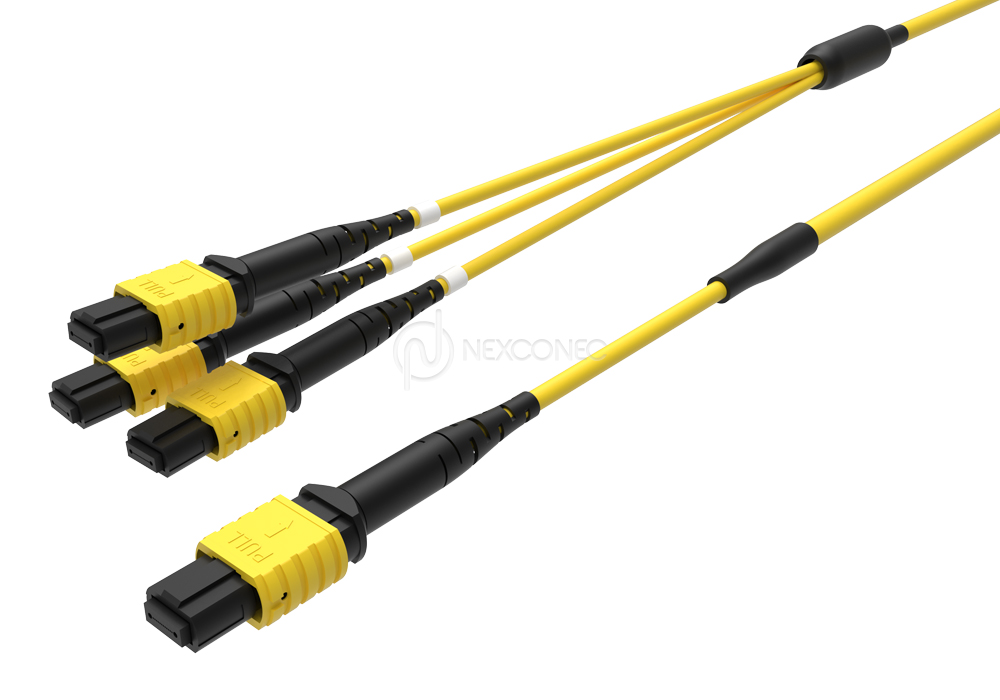

MTP®/MPO Trunks 1x(Base-24) to 3x(Base-8)

MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)
MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8) MTP/MPO Trunks 1x(Base-24) to 3x(Base-8)

The NEXCONEC® MTP®/MPO Trunks are compact, high-density fiber connector assemblies designed for use in high-density environments. These trunks are ideal for connecting equipment or interconnecting modules/panels in data center applications up to 100G. Our MTP®/MPO connectors come in both Standard and Elite versions to accommodate the varying power budget needs of our customers.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

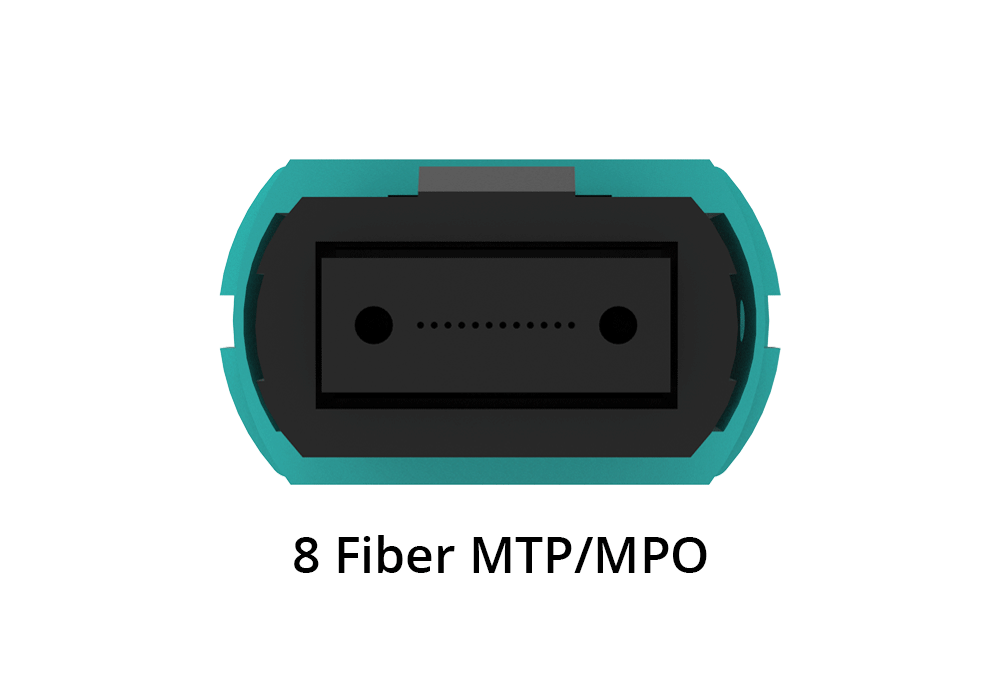

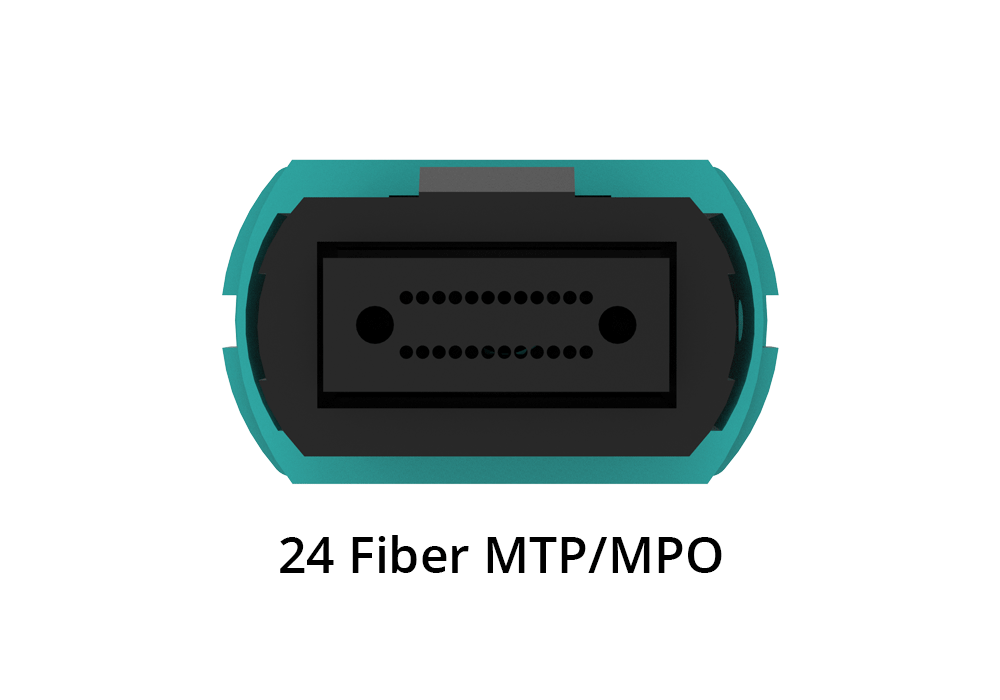

  • Cable terminated with 1x (base-24) & 3x (base-8) fiber MTP®/MPO Connectors
  • MPO push/pull release boot
  • Available in custom length and cable construction is 24 fibers
  • CPR Euro classes certified on demand
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality
  • Cable terminated with 1x (base-24) & 3x (base-8) fiber MTP®/MPO Connectors
  • MPO push/pull release boot
  • Available in custom length and cable construction is 24 fibers
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
APPLICATIONS
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network
  • Supports up to 100G applications

MTP®/MPO CONNECTOR SPECIFICATIONS

Parameters IL – Max IL – Typical RL
SM APC – Standard 0.75 dB 0.40 dB > 60 dB
SM APC – Premium 0.35 dB 0.20 dB > 60 dB
MM – Standard 0.60 dB 0.40 dB > 20 dB
MM – Premium 0.35 dB 0.20 dB > 20 dB
Note: MTP®/MPO Single mode (SM) Connectors are APC by default. But Multimode (MM) Connectors are available in UPC and APC options.

CABLE CHARATERISTICS

Parameters Units Value
Fiber Count 24F
Number of Fibers per Tube 24
Number of Micro Tubes 1
Outer Diameter mm 4.5
Tail Diameter mm 3.0
Tensile Strength (Long Term) N 150
Tensile Strength (Short Term) N 400
Crush Resistance (Long Term) N/100mm 300
Crush Resistance (Short Term) N/100mm 1000
Min. Bending Radius mm 10D (Static) / 20D (Dynamic)
Cable Jacket Material LSZH or PVC
Strength Member Kevlar, Aramid Yarn
Storage Temperature ˚C -20 ~ +70
Operating Temperature ˚C -20 ~ +70
Installation Temperature ˚C -10 ~ +50
Compliance RoHS, REACH & SvHC
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1
