MTP®/MPO Trunks Base-12

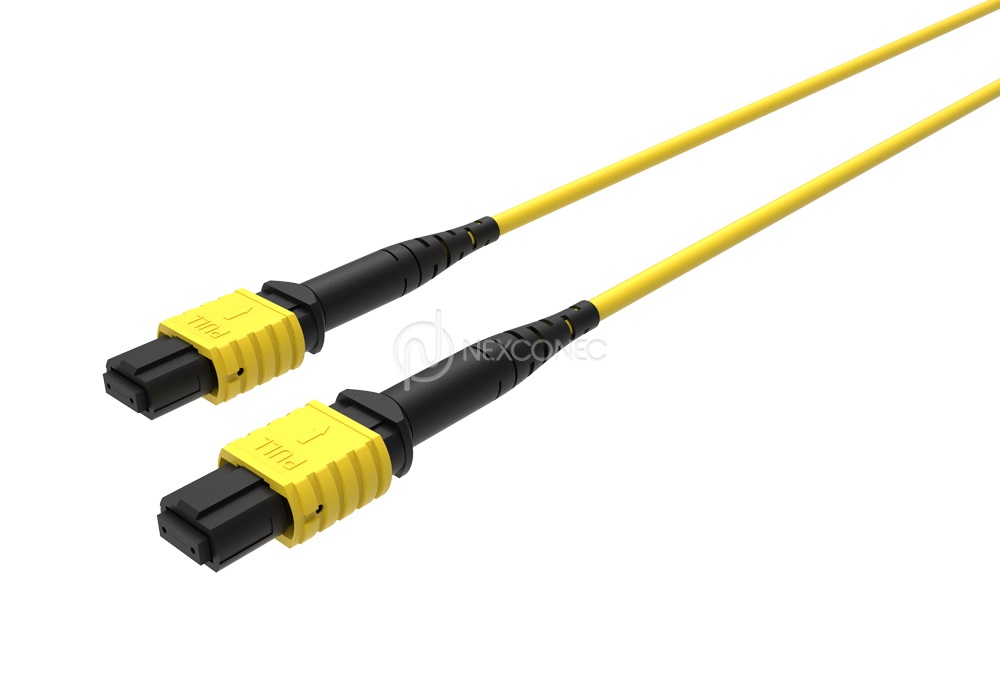

NEXCONEC MTP/MPO Trunks are small form factor high-density fiber connector assemblies used in high-density applications. Our MTP/MPO Trunks are suitable for up to 100G applications to connect between equipment or to interconnect modules/panels in a data center. The MTP/MPO connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality

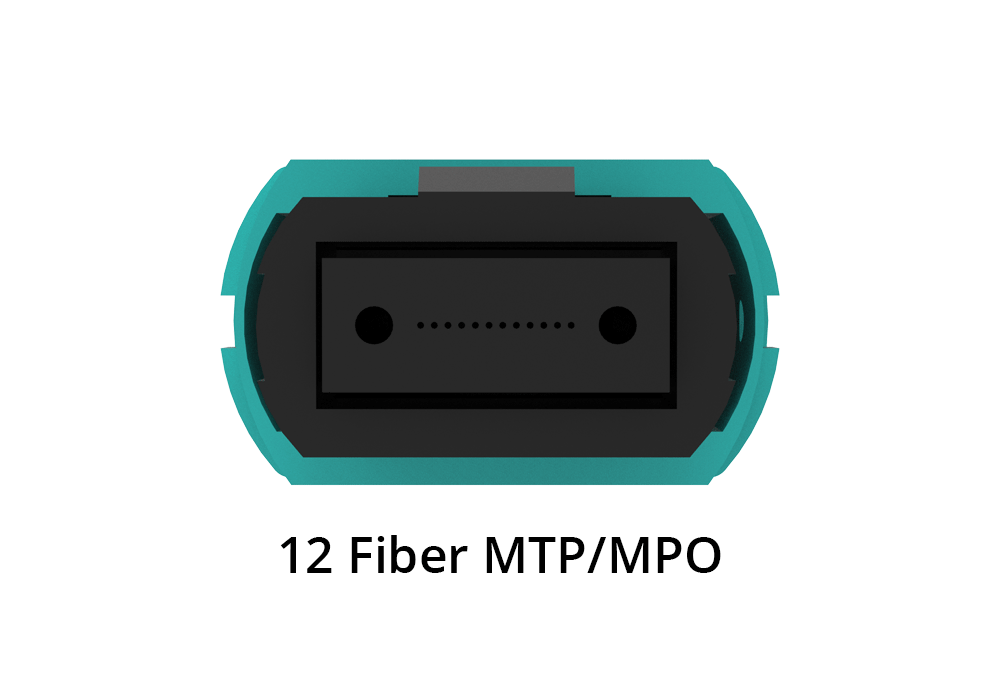

- Cable terminated with base-12 fiber MTP/MPO Connectors
- MPO push/pull release boot

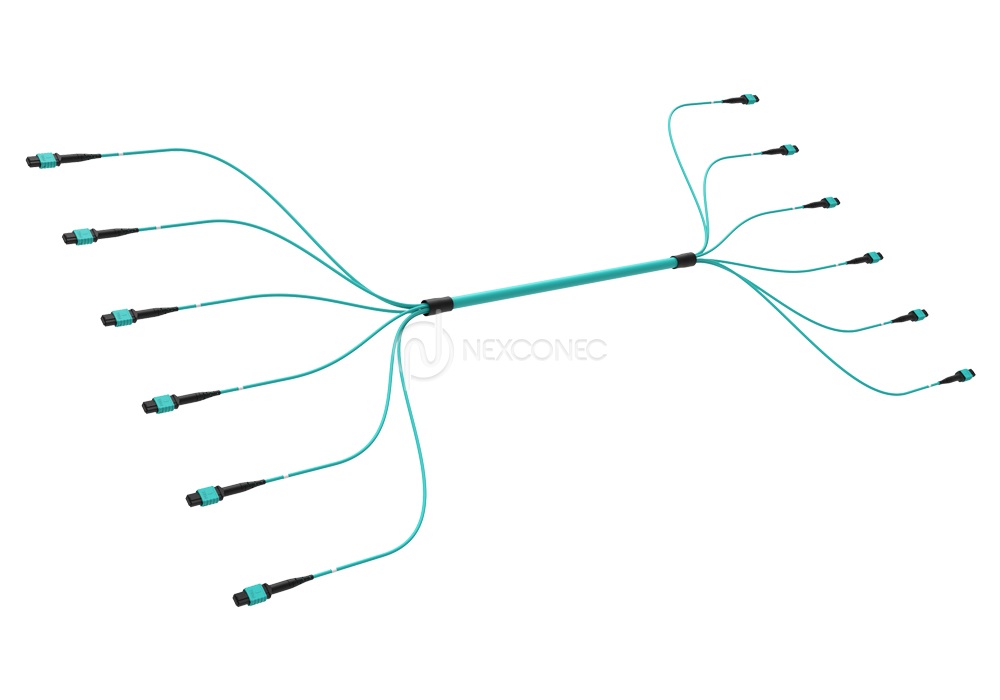

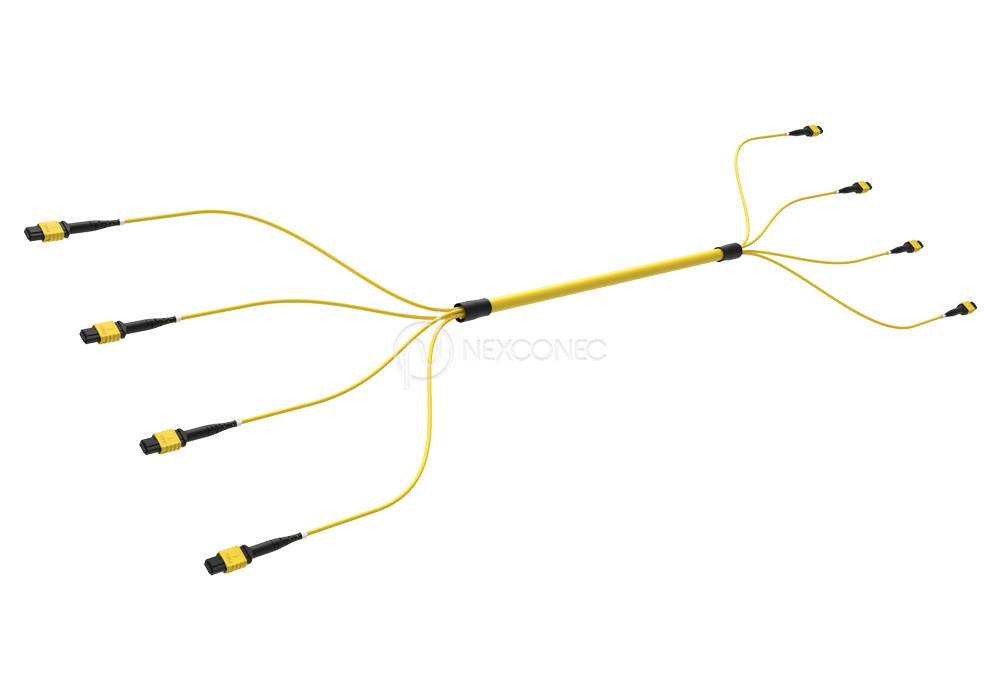

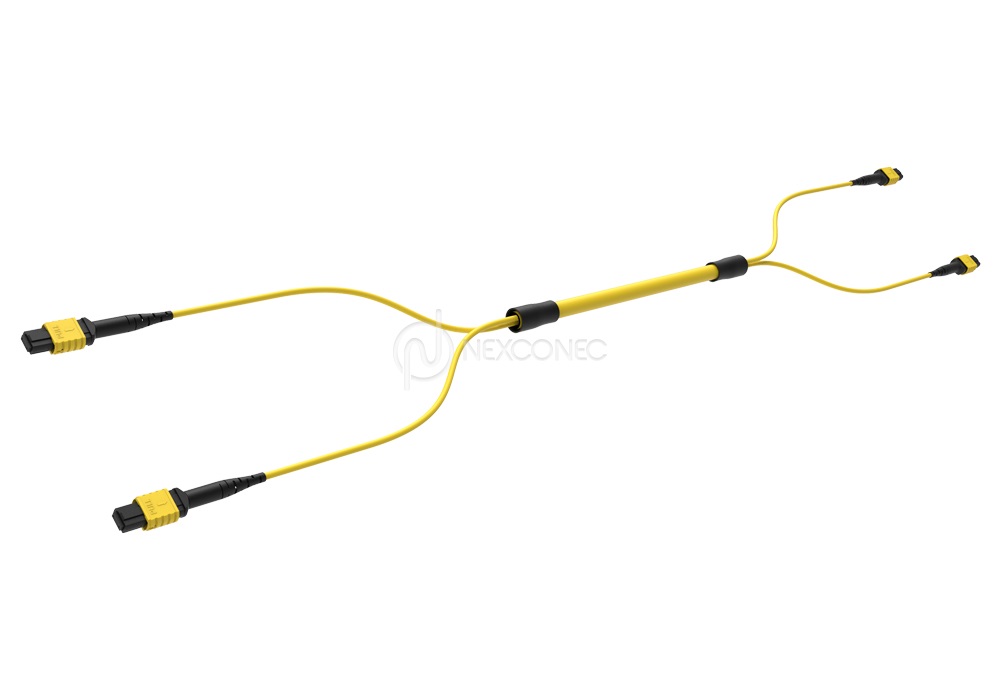

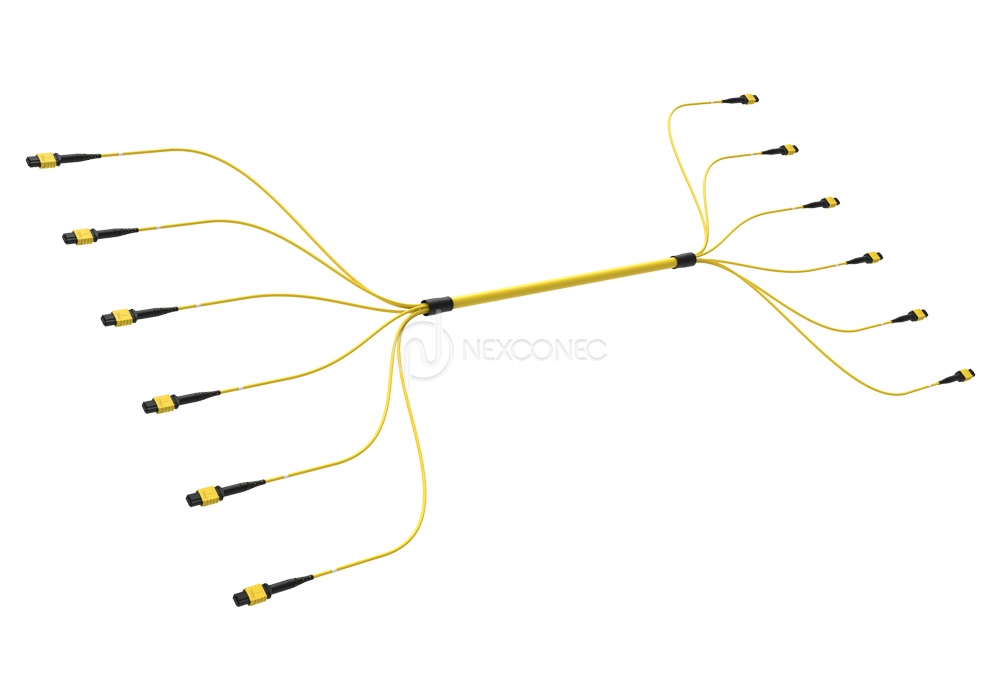

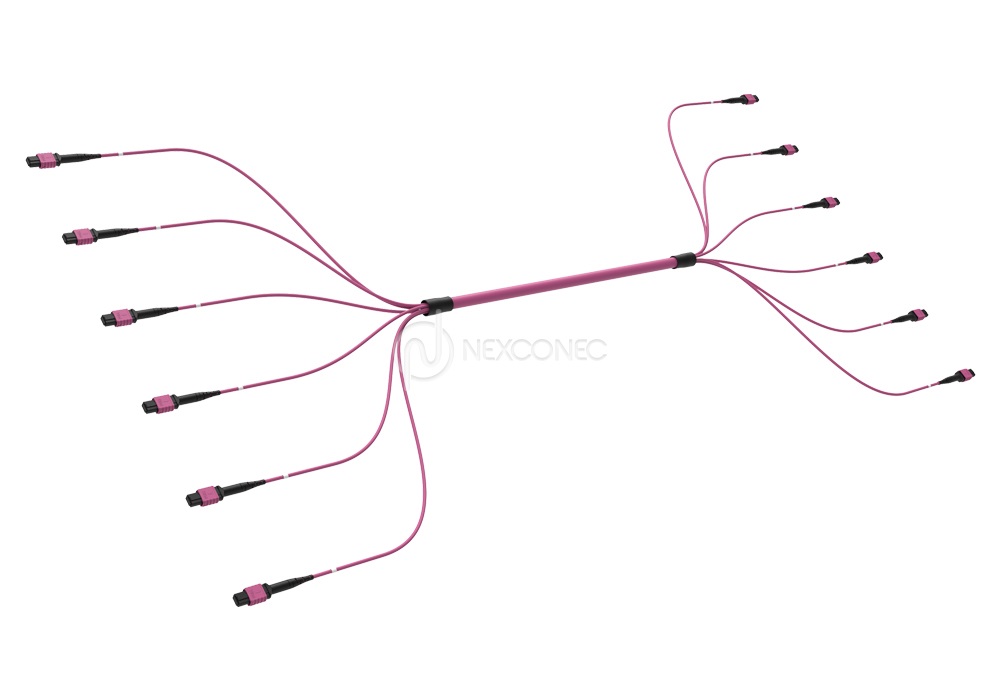

- Available in custom length and cable construction from 12 to 144 fibers
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- CPR Euro classes certified on demand
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Supports up to 100G applications
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM APC – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM APC – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
Note: MTP®/MPO Single mode (SM) Connectors are APC by default. But Multimode (MM) Connectors are available in UPC and APC options.
| Cable Characteristics | Units | Microcable |
|---|---|---|
| 111111111 | 22222222 | 333333333 |
