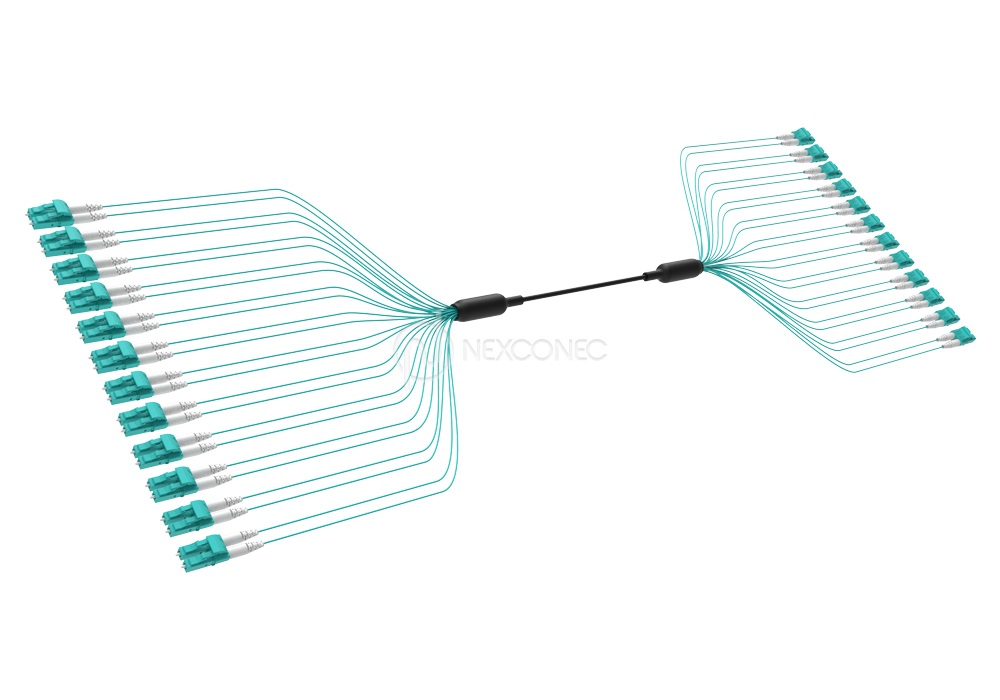

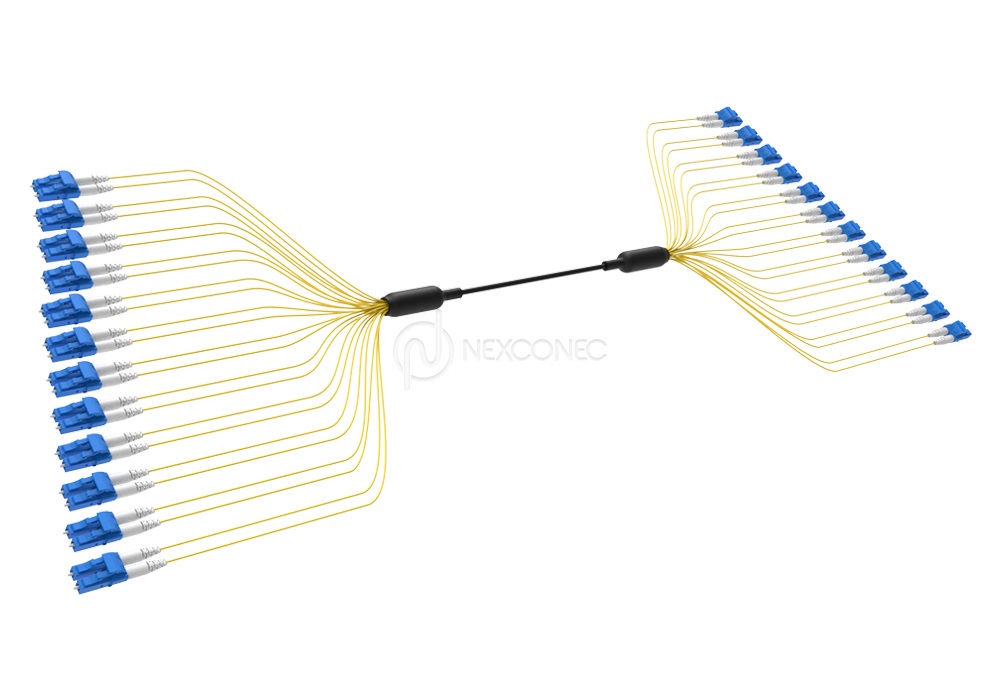

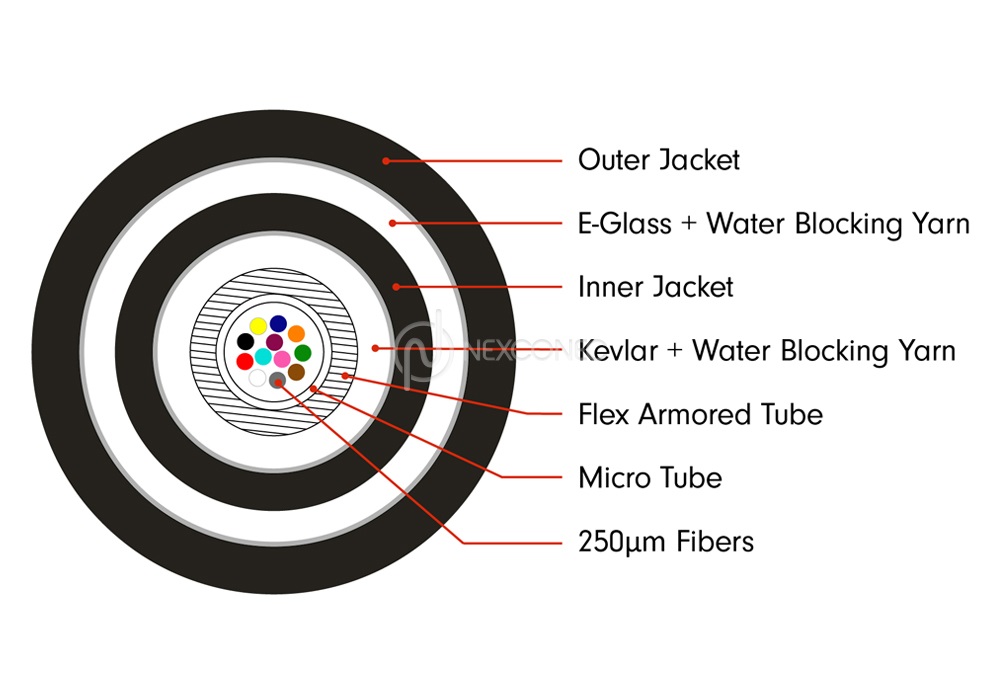

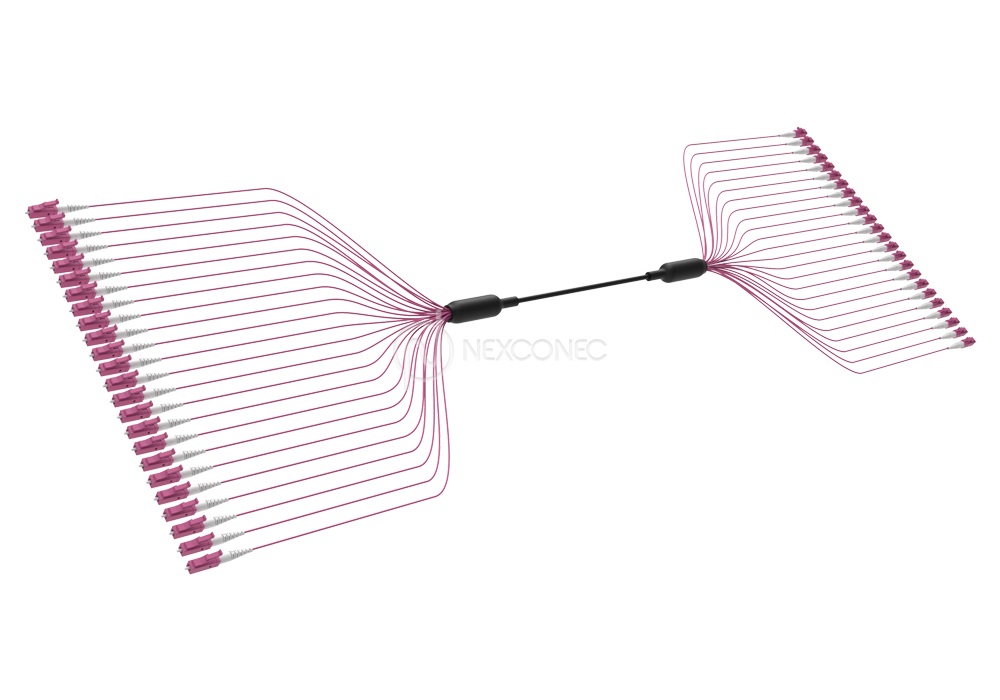

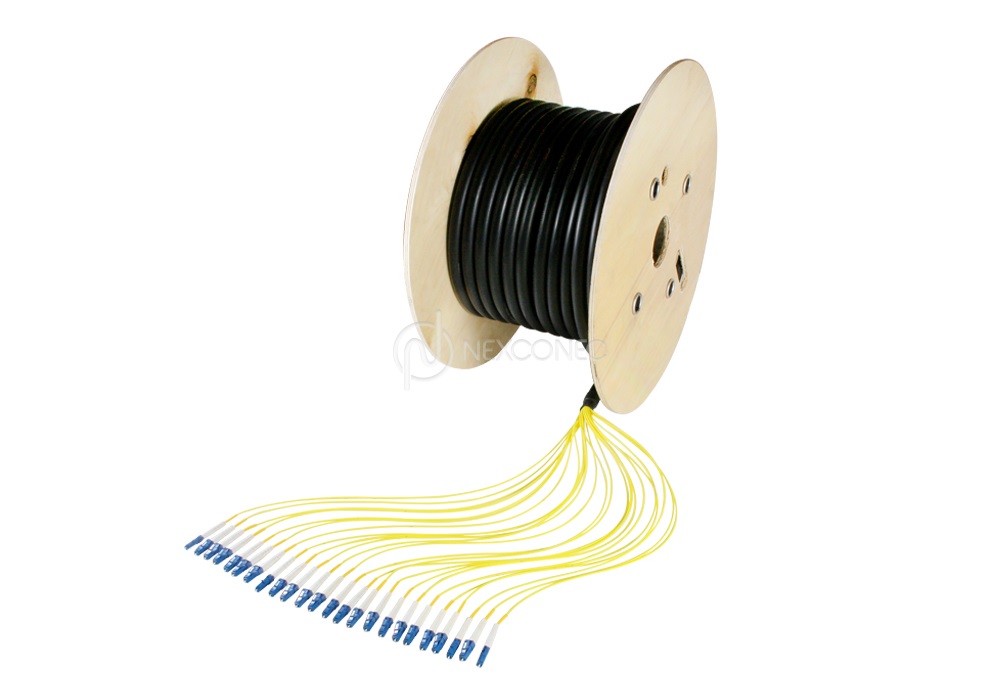

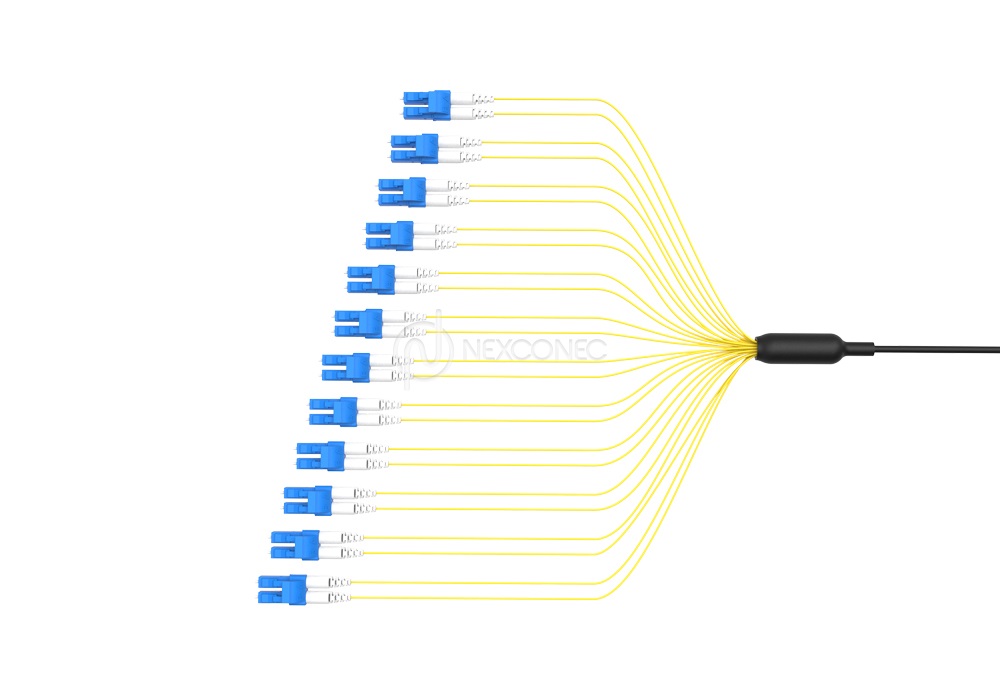

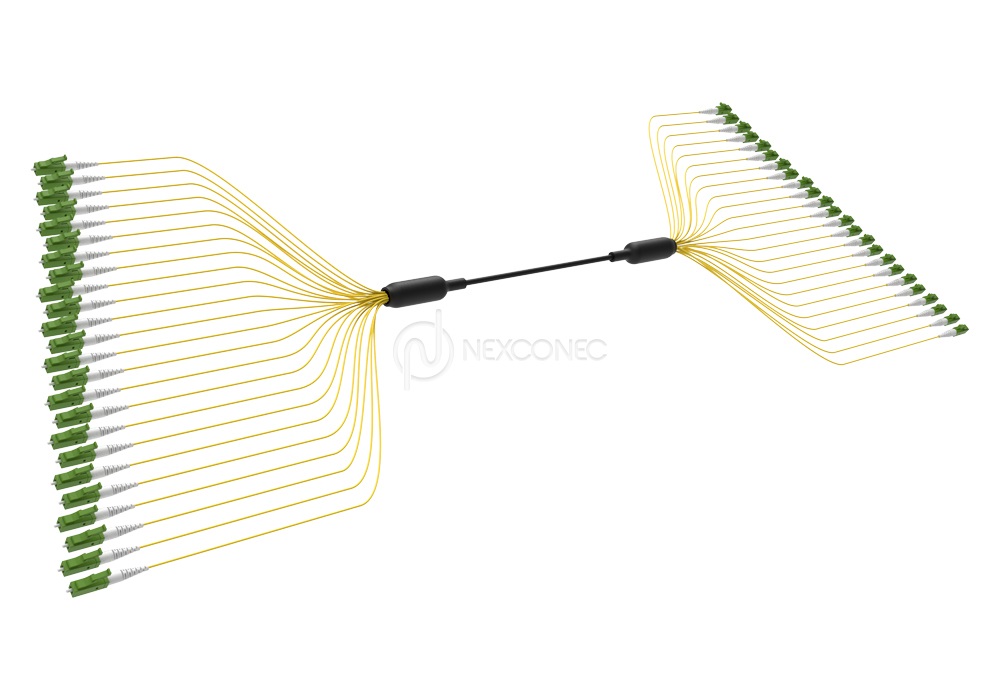

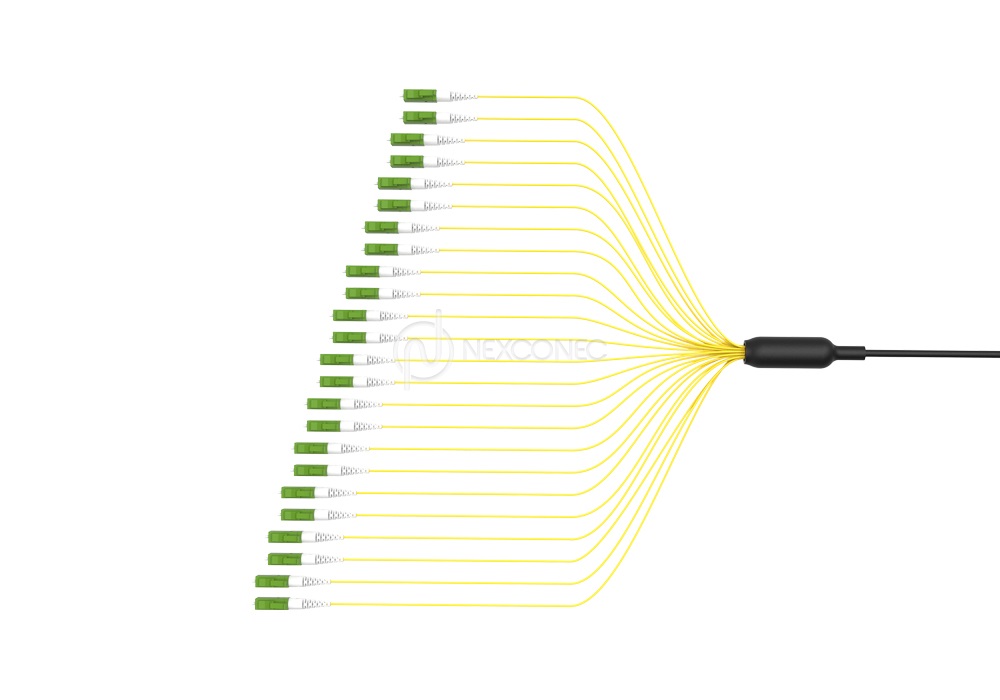

These NEXCONEC® Indoor/Outdoor Preterms are made of Microcore Flex Armored cable, contains 12 of 250μm optical fibers in a micro tube, accommodated in the helical flex armored tube and surrounded by E-glass, Kevlar, water blocking yarn and UV resistant LSZH outer jacket.

These multi-fiber assemblies are available in single-mode or multimode fiber options. It offers quick and cost-effective installation for interbuilding, LAN or Campus wide network. We manufacture preterms with superior fiber/cable performance to withstand outdoor harsh environments and high-quality connectors.

PRODUCT HIGHLIGHTS
  • Standard SM and MM fiber options available
  • Available in LC, SC, FC, ST and other connector types
  • Pulling system optional
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • 900μm or 2mm ruggedized tails
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
FEATURES
  • Standard SM and MM fiber options available
  • Available in LC, SC, FC, ST and other connector types
  • Pulling system optional
  • Conforms to IEC, EIA-TIA, and Telcordia performance requirements
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • 900μm or 2mm ruggedized tails
APPLICATIONS
  • Telecommunication networks
  • LAN or Campus wide Network
  • Internal/External Application
  • Supports up to 100G applications
  • Indoor & Outdoor Jacket Material
SINGLE FERRULE CONNECTOR SPECIFICATIONS
Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB
CABLE CHARACTERISTICS
Parameters Unit Value
Fiber Count 12F
Number of Fibers per Tube 12
Number of Micro Tubes 1
Outer Jacket Diameter mm 4.5±0.2
Inner Jacket Diameter mm 3.0±0.1
Flex Armored Tube Diameter mm 2.1±0.05
Tail Diameter mm 900μm or 2.0mm
Tensile Strength (Long Term) N 150
Tensile Strength (Short Term) N 500
Crush Resistance (Long Term) N/100mm 600
Crush Resistance (Short Term) N/100mm 1200
Min. Bending Radius mm 10D (Static) / 20D (Dynamic)
Cable Jacket Material UV-LSZH (Black)
Armoring Flex Armored Helical Tube
Strength Member E-glass, Kevlar
Storage Temperature ˚C -40 ~ +70
Operating Temperature ˚C -40 ~ +70
Installation Temperature ˚C -10 ~ +50
Compliance RoHS, REACH & SvHC
