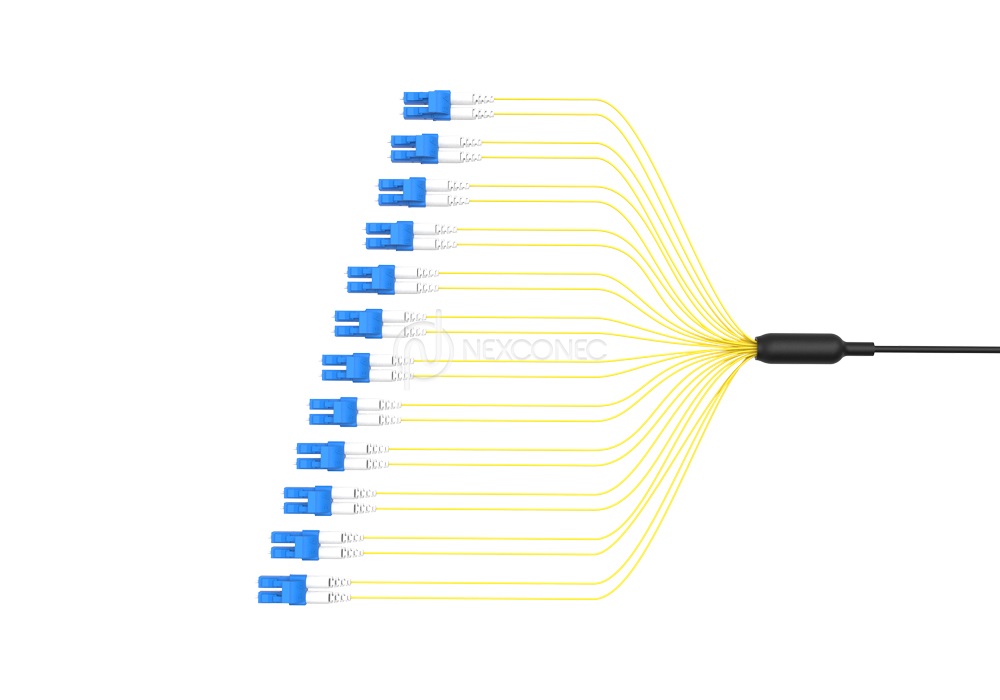

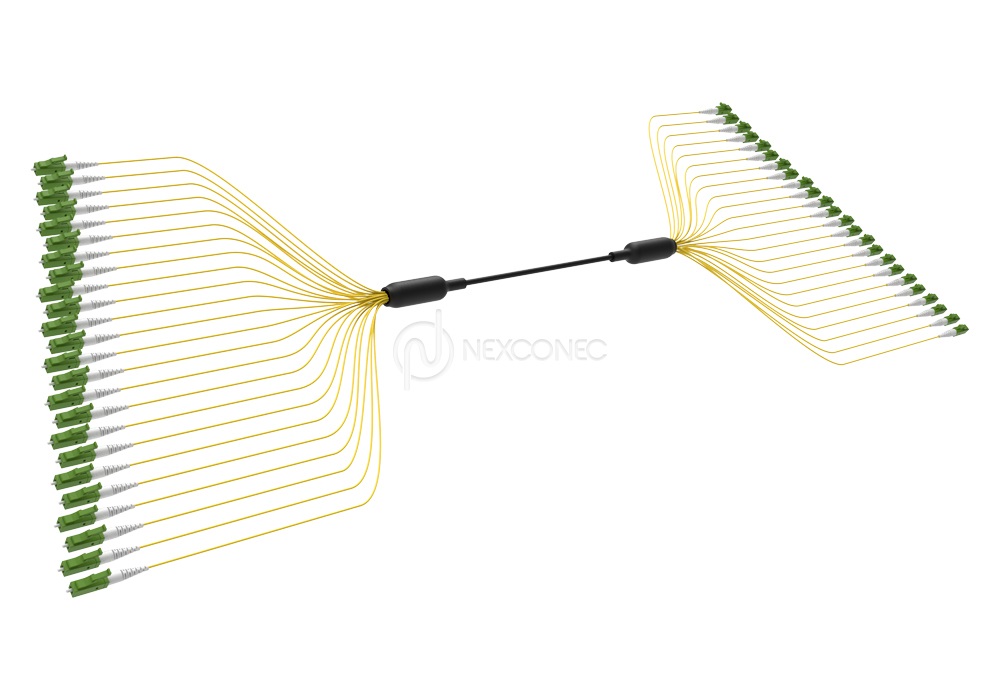

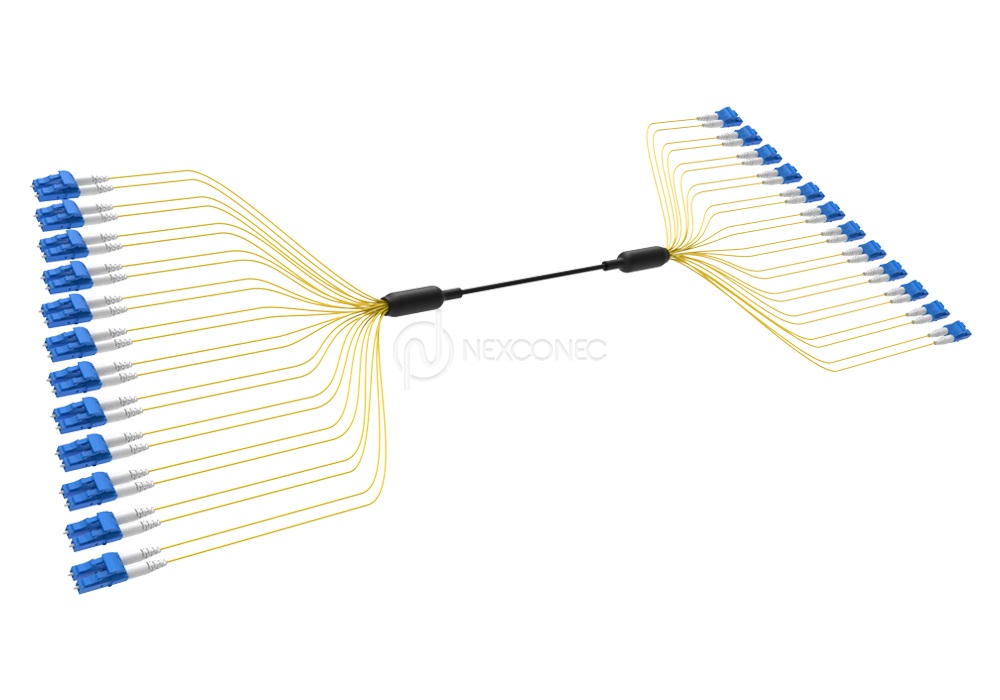

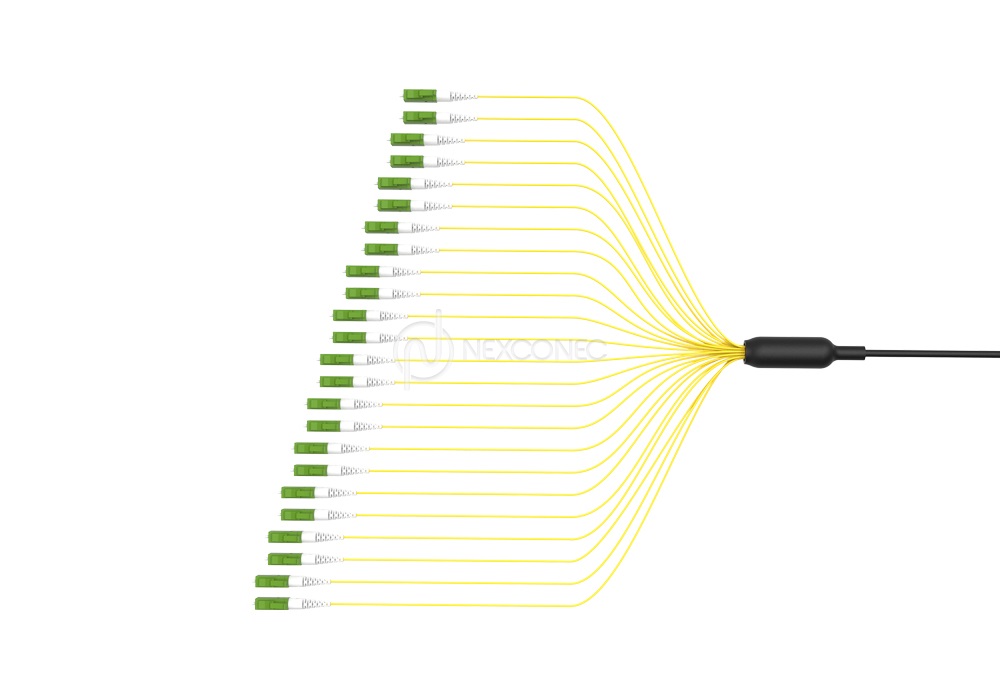

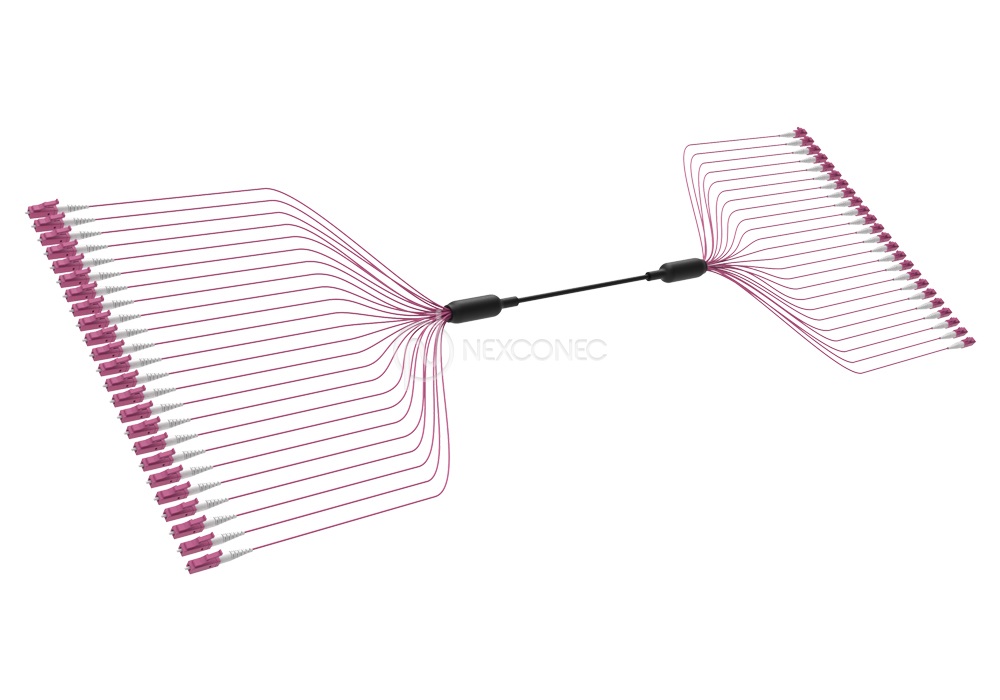

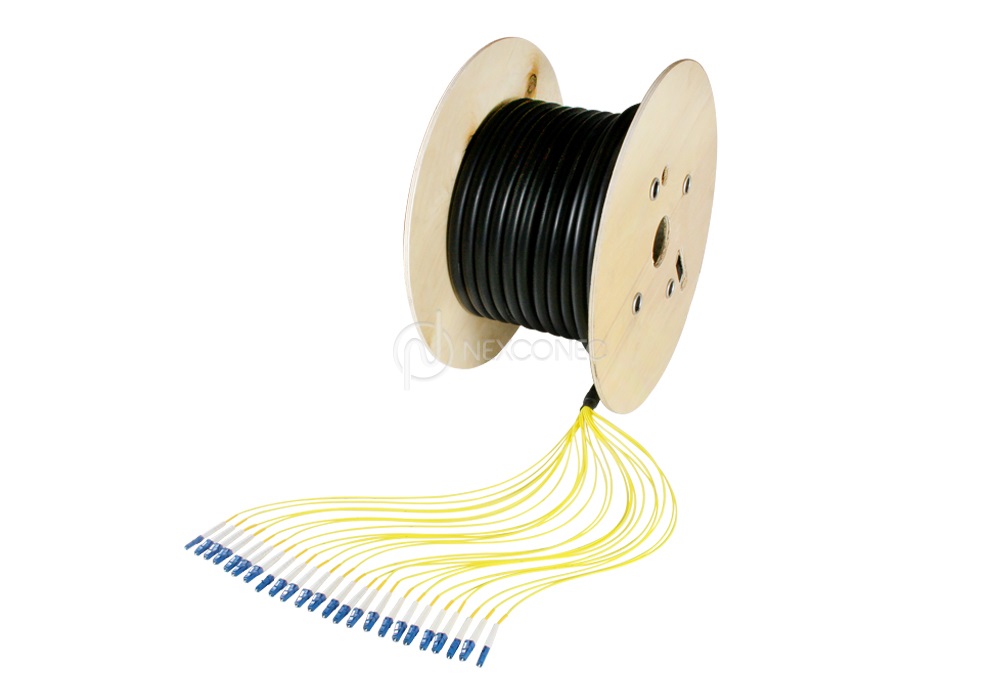

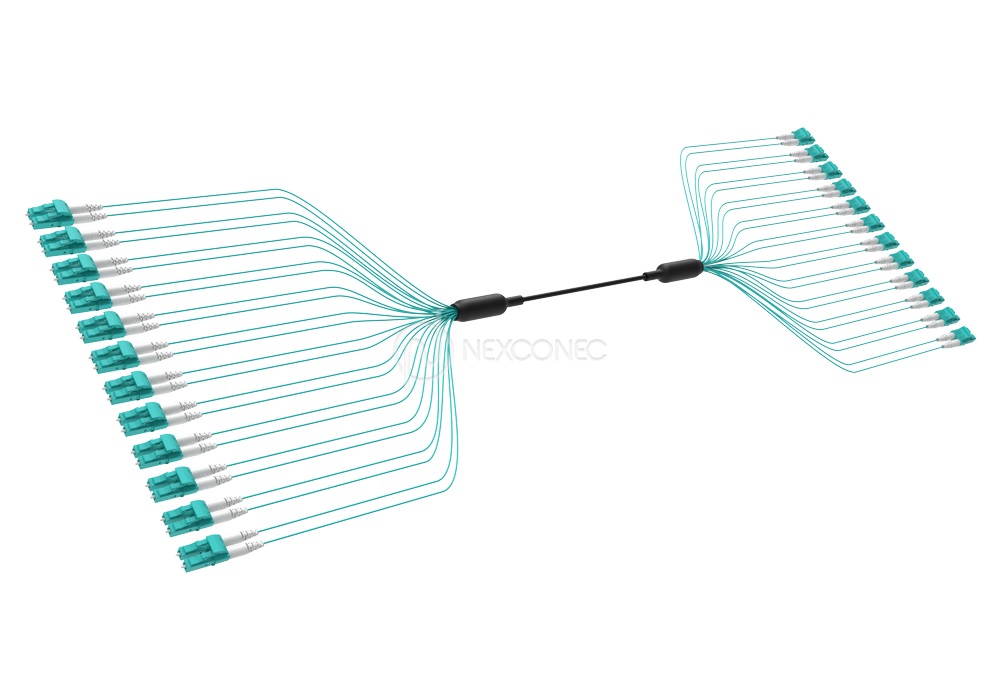

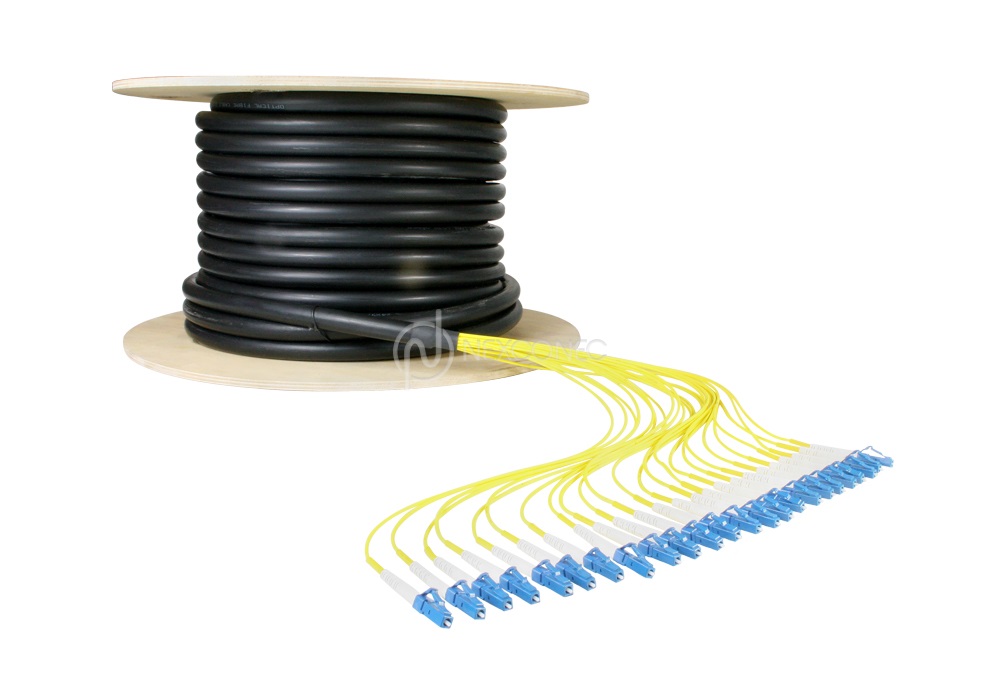

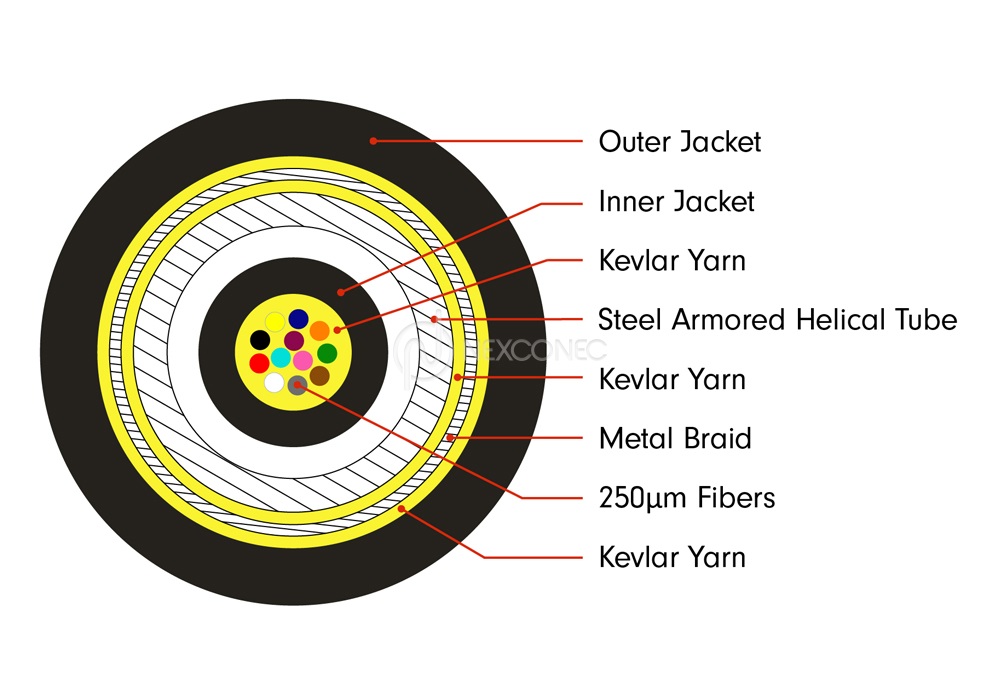

The NEXCONEC® Outdoor Flex Armored Preterms are made of single loose tube, which consists of 12 (250μm) optical fibers, aramid strength member in the steel armored helical tube and surrounded with metal braiding, Kevlar and PU outer jacket for high crush resistance in the outdoor applications.

These outdoor preterm assemblies are available in single-mode or multimode fiber options. It offers quick and costeffective installation for interbuilding, LAN or Campus wide network. We manufacture preterms with superior fiber/cable performance to withstand outdoor harsh environments and high-quality connectors.

PRODUCT HIGHLIGHTS
  • Standard SM and MM fiber options available
  • Available in LC, SC, FC, ST and other connector types
  • Pulling system optional
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • 900μm or 2mm ruggedized tails
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
FEATURES
  • Standard SM and MM fiber options available
  • Available in LC, SC, FC, ST and other connector types
  • Pulling system optional
  • Conforms to IEC, EIA-TIA, and Telcordia performance requirements
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • 900μm or 2mm ruggedized tails
APPLICATIONS
  • Telecommunication networks
  • LAN or Campus wide Network
  • Internal/External Application
  • Supports up to 100G applications
  • Indoor & Outdoor Jacket Material
SINGLE FERRULE CONNECTOR SPECIFICATIONS
Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB
CABLE CHARACTERISTICS
Parameters Unit Value
Fiber Count 12F
Number of Fibers per Tube 12
Number of Loose Tubes 1
Outer Jacket Diameter mm 5±0.2
Inner Jacket Diameter mm 2.0
Tail Diameter mm 900μm or 2.0mm
Tensile Strength (Long Term) N 200
Tensile Strength (Short Term) N 600
Crush Resistance (Long Term) N/100mm 500
Crush Resistance (Short Term) N/100mm 1000
Min. Bending Radius mm 10D (Static) / 20D (Dynamic)
Outer Jacket Material PU (Black)
Inner Jacket Material LSZH
Armoring Steel Armored Helical Tube
Strength Member Kevlar, Metal Braid
Storage Temperature ˚C -40 ~ +70
Operating Temperature ˚C -40 ~ +70
Installation Temperature ˚C -10 ~ +50
Compliance RoHS, REACH & SvHC
