UPX PRE-TERMINATED CASSETTE - UPXPMxx

UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx
UPXPMxx UPXPMxx UPXPMxx UPXPMxx UPXPMxx UPXPMxx UPXPMxx UPXPMxx

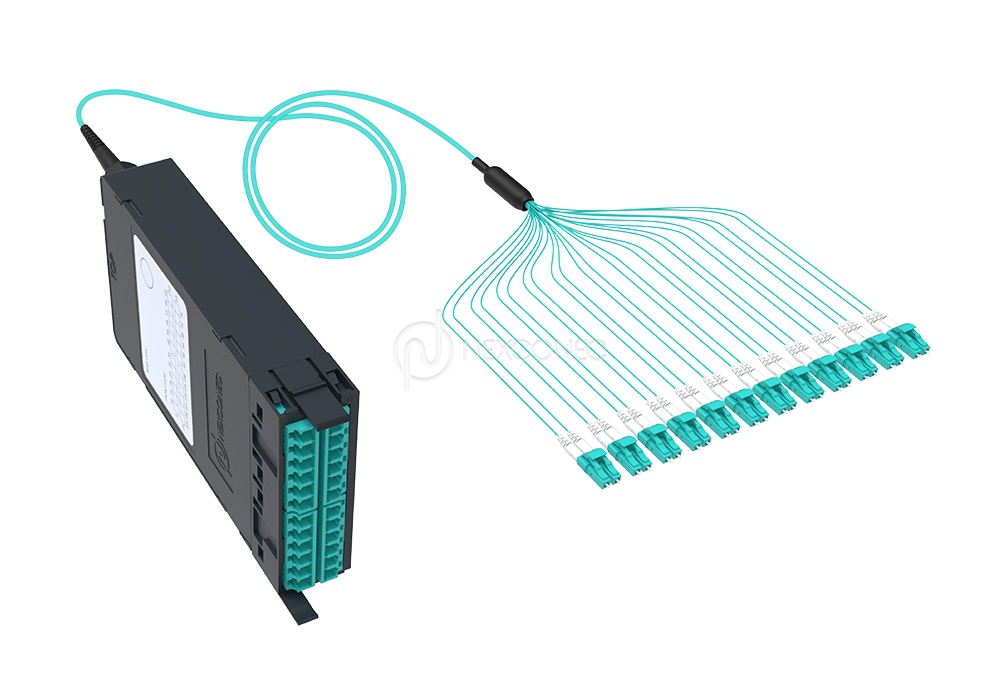

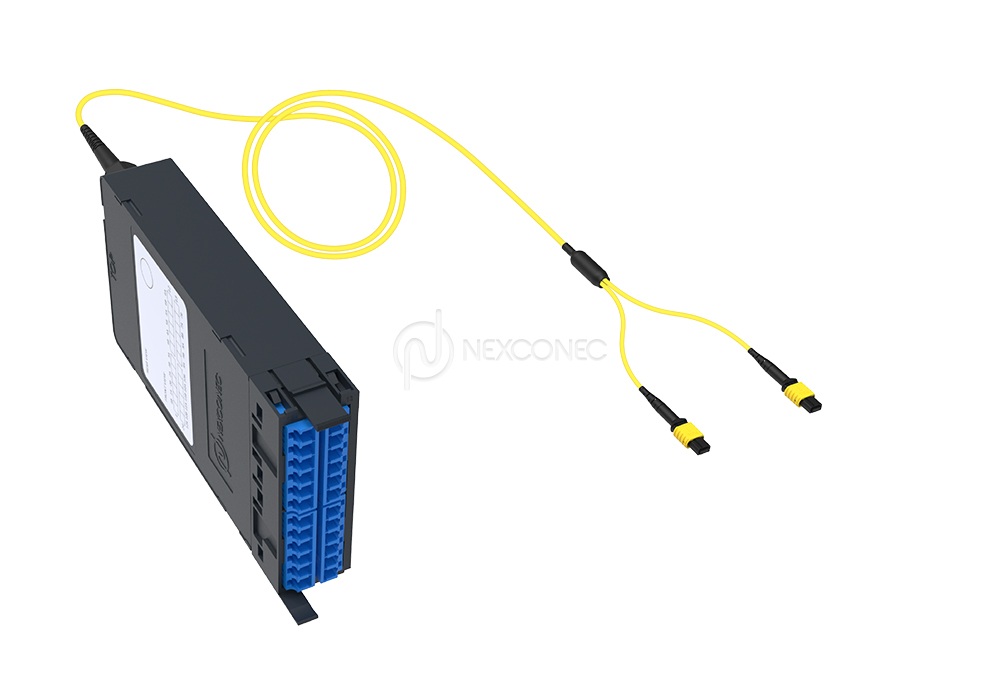

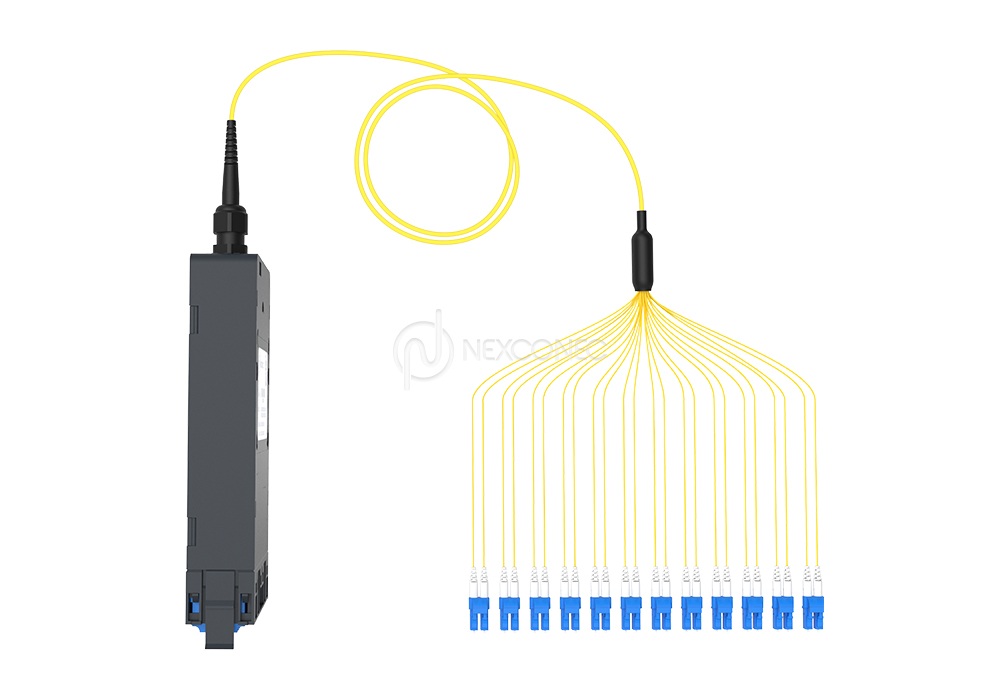

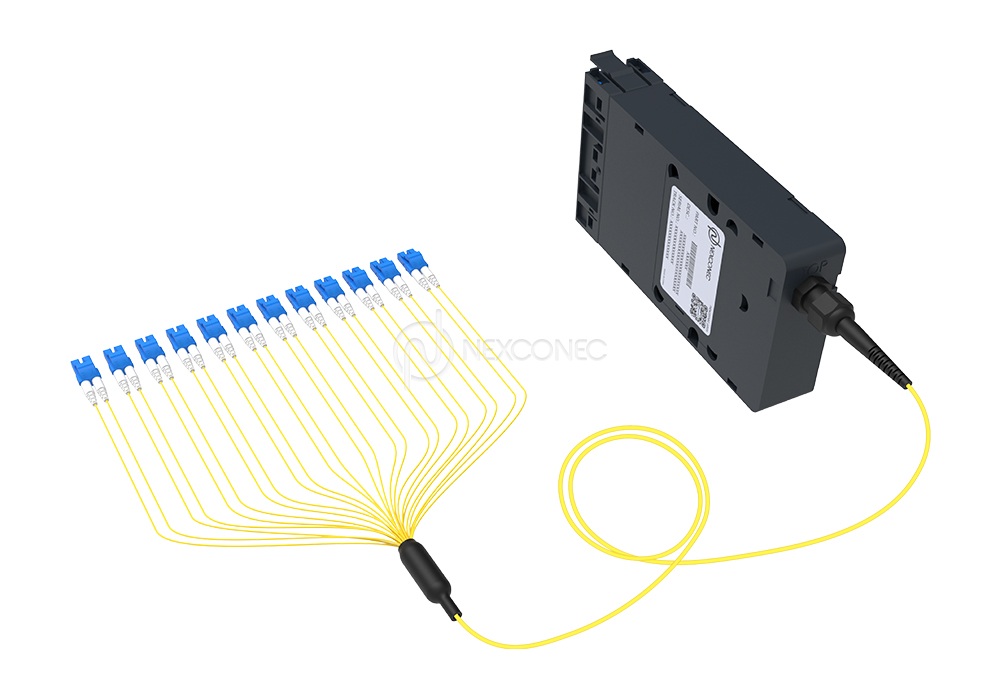

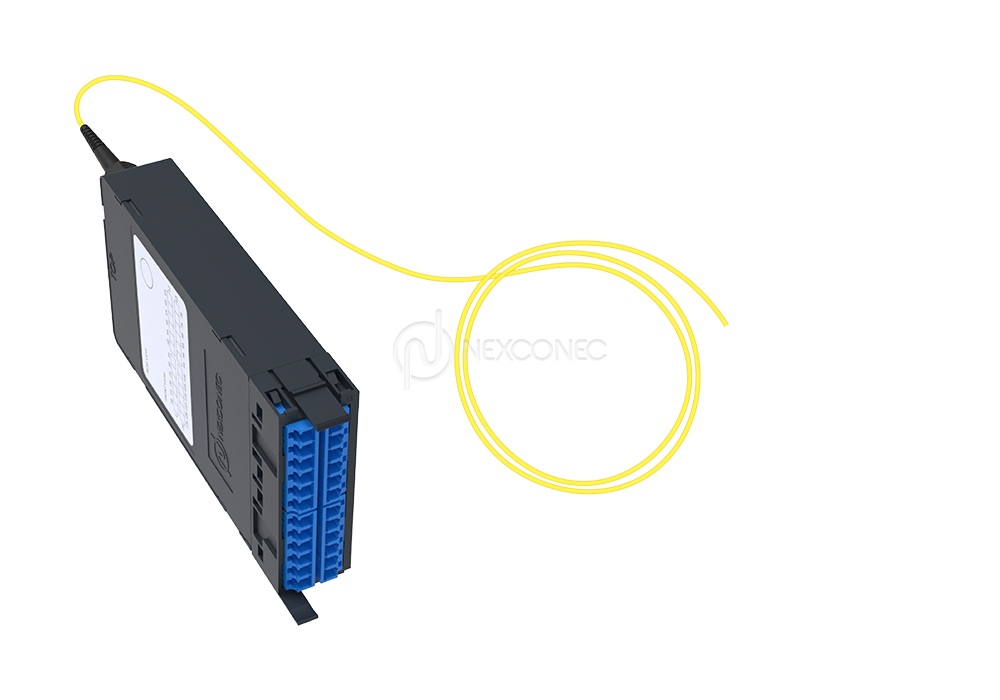

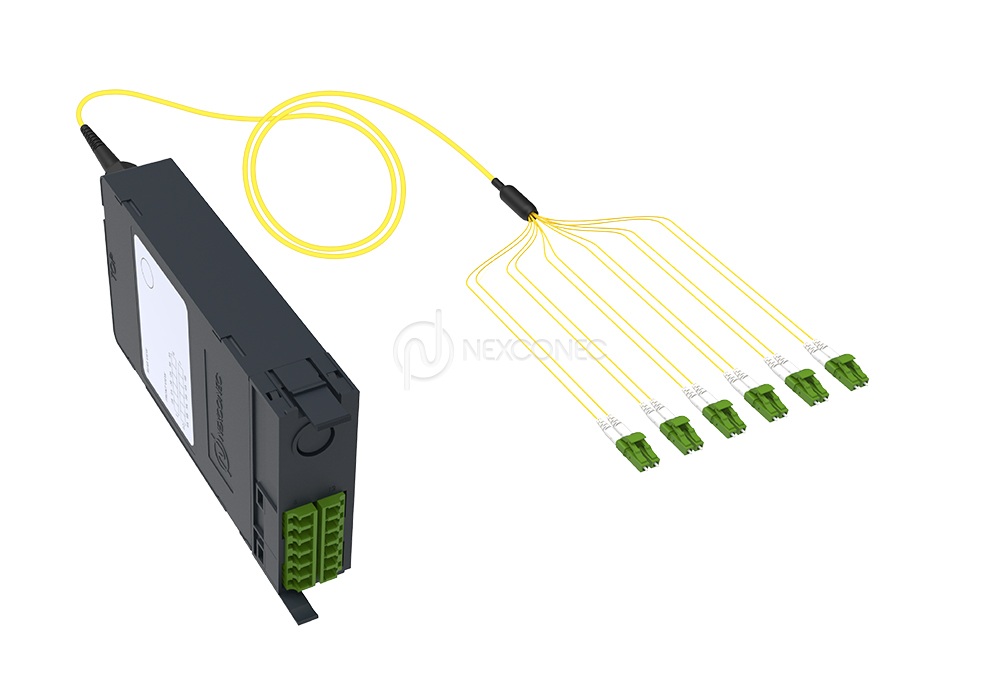

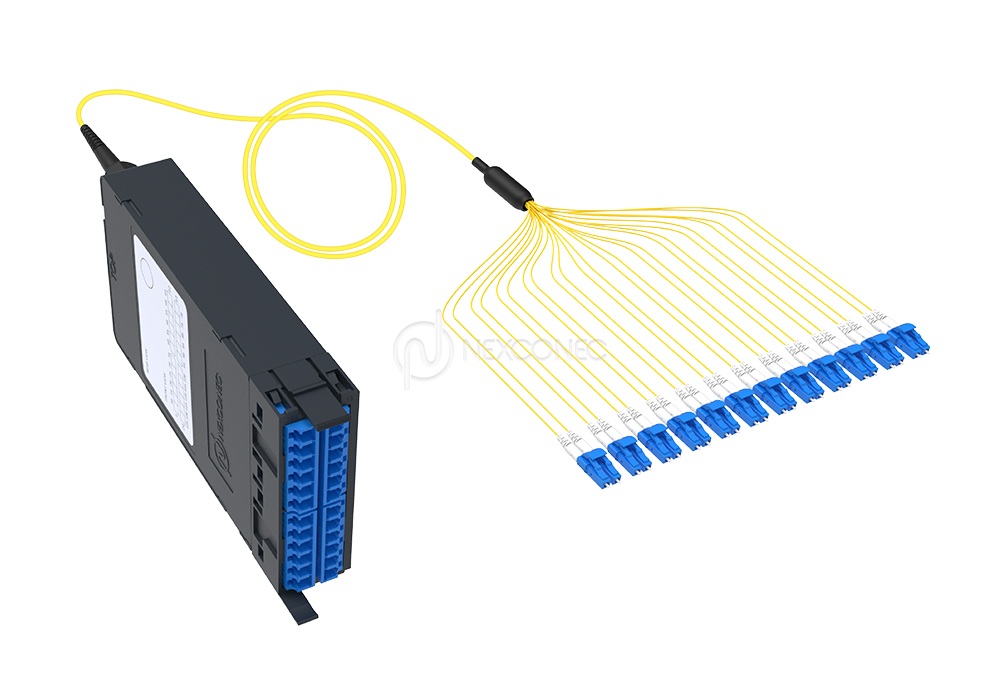

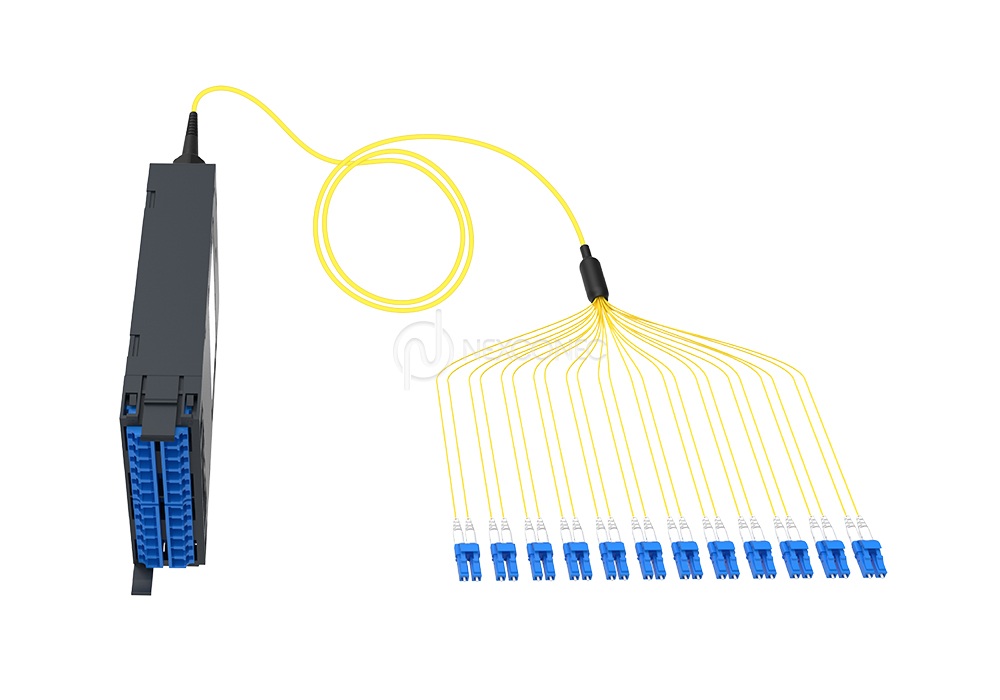

The NEXCONEC® UPX Pre-Terminated Cassette is a high-density, plug-and-play fiber solution designed to accelerate data center and enterprise network deployments. Factory-terminated with 24FO/12FO LC fanout and featuring customizable fanout tail lengths, it ensures low insertion loss and reliable signal integrity. Its modular design reduces installation time and labor costs, and with bend-insensitive fiber and compact compatibility, it’s an ideal choice for scalable, high-performance cabling environments.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • 6 Cores LC adapters
  • Available in standard Single mode and Multimode fiber options
  • Factory terminated 24FO/12FO LC fanou
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • Supports SFP, QSFP, CFP applications
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • 6 Cores LC adapters
  • Available in standard Single mode and Multimode fiber options
  • Factory terminated 24FO/12FO LC fanout
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus Wide Network
  • Broadband network
  • Supports SFP, QSFP, CFP applications
SPECIFICATIONS
Parameters Value
Footprint UPX
Dimensions (W x D x H) 87.30 x 173 x 28.90 mm
Material PC+ABS
Housing Color Grey Blue (RAL 5008)
Application UPX Panels
Fiber Capacity 24FO/12FO in LC
Adapters Ports LC Adapters (Shuttered and Non-Shuttered Ports)
Cable Entries Rear
Max. Cable Diameter to Use 8 mm
Weight 0.25 Kg
PERFORMANCE
Parameters Units SM LC MM LC
Avg/Max IL – Standard dB ≤ 0.20/0.30 ≤ 0.18/0.30
Return Loss (PC/APC) dB ≥ 60/65 NA
Avg/Max IL– Premium dB ≤ 0.12/0.15 ≤ 0.12/0.15
Return Loss (PC/APC) dB ≥ 60/65 NA
